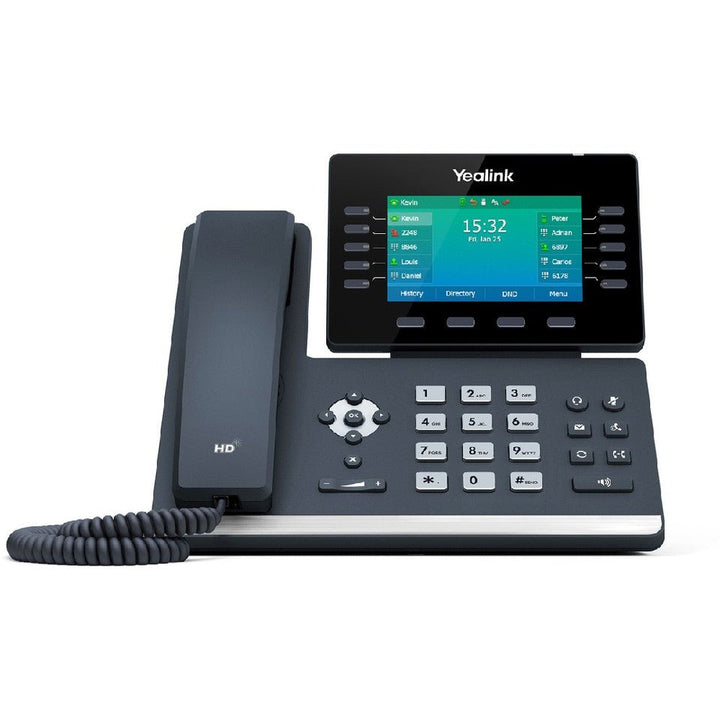

Yealink SIP-T54W IP Desktop Phone
PRODUCT DESCRIPTION
Yealink SIP-T54W IP Desktop Phone (1301081) - 2 Years Local Warranty
Yealink T54W Prime Business Phone with 4.3" Colour Display
The Yealink SIP-T54W is a prime business desk phone for busy professionals, with a 4.3-inch (480 x 272) backlit colour display with adjustable viewing angle, up to 16 VoIP accounts and 10-way conferencing. Built-in dual-band 2.4G/5G Wi-Fi (up to 433 Mbps) and Bluetooth 4.2 mean you can deploy anywhere in the office and pair headsets without dongles.
Yealink HD Voice with Acoustic Shield
Yealink HD voice on handset and speaker, a full-duplex hands-free speakerphone with acoustic echo cancellation, Acoustic Shield and Smart Noise Filtering technology keep calls clear in open-plan Singapore offices. The hearing aid compatible (HAC) handset keeps the phone accessible to every user.
10 Paperless DSS Keys and EXP50 Expansion
Ten programmable line keys with LED handle up to 27 features across 3 pages with a paperless label design — no more printed key labels. The USB 2.0 port supports USB call recording, USB headsets and up to three EXP50 colour expansion modules (up to 180 DSS keys), ideal for reception and operator positions.
One-Cable PoE Deployment
Dual-port Gigabit Ethernet with IEEE 802.3af PoE (class 3) delivers power and data over a single cable, and the phone is wall mountable. Unified T5x firmware and Yealink Device Management Platform support keep large fleets easy to provision and manage.
Yealink T54W Datasheet — Technical Specifications
| Model | Yealink SIP-T54W |
| Part Number / SKU | 1301081 |
| Product Type | 16-line colour prime business IP desk phone with Wi-Fi & Bluetooth |
| Warranty | 2 Years Local Warranty (Singapore) |
| Display | 4.3" 480 x 272-pixel colour display with backlight, 16-bit colour depth, adjustable viewing angle |
| VoIP Accounts | Up to 16 SIP accounts |
| Keys | 10 line keys with LED (up to 27 features, 3-page view), 7 feature keys, 4 soft keys; paperless label design |
| Conferencing | 10-way local conferencing |
| Audio | Yealink HD voice (HD handset + HD speaker), full-duplex speakerphone with AEC, Acoustic Shield, Smart Noise Filtering, HAC handset |
| Codecs | G.722, PCMU, PCMA, G.729, G.726, G.723.1, iLBC |
| Wi-Fi | Built-in dual-band 2.4G/5G Wi-Fi, up to 433 Mbps |
| Bluetooth | Built-in Bluetooth 4.2 (headsets, mobile contact sync) |
| USB | 1 x USB 2.0 port (USB recording, USB headsets, expansion) |
| Ethernet | Dual-port Gigabit Ethernet |
| PoE | IEEE 802.3af, class 3 |
| Expansion | Up to 3 x Yealink EXP50 expansion modules (up to 180 paperless DSS keys) |
| Power Consumption | PSU: 1.7–4.3 W; PoE: 2.2–5.5 W |
| Dimensions (W x D x H) | 233 mm x 222.6 mm x 186.1 mm |
| Mounting | Desk stand; wall mountable |
Compatibility & Software Support
The T54W is a standards-based SIP phone compatible with leading IP-PBX and hosted voice platforms in Singapore — Yeastar, 3CX, Asterisk-based systems and major SIP trunk providers. Unified T53/T53W/T54W/T57W firmware, auto-provisioning and Yealink Device Management Platform (YDMP/YMCS) support simplify fleet rollouts. USB and Bluetooth headsets connect without an EHS adapter; EHS wireless headsets use the EHS40. The optional PSU is the Yealink power supply for T46U/T48U/T54W/T57W.
Package Contents & T5x Series Ordering Information
In the box: SIP-T54W IP phone, handset with handset cord, Ethernet cable, stand, quick start guide. Power adapter optional (PoE supported).
| Yealink T53 | SKU 1301086 — 3.7" LCD, 12 accounts |
| Yealink T53W | SKU 1301087 — 3.7" LCD, built-in wireless |
| Yealink T54W | SKU 1301081 — 4.3" colour display (this model) |
| Yealink T57W | SKU 1301089 — 7" touch screen |
| Yealink T58W Pro | SKU 1301112 — 7" Android smart phone |
| Yealink EXP50 | Colour expansion module (up to 3 supported) |
| Yealink PSU | Optional power supply for T54W/T57W |
Datasheet & Downloads
Frequently Asked Questions — Yealink T54W
What is the difference between the Yealink T54W and T53W?
The T54W has a 4.3" colour display, 16 VoIP accounts, 10 line keys and PoE class 3; the T53W has a 3.7" mono LCD, 12 accounts and 8 line keys. Both have built-in Wi-Fi and Bluetooth 4.2.
How does the T54W compare with the T57W?
The T57W upgrades to a 7" capacitive touch screen with 29 one-touch DSS keys — better for receptionists and heavy users; the T54W keeps physical line keys at a lower price.
Does the T54W support Wi-Fi?
Yes — built-in dual-band 2.4G/5G Wi-Fi up to 433 Mbps, so it can run entirely wireless where LAN points are limited.
How many expansion module keys can I add?
Up to three EXP50 colour expansion modules for up to 180 paperless DSS keys — ideal for operators and reception desks.
Which headsets work with the T54W?
Bluetooth headsets pair directly, USB headsets plug into the USB port, RJ9 QD headsets like the Yealink YHS34 are supported, and EHS wireless headsets connect via the EHS40 adapter (no EHS36 needed for USB/Bluetooth).
Does the Yealink T54W come with local warranty in Singapore?
Yes. Every T54W sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
