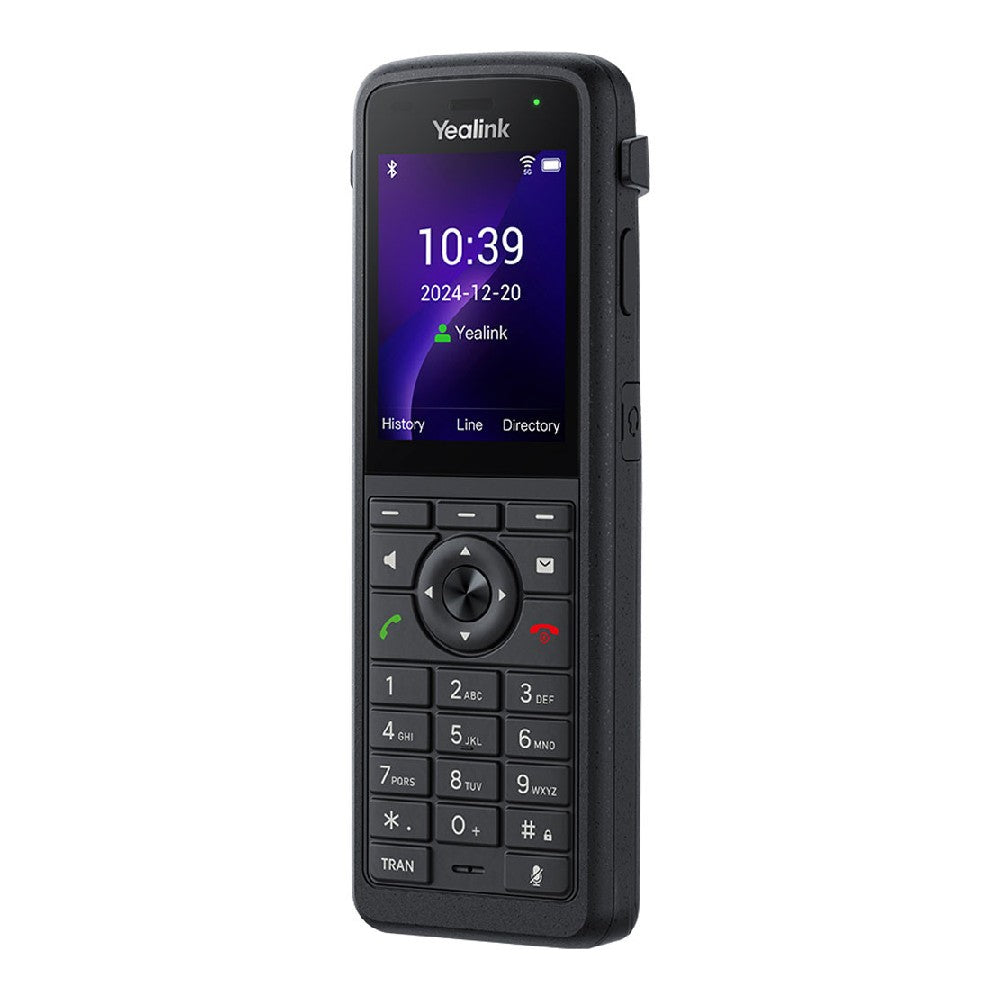

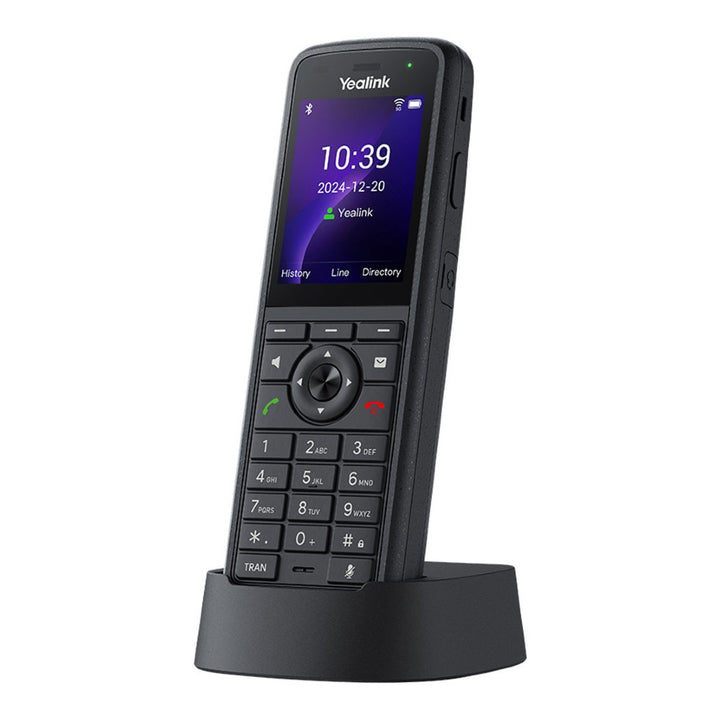

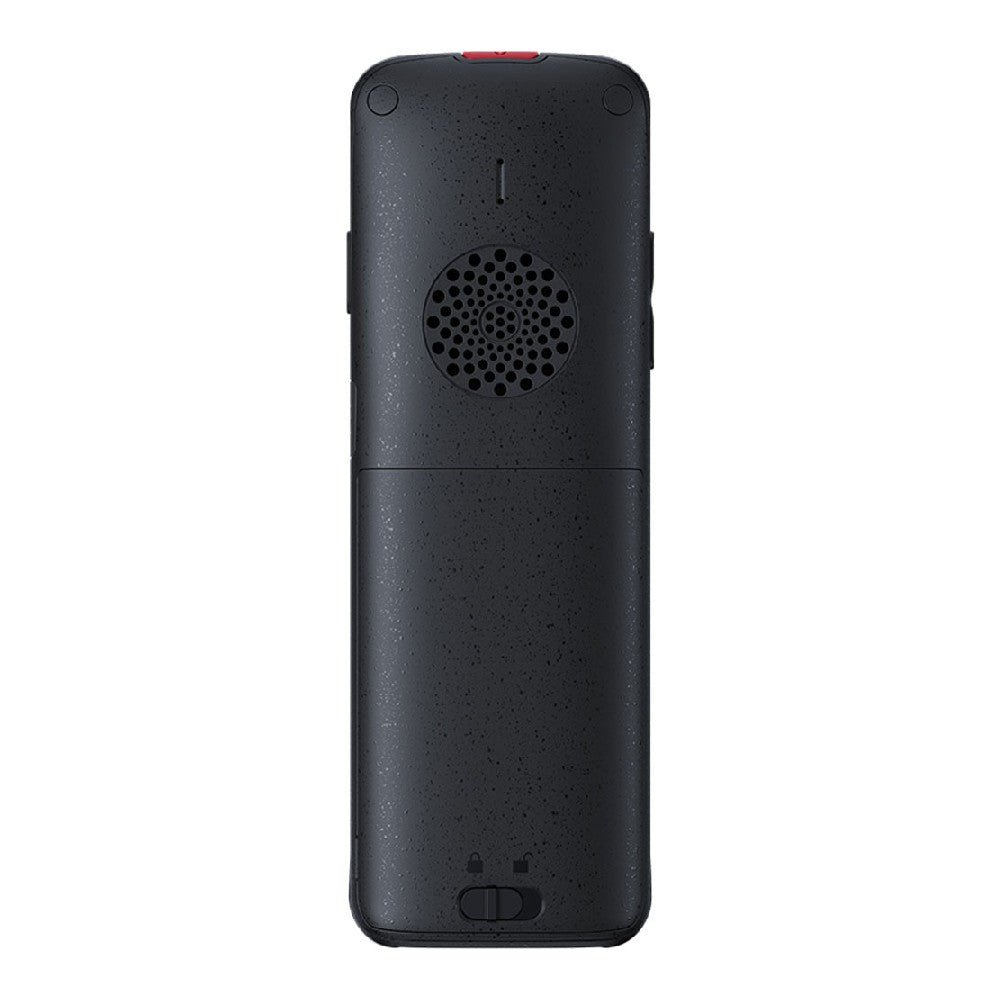

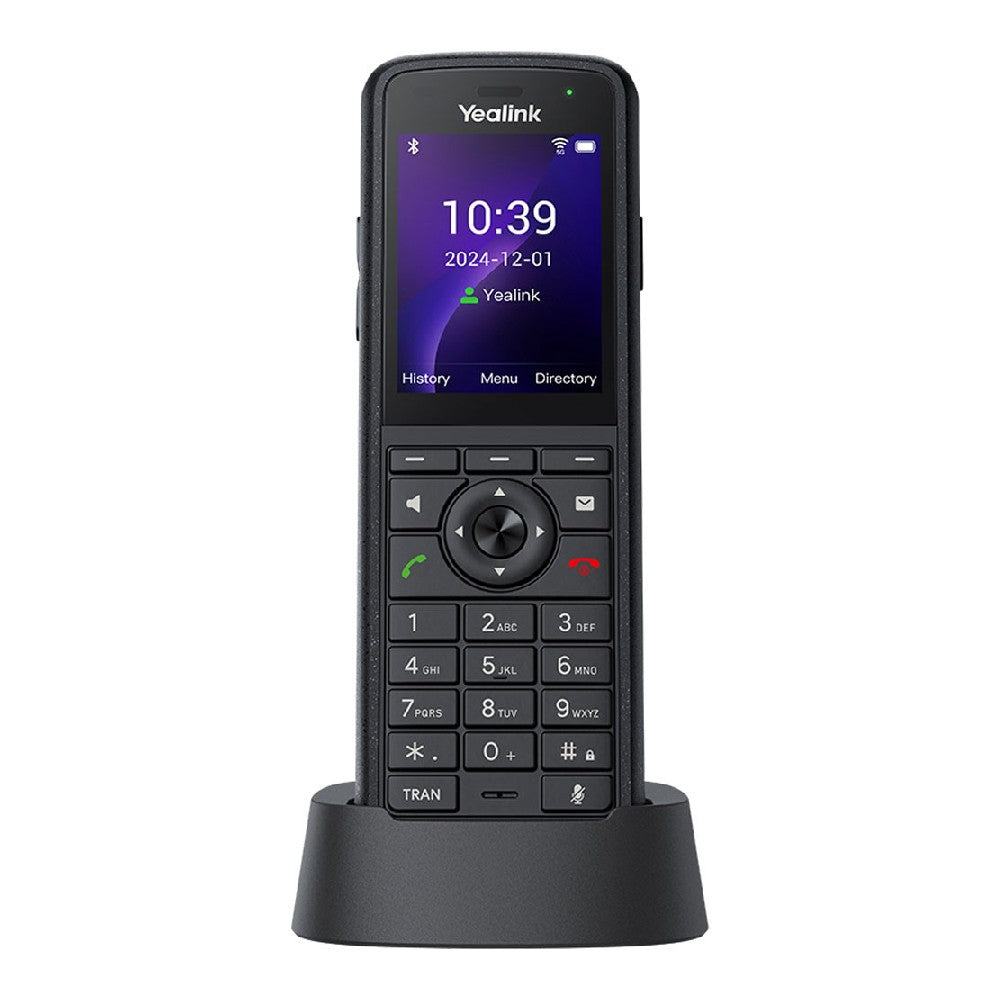

Yealink AX86R Ruggedized Wi-Fi Handset
PRODUCT DESCRIPTION
Yealink AX86R Ruggedized IP67 Wi-Fi 6 SIP Handset with Emergency Alarms (AX86R) - 1 Year Local Warranty
Built for Tough Workplaces
The Yealink AX86R is a ruggedized Wi-Fi handset for warehouses, factories, hospitals and hospitality: IP67 dust and water protection and a 1.8 m safe drop height keep it working where ordinary handsets fail.
Lone-Worker Safety and Push-to-Talk
A red emergency button, no-movement, man-down and running alarms help protect staff working alone, while Push-to-Talk lets teams talk instantly without dialling.
Clear Calls in Noisy Environments
Yealink HD Voice with AI Noise Cancellation, Acoustic Shield and Smart Noise Filtering keeps speech clear over machinery and crowds, with full-duplex handsfree and HAC support.
Wi-Fi 6 with Long Battery Life
Dual-band Wi-Fi 6 with 802.11k/r/v roaming, WPA3-Enterprise security and a 3100 mAh battery for up to 13 hours of talk and 300 hours of standby (laboratory data).
Yealink AX86R Datasheet — Technical Specifications
| Model | Yealink AX86R |
| Part Number / SKU | AX86R |
| Product Type | Ruggedized Wi-Fi SIP handset |
| Warranty | 1 Year Local Warranty (Singapore) |
| Display | 2.4" 240 x 320 TFT colour screen |
| VoIP Accounts | Up to 4 SIP accounts |
| Keys | 3 soft keys; 6 function keys (dial, hang up, handsfree, voice message, mute, call transfer); red emergency button; Push-to-Talk key |
| Conferencing | Local 5-way conferencing |
| Audio | HD Voice, AI Noise Cancellation, Acoustic Shield, full-duplex handsfree, Smart Noise Filtering, HAC |
| Codecs | G.722, PCMU (G.711μ), PCMA (G.711A), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC |
| Ruggedness | IP67; safe drop height 1.8 m |
| Safety Alarms | Emergency push-button, no-movement, man-down and running alarms |
| Wi-Fi | Dual-band 2.4G & 5G, IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6); 802.11k/r/v |
| Bluetooth | Bluetooth 5.0 |
| Ports | 1 x 3.5 mm headset jack; USB Type-C |
| Battery | 3100 mAh rechargeable Li-ion, 3.7 V, 11.47 Wh |
| Talk / Standby Time | Up to 13 h talk; up to 300 h standby (laboratory data) |
| Power Adapter | AC 100–240 V input, DC 5 V / 2 A output |
| Security | WPA3-Enterprise |
| Dimensions | 160.1 x 55.3 x 25.85 mm |
| Weight | 218 g |
| Operating Temperature | 0 to 40 °C |
Compatibility & Software Support
The AX86R registers directly to SIP platforms and IP-PBXs such as Yeastar, 3CX, Asterisk-based systems and SIP trunk providers in Singapore, and supports Microsoft SIP Gateway for basic Microsoft Teams calling. A 2.4 GHz or 5 GHz Wi-Fi network is required; access points supporting 802.11k/r/v give the best roaming. Handsets can be managed with Yealink Management Cloud Service (YMCS).
Package Contents & Yealink AX Wi-Fi Handset Ordering Information
In the box: Yealink AX86R handset, charger cradle, rechargeable battery, belt clip, power adapter, quick start guide. USB Type-C cable not included.
| Yealink AX83H | Business Wi-Fi 6 SIP handset |
| Yealink AX86R | Ruggedized IP67 Wi-Fi 6 SIP handset with emergency alarms (this model) |
Datasheet & Downloads
Frequently Asked Questions — Yealink AX86R
Is the AX86R waterproof?
It is rated IP67 against dust and water and has a 1.8 m safe drop height.
Does the AX86R need a DECT base station?
No. It is a Wi-Fi handset that connects to your wireless network and registers directly to your SIP server.
What safety features does it have?
A red emergency button plus no-movement, man-down and running alarms, and a Push-to-Talk key for instant team communication.
What is the difference between the AX83H and AX86R?
The AX86R adds IP67 ruggedness, a 1.8 m drop rating, safety alarms, Push-to-Talk, AI noise cancellation and a larger 3100 mAh battery (up to 13 h talk vs 9 h on the AX83H).
Does the Yealink AX86R come with local warranty in Singapore?
Yes. Every AX86R sold by SourceIT comes with 1 year local Singapore warranty and a GST invoice.
Product Video
Official Yealink AX86R video (Yealink YouTube channel).
