Vertiv Liebert MicroPOD 10A Maintenance Bypass & Output Distribution for GXT5 750VA-1.5kVA, 8x C13
PRODUCT DESCRIPTION
Vertiv Liebert MicroPOD 10A Maintenance Bypass & Output Distribution, 8x C13 Outlets (MP2-210K) - 2 Years Local Warranty
Service or Swap Your UPS Without Dropping the Load
The Vertiv™ Liebert® MicroPOD MP2-210K is a wrap-around maintenance bypass for single-phase micro-UPS systems. The utility and the UPS both plug into the MicroPOD, and your protected equipment plugs into the MicroPOD’s own outlets. Turn the rotary switch to MAINS and the load is fed from utility power while the UPS is serviced, has its batteries replaced, or is swapped out entirely — with no power interruption. Turn it back and the load is protected by the UPS again.
Vertiv specifies a transfer time of less than 6 ms to and from maintenance bypass.
Power Output Distribution Built In

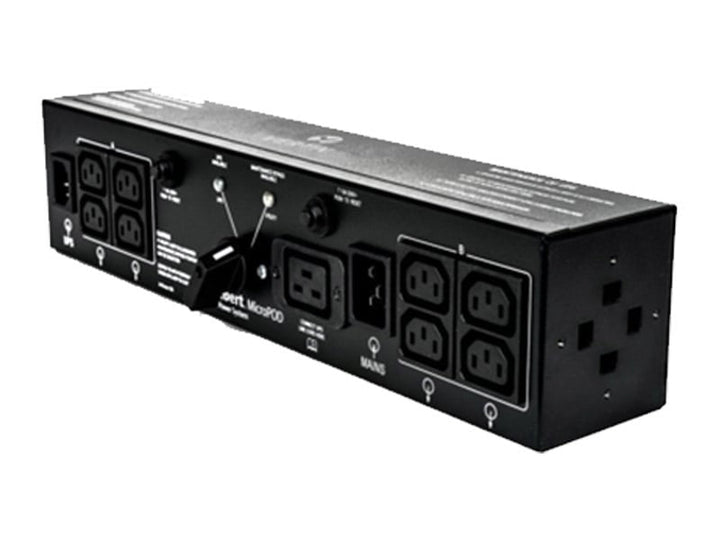

Because all connected devices plug into the MicroPOD, it doubles as a power output distribution (POD) unit. This model provides 8 x C13 outlets in two groups of four, each group protected by its own 10 A circuit breaker — handy when your UPS outlets are all used up.
Simple, Compact, Complete Bundle

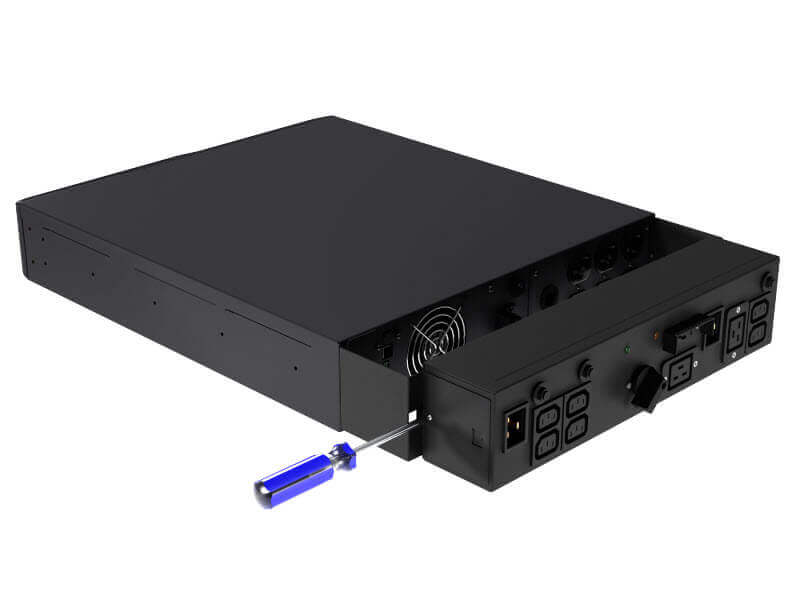

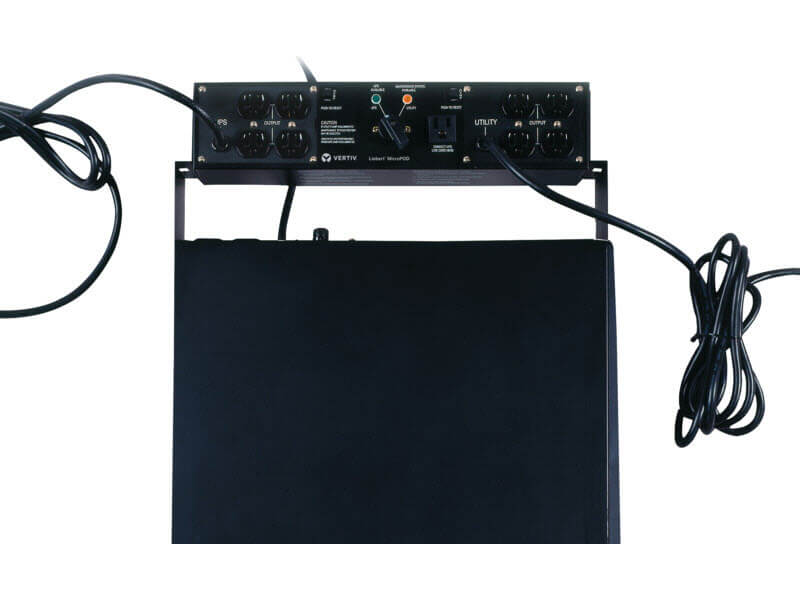

A rotary switch and LED indicators make the unit simple to operate: the amber MAINS lamp confirms utility power is available before you switch. At only 2U high (394 x 77 x 88 mm, 2.0 kg) it can be fixed to the rear of the UPS with the supplied brackets or rack-mounted in a 19-inch enclosure, and the cords to the UPS input and output are factory supplied.
Matched to Your UPS
This model is for UPS output ratings of 1000 W / 1000 VA and 1500 W / 1500 VA, taking utility power on an EN60320/C14 inlet and connecting to the UPS via an EN60320/C13 (to UPS input) and EN60320/C14 (from UPS output). Vertiv’s Liebert GXT5 brochure pairs the MP2-210K with the GXT5-750IRT2UXL, GXT5-1000IRT2UXL and GXT5-1500IRT2UXL.
Supplied in Singapore by SourceIT
SourceIT supplies the Liebert MicroPOD with a GST invoice and local support, with a 2-year warranty per the Singapore distributor price book. Email sales@sourceit.com.sg with your UPS model and we will confirm the right MicroPOD.
Vertiv Liebert MicroPOD MP2-210K Datasheet — Technical Specifications
General
| Model | MP2-210K |
| Vertiv Part Number | MP2-210K |
| Series | Vertiv Liebert MicroPOD maintenance bypass for micro-UPS (230 V) |
| Function | Manual wrap-around maintenance bypass + power output distribution (POD) |
| Form Factor | 2U; rear-of-UPS brackets or 19-inch rack mounting |
| Manufacturer Warranty | 2 years (Singapore distributor price book) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, with GST invoice |
Electrical
| UPS Output Rating Applications | 1000 W / 1000 VA; 1500 W / 1500 VA |
| AC Input (utility) | EN60320/C14 receptacle |
| Connection to UPS Input | EN60320/C13 receptacle |
| Connection to UPS Output | EN60320/C14 receptacle |
| Output Receptacles / Protection | (4) EN60320/C13 with 10 A circuit breaker (4) EN60320/C13 with 10 A circuit breaker |
| Total Outlets | 8 x C13 |
| Transfer Time (to and from maintenance bypass) | < 6 ms |
| Controls & Indicators | Rotary switch (UPS / MAINS), LED indicators |
Physical & Environmental
| Unit Dimensions (W x D x H) | 394 x 77 x 88 mm |
| Shipping Dimensions (W x D x H) | 470 x 210 x 165 mm |
| Unit Weight | 2.0 kg |
| Operating Temperature | 0 – 40 °C |
| Storage Temperature | -20 to +60 °C |
| Humidity | 0 – 95%, non-condensing |
Compliance
| Agency / Standards | CE, ISTA Procedure 1A (Asia brochure); user guide lists UL 1778, c-UL, ISTA Procedure 1A |
Compatibility & Software Support
Compatible UPS
Vertiv’s Liebert GXT5 brochure specifies the MP2-210K for these SourceIT-stocked models: GXT5-750IRT2UXL, GXT5-1000IRT2UXL, GXT5-1500IRT2UXL. The MicroPOD user guide rates it for UPS outputs of 1000 W / 1000 VA and 1500 W / 1500 VA with a C14 inlet — matching the C14-input GXT5 750 VA to 1.5 kVA. (The GXT5-2000IRT2UXL pairs with the MP2-220K instead.)
How It Connects
Utility power goes into the MicroPOD EN60320/C14 inlet (MAINS). The MicroPOD feeds the UPS input from its EN60320/C13 and takes the UPS output back through its EN60320/C14; the UPS input and output cords are factory provided. Protected equipment then plugs into the MicroPOD outlets.
Using the Bypass
Check that the amber MAINS lamp is lit, turn the rotary switch from UPS to MAINS, then power down and disconnect the UPS. While in MAINS position the load is on raw utility power, not conditioned by the UPS. Reverse the steps to return to UPS protection. The MAINS input must be protected by a branch-rated circuit breaker and the unit must always be earthed.
Package Contents & Liebert MicroPOD Ordering Information
In the Box
Liebert MicroPOD unit, UPS input cord (3 m) and UPS output cord (1.8 m) as factory provided, two securing brackets for mounting to the rear of the UPS, rack-mount brackets, and user documentation.
Vertiv Liebert MicroPOD (230 V) — Ordering Information
| Model | Part No. | UPS Rating | Outlets | AC Input |
| MP2-210K (this listing) | MP2-210K | 1000 W / 1000 VA; 1500 W / 1500 VA | 8 x C13 | EN60320/C14 |
| MP2-220L | MP2-220L | 2700 W / 3000 VA | 6 x C13 + 1 x C19 | EN60320/C20 |
| PD5-20AC20 | 02312833 | 3000 W / 3000 VA | 6 x C13 + 1 x C19 | EN60320/C20 |
Vertiv also lists the MP2-220K (1800 W / 2000 VA and 2000 W / 2000 VA, C20 input) for the GXT5-2000IRT2UXL — ask us for a quote.
Datasheet & Downloads
| Vertiv brochure (Asia) | Liebert MicroPOD Brochure — Asia (PDF) |
| Vertiv user guide (230 V) | Liebert MicroPOD 230 V Installer/User Guide (PDF) |
| Vertiv GXT5 brochure (MicroPOD pairing) | Liebert GXT5 750 VA – 20 kVA Brochure — Asia-Pacific (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MP2-210K.
Frequently Asked Questions — Vertiv Liebert MicroPOD MP2-210K
What is a maintenance bypass for?
It lets you take the UPS out of circuit — for battery replacement, service or a full swap — while the connected equipment keeps running on utility power. Without one, replacing a plug-in UPS means shutting everything down.
Is the load interrupted when I switch?
No. Vertiv specifies a transfer time of less than 6 ms to and from maintenance bypass.
Which UPS does this suit?
Vertiv’s Liebert GXT5 brochure specifies the MP2-210K for these SourceIT-stocked models: GXT5-750IRT2UXL, GXT5-1000IRT2UXL, GXT5-1500IRT2UXL.
How many outlets does it add?
The MP2-210K has 8 x C13 outlets, with circuit-breaker protection per group.
Can it be rack-mounted?
Yes. It is 2U high and ships with brackets to fix it to the rear of the UPS or mount it in a 19-inch rack.
What warranty do I get?
2 years, per the Singapore distributor price book, supplied by SourceIT with a GST invoice.
