Vertiv Liebert PSA itON 650VA/390W 230V Line-Interactive AVR UPS with 3 Universal Sockets
PRODUCT DESCRIPTION
Vertiv Liebert PSA itON 650 VA / 390 W 230V Line-Interactive UPS (PSA650-SOHO) - 2 Years Local Warranty
Compact Line-Interactive Protection for Desks and Small Offices
The Vertiv™ Liebert® PSA itON PSA650-SOHO is a 650 VA / 390 W line-interactive UPS for desktop PCs, professional workstations, laptops, printers, point-of-sale terminals and small routers, bridges and hubs — the applications Vertiv lists for the itON-SOHO range.
When mains fails it switches to battery in typically 2–6 ms (10 ms maximum) and supplies a simulated sine wave at nominal voltage ±10%, giving you time to save work and shut down cleanly.
Built-in Boost and Buck AVR
The input window is 162–290 VAC. Within it, the built-in boost and buck automatic voltage regulation corrects high and low voltage without using valuable battery power, so brown-outs and swells do not drain the battery. The UPS auto-restarts when AC power returns, and a cold-start function lets you switch it on from battery during an outage.
Universal Sockets with Room for Large Plugs
Output is on 3 universal sockets, spaced to leave room for large power plugs and adapters, so mixed equipment can plug in without extra adapters in most cases. A USB charging port (5.0 V / 1.0 A) can top up a phone or other USB-powered device. Fuse protection and discharge, overload and overcharge protection are built in.
Simple Status at a Glance

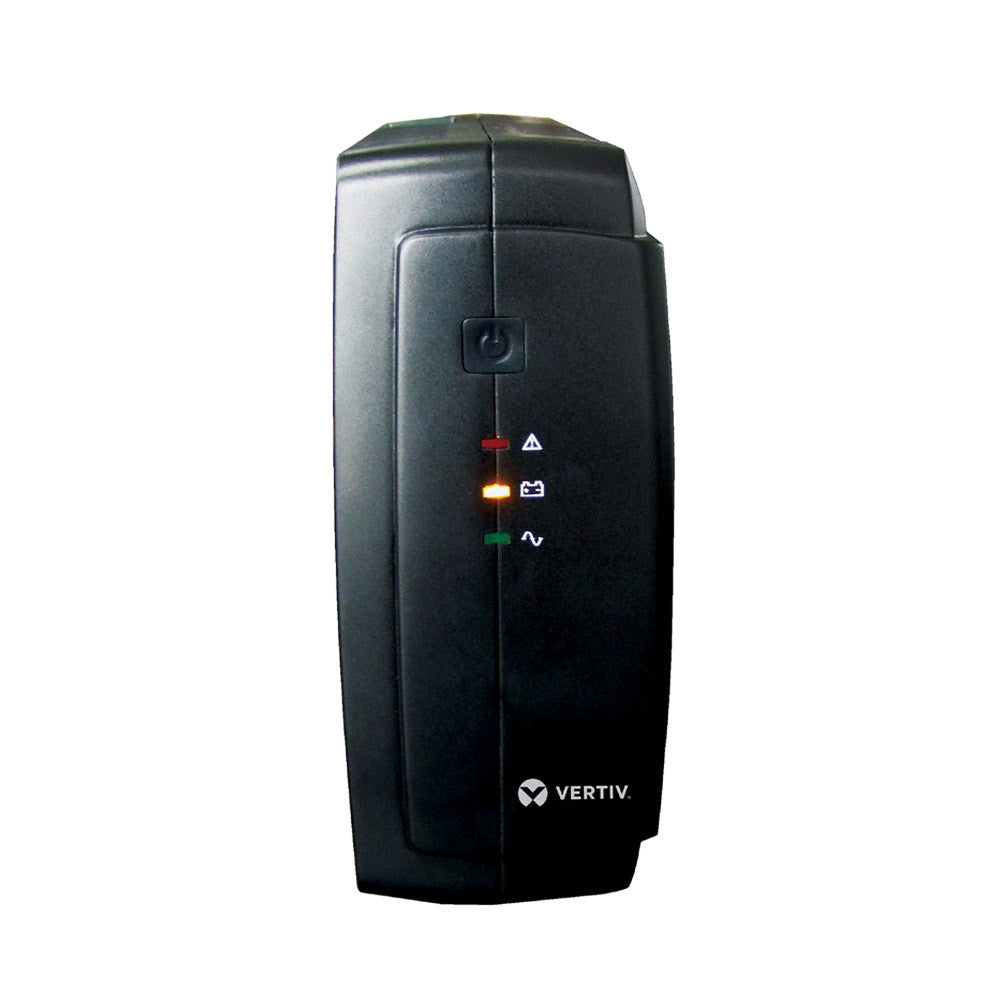

Three front LEDs show normal mode (green), battery mode (yellow) and fault or low battery (red), with an audible alarm every 10 seconds on battery, every second at low battery, every 0.5 second on overload and continuously on a fault. Vertiv rates it at less than 40 dB at 1 metre.
Supplied in Singapore by SourceIT
SourceIT supplies the PSA itON PSA650-SOHO with a GST invoice and local support. Vertiv’s standard warranty for 600 VA–10 kVA UPS in South-East Asia is 2 years, matching the Singapore distributor price book. The distributor lists a minimum order quantity for this model, so SourceIT will confirm availability and MOQ when you enquire — email sales@sourceit.com.sg.
Vertiv Liebert PSA650-SOHO Datasheet — Technical Specifications
General
| Model | PSA650-SOHO |
| Vertiv Part Number | PSA650-SOHO |
| Series | Vertiv Liebert PSA itON-SOHO (650–1000 VA, 230 V) |
| Topology | Line-interactive with boost and buck AVR |
| Manufacturer Warranty | 2 years (Vertiv SEAP standard warranty, 600 VA–10 kVA) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, with GST invoice |
Input & Output
| Capacity | 650 VA / 390 W |
| Input Voltage Range | 162–290 VAC, single-phase |
| Input Frequency | 50 Hz / 60 Hz automatic identification |
| Output Voltage (Battery Mode) | Simulated sine wave at nominal voltage ±10% |
| Output Frequency (Battery Mode) | 50 Hz / 60 Hz automatic identification |
| Transfer Time | Typical 2–6 ms, 10 ms max |
| Output Sockets | 3 x Universal |
| USB Charging Port | Yes (5.0 V / 1.0 A) |
Battery & Runtime (Vertiv published)
| Battery | 12 V / 7 Ah x 1 (2.0 kg) |
| Typical Recharge Time | 4 hours to 90% (about 1 A charging current in normal mode) |
| Runtime at 25% Load | 15 min |
| Runtime at 50% Load | 4 min |
Protection & Indicators
| Protection | Discharge, overload and overcharge protection; fuse protection |
| Indicators | LED: green (normal), yellow (battery), red (fault / low battery) |
| Audible Alarms | Battery mode every 10 s; low battery every 1 s; overload every 0.5 s; fault continuous |
| Other | Cold start; auto restart when AC recovers |
Physical & Environmental
| Dimensions (D x W x H) | 85 x 272 x 201 mm |
| Net Weight | 4.4 kg |
| Gross Weight | 5 kg |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–90%, non-condensing |
| Audible Noise | Less than 40 dB (1 m from surface) |
Compatibility & Software Support
What It Is Suited To
A desktop PC or workstation with monitor, a small home-office router and modem, or a POS terminal. Keep the total continuous load under 390 W; runtime is short (Vertiv publishes 15 min at 25% load and 4 min at 50% load), so the UPS is intended to ride through brief outages and allow a safe shutdown.
Plugs
The 3 universal sockets are designed to accept a range of plug types, with space for large plugs. If you are unsure about a particular plug, ask us before ordering.
Monitoring and Software
Vertiv does not publish a communication port or shutdown software for the itON-SOHO. The USB port on this model is for charging only. If you need USB/serial monitoring and automatic shutdown, look at the Vertiv Liebert GXE3 range — ask us.
Package Contents & PSA itON-SOHO Ordering Information
In the Box
PSA itON UPS with internal battery, 1 x power cable (per the Vertiv user manual), and user documentation.
Vertiv Liebert PSA itON-SOHO — Ordering Information
| PSA650-SOHO (this listing) | 650 VA / 390 W | 3 x Universal | PSA650-SOHO |
| PSA850-SOHO | 850 VA / 510 W | 3 x Universal | 01202770 |
| PSA1000-SOHO | 1000 VA / 600 W | 6 x Universal | 01202771 |
Availability: the Singapore distributor lists a minimum order quantity for the PSA itON-SOHO range. SourceIT will confirm stock availability and MOQ for your order — email sales@sourceit.com.sg.
Datasheet & Downloads
| Vertiv datasheet (Asia) | Liebert PSA itON-SOHO 650–1000 VA Datasheet — Asia (PDF) |
| Vertiv user manual | Liebert PSA itON-SOHO User Manual (PDF) |
| Vertiv warranty | Vertiv 2-Year Limited Standard Warranty — 600 VA–10 kVA, SEAP (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PSA650-SOHO.
Frequently Asked Questions — Vertiv Liebert PSA650-SOHO
Is this an online UPS?
No. It is a line-interactive UPS with boost and buck AVR. It transfers to battery in typically 2–6 ms (10 ms max) and outputs a simulated sine wave on battery.
How long will it run on battery?
Vertiv publishes 15 min at 25% load and 4 min at 50% load. Real runtime depends on load, battery age and temperature.
What kind of sockets does it have?
3 universal sockets with space for large plugs, per Vertiv’s datasheet. If you are unsure about a particular plug, ask us.
Does it have a USB port?
Yes, a 5.0 V / 1.0 A USB charging port. It is for charging devices, not for UPS monitoring.
Can I replace the battery?
Vertiv specifies the battery as 12 V / 7 Ah x 1. Contact SourceIT for a replacement and fitting advice.
What warranty do I get?
2 years under Vertiv’s South-East Asia standard warranty for 600 VA–10 kVA UPS, supplied by SourceIT with a GST invoice.
