TP-Link Tapo C840 Dual-Lens Pan/Tilt Smart AI Baby Monitor
PRODUCT DESCRIPTION
TP-Link Pan/Tilt Smart AI Baby Monitor (Tapo C840) - 3 Years Local Warranty

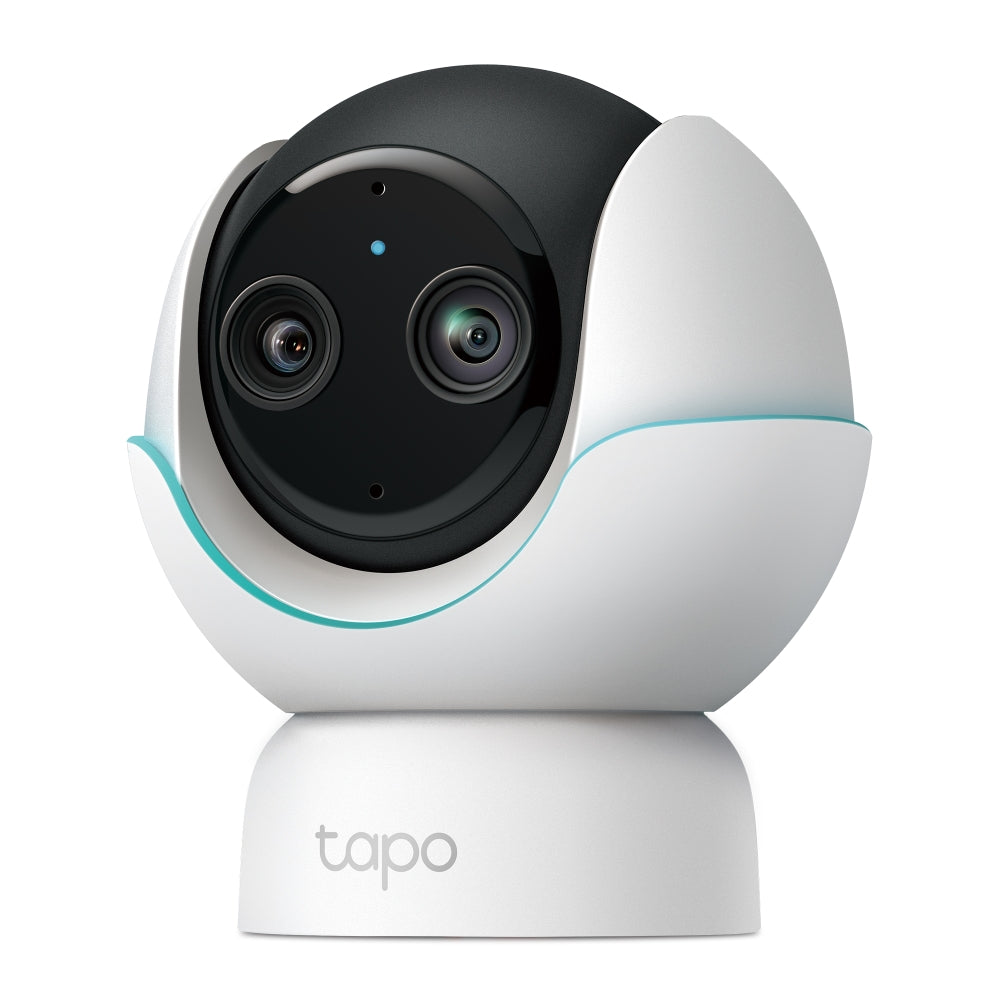

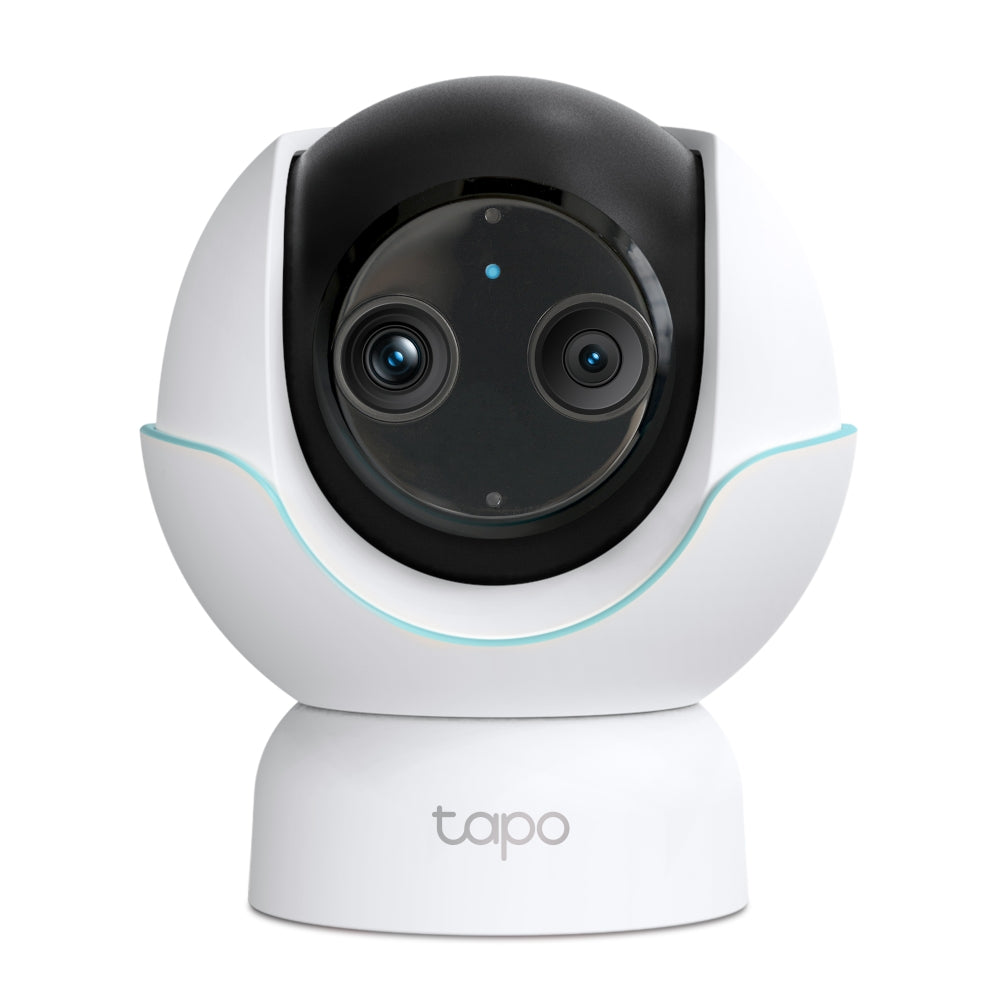

The Tapo C840 is a pan/tilt baby monitor with two lenses: a 2K 4MP wide-angle lens (2560 x 1440) that covers the nursery and a 1080p zoom lens (1920 x 1080) for a closer view of the cot. On-device AI handles baby-cry, sleep, covered-face, safety-fence and baby-leave detection, and the box includes a Tapo S135B Bluetooth button, a gooseneck clamp mount and a 3 m USB-C power cord.

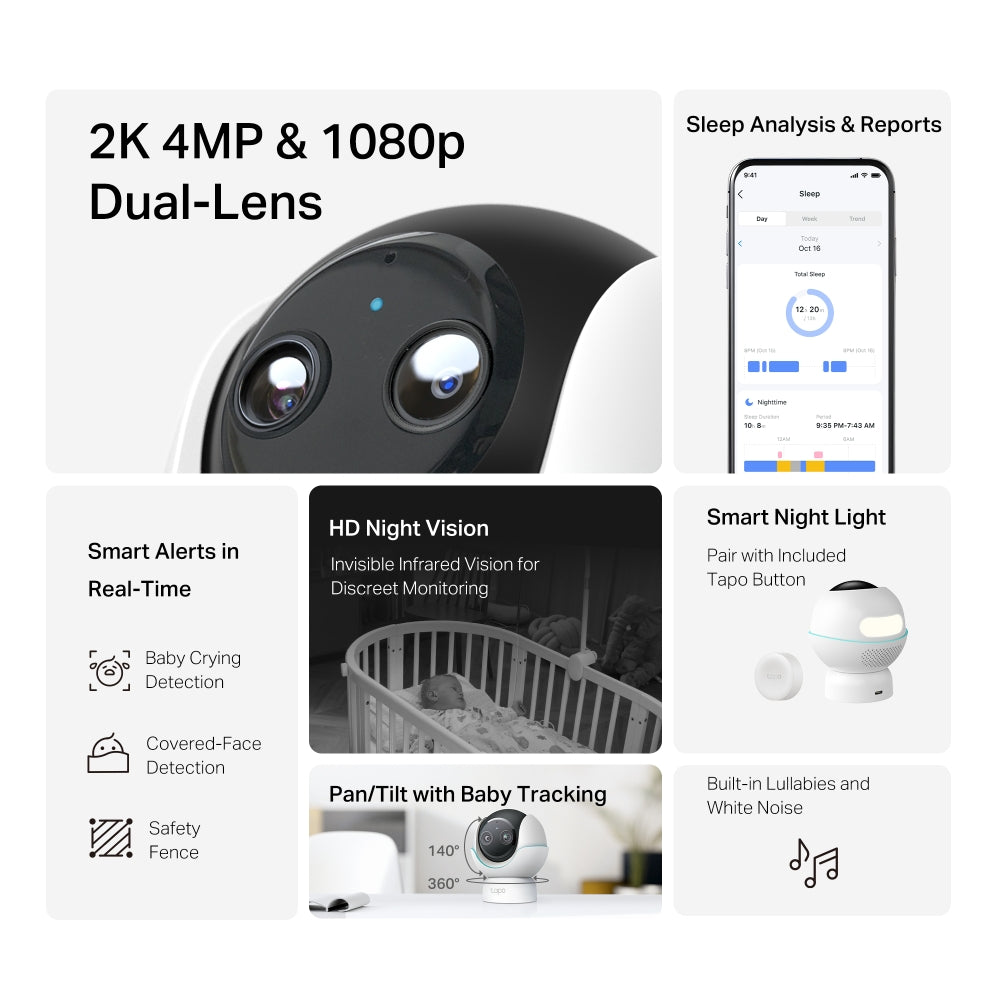

Two Lenses in One Live View
TP-Link describes the pairing as 4MP + 2MP dual-lens live view: crisp images from the 4MP wide-angle lens and a closer look from the 1080p telephoto lens. The wide-angle lens has a 144° diagonal field of view and the zoom lens 55°, both at F1.6 on a 1/2.9" sensor, with 850 nm and 940 nm IR LEDs and an auto-switching IR-cut filter for night viewing.
Baby-Specific AI Detection

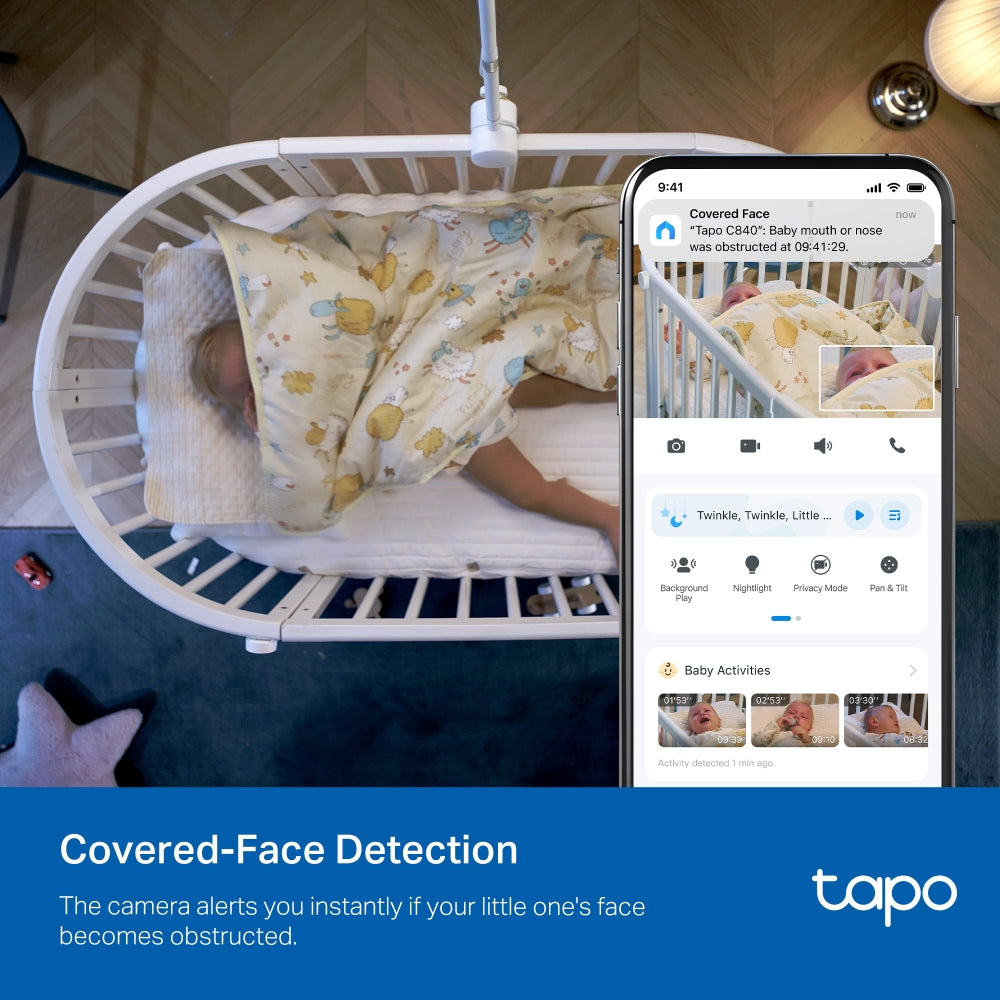

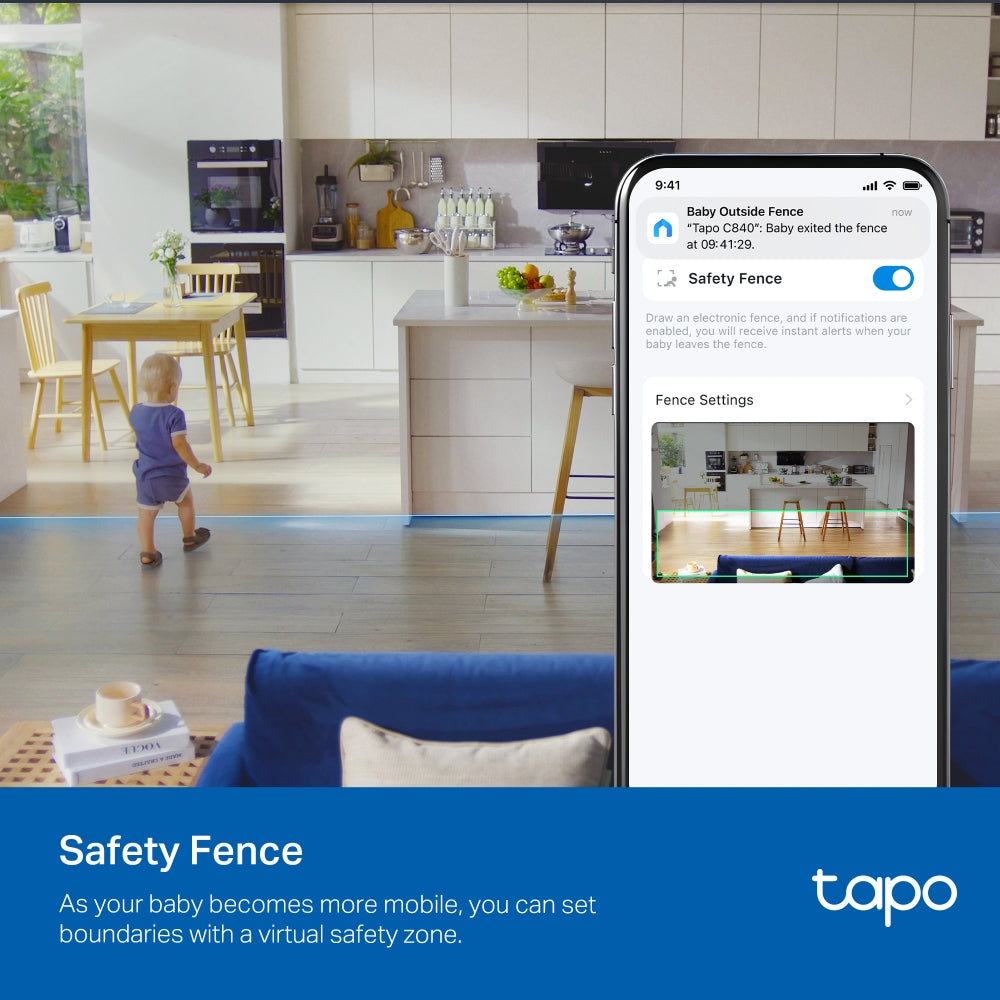

The detection list is built around a nursery rather than a front door: Baby Crying, Sleep, Covered Face, Safety Fence and Baby Leave detection, alongside motion, visitor, pet, camera-tampering, cat-meow, dog-bark and glass-break detection. TP-Link states the phone is notified when the baby is awake, fussy, face-covered or rolled over. Activity zones apply to covered-face, motion, visitor and pet detection only.
Lullabies, BabySnap and a Bluetooth Button
The Tapo app offers a collection of lullabies to help settle a child, and BabySnap captures moments to look back on later. The included Tapo S135B Bluetooth button pairs over the camera's Bluetooth 5.0 radio, which is also used for setup. Two-way audio with noise cancellation lets a parent speak through the camera, and a 94 dB siren is available.
Flexible Mounting and Open Integration
Mounting options are tabletop, crib-mounted (with the gooseneck clamp), wall-mounted and ceiling-mounted, with an L-shaped bracket, metal plate and cable clips in the box. The camera connects over 2.4 GHz or 5 GHz Wi-Fi, supports RTSP and ONVIF, and TP-Link lists Google Assistant, Amazon Alexa, Samsung SmartThings and Apple HomeKit integration. Recording goes to a microSD card up to 512 GB or to Tapo Care cloud storage by subscription.
Ideal For
Parents who want a nursery camera with two views of the cot, baby-specific alerts and a physical button for quick actions, mounted on a crib, shelf, wall or ceiling. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo C840 Datasheet — Technical Specifications
General
| Model | Tapo C840 |
| Official Product Name | Pan/Tilt Smart AI Baby Monitor |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.9" |
| Lens | Focal Length: 2.53 mm ± 5%, 6.2 mm ± 5%; Aperture: F1.6 ± 5%, F1.6 ± 10%; Field of View: Wide-angle lens: 144° (Diagonal), Zoom lens: 55° (Diagonal) |
| Night Vision | 850 nm IR LED, 940 nm IR LED |
| Day/Night Switch | IR-Cut Filter with Auto-Switching |
| Interface & Button | 1x RESET Button, 1x microSD Card Slot (Up to 512 GB) |
Video & Audio
| Maximum Resolution | 2560 x 1440 px + 1920 x 1080 px |
| Frame Rate | 15/20/25/30 fps (Default 15 fps) |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 94 dB (Level measured at 4-inch/10-cm distance) |
Storage
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Detection & Notifications
| AI Detection | Baby Crying Detection, Sleep Detection, Covered Face Detection, Safety Fence Detection, Baby Leave Detection, Motion Detection, Visitor Detection, Pet Detection, Camera Tampering Detection, Cat Meows Detection, Dog Barks Detection, Glass Break Detection |
| Activity Zones | Yes (only works with Covered Face/Motion/Visitor/Pet Detection) |
| Output Notification | Activity Notifications, Rich Notifications (Tapo Care Services) |
Network
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11a/ac/b/g/n, 2.4 GHz/5 GHz Wi-Fi, Bluetooth 5.0 (for setup & Tapo button) |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| RTSP | Yes |
| ONVIF | Yes |
| Transmission Rate | 11b: 11 Mbps; 11g: 54 Mbps; 11n: 144.4 Mbps (2.4 GHz), 300 Mbps (5 GHz); 11ac: 433 Mbps |
Security
| Security | On-Device Machine Learning, 128-bit AES Encryption with SSL/TLS, WPA/WPA2-PSK |
Power
| Power Source | 5V DC Power Adapter |
| Input Voltage | 100-240 V~, 50/60 Hz |
| Output Voltage | 5 V, 2 A (DC Power) |
| DC Power Connector Size | Adapter: USB A; Camera: USB Type C |
| Power Cord Length | 3 m |
| Typical Power Consumption | 4.2 W |
| Maximum Power Consumption | 7.6 W |
Physical & Environment
| Mounting Options | Tabletop, Crib-Mounted, Wall-Mounted, Ceiling-Mounted |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | 10% ~ 90% RH, Non-condensing |
| Storage Humidity | 5% ~ 90% RH, Non-condensing |
| Dimensions (W x D x H) | 46 x 46 x 105.8 mm (1.81 x 1.81 x 4.17 in) |
| Weight | 249 g (8.78 oz) |
TP-Link's Singapore specification table for the Tapo C840 publishes no pan/tilt mechanical range, no certification list and no Singapore plug type for the power adapter; those rows are left out rather than filled from another model.
Compatibility & Software Support
| App | Tapo app |
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings, Apple HomeKit |
| Third-Party Viewing | RTSP and ONVIF supported |
| Cloud | Tapo Care (subscription required); Rich Notifications need Tapo Care |
| Local Storage | microSD card up to 512 GB |
| Wi-Fi | 2.4 GHz and 5 GHz |
| Accessory | Tapo S135B Bluetooth Button (included) |
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C840 Camera Power Adapter USB-Type C Power Cord Gooseneck Clamp Mount L-Shaped Mounting Bracket Tapo S135B Bluetooth Button Metal Plate Mounting Templates Mounting Anchors Mounting Screws Cable Clips Velcro Quick Start Guide |
Ordering Information
| Model | Tapo C840 |
| SKU | Tapo C840 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C840
Can it be clamped to a cot?
Yes. A gooseneck clamp mount is included, and TP-Link lists crib-mounted alongside tabletop, wall and ceiling mounting.
Does it work with Apple Home?
TP-Link lists Apple HomeKit together with Google Assistant, Amazon Alexa and Samsung SmartThings. It also supports RTSP and ONVIF.
Is a microSD card included?
TP-Link does not list one in the package contents. The slot takes cards up to 512 GB; cloud recording is available through a Tapo Care subscription.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
