TP-Link Tapo C630 Kit 3K Solar-Powered Pan/Tilt Security Camera Kit
PRODUCT DESCRIPTION
TP-Link Solar-Powered Pan/Tilt Security Camera Kit (Tapo C630 KIT) - 2 Years Local Warranty

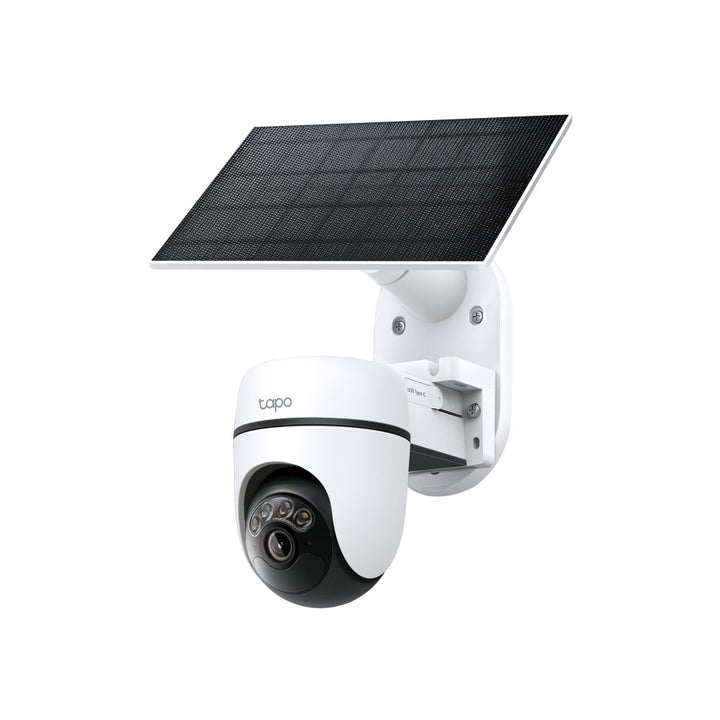

The Tapo C630 KIT pairs the Tapo C630 3K 5MP pan/tilt Wi-Fi camera with a Tapo A201 solar panel. A 6700 mAh built-in battery, colour and infrared night vision to 16 m, free person, pet and vehicle detection and 24/7 Capture for local recording make it a wire-free outdoor camera. Camera and panel are IP65 rated.
3K 5MP Detail
The camera records at 3K 5MP (2880 x 1620) using H.264, through an F1.6, 4.0 mm lens on a 1/2.7" CMOS sensor, with 3DNR and WDR. TP-Link lists 13.5x digital zoom for closer inspection in live view.
Colour and Infrared Night Vision to 16 m
Two built-in spotlights give colour night vision rated to 52 ft / 16 m, and infrared night vision is rated to the same distance for discreet monitoring.
Solar Charging and 180-Day Battery
TP-Link states 45 minutes of sunlight is enough for a day under standard conditions (1000 W/m2, 25°C, AM1.5) with up to 100 events a day. The 6700 mAh battery is rated at 180 days based on Tapo lab tests with 300 seconds of use per day; heavier use shortens it.
360° Tracking and 24/7 Capture
Person, pet and vehicle detection are free, and the pan/tilt head (340° mechanical pan for 360° coverage, 90° mechanical tilt for 130° coverage) tracks subjects; automatic 360° scans are limited per day. 24/7 Capture, enabled in the Tapo app and available only when storing locally, takes images every 1 s, 5 s, 10 s or up to 60 s when nothing moves and switches to normal recording on motion. Storage is microSD up to 512 GB (not included) or Tapo Care cloud.
Ideal For
Homes and small premises that want 3K outdoor coverage of a gate, garden, porch or eave without wiring, on a 2.4 GHz Wi-Fi network that reaches the mounting point. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo C630 KIT Datasheet — Technical Specifications
General
| Model | Tapo C630 KIT |
| Official Product Name | Solar-Powered Pan/Tilt Security Camera Kit |
| Brand | TP-Link |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS Sensor |
| Lens | Focal Length: 4.0 mm; Aperture: F1.6; Field of View: 105.4° (Diagonal), 88.0° (Horizontal), 46.0° (Vertical) |
| Night Vision | Infrared Night Vision (52 ft / 16 m), Color Night Vision (52 ft / 16 m) |
| Lighting | 2x Built-in Spotlights |
| Interface & Button | 1x Power Button, 1x RESET Button, 1x MicroSD Card Slot (Up to 512GB) |
| Pan/Tilt Range | Pan Mechanical Range: 340° (360° Pan Coverage); Tilt Mechanical Range: 90° (130° Tilt Coverage) |
Solar Panel
| Model | Tapo A201 |
| Connection Capacity | A solar panel can only connect to one camera. |
| Output Port | Type-C |
Video & Audio
| Maximum Resolution | 3K 5MP (2880 x 1620 px) |
| Frame Rate | 15 fps |
| Digital Zoom | 13.5 |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 78.9 dBA (Level measured at 10 cm distance) |
Storage
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB, microSD card not included) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Detection & Notifications
| Sensor | Motion Sensor, Ambient Light Sensors |
| AI Detection | Motion Detection, Person Detection, Vehicle Detection, Pet Detection |
| Activity Zones | Yes |
| Output Notification | System Notification, System Notification with Snapshot (Tapo Care Services) |
Network
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
Security
| Security | 128-bit AES Encryption with SSL/TLS, WPA/WPA2-PSK |
Power
| Power Source | 5V DC Power Adapter (Not Included); 6700 mAh Built-in Rechargeable Lithium-ion Battery; Solar Panel: Tapo A201 |
| Input Voltage | 5.0 V, 2.0 A |
Physical & Environment
| Weather Resistance | IP65 for both camera and solar panel |
| Mounting Options | Wall-Mounted, Eave-Mounted, Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0%~90% RH, Non-condensing |
| Dimensions (W x D x H) | Camera: 141 x 128 x 84 mm (5.55 x 5.04 x 3.31 in); Solar Panel: 173.4 x 120.4 x 15.7 mm (6.83 x 4.74 x 0.618 in) |
| Certifications | CE, FCC, JRF, VCCI, RCM, NTRA, NCC, BSMI, DOE, CEC, IP65, RoHS |
TP-Link publishes no solar panel charging wattage and no weight for the Tapo C630 KIT, and its Output Voltage row is blank; those are omitted rather than filled from another model.
Compatibility & Software Support
| App | Tapo app: iOS 12.0 or higher, Android 7.0 or higher |
| Smart Integration | Google Assistant, Amazon Alexa |
| Wi-Fi | 2.4 GHz only |
| Cloud | Tapo Care (subscription required) |
| Local Storage | microSD card up to 512 GB (not included); 24/7 Capture works with local storage only |
TP-Link publishes no RTSP or ONVIF support for this model.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C630 Camera x 1 Tapo A201 Solar Panel x 1 Tapo A201 Solar Panel Bracket x 1 Base Cover x 1 USB Adapter Cable x 1 Extension Wire x 1 Cable Zip Tie x 1 Mounting Screws and Anchors Mounting Template Stickers Quick Start Guide |
Ordering Information
| Model | Tapo C630 KIT |
| SKU | Tapo C630 Kit |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C630 KIT
Does it support 5 GHz Wi-Fi?
No. TP-Link lists 2.4 GHz 802.11b/g/n only, so confirm 2.4 GHz coverage at the mounting point.
How long does the battery last?
TP-Link rates the 6700 mAh battery at 180 days with 300 seconds of use per day, with the Tapo A201 solar panel topping it up.
Does it record continuously?
24/7 Capture takes interval images when nothing is moving and switches to recording on motion. It must be enabled in the Tapo app and works only with local microSD storage.
What warranty does SourceIT provide?
Two years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
