TP-Link RE655BE BE11000 Tri-Band Wi-Fi 7 Range Extender
PRODUCT DESCRIPTION
TP-Link BE11000 Tri-Band Wi-Fi 7 Range Extender (RE655BE) - 3 Years Local Warranty
The RE655BE is TP-Link's tri-band Wi-Fi 7 wall-plug extender: 5764 Mbps on 6 GHz, 4323 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, with Multi-Link Operation, 320 MHz channels on 6 GHz, 4K-QAM, four external antennas and a 2.5 Gbps Ethernet port. It works as a range extender or as an access point and is EasyMesh-compatible.
Three Bands, Including 6 GHz
The dedicated 6 GHz band gives Wi-Fi 7 and Wi-Fi 6E clients more channels and a wider spectrum, away from the congestion of neighbouring networks and older devices on 2.4 GHz and 5 GHz. 320 MHz channels are available on 6 GHz for clients that support them.
Multi-Link Operation
MLO lets a compatible Wi-Fi 7 client use more than one band at once, which TP-Link positions as gains in throughput, latency and reliability. Together with 4K-QAM and Multi-RUs it requires Wi-Fi 7 client devices; older phones and laptops still connect at their own standard.

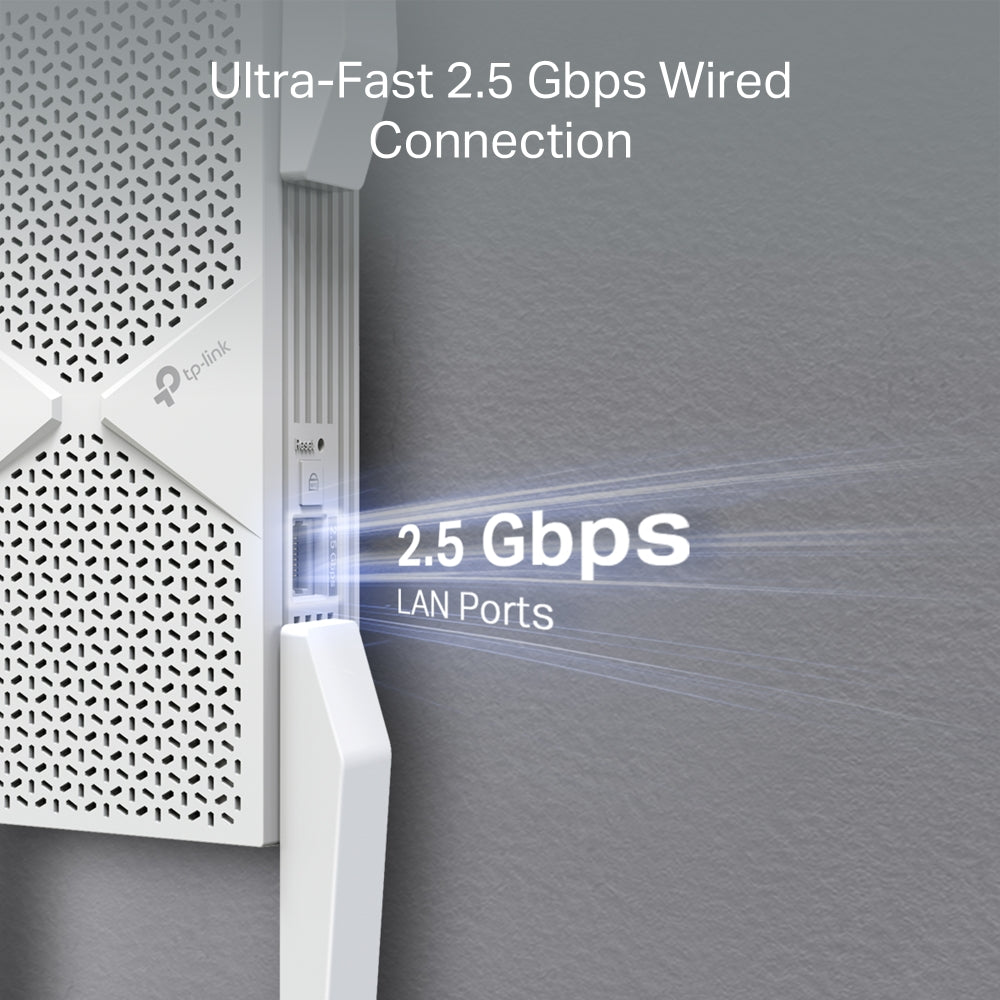

2.5 Gbps Ethernet Port
The single 2.5 Gbps port can wire a desktop, console or smart TV to the extended network, or connect the RE655BE back to the router by cable in Access Point mode so the full wireless capacity is used for clients.
EasyMesh and Smart Roaming
EasyMesh compatibility lets the RE655BE join an EasyMesh router's network as one mesh system, and Smart Adaptive Roaming moves 802.11k/v clients between nodes as you walk around. Setup is by WPS button or the Tether app.
Ideal For
Larger Singapore homes and small offices with a Wi-Fi 7 or 6 GHz-capable router that need a tri-band extender or wired access point to reach far rooms. Supplied by SourceIT with local Singapore warranty and GST invoice.
RE655BE Datasheet — Technical Specifications
General
| Model | RE655BE |
| Official Product Name | BE11000 Tri-Band Wi-Fi 7 Range Extender |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wireless Standards | Wi-Fi 7 — IEEE 802.11be/ax 6 GHz; IEEE 802.11be/ax/ac/n/a 5 GHz; IEEE 802.11be/ax/n/b/g 2.4 GHz |
| Frequency | 6 GHz, 5 GHz, 2.4 GHz |
| Signal Rate | 5764 Mbps at 6 GHz; 4323 Mbps at 5 GHz; 688 Mbps at 2.4 GHz |
| Working Modes | Range Extender / Access Point |
| Advanced Features | Multi-Link Operation (MLO), 320 MHz Channel, 4K-QAM, Multi-RUs |
| Wireless Security | WPA/WPA2-PSK encryptions, WPA3 |
| Transmission Power | FCC: 2.4 GHz <30 dBm; 5 GHz <30 dBm; 6 GHz <30 dBm |
| Mesh Technology | EasyMesh-Compatible |
| Wireless Functions | LED Control, Access Control, Power Schedule, Wi-Fi Coverage |
Hardware
| Interface | 1x 2.5 Gbps LAN Port |
| Buttons | WPS Button, Reset Button |
| Antenna | 4 External Antennas |
| Input Power | 100-240V~50/60Hz 0.5A |
| Max. Power Consumption | 23.5W |
| Dimensions (W x D x H) | 107.2 x 39 x 161 mm (4.2 x 1.5 x 6.3 in) |
Environment and Certification
| Certification | FCC, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link publishes per-modulation reception-sensitivity figures on the product page linked below; they are not reproduced here. No weight is published, and transmission power is published only against FCC limits. The Singapore plug type is not stated. Those gaps are stated rather than filled in from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via a JavaScript-enabled browser (Internet Explorer, Firefox, Chrome, Safari or other) |
| Setup | WPS button or Tether app |
| Mesh Ecosystem | EasyMesh-compatible — networks with EasyMesh routers and extenders |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser |
| Smart Roaming | Designed for client devices that support the 802.11k/v standard |
| Router Compatibility | Works with all Wi-Fi generations (IEEE 802.11 a/b/g/n/ac/ax/be) and devices, per TP-Link |
TP-Link notes that EasyMesh-compatible products can network with other EasyMesh devices, but failed connections may be due to firmware conflicts between vendors, and unified management is not guaranteed for other vendors' devices. Wi-Fi 7 features such as MLO, 4K-QAM and Multi-RUs require client devices that also support them. The extender may not be compatible with routers or gateways running altered, open-source-based, non-standard or outdated firmware.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi 7 Range Extender RE655BE, Quick Installation Guide |
Ordering Information
| Model | RE655BE |
| SKU | RE655BE |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — RE655BE
Does it need a Wi-Fi 7 router?
No. TP-Link states it works with all Wi-Fi generations and devices. MLO, 320 MHz, 4K-QAM and Multi-RUs need Wi-Fi 7 clients (and a compatible router upstream) to be used.
Can it be used as an access point?
Yes. Range Extender and Access Point are both listed working modes; in Access Point mode it connects to the router over the 2.5 Gbps Ethernet port.
Will it form a mesh with my router?
With an EasyMesh-compatible router, yes. TP-Link notes that connections with other vendors' EasyMesh devices can fail because of firmware differences.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
