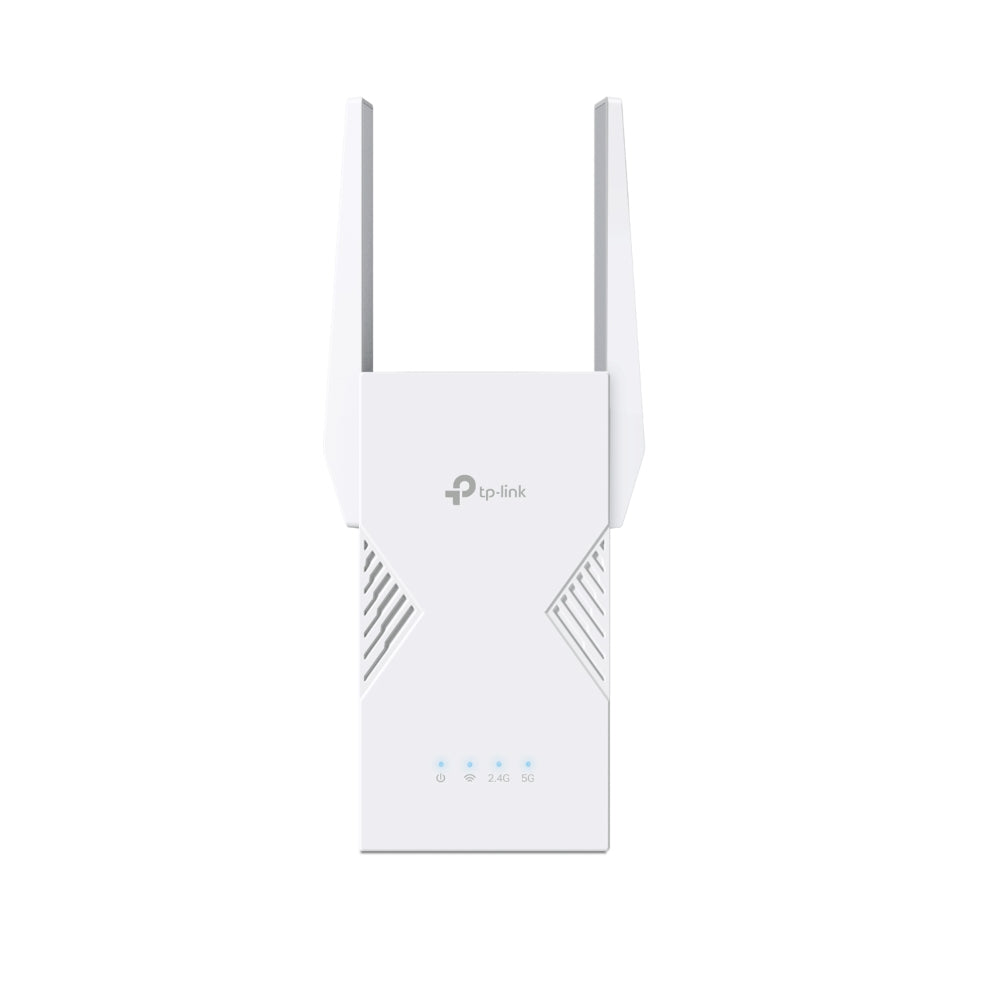

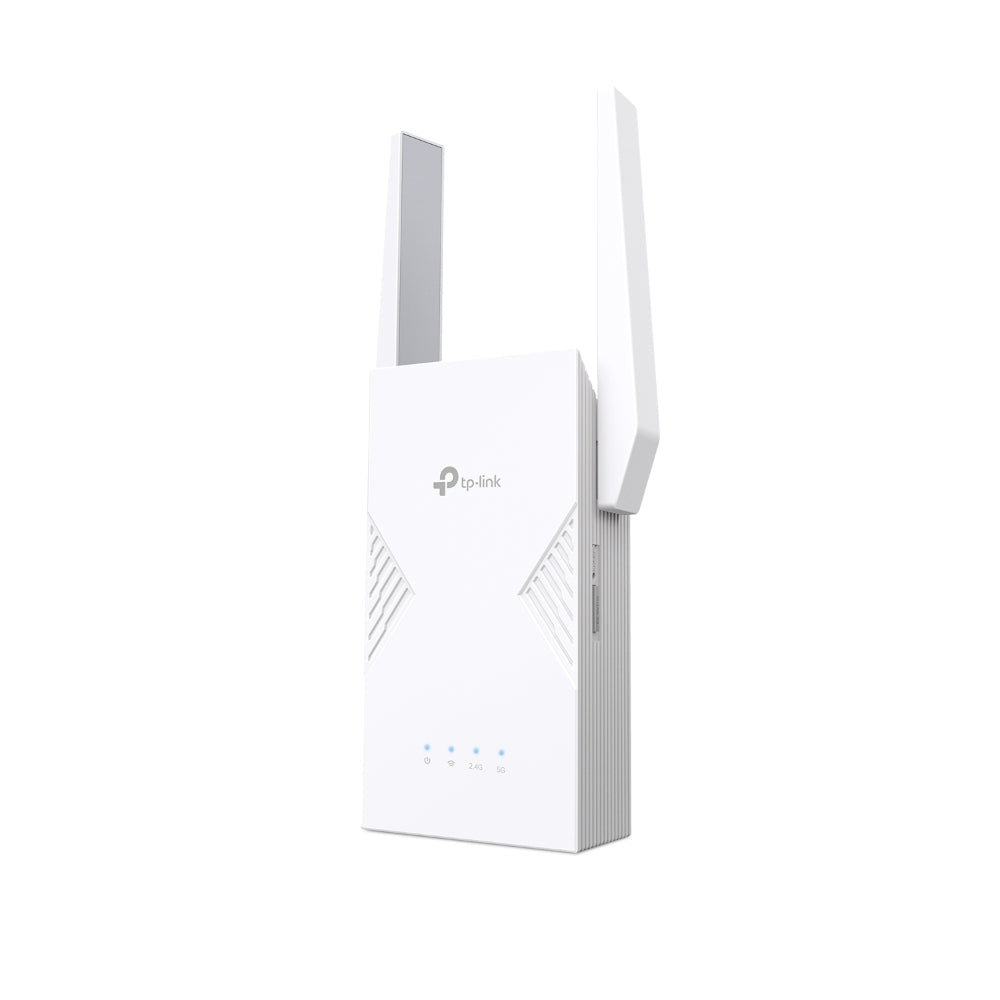

TP-Link RE235BE BE3600 Dual-Band Wi-Fi 7 Range Extender
PRODUCT DESCRIPTION
TP-Link BE3600 Dual-Band Wi-Fi 7 Range Extender (RE235BE) - 3 Years Local Warranty
The RE235BE is TP-Link's entry dual-band Wi-Fi 7 extender with a multi-gig port: 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, Multi-Link Operation, 160 MHz channels, 4K-QAM, two external antennas and one 2.5 Gbps Ethernet port. It runs as a range extender or access point and is EasyMesh-compatible.
BE3600 Dual-Band Wi-Fi 7
The 5 GHz band is rated 2882 Mbps and the 2.4 GHz band 688 Mbps under 802.11be, a match for BE3600-class routers such as TP-Link's entry Wi-Fi 7 models. TP-Link notes the 160 MHz bandwidth on 5 GHz may be restricted in some regions.
Multi-Link Operation

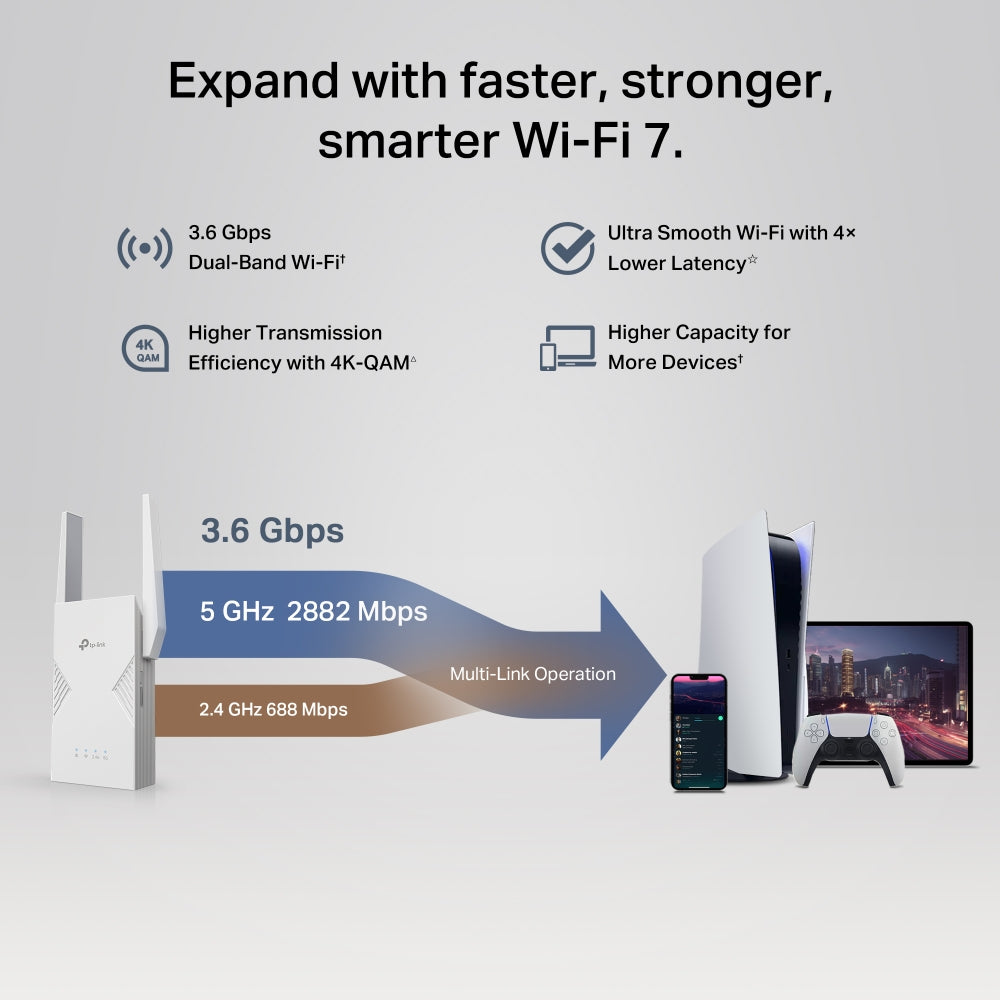

MLO lets a Wi-Fi 7 client use both bands together for higher throughput, lower latency and better reliability, per TP-Link. It, along with 4K-QAM and Multi-RUs, requires Wi-Fi 7 client devices.
2.5 Gbps Ethernet Port
Unusually at this level, the Ethernet port is 2.5 Gbps rather than Gigabit, so a wired backhaul in Access Point mode or a wired client is not held to 1 Gbps.
EasyMesh, Smart Roaming and Easy Setup
EasyMesh compatibility lets it join an EasyMesh router's network; Smart Roaming keeps 802.11k/v clients on the best node. Setup is by WPS button or the Tether app.
Ideal For
Flats and small offices adding Wi-Fi 7 coverage to a dead spot on a budget, where a 2.5 Gbps wired uplink or client port is still wanted. Supplied by SourceIT with local Singapore warranty and GST invoice.
RE235BE Datasheet — Technical Specifications
General
| Model | RE235BE |
| Official Product Name | BE3600 Dual-Band Wi-Fi 7 Range Extender |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wireless Standards | IEEE 802.11be/ax/ac/n/a 5 GHz; IEEE 802.11be/ax/n/b/g 2.4 GHz |
| Frequency | 5 GHz, 2.4 GHz |
| Signal Rate | 2882 Mbps at 5 GHz; 688 Mbps at 2.4 GHz |
| Working Modes | Range Extender / Access Point |
| Advanced Features | Multi-Link Operation (MLO), 160 MHz Channel, 4K-QAM, Multi-RUs |
| Wireless Security | WPA/WPA2-PSK encryptions, WPA2/WPA3 |
| Transmission Power | FCC: 2.4 GHz <30 dBm; 5 GHz <30 dBm |
| Mesh Technology | EasyMesh-Compatible |
| Wireless Functions | LED Control, Access Control, Power Schedule, Wi-Fi Coverage |
Hardware
| Interface | 1x 2.5 Gbps Ethernet Port |
| Buttons | WPS Button, Reset Button |
| Antenna | 2 External Antennas |
| Input Power | 100-240V~50/60Hz 0.3A |
| Max. Power Consumption | 15W |

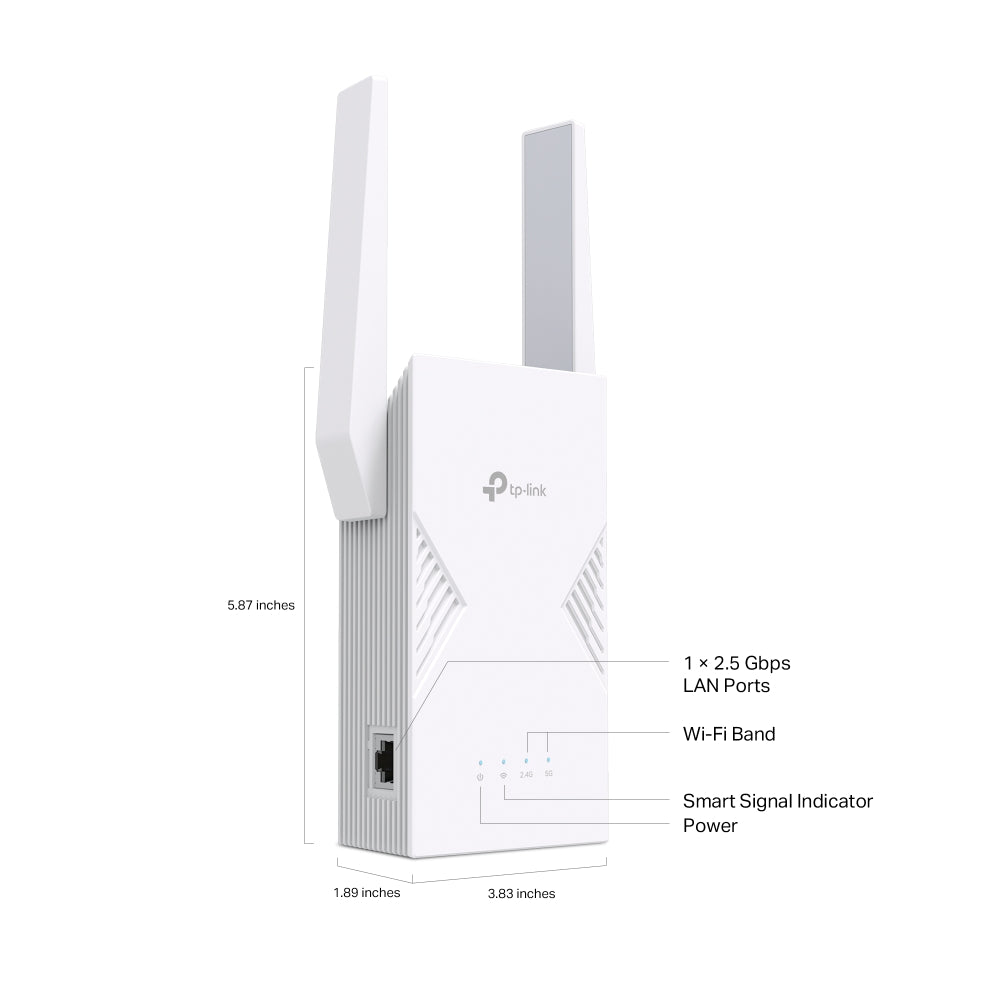

| Dimensions (W x D x H) | 97 x 46 x 158 mm (3.8 x 1.8 x 6.2 in) |
Software
| Network Services Enabled by Default | Web Server (HTTP/HTTPS, ports 80/443 TCP), DHCP Server (port 67 UDP), App management (port 20001 TCP, port 20002 UDP) |
Environment and Certification
| Certification | FCC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link publishes no weight for the RE235BE, and transmission power only against FCC limits; per-modulation reception sensitivity is on the product page linked below. The Singapore plug type is not stated. Those gaps are stated rather than filled in from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via a JavaScript-enabled browser (Internet Explorer, Firefox, Chrome, Safari or other) |
| Setup | WPS button or Tether app |
| Mesh Ecosystem | EasyMesh-compatible — networks with EasyMesh routers and extenders |
| Smart Roaming | Designed for client devices that support the 802.11k/v standard |
| Router Compatibility | Works with all Wi-Fi generations (IEEE 802.11 a/b/g/n/ac/ax/be) and devices, per TP-Link |
TP-Link notes that EasyMesh-compatible products can network with other EasyMesh devices, but failed connections may be due to firmware conflicts between vendors, and unified management is not guaranteed for other vendors' devices. Wi-Fi 7 features such as MLO, 4K-QAM and Multi-RUs require client devices that also support them. The extender may not be compatible with routers or gateways running altered, open-source-based, non-standard or outdated firmware.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi 7 Range Extender RE235BE, Quick Installation Guide |
Ordering Information
| Model | RE235BE |
| SKU | RE235BE |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — RE235BE
What is the difference from the RE225BE?
Both are BE3600 dual-band Wi-Fi 7 extenders with the same published wireless rates. The RE235BE has a 2.5 Gbps Ethernet port; the RE225BE's port is 1 Gbps.
Does it need a Wi-Fi 7 router?
No. TP-Link states it works with all Wi-Fi generations; MLO, 4K-QAM and Multi-RUs need Wi-Fi 7 clients to be used.
Can it be wired back to the router?
Yes. Access Point mode uses the 2.5 Gbps Ethernet port as the uplink.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
