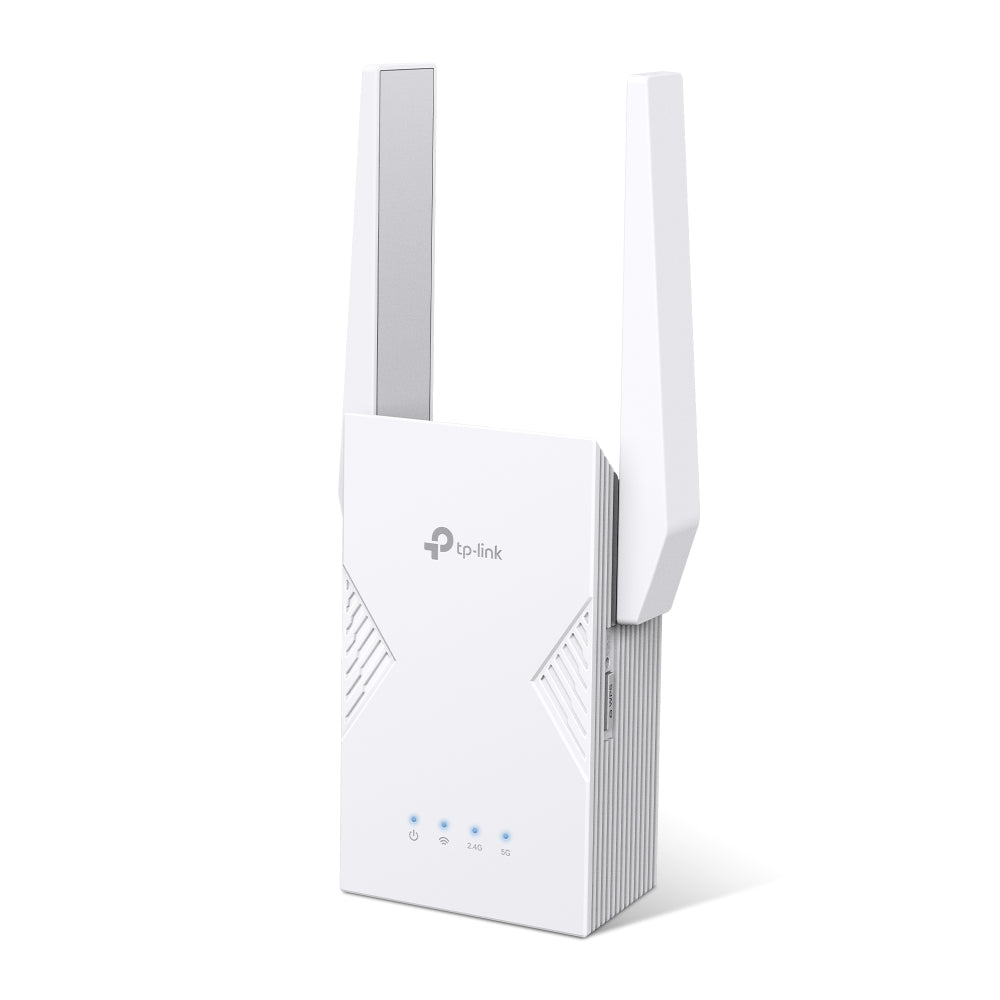

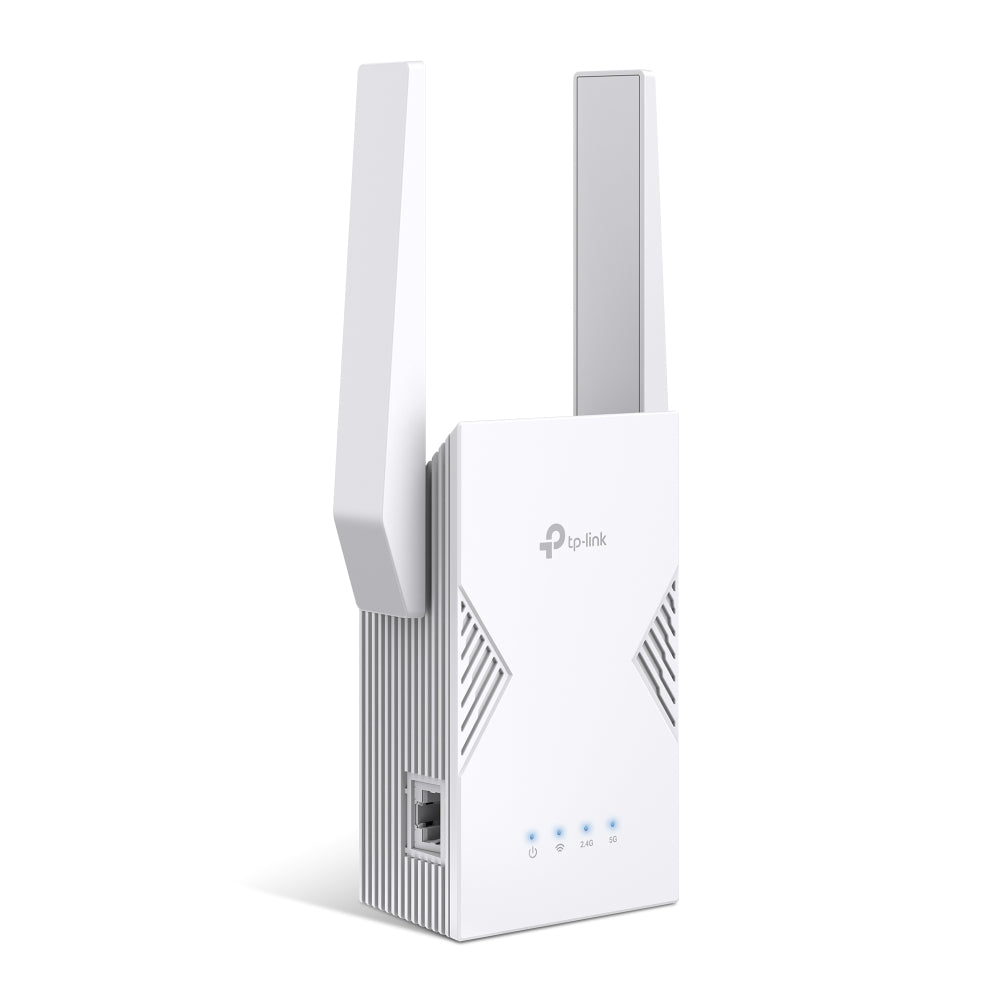

TP-Link RE225BE BE3600 Dual-Band Wi-Fi 7 Range Extender
PRODUCT DESCRIPTION
TP-Link BE3600 Dual-Band Wi-Fi 7 Range Extender (RE225BE) - 3 Years Local Warranty
The RE225BE is a BE3600 dual-band Wi-Fi 7 wall-plug extender: 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, Multi-Link Operation, 160 MHz channels, 4K-QAM, two external antennas and a Gigabit Ethernet port. It runs as a range extender or access point and is EasyMesh-compatible.

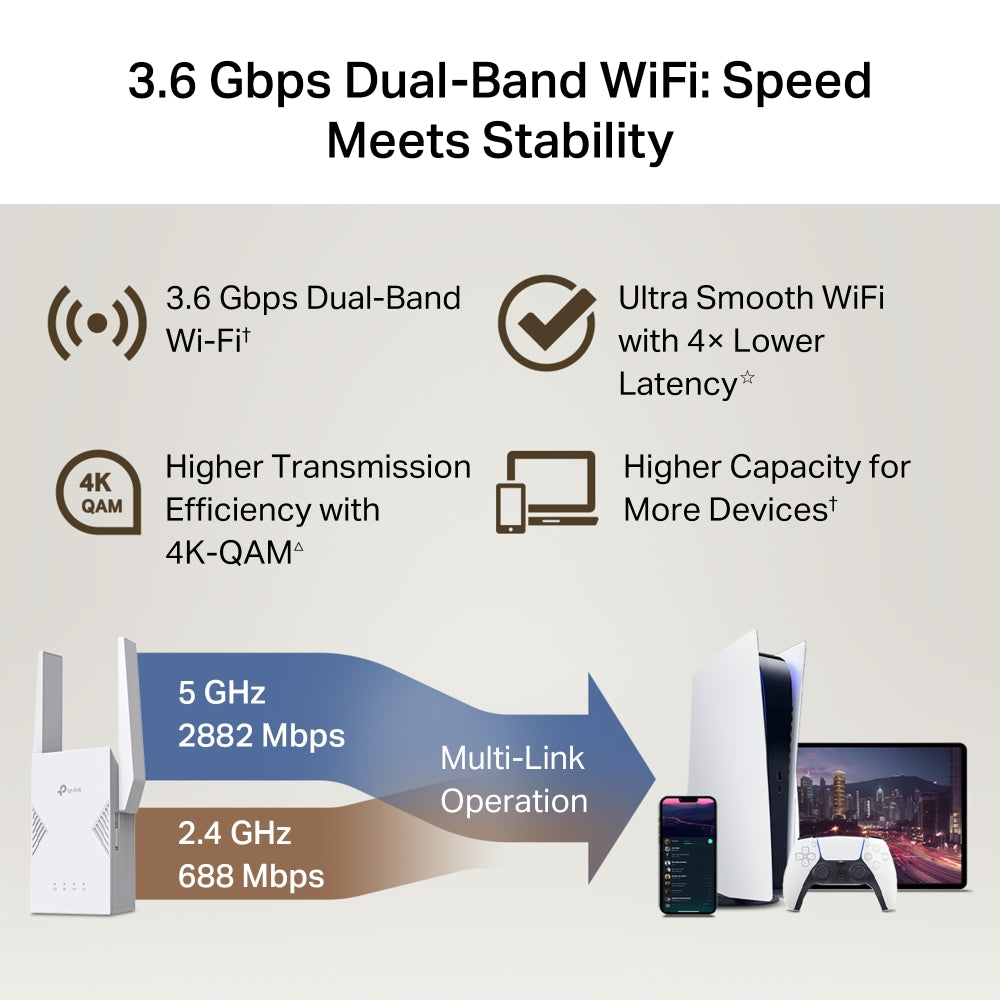

Up to 3.6 Gbps Dual-Band Wi-Fi 7
TP-Link rates the RE225BE at 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, aimed at consistent performance for streaming, browsing and multitasking. TP-Link notes the 160 MHz bandwidth on 5 GHz may be unavailable in some regions due to regulatory restrictions.
Multi-Link Operation
MLO improves throughput, reduces latency and increases link reliability for Wi-Fi 7 clients. TP-Link quotes up to 4x lower latency than a Wi-Fi 6 extender in its own laboratory test with MLO clients under 5 GHz interference. MLO, 4K-QAM and Multi-RUs require Wi-Fi 7 client devices.
Gigabit Ethernet Port

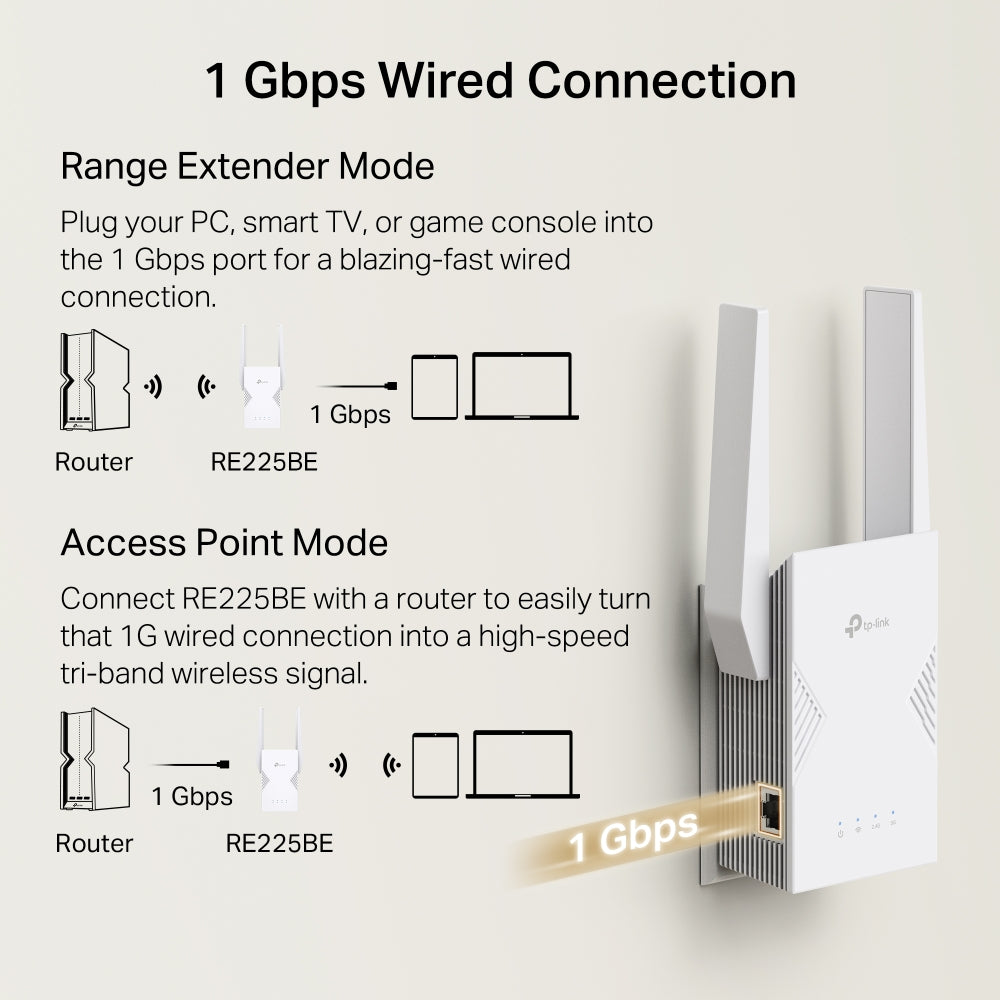

A 1 Gbps port provides a wired connection for a smart TV, computer or games console, or a wired uplink to the router in Access Point mode.
EasyMesh, Smart Roaming and Easy Setup
EasyMesh compatibility lets it join an EasyMesh router's network as one system; Smart Roaming keeps 802.11k/v clients on the best node. Setup is by WPS button or the Tether app.
Ideal For
Flats and small offices that need affordable Wi-Fi 7 coverage for a dead spot, where a Gigabit wired port is enough. Supplied by SourceIT with local Singapore warranty and GST invoice.
RE225BE Datasheet — Technical Specifications
General
| Model | RE225BE |
| Official Product Name | BE3600 Dual-Band Wi-Fi 7 Range Extender |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wireless Standards | Wi-Fi 7 — IEEE 802.11be/ax/ac/n/a 5 GHz; IEEE 802.11be/ax/n/b/g 2.4 GHz |
| Frequency | 5 GHz, 2.4 GHz |
| Signal Rate | 2882 Mbps at 5 GHz; 688 Mbps at 2.4 GHz |
| Working Modes | Range Extender / Access Point |
| Advanced Features | Multi-Link Operation (MLO), 160 MHz Channel, 4K-QAM, Multi-RUs |
| Wireless Security | WPA/WPA2-PSK encryptions, WPA2/WPA3 |
| Transmission Power | FCC: 2.4 GHz <30 dBm; 5 GHz <30 dBm |
| Reception Sensitivity | 5 GHz: 11be EHT20 MCS0: -96 dBm; EHT40 MCS0: -94 dBm; EHT80 MCS0: -91 dBm; EHT160 MCS0: -88 dBm; EHT20 MCS13: -59 dBm; EHT40 MCS13: -57 dBm; EHT80 MCS13: -54 dBm; EHT160 MCS13: -51 dBm. 2.4 GHz: 11be EHT20 MCS0: -95 dBm; EHT40 MCS0: -93 dBm; EHT20 MCS13: -58 dBm; EHT40 MCS13: -56 dBm |
| Mesh Technology | EasyMesh-Compatible |
| Wireless Functions | LED Control, Access Control, Power Schedule, Wi-Fi Coverage |
Hardware
| Interface | 1x 1 Gbps Ethernet Port |
| Buttons | WPS Button, Reset Button |
| Antenna | 2 External Antennas |
| Input Power | 100-240V~50/60Hz 0.3A |
| Max. Power Consumption | 15W |
| Dimensions (W x D x H) | 97 x 46 x 158 mm (3.8 x 1.8 x 6.2 in) |
Software
| Network Services Enabled by Default | Web Server (HTTP/HTTPS, ports 80/443 TCP), DHCP Server (port 67 UDP), App management (port 20001 TCP, port 20002 UDP) |
Environment and Certification
| Certification | FCC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link publishes no weight for the RE225BE, and transmission power only against FCC limits. The Singapore plug type is not stated. TP-Link also notes this extender may not support all mandatory features ratified in IEEE 802.11be, and that further software upgrades may be required for feature availability. Those gaps are stated rather than filled in from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via a JavaScript-enabled browser (Internet Explorer, Firefox, Chrome, Safari or other) |
| Setup | WPS button or Tether app |
| Mesh Ecosystem | EasyMesh-compatible (standardised EasyMesh technology; TP-Link states it has not obtained Wi-Fi EasyMesh certification) |
| Smart Roaming | Designed for client devices that support the 802.11k/v standard |
| Router Compatibility | Works with all Wi-Fi generations (IEEE 802.11 a/b/g/n/ac/ax/be) and devices, per TP-Link |
TP-Link notes that EasyMesh-compatible products can network with other EasyMesh devices, but failed connections may be due to firmware conflicts between vendors, and unified management is not guaranteed for other vendors' devices. Wi-Fi 7 features such as MLO, 4K-QAM and Multi-RUs require client devices that also support them. The extender may not be compatible with routers or gateways running altered, open-source-based, non-standard or outdated firmware.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi 7 Range Extender, Quick Installation Guide |
Ordering Information
| Model | RE225BE |
| SKU | RE225BE |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — RE225BE
What is the difference from the RE235BE?
Both are BE3600 dual-band Wi-Fi 7 extenders with the same published wireless rates. The RE225BE has a 1 Gbps Ethernet port; the RE235BE's port is 2.5 Gbps.
Does it need a Wi-Fi 7 router?
No. TP-Link states it works with all Wi-Fi generations, devices and internet providers; MLO, 4K-QAM and Multi-RUs need Wi-Fi 7 clients to be used.
Is it certified for Wi-Fi EasyMesh?
TP-Link states it is compatible with standardised EasyMesh technology but has not obtained Wi-Fi EasyMesh certification, and that cross-vendor connections may fail because of firmware conflicts.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
