TP-Link PGW2440 Kit G.hn2400 Powerline AX1800 Wi-Fi 6 Kit
PRODUCT DESCRIPTION
TP-Link G.hn2400 Powerline AX1800 Wi-Fi 6 Kit (PGW2440 KIT) - 3 Years Local Warranty

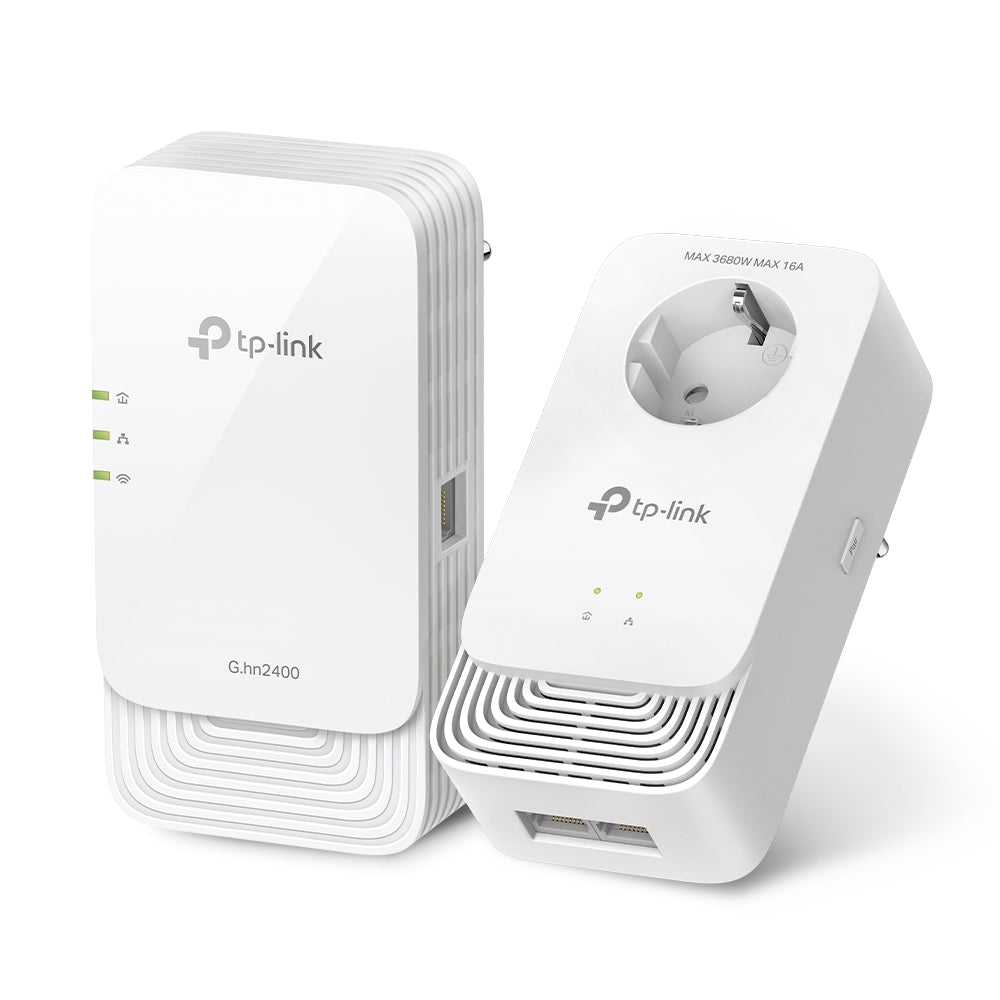

The PGW2440 KIT pairs a PG2400P passthrough powerline adapter at the router with a PGW2440 powerline Wi-Fi 6 extender in the room that needs coverage. G.hn MIMO powerline runs at up to 1428 Mbps over existing electrical wiring for up to 300 metres, and the extender broadcasts AX1800 Wi-Fi 6 — 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz — with 2+1 Gigabit Ethernet ports across the kit.
G.hn MIMO Instead of HomePlug

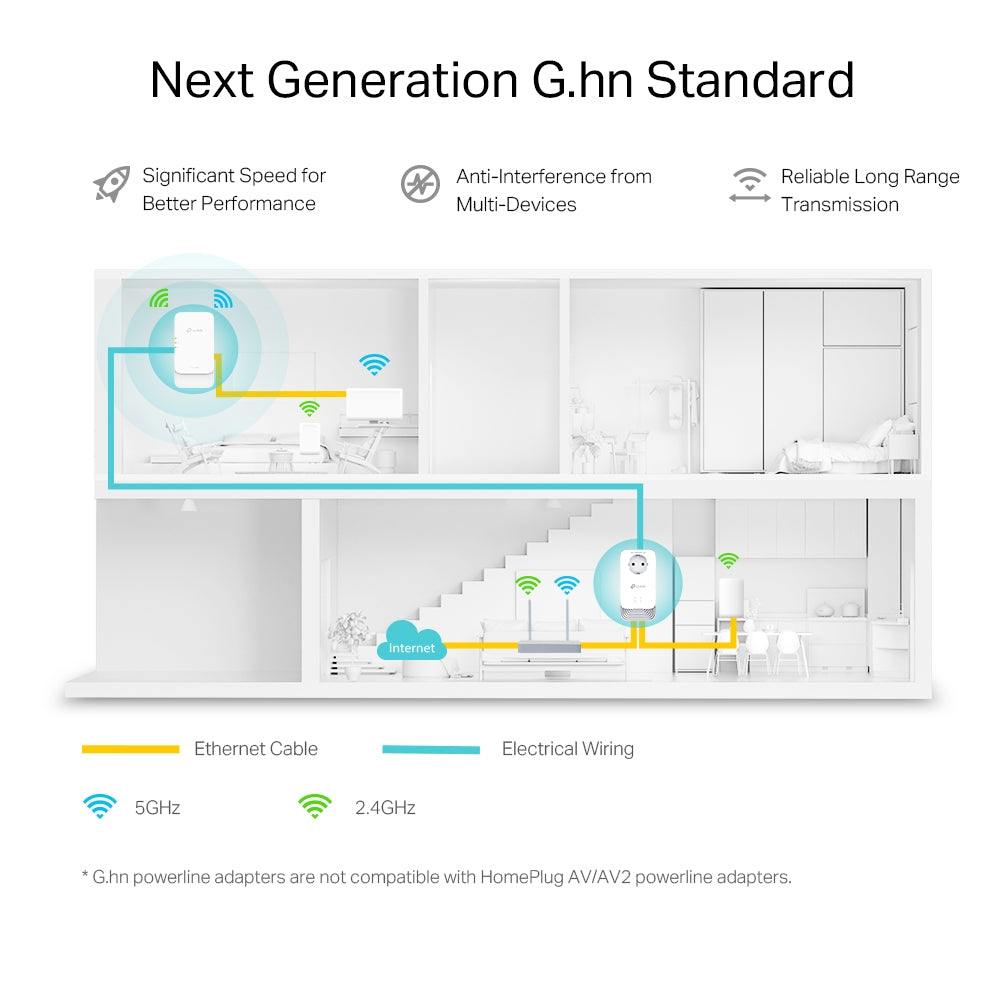

G.hn MIMO is a newer powerline standard than HomePlug AV2, with TP-Link quoting up to 1428 Mbps and up to 300 m over existing wiring, secured with 128-bit AES. It is compatible with all routers and G.hn powerline adapters but not with HomePlug AV/AV2 adapters, so it cannot be mixed with older TP-Link TL-PA or TL-WPA units.
AX1800 Wi-Fi 6 Where the Signal Is Weak
The PGW2440 end creates Wi-Fi 6 at 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, supporting WPA3. Smart Roaming works with devices that support 802.11k/v. It is a practical fix for a back bedroom or an upstairs room in a landed house where concrete walls block the router's Wi-Fi.
2+1 Gigabit Ports and a Passthrough Socket
The PG2400P adapter at the router has two Gigabit ports and a passthrough power socket, so the wall outlet is not lost. The PGW2440 extender has one Gigabit port for a TV, console or desktop. Two Ethernet cables are included.
Mesh Support and tpPLC Management

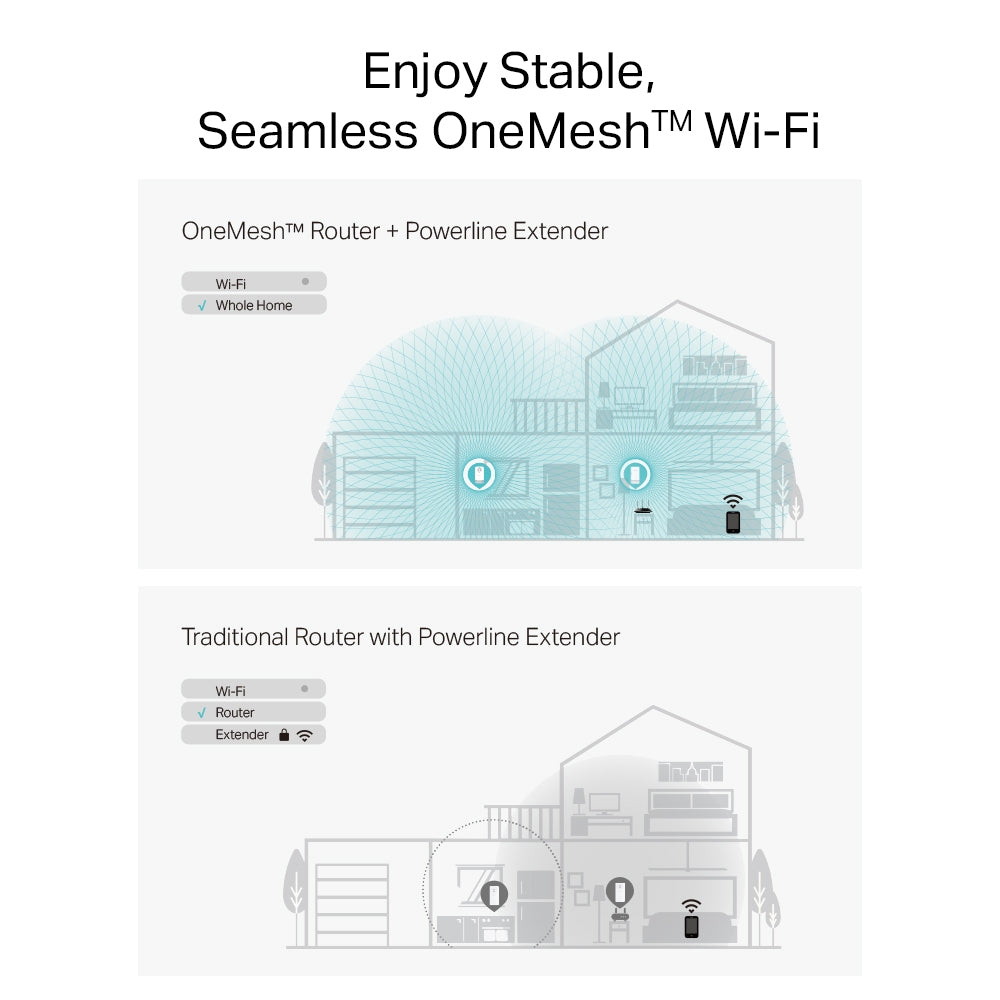

TP-Link's specification lists OneMesh support for a unified network with a OneMesh router, and TP-Link Singapore's EasyMesh product list includes the PGW2440 KIT (hardware V1.10). Settings are managed in the tpPLC app or the tpPLC utility for PCs.
Ideal For
Singapore landed homes, multi-storey terraces and offices with thick walls where running Ethernet is impractical but good Wi-Fi 6 is needed in a specific room. Supplied by SourceIT with local Singapore warranty and GST invoice.
PGW2440 KIT Datasheet — Technical Specifications
General
| Model | PGW2440 KIT |
| Official Product Name | G.hn2400 Powerline AX1800 Wi-Fi 6 Kit |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
| Kit Contents | 1x PGW2440 powerline Wi-Fi extender, 1x PG2400P passthrough powerline adapter |
Powerline
| Transmission Speeds | Powerline: up to 1428 Mbps; Ethernet: 10/100/1000 Mbps |
| Transmission Distance | Up to 300 metres / 1000 feet over existing electrical wiring |
| Standards and Protocols | G.hn MIMO; IEEE 802.3, 802.3u, 802.3ab; IEEE 802.11b/g/n/ax (2.4 GHz); IEEE 802.11a/n/ac/ax (5 GHz) |
| Compatibility | Compatible with all routers and G.hn Powerline adapters. Not compatible with HomePlug AV/AV2 Powerline adapters. |
| Powerline Security | 128-bit AES Encryption |
| Modulation Technology | OFDMA |
Wireless (PGW2440)
| Wireless Standards | IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| Wireless Security | WEP, WPA, WPA2, WPA3 |
| Mesh | OneMesh supported |
Hardware
| Plug Type (as published) | EU |
| Interface | PGW2440: 1 Gigabit Port; PG2400P: 2 Gigabit Ports |
| Button | PGW2440: Pair/Reset Button, Wi-Fi Button; PG2400P: Pair/Reset Button |
| Power Consumption | PGW2440: Maximum 15.9 W, Typical 9.2 W; PG2400P: Maximum 6.32 W, Standby 0.98 W |
| LED | PGW2440: Powerline, Ethernet, Wi-Fi; PG2400P: Powerline, Ethernet |
| Dimensions (W x D x H) | PGW2440: 80 x 35 x 157 mm (3.15 x 1.38 x 6.18 in); PG2400P: 68 x 42 x 138 mm (2.68 x 1.65 x 5.43 in) |
Environment and Certification
| Certification | CE |
| System Requirements | Windows 11/10/8.1/8/7/Vista/XP, Mac OS, Linux |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
TP-Link's Singapore page lists the plug type as EU; Singapore wall sockets are Type G, so confirm the plug type supplied before ordering. TP-Link publishes no weight for either unit. Powerline rates are physical G.hn rates; real throughput depends on wiring, electrical interference and whether both adapters share a circuit.
Compatibility & Software Support
| Management | TP-Link tpPLC app, or tpPLC Utility for PCs |
| Powerline Compatibility | G.hn powerline adapters only — not HomePlug AV/AV2 |
| Mesh Ecosystem | OneMesh supported per specification; PGW2440 KIT V1.10 appears on TP-Link Singapore's EasyMesh product list |
| Smart Roaming | For client devices that support 802.11k/v |
| Client Operating Systems | Windows 11/10/8.1/8/7/Vista/XP, Mac OS, Linux |
Actual compatibility may vary with routers or gateways running altered, open-source-based, non-standard or outdated firmware. Actual powerline throughput and range vary with electrical interference, traffic, AFCI breakers and adapters on separate service panels.
Package Contents & Ordering Information
Package Contents
| In the Box | 1x G.hn2400 Powerline Wi-Fi Extender PGW2440; 1x G.hn2400 Passthrough Powerline Adapter PG2400P; 2x Ethernet Cables; Quick Installation Guide |
Ordering Information
| Model | PGW2440 KIT |
| SKU | PGW2440 Kit |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — PGW2440 KIT
Will it work with my existing TP-Link powerline adapters?
Only if they are G.hn models. G.hn is not compatible with HomePlug AV/AV2 adapters such as the TL-PA and TL-WPA ranges.
Do I lose a power socket?
Not at the router end — the PG2400P has a passthrough socket.
Does it need to be on the same circuit?
Best results come from both adapters on the same electrical circuit; TP-Link notes range and throughput drop when adapters are on separate service panels.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
