TP-Link M8550 5G AXE3600 Wi-Fi 6E Mobile Router
PRODUCT DESCRIPTION
TP-Link 5G AXE3600 Mobile Router (M8550) - 3 Years Local Warranty
The M8550 is TP-Link's 5G pocket router with tri-band Wi-Fi 6E: 688 Mbps on 2.4 GHz, 2880 Mbps on 5 GHz or 2880 Mbps on 6 GHz under 802.11ax, a 1.44-inch TFT touchscreen, a Gigabit WAN/LAN port, a USB-C power port and a 4700 mAh battery rated by TP-Link for up to 15 hours. It takes a Nano SIM, shares one 5G connection with up to 32 devices and reads Micro SD cards up to 2 TB.
5G in a Pocket-Sized Router
TP-Link headlines the M8550 at up to 3.4 Gbps 5G download, and its specification table lists 5G data rates of 7.01 Gbps down and 1.25 Gbps up, with LTE/4G at 1.6 Gbps down and 211 Mbps up. Real speeds depend on local 5G coverage, the data plan and network load, so treat those as ceilings rather than expectations. Band support is published separately for TP-Link's US and EU versions.
Wi-Fi 6E on the 6 GHz Band
Beyond the usual 2.4 GHz and 5 GHz, the M8550 can broadcast on 6 GHz for Wi-Fi 6E clients, where there is far less congestion than on 5 GHz in a busy office or hotel. TP-Link lists selectable modes: 2.4 GHz only, 5 GHz only, 6 GHz only, 2.4 GHz with 5 GHz, or 2.4 GHz with 6 GHz. Older phones and laptops without 6E simply use 2.4 GHz or 5 GHz.
Touchscreen, Gigabit Port and Micro SD

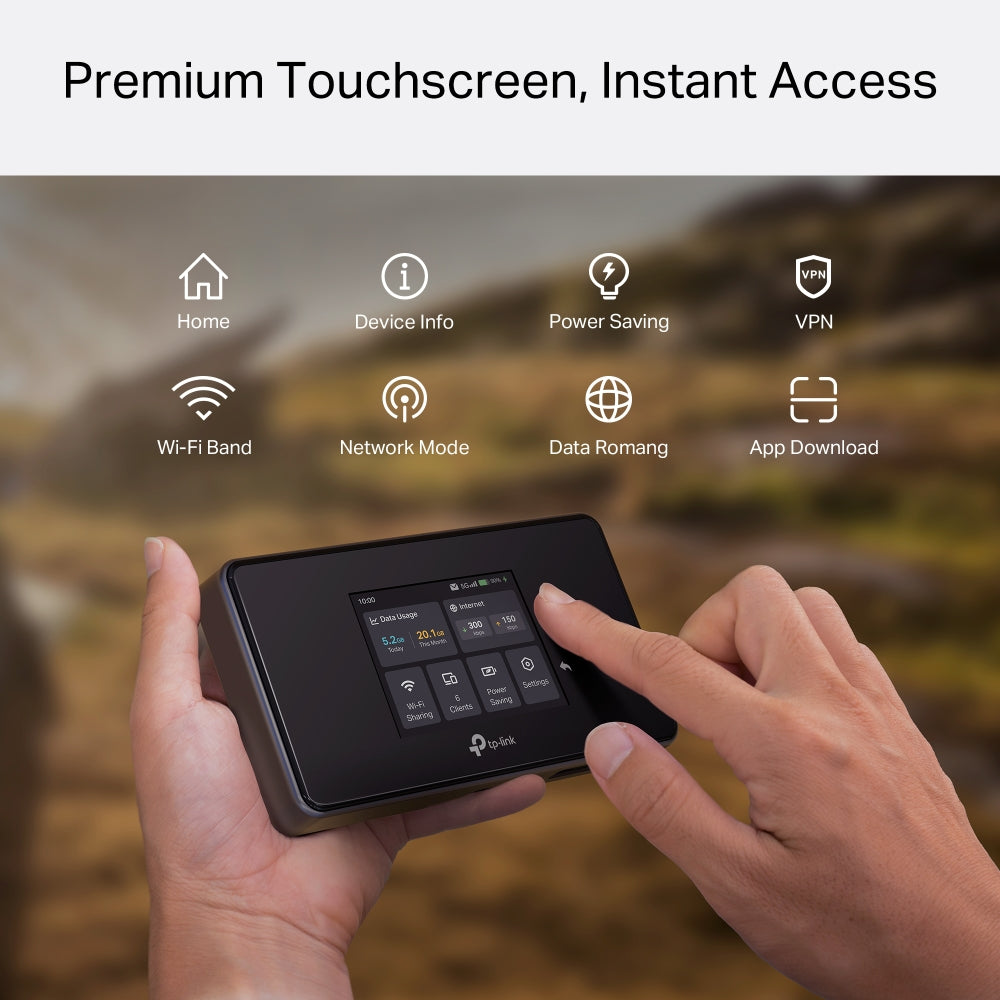

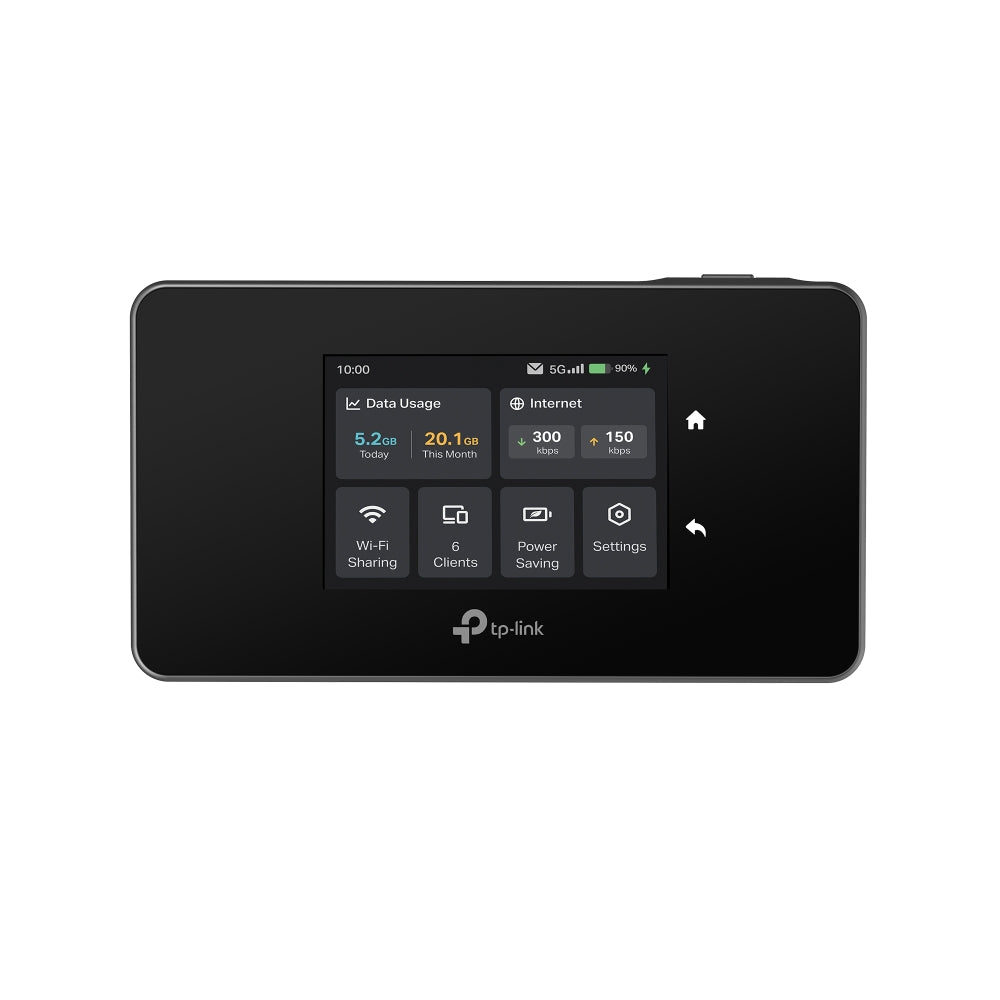

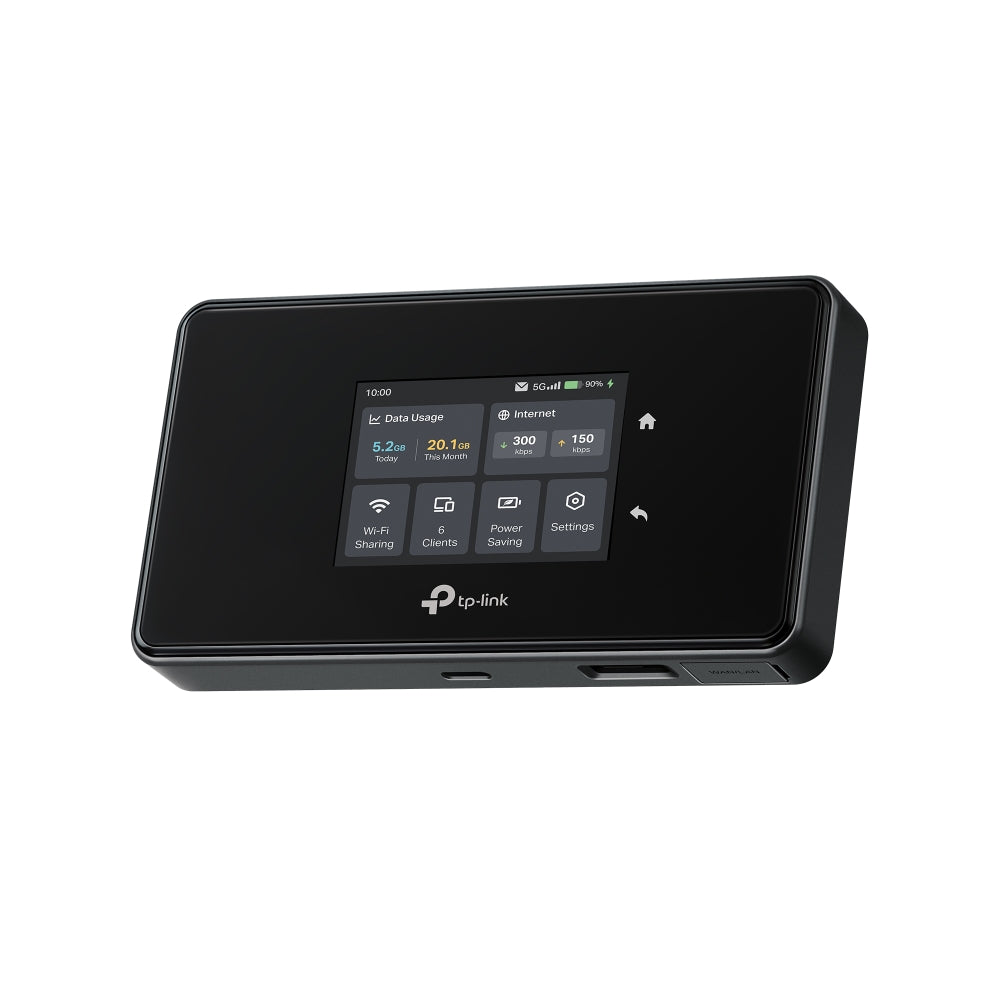

A 1.44-inch TFT touchscreen shows status at a glance without opening an app. The Gigabit WAN/LAN port lets the M8550 feed a wired device or take a wired connection in, and the Micro SD slot supports cards up to 2 TB (card sold separately) for sharing files with connected devices.
4700 mAh Battery for a Working Day
The 4700 mAh battery is included in the box and TP-Link rates it for up to 15 hours of working time, noting that actual battery time varies with the environment. It charges over USB-C; TP-Link lists 5V-3A, 9V-2A and 12V-1.5A power supply ratings. Up to 32 devices can share the connection simultaneously.
Ideal For
Travelling teams, site offices, pop-up events and backup connectivity in Singapore where a 5G SIM is the fastest line available and Wi-Fi 6E clients are in use. Supplied by SourceIT with local Singapore warranty and GST invoice.
M8550 Datasheet — Technical Specifications
General
| Model | M8550 |
| Official Product Name | 5G AXE3600 Mobile Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
5G / 4G / 3G
| Network Type (US Version) | 5G: N2/N5/N25/N41/N66/N71/N77; 4G: B1/B2/B3/B4/B5/B7/B12/B13/B14/B25/B29/B30/B38/B41/B46/B48/B66/B71 |
| Network Type (EU Version) | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78; 4G: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43; 3G: B1/B5/B8 |
| Data Rates | 5G: DL 7.01 Gbps, UL 1.25 Gbps; LTE/4G: DL 1.6 Gbps, UL 211 Mbps |
| Headline 5G Download (feature summary) | Up to 3.4 Gbps |
| SIM | 1x Nano SIM Card Slot |
Wireless
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax — 688 Mbps at 2.4 GHz, or 2880 Mbps at 5 GHz, or 2880 Mbps at 6 GHz |
| Frequency | 2.4 GHz & 5 GHz & 6 GHz |
| Wireless Modes | 2.4 GHz Only; 5 GHz Only; 6 GHz Only; 2.4 GHz & 5 GHz; 2.4 GHz & 6 GHz |
| Wireless Security | WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| Transmission Power | 2.4G <20 dBm, 5G <23 dBm |
| Connected Devices | Up to 32 devices simultaneously |
Hardware

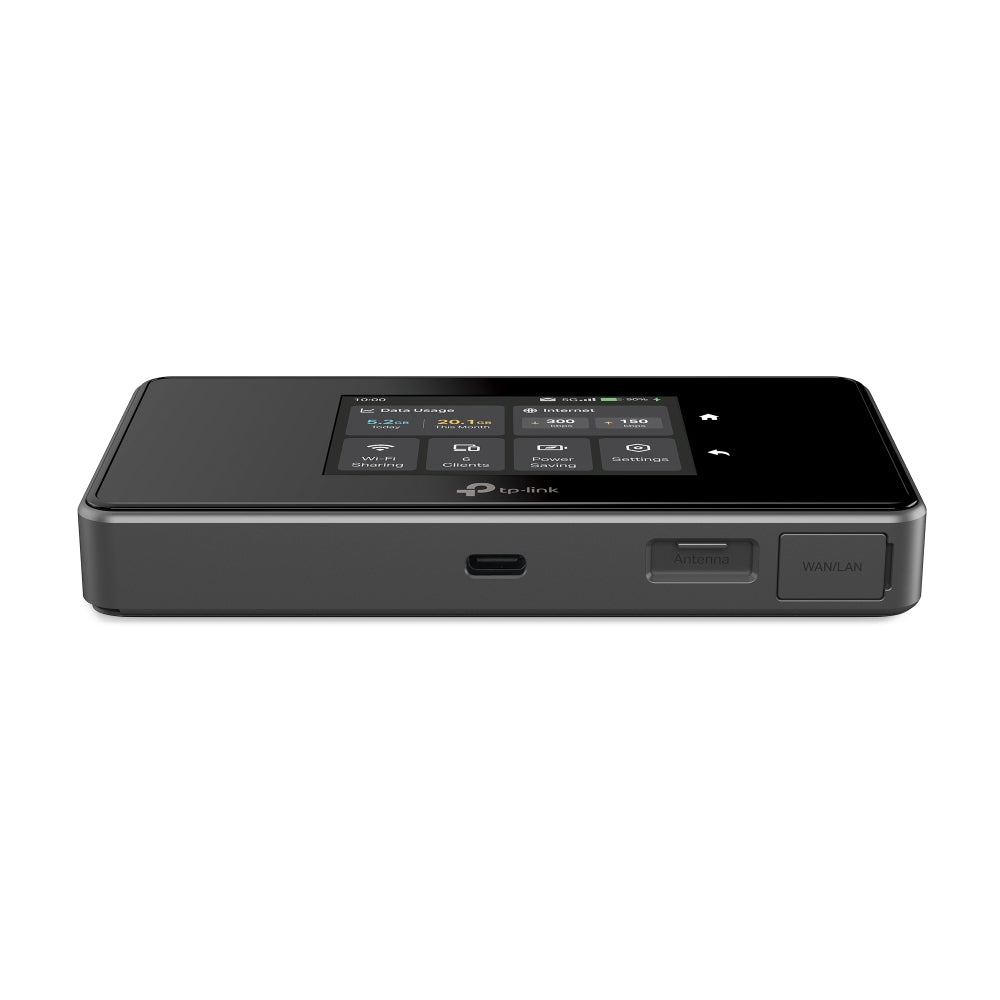

| Interface | 1x USB-C Port for Power Supply, 1x Gigabit WAN/LAN Port, 1x Nano SIM Card Slot, 1x Micro SD Card Slot |
| Button | Power On/Off |
| Battery | 4700 mAh Rechargeable Battery — up to 15 hours of working (actual battery time may vary) |
| Power Supply | 5V-3A, 9V-2A, 12V-1.5A |
| Screen Display | 1.44 inch TFT Touch Screen |
| Antenna | Internal Antenna |
| Micro SD Card Reader | Up to 2 TB (SD card sold separately) |
| Dimensions (W x D x H) | 135 x 40 x 20.4 mm |
Software
| DHCP | DHCP Server, DHCP Client List |
| VPN | PPTP pass-through, L2TP pass-through, IPSec pass-through, OpenVPN, PPTP VPN, VPN Client |
| Network Services Enabled by Default | Web Server (ports 80/443, HTTP/HTTPS); DNS (port 53, UDP); DHCP Server (ports 67/547, DHCP/DHCPv6); SSH for app (port 20001); Tmpd for app (port 20002) |
Other
| Certification | CE, RoHS |
| System Requirements | Windows 11/10/8/7/Vista/XP, Mac OS, Android, iOS, Windows Phone |
TP-Link publishes no weight, no operating temperature or humidity, and does not state which regional band version is supplied in Singapore — both the US and EU band lists are reproduced as published. TP-Link's feature summary mentions an antenna interface while the specification table lists only an internal antenna and no external connector type. Its 3.4 Gbps headline and 7.01 Gbps table figure also differ; both are shown as published rather than reconciled.
Compatibility & Software Support
| Management | Touchscreen, web browser (HTTP/HTTPS) and TP-Link app management (app services listed in the specification) |
| SIM | Requires an activated Nano SIM card without a PIN lock; TP-Link's quick installation guide explains how to unlock a locked SIM. |
| Wi-Fi 6E Clients | 6 GHz operation requires Wi-Fi 6E client devices; other clients use 2.4 GHz or 5 GHz |
| Client Operating Systems | Windows 11/10/8/7/Vista/XP, Mac OS, Android, iOS, Windows Phone |
| Storage | Micro SD card up to 2 TB (sold separately) |
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications; actual throughput, coverage and number of connected devices vary with network conditions, client limitations and environment.
Package Contents & Ordering Information
Package Contents
| In the Box | 5G AXE3600 Mobile Router M8550; USB-C Cable; 4700 mAh Battery; Quick Installation Guide |
Ordering Information
| Model | M8550 |
| SKU | M8550 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — M8550
Does the M8550 need a 5G SIM?
It takes a Nano SIM and falls back to 4G/LTE (and 3G on the EU version) where 5G is unavailable. The SIM must be activated and have no PIN lock.
Can it run 5 GHz and 6 GHz at the same time?
TP-Link lists 2.4 GHz with 5 GHz, or 2.4 GHz with 6 GHz, as the combined modes — not 5 GHz and 6 GHz together.
Can I connect a wired device?

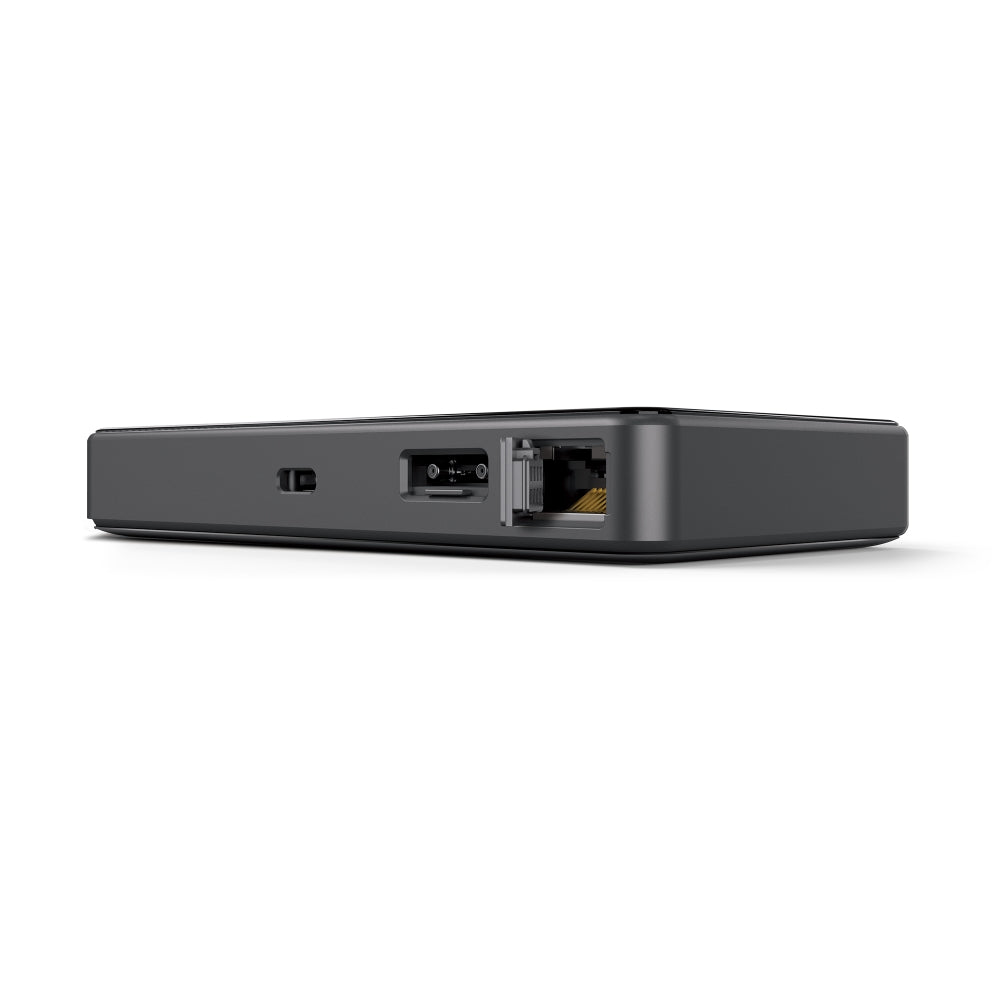

Yes. The Gigabit WAN/LAN port can serve a wired device or take a wired internet connection.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
