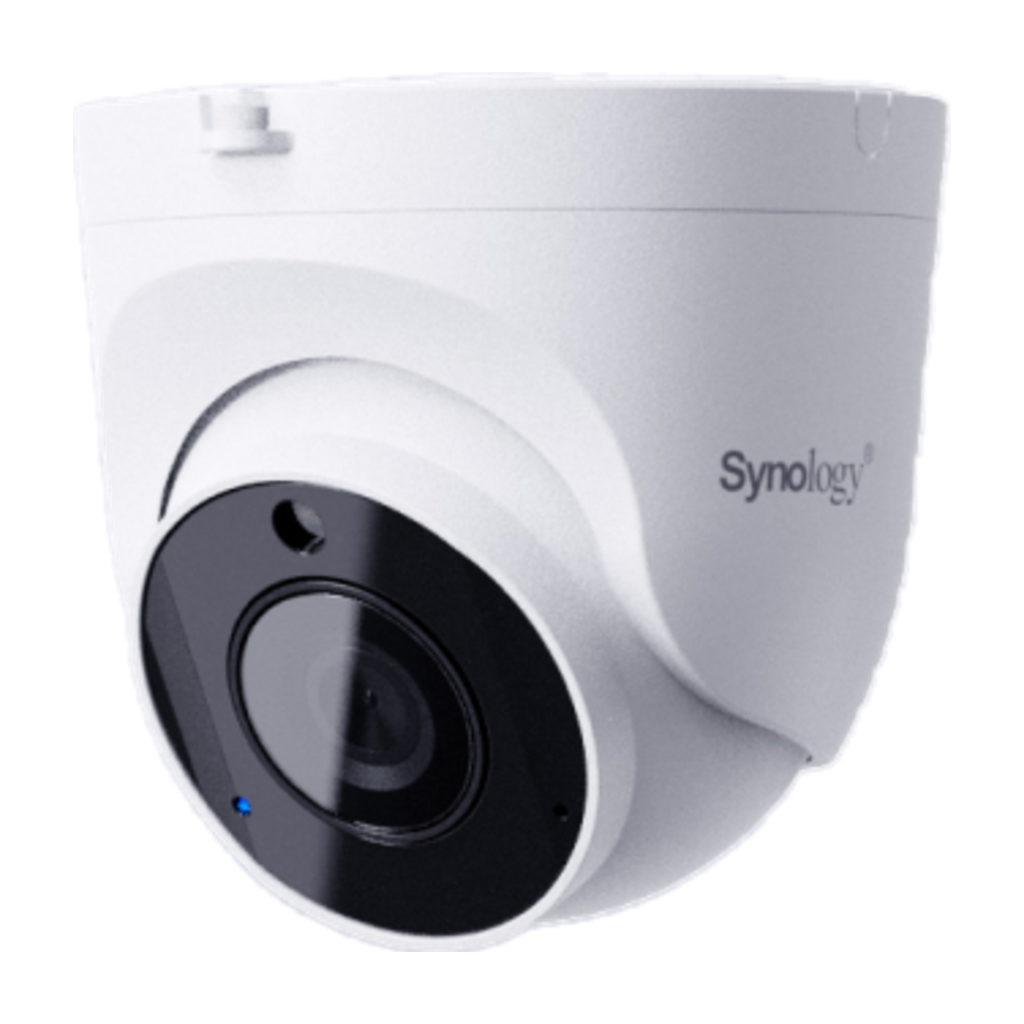

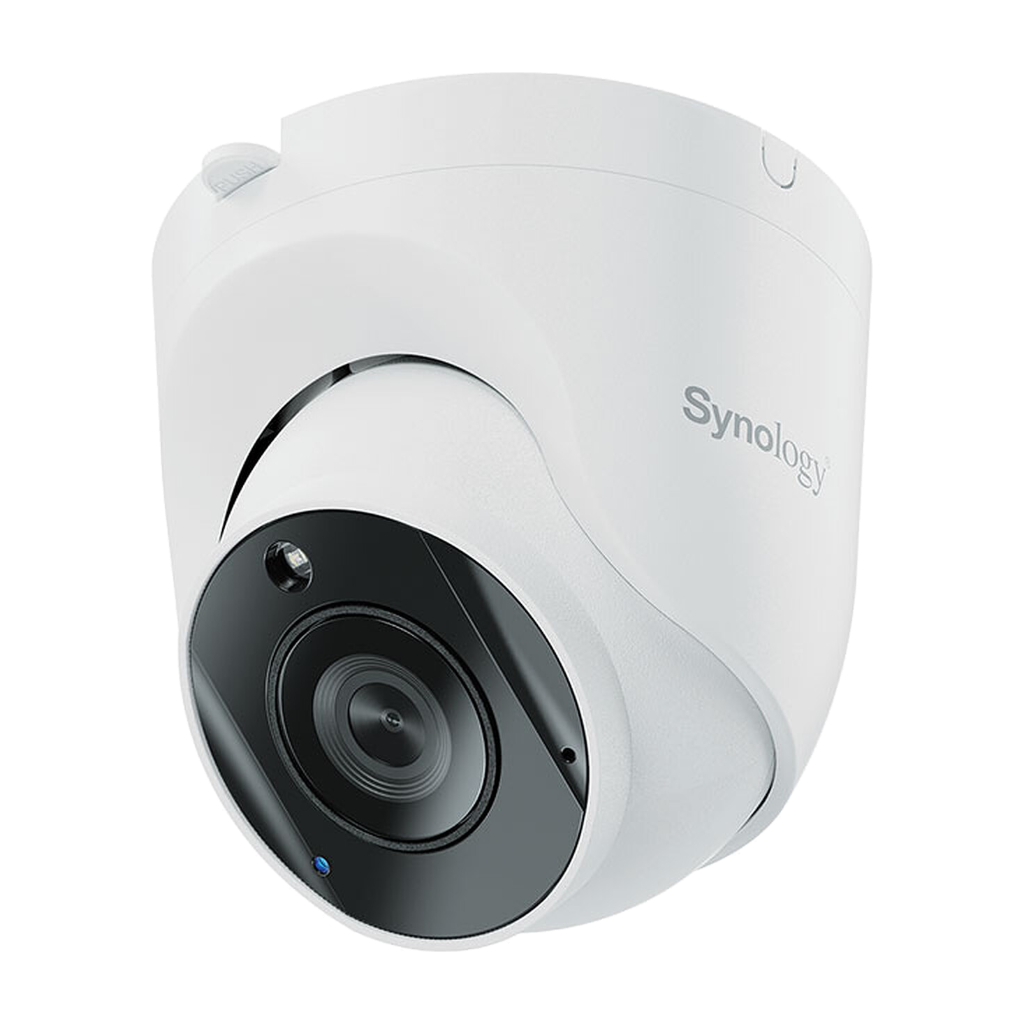

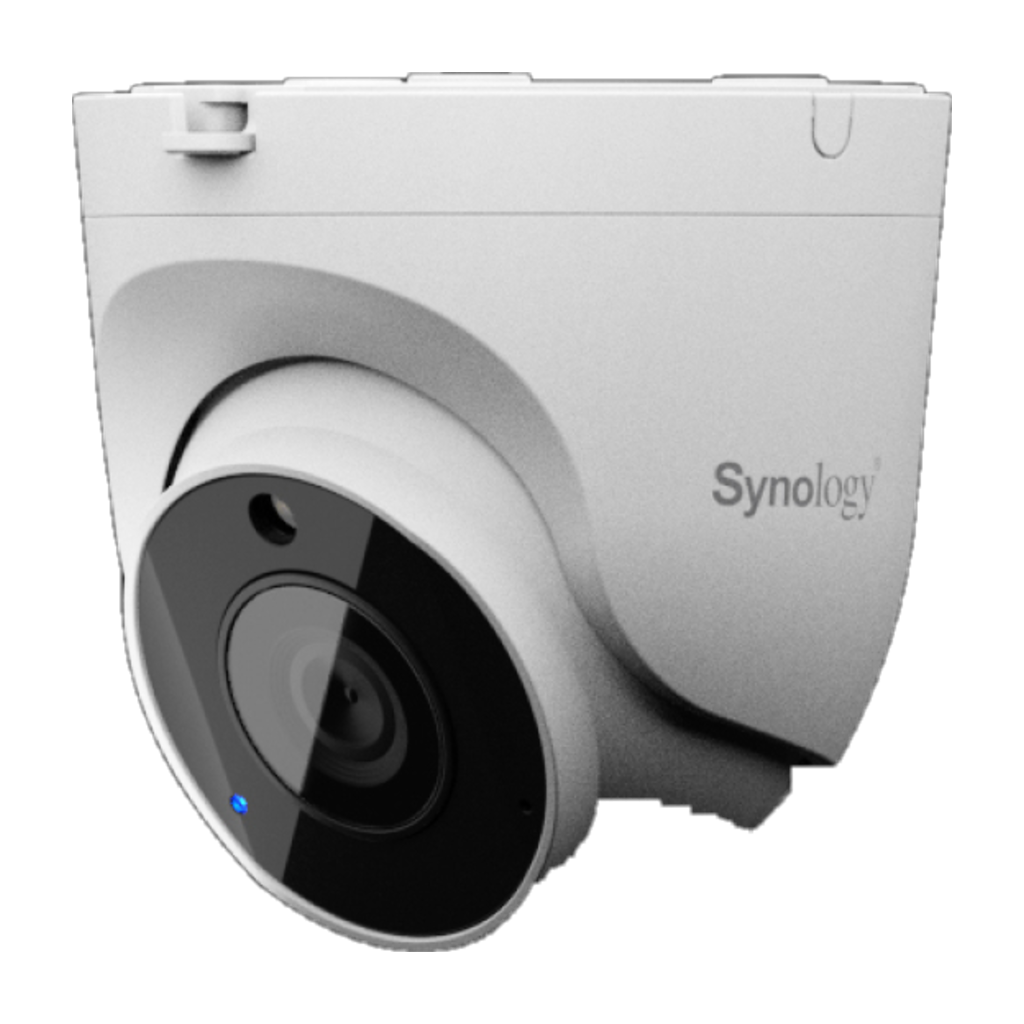

Synology TC510 5MP AI-Powered Turret Camera (2.8mm)
PRODUCT DESCRIPTION
Synology TC510 5MP AI-Powered Turret Camera TC510 - 3 Years Warranty
5MP with On-Camera AI
The TC510 records 5MP (2880 x 1620) video at 30 FPS and runs people and vehicle detection on the camera itself, so alerts and searches stay accurate without loading your NAS.
Wide View, Day and Night
A 2.8 mm F1.8 lens gives a 110° horizontal view, with multi-exposure HDR and 850 nm IR night vision up to 30 m.
Tough Turret Design
IP66 / IP67 weatherproofing and IK10 vandal resistance, powered by PoE or 12 V DC, with a microSD slot for on-board recording.
Synology TC510 Datasheet — Technical Specifications
General
| Product Name | Synology TC510 AI-powered 5MP Turret Camera |
| Model | TC510 |
| Form Factor | Turret |
| UPC | 846504006670 |
| Warranty | 3 years (Synology) |
Image & Lens
| Image Sensor | 1/2.7" |
| Resolution | 5 MP (2880 x 1620) 16:9, up to 30 FPS |
| Lens | Fixed 2.8 mm, F1.8 |
| Field of View | 110° H, 56° V, 132° D |
| DORI | Detect 60 m, Observe 24 m, Recognise 12 m, Identify 6 m |
| IR | 850 nm, up to 30 m |
| Day & Night | Automatically removable IR-cut filter |
| Video Features | Multi-exposure HDR, 3DNR, 2DNR |
Video, AI & Audio
| Compression | H.264 / H.265 (Surveillance Station); H.264 (Surveillance365) |
| Max Bitrate | 8192 kbps (Surveillance Station); 3072 kbps (Surveillance365) |
| Edge AI | People, vehicle, crowd and loitering detection (crowd detection on Surveillance Station) |
| Other Analytics | Motion, audio and tampering detection; people/vehicle counting, intrusion detection, instant search and auto tracking (Surveillance Station) |
| Audio | Built-in microphone, G.711 |
Connectivity & Power
| Ethernet | 1 x RJ-45 10/100M |
| On-board Storage | 1 x microSD slot (card not included) |
| Power | PoE (IEEE 802.3af Class 3) or 12 V DC (1 A, Ø2.1 mm) |
| Power Consumption | 4.8 W |
Physical & Environment
| Dimensions | Ø97 x 88 mm |
| Weight | 387 g |
| Weatherproofing | IP66, IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -30–50 °C (IR off), -30–40 °C (IR on) |
| Operating Humidity | 5–95% (non-condensing) |
| Compliance | NDAA and TAA compliant; FCC, CE, UKCA, RCM and others |
Compatibility & Applications
Recording Platforms
Record to a Synology NAS running Surveillance Station (a Surveillance Device License is required per camera), or connect to the Surveillance365 cloud service.
Typical Use

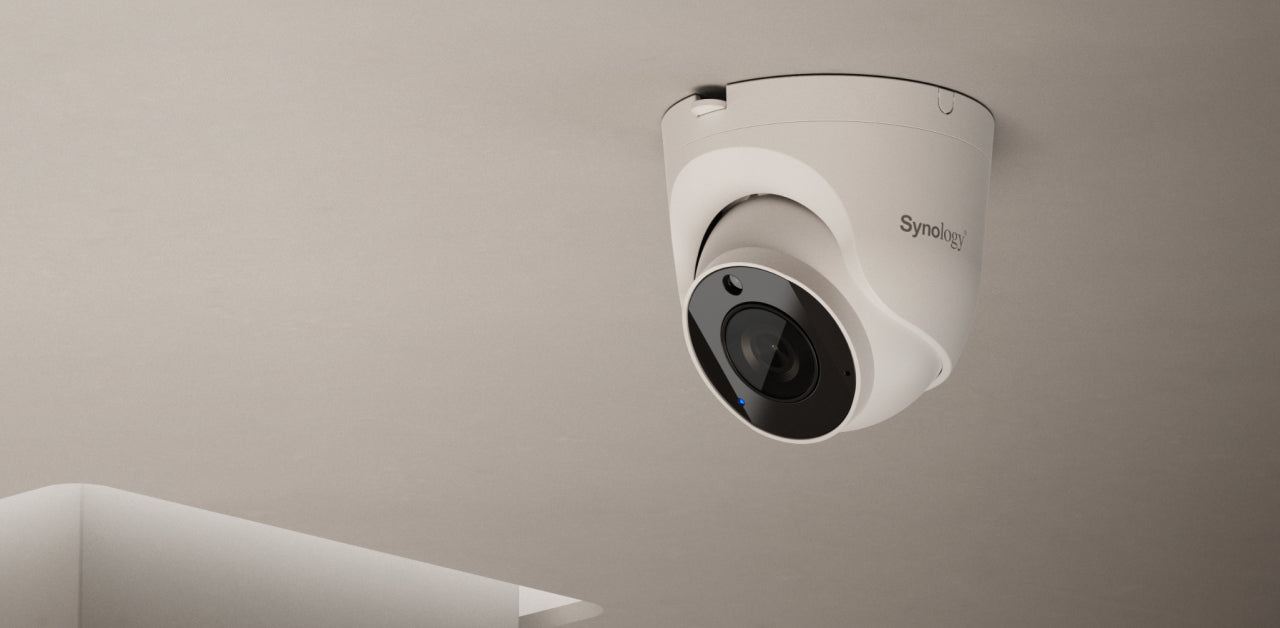

Offices, shopfronts, corridors, lobbies and eaves where a discreet, vandal-resistant camera is needed.
Selection Tip
For long, narrow outdoor areas such as driveways and car parks, the BC510 bullet camera is the alternative. PoE switch and DC adapter are not included.
Package Contents & Synology Ordering Information
In the Box
1 x TC510 camera, 1 x installation guide, 1 x screw pack, 1 x RJ-45 cap cover, 1 x regulatory compliance card. Power adapter, PoE switch and microSD card not included.
Synology Cameras at SourceIT
| Model | Key feature |
| BC510 | 5MP AI bullet, 2.8 mm, IP66/IP67 |
| TC510 (this listing) | 5MP AI turret, 2.8 mm, IP66/IP67, IK10 |
Official Synology Videos
Introducing Synology Cameras BC510 & TC510 (official Synology channel)
How to Set up Your TC510 — Hardware Installation (official Synology channel)
How to Set up Your TC510 — Synology NAS (official Synology channel)
How to Set up Your TC510 — Surveillance365 (official Synology channel)
Datasheet & Downloads
| Datasheet | TC510 Datasheet (PDF) |
| Specifications | TC510 specifications on synology.com |
| Surveillance Station | Synology Surveillance solutions |
Frequently Asked Questions — Synology TC510
Do I need a licence?
With Surveillance Station, each camera needs a Surveillance Device License. Surveillance365 is a separate cloud subscription.
Is a power adapter included?
No. Power it by PoE (802.3af) or a 12 V 1 A DC adapter, sold separately.
Is it vandal-resistant?
Yes, IK10 rated, plus IP66 / IP67 weatherproofing.
What warranty do I get?
3 years Synology warranty.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
