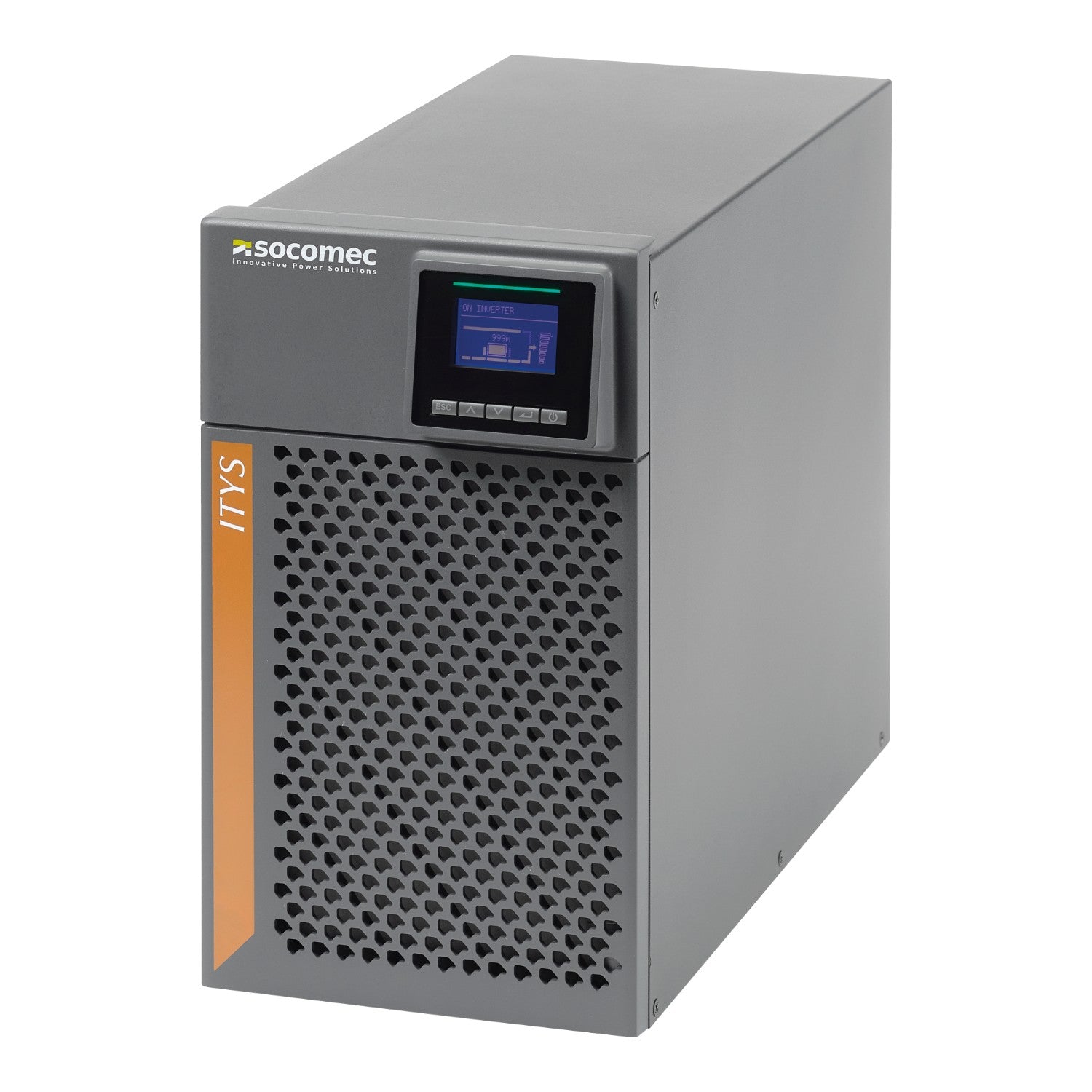

Socomec ITYS 3kVA Online Tower UPS
PRODUCT DESCRIPTION
Socomec ITYS 3kVA/3kW Online Double-Conversion Tower UPS with Built-In Battery (ITY3-TW030B) - 3 Years Local Warranty
True Online Double-Conversion Protection with Unity Power Factor
The Socomec ITYS ITY3-TW030B is a 3000 VA / 3000 W online double-conversion UPS (VFI) with an output power factor of 1, so the full kVA rating is available as real watts. Every connected device runs from a continuously regenerated pure sine-wave output with ±1% voltage accuracy and under 1% distortion on linear loads — clean power for servers, network cores, medical and lab equipment, and anything with an active-PFC power supply.
Wide Input Window and Zero Transfer Time
The ITYS runs at full load from 160 V to 300 V input (derating linearly to 50% load down to 110 V) and accepts 40–70 Hz, riding through poor-quality supplies without touching the battery. Transfer between mains and battery is 0 ms; an automatic bypass (4 ms) keeps the load powered if the inverter is overloaded or faulted.
Built-In Battery, Expandable Runtime
The ITY3-TW030B ships with its battery inside the tower and recharges to 90% in about 3 hours. For longer backup, Socomec's ITY3-EX030B external battery module connects directly to the UPS. Socomec quotes a typical backup time of 9 min on the internal battery.
Full Communication Kit Out of the Box
USB and RS232 ports, an embedded dry-contact interface, remote power-off (RPO) input and a communication slot for an optional network card are all standard. An input mains breaker and an internal temperature sensor are built in, and the LCD front panel shows the UPS operating state.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the ITYS ITY3-TW030B in Singapore through Socomec's local distribution, with a full GST invoice and a 3-year local warranty. Email sales@sourceit.com.sg for sizing help or extended-runtime quotes.
Socomec ITY3-TW030B Datasheet — Technical Specifications
General
| Product Name | Socomec ITYS 3kVA 230V online UPS with integrated battery |
| Reference | ITY3-TW030B |
| Range | ITYS (1–10 kVA) |
| Topology | Online double conversion (VFI) with automatic bypass |
| Form Factor | Tower (freestanding) |
| EAN | 8027122745963 |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Power
| Rated Power | 3000 VA / 3000 W |
| Output Power Factor | 1 |
| Input Voltage Range | 160–300 V at 100% load; 110–160 V with linear derating to 50% load |
| Input Frequency | 40–70 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 200 / 208 / 220 / 230 / 240 V AC selectable (derated at 200/208 V), ±1% |
| Output Waveform | Pure sine wave |
| Output THD | <1% linear load; <5% non-linear load |
| Transfer Time | 0 ms mains ↔ battery; 4 ms mains ↔ bypass |
| Efficiency (online mode) | 93% |
| Input Connection | IEC C20 |
| Output Sockets | 8 x IEC C13 + 1 x IEC C19 |
Battery
| Battery | Integrated, 72 V DC (9 Ah) |
| Recharge Time | 3 h to 90% |
| Typical Backup Time | 9 min (Socomec published) |
| Expected Battery Life | 3–5 years |
| Battery Extension | ITY3-EX030B external battery module(s) |
Communication
| Ports | USB, RS232 |
| Dry Contacts | Embedded dry-contact interface (dry in / dry out) |
| Remote Power Off | RPO input |
| Expansion | Communication slot for optional network / relay card |
| Display | LCD |
Physical & Environmental
| Dimensions (W x H x D) | 192 x 322 x 428 mm |
| Weight | 26 kg |
| Protection Rating | IP20 |
| Operating Temperature | 0–45 °C |
| Relative Humidity | 0–95% |
| Noise Level | <50 dB at 1 m (front) |
| Standards | IEC 62040-1, IEC 62040-2, IEC 62040-3, RCM |
Compatibility & Software Support
What It Is Suited To
The ITY3-TW030B suits small server rooms, network cabinets, NVRs, workstations, POS back-office systems and sensitive lab or medical equipment. With a power factor of 1 you can load it to 3000 W; leave headroom for start-up surge and future growth.
Monitoring and Shutdown
USB and RS232 connect to a host for local monitoring and shutdown. For network monitoring over SNMP, the communication slot takes an optional Socomec network card; the dry-contact and RPO interfaces integrate with building management and emergency-stop circuits.
Outlets
Outputs are 8 x IEC C13 + 1 x IEC C19 with an IEC C20 input. BS 1363 (Type G) plugs need an IEC lead or an IEC-input power strip; ask us if you need one quoted.
Package Contents & ITYS Ordering Information
In the Box (per Socomec manual)
- ITYS UPS with integrated battery
- Input cable
- Output cable
- RS232 cable
- USB cable
- Manual and safety instructions
Socomec ITYS 1–3 kVA — Ordering Information
| ITY3-TW010B | 1000 VA / 1000 W | 4 x IEC C13 | ITY3-EX010B (EBM) |
| ITY3-TW020B | 2000 VA / 2000 W | 8 x IEC C13 | ITY3-EX030B (EBM) |
| ITY3-TW030B (this listing) | 3000 VA / 3000 W | 8 x IEC C13 + 1 x IEC C19 | ITY3-EX030B (EBM) |
External battery module ITY3-EX030B and network cards are available to order — ask us for pricing and runtime estimates.
Datasheet & Downloads
| Socomec reference page | Socomec ITYS 3kVA — official reference page |
| Socomec datasheet | ITY3-TW030B product datasheet (PDF) |
| Installation & operating manual | ITYS 1–3 kVA manual (PDF) |
| Range catalogue | ITYS catalogue pages (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ITY3-TW030B.
Frequently Asked Questions — Socomec ITY3-TW030B
What does "1 pf" mean?
An output power factor of 1 means the UPS delivers its full rating as real power: the ITY3-TW030B gives 3000 W from 3000 VA, where a 0.8 or 0.9 pf unit would give less.
Is this a true online UPS?
Yes. ITYS is an online double-conversion (VFI) UPS with a pure sine-wave output and 0 ms transfer time between mains and battery.
How can I extend the runtime?
Add Socomec ITY3-EX030B external battery modules. Tell us your load and target runtime and we will size the configuration.
Can it be monitored over the network?
Yes, with an optional Socomec network card in the communication slot. USB and RS232 are standard.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
