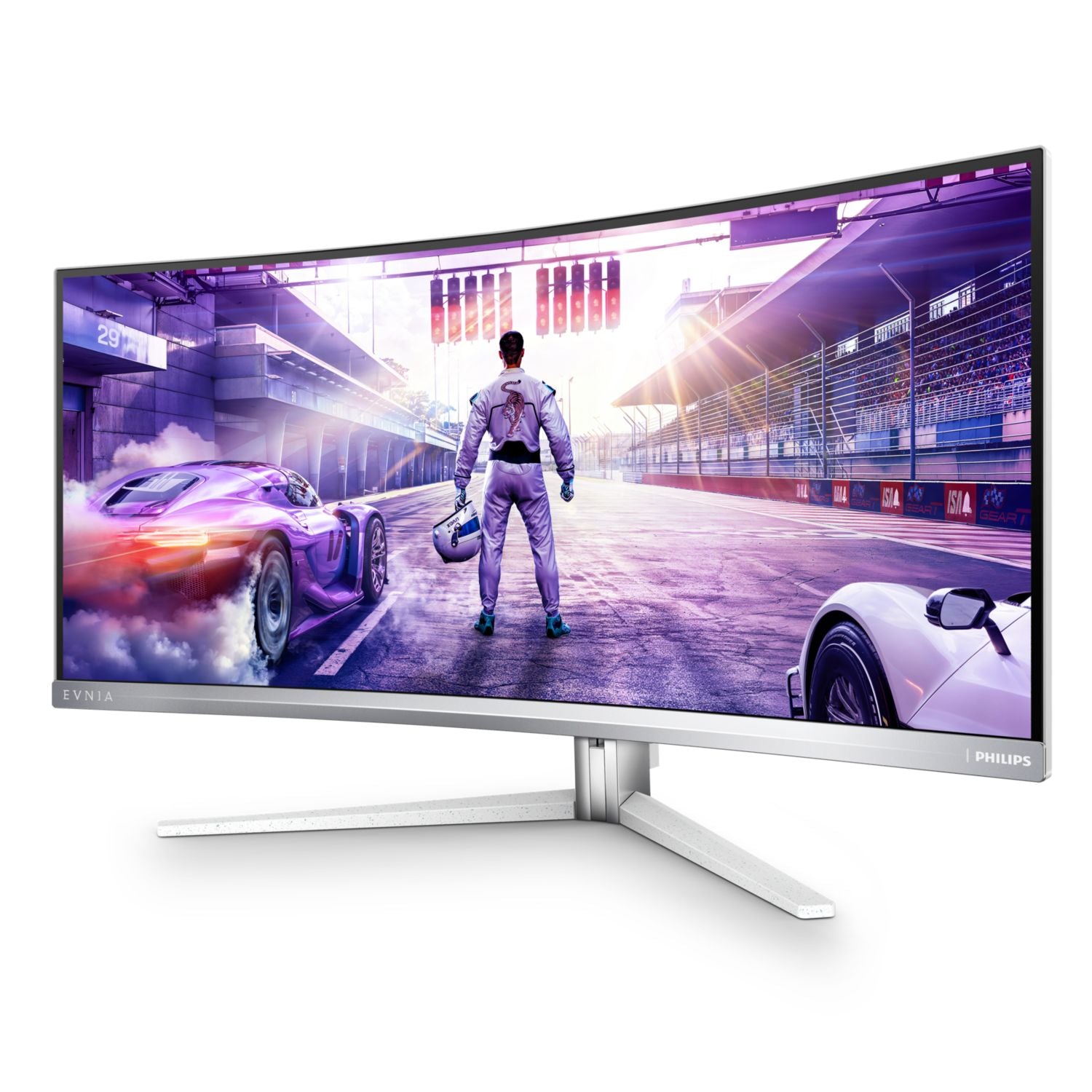

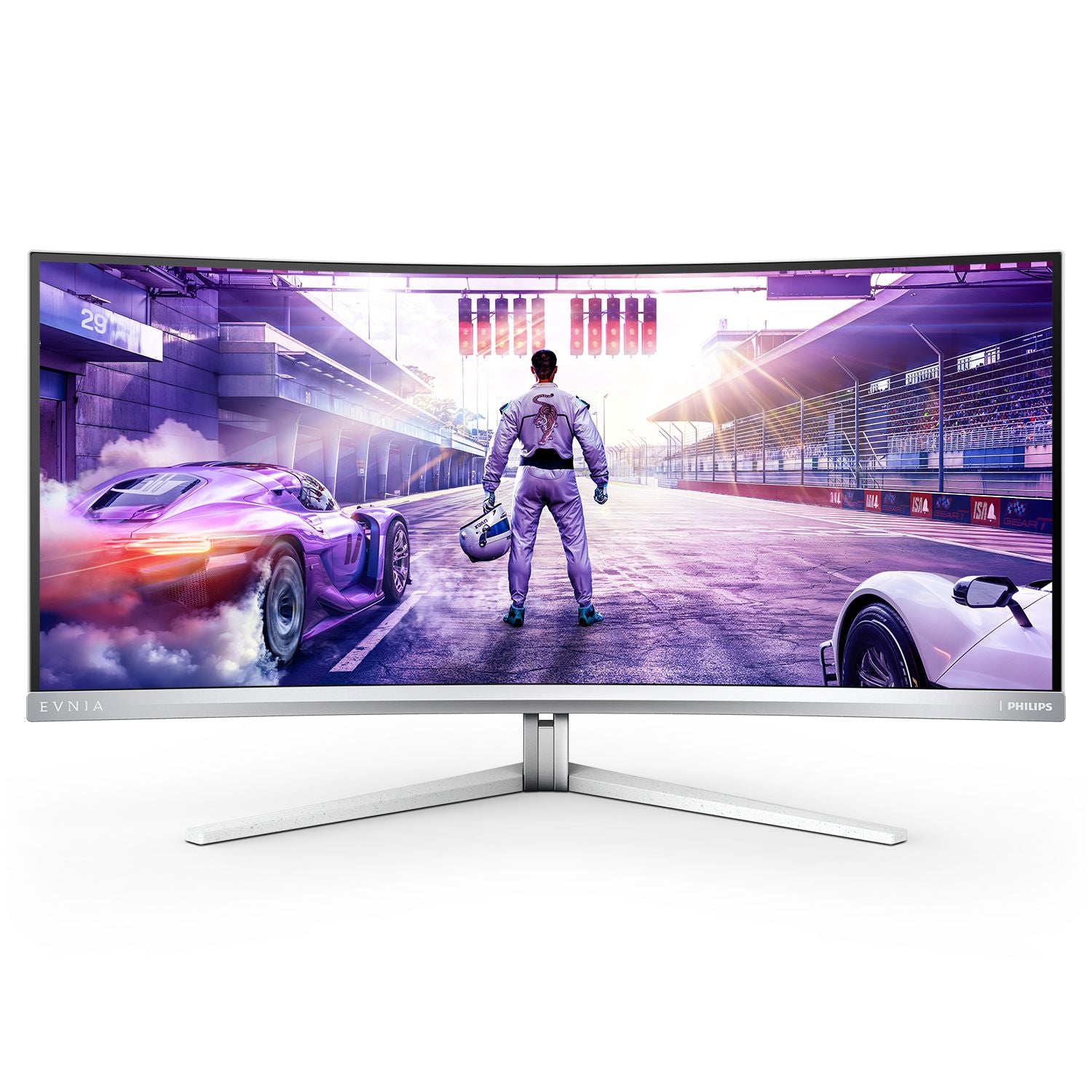

Philips Evnia 34" WQHD 175Hz Curved QD-OLED Gaming Monitor with USB-C
PRODUCT DESCRIPTION
Philips Evnia 34M2C8600 34" WQHD 175Hz Curved QD-OLED Gaming Monitor with USB-C - 3 Years On-site Warranty
Dynamic Lighting
Dynamic Lighting: Synchronize lighting on all devices.
VESA ClearMR 9000
VESA ClearMR 9000: for the highest-quality of imagery.
QD OLED technology
QD OLED for superior colors and vibrant visuals.
Curved display design
Curved display design for more immersive experience.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Philips 34M2C8600 Datasheet — Technical Specifications
General
| Product Name | Philips Evnia 34" WQHD 175Hz Curved QD-OLED Gaming Monitor with USB-C |
| Model | 34M2C8600 (Philips CTN 34M2C8600/69) |
| Brand / Series | Philips Evnia gaming |
| Local Warranty (Singapore) | 3 years on-site warranty |
| Pixel Defect Policy | Replacement if more than 2 dead/bright pixels in year 1, or more than 3 from year 2 onwards |
Picture/Display
| Panel Size | 34 inch / 86.36 cm |
| Aspect ratio | 21:9 |
| Monitor Panel Type | QD OLED |
| Pixel pitch | 0.2315 x 0.2315 mm |
| Brightness | SDR: 250 (APL 100%) nit, HDR: 450 (APL 10%) nit, HDR E/P: 1000 (APL 3%) |
| Display colors | Color support 1.07 billion colors (10 bit) |
| Color gamut (typical) | NTSC 121.3%*, sRGB 148.8%*, Adobe RGB 97.8%* |
| Color gamut (min.) | DCI-P3: 99.3%* |
| Contrast ratio (typical) | 1,000,000:1 |
| SmartContrast | Mega Infinity DCR |
| Response time (typical) | 0.03 ms (Gray to Gray)* |
| Viewing angle | 178º (H) / 178º (V), @ C/R > 10000 |
| Picture enhancement | SmartImage game |
| Maximum resolution | HDMI: 3440 x 1440 @ 100 Hz, DP/USB-C: 3440 x 1440 @ 175 Hz |
| Effective viewing area | 800.1 (H) x 337.1 (V) - at a 1800R curvature* |
| Scanning Frequency | HDMI: 30 - 160 kHz (H) / 48 - 100 Hz (V), DP/USB-C: 30 - 255 kHz (H) / 48 - 175 Hz (V) |
| sRGB | Yes |
| Delta E | <2 (sRGB) |
| Flicker-free | Yes |
| Pixel Density | 109.68 PPI |
| LowBlue Mode | Yes |
| Display Screen Coating | Anti-reflection, 2H |
| Low Input Lag | Yes |
| EasyRead | Yes |
| Adaptive sync (VRR) | Yes |
| HDR | DisplayHDR True Black 400 certified |
| Ambiglow | 4-sided |
| Pixel format | RGB Q-Stripe* |
| Windows Dynamic Lighting | Yes |

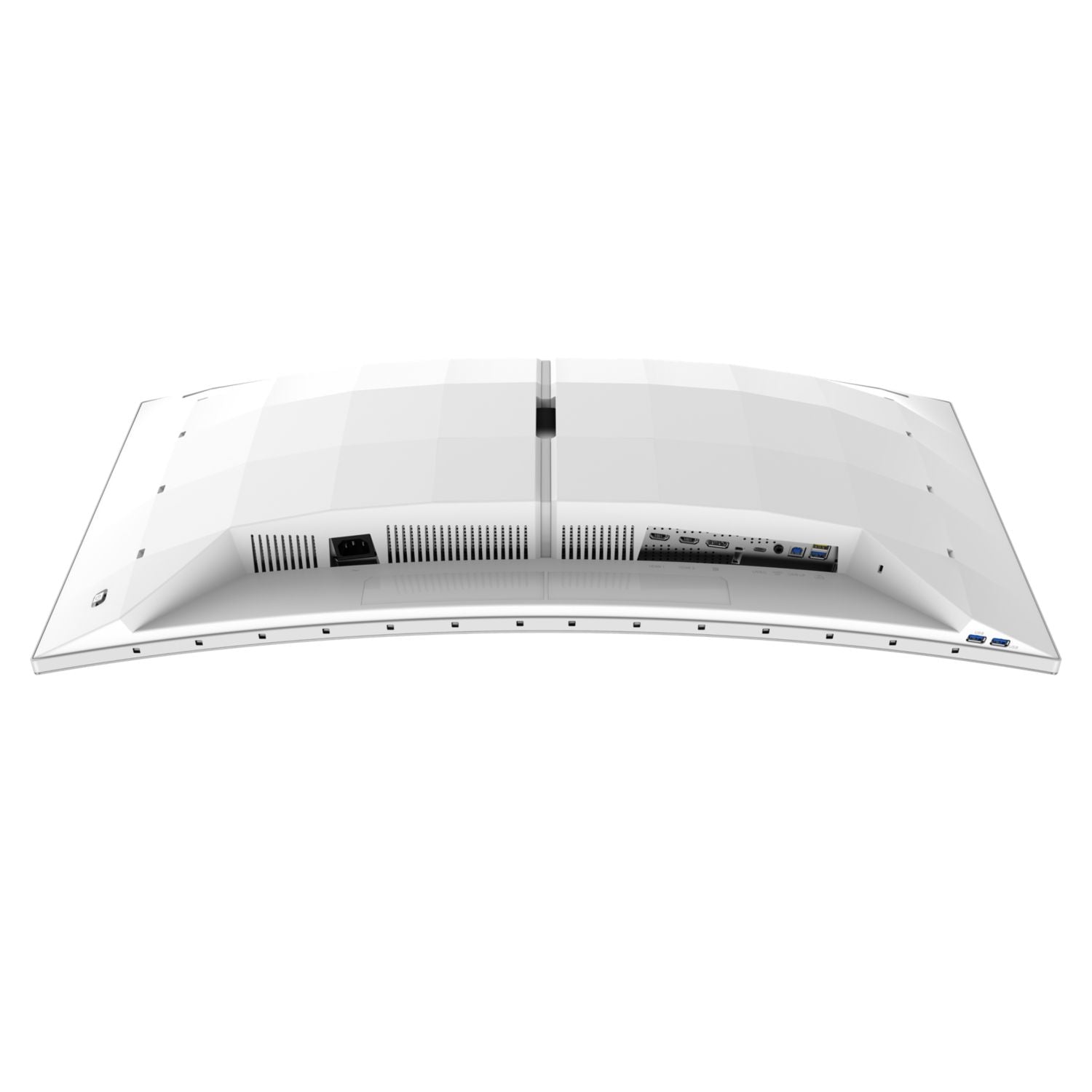

Connectivity
| Signal Input | HDMI 2.0 x 2, DisplayPort 1.4 x 1, USB-C x 1 (DP Alt mode, Video, Data and Power Delivery) |
| Sync Input | Separate Sync |
| Audio (In/Out) | Audio out |
| HDCP | HDCP 1.4 (HDMI / DisplayPort / USB-C), HDCP 2.2 (HDMI / DisplayPort / USB-C), HDCP 2.3 (HDMI / DisplayPort / USB-C) |
| USB Hub | USB 3.2 Gen 1 / 5 Gbps, USB-B upstream x 1, USB-A downstream x 4 (with 1 for fast charge B.C 1.2) |
Power Delivery
| Max power delivery | USB-C up to 90 W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.5A) |
| Version | USB PD version 3.0 |
Convenience
| Built-in Speakers | 5 W x 2, DTS |
| Plug & Play Compatibility | DDC/CI, Mac OS X, sRGB, Windows 11 / 10 / 8.1 / 8 / 7 |
| User convenience | Power On/Off, Menu/OK, Input/Up, Game Settings/Down, SmartImage game/Back |
| Other convenience | Kensington lock, VESA mount (100x100mm), VESA bracket |
| MultiView | PIP/PBP mode, 2x devices |
| KVM | Yes |
| Low blue light | Low blue light compliance* |

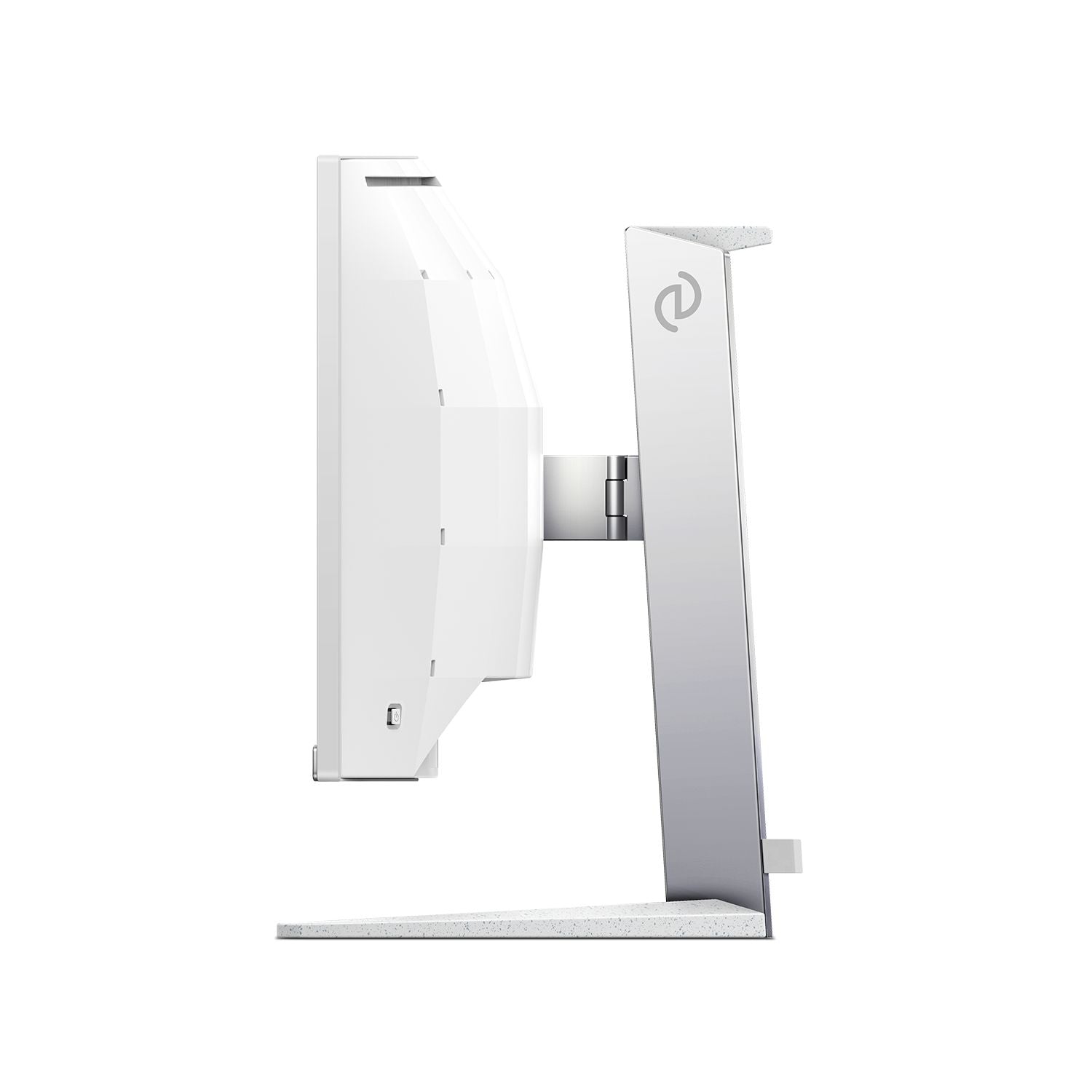

Stand
| Height adjustment | 150 |
| Swivel | -/+ 20 degree |
| Tilt | -5/20 degree |
Power
| Power supply | Internal, 100-240VAC, 50-60Hz |
| Off mode | 0.3 W (typ.) |
| On mode | 113.6 W (typ.) |
| Standby mode | 0.5 W (typ.) |
| Power LED indicator | Operation - White, Standby mode- White (blinking) |
Dimensions
| Packaging in mm (WxHxD) | 930 x 525 x 282 mm |
| Product without stand (mm) | 813 x 367 x 135 mm |
| Product with stand(max height) | 813 x 553 x 295 mm |
Weight
| Product with packaging (kg) | 12.49 |
| Product with stand (kg) | 8.70 |
| Product without stand (kg) | 6.80 |
Operating conditions
| Altitude | Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m) |
| Temperature range (operation) | 0°C to 40 °C |
| MTBF | 30,000 hour(s) |
| Relative humidity | 20%-80 % |
| Temperature range (storage) | -20°C to 60 °C |
Compliance and standards
| Regulatory Approvals | CB, CE Mark, FCC Class B, ICES-003, CU-EAC, EAEU RoHS, TUV/ISO9241-307, TUV-BAUART, cETLus, PSB |
Cabinet
| Color | White |
| Finish | Textured |
* Values marked with an asterisk carry footnotes on the Philips datasheet (e.g. overclock or measurement conditions) — see the Philips leaflet for details.
Compatibility & Connectivity
Video Inputs
HDMI 2.0 x 2, DisplayPort 1.4 x 1, USB-C x 1 (DP Alt mode, Video, Data and Power Delivery). Connect a desktop PC, laptop or docking station with a matching cable.
USB-C Laptops
One USB-C cable carries video (DisplayPort Alt Mode), USB data and up to 90 W charging to a USB-C laptop. The laptop's USB-C port must support DisplayPort Alt Mode for video.
Operating Systems
Plug & Play: DDC/CI, Mac OS X, sRGB, Windows 11 / 10 / 8.1 / 8 / 7.
Mounting
VESA 100x100mm mount compatible for monitor arms and wall brackets.
Package Contents & Philips Evnia Gaming Monitors Ordering Information
In the Box
34M2C8600 monitor with stand, power cable, HDMI cable, DisplayPort cable, quick start guide.
Philips Evnia Gaming Monitors
| Model | Key feature |
| 24M2N3200FQ | 23.8" FHD Fast IPS 200 Hz |
| 24M2N3200PF | 23.8" FHD Fast IPS 260 Hz (OC) |
| 27M2N3200FQ | 27" FHD Fast IPS 200 Hz |
| 27M2N3200PF | 27" FHD Fast IPS 260 Hz (OC) |
| 27M2N3500PA | 27" QHD Fast IPS 260 Hz (OC), charcoal |
| 27M2N3501PA | 27" QHD Fast IPS 260 Hz (OC), white |
| 27M2N3500UK | 27" QHD Fast IPS 320 Hz, circular polariser |
| 27M2N3800A | 27" 4K 160 Hz / FHD 320 Hz Fast IPS |
| 27M2C5500W | 27" QHD 240 Hz curved VA |
| 27M2N6500L | 26.5" QHD QD-OLED 240 Hz |
| 27M2N5800P | 27" 4K 240 Hz / FHD 480 Hz Fast IPS |
| 27M2N8500X | 26.5" QHD QD-OLED 500 Hz |
| 27M2N8800 | 26.5" 4K QD-OLED 240 Hz |
| 27M2N8500 | 26.5" QHD QD-OLED 360 Hz |
| 32M2N5800 | 31.5" 4K 160 Hz / FHD 320 Hz Fast IPS |
| 32M2N8900 | 31.5" 4K QD-OLED 240 Hz, USB-C 65 W |
| 34M2C3500L | 34" WQHD 180 Hz curved Fast VA |
| 34M2C8600 (this listing) | 34" WQHD QD-OLED 175 Hz curved |
| 49M2C8900 | 48.9" 5120x1440 QD-OLED 240 Hz curved |
Datasheet & Downloads
| Philips product page | 34M2C8600 on philips.com.sg |
| Product leaflet | 34M2C8600 Leaflet (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 34M2C8600.
Frequently Asked Questions — Philips 34M2C8600
What resolution and refresh rate does the 34M2C8600 support?
HDMI: 3440 x 1440 @ 100 Hz, DP/USB-C: 3440 x 1440 @ 175 Hz (per Philips specification).
Can it charge my laptop?
Yes, the USB-C port supplies up to 90 W, enough for most USB-C laptops; check your laptop's charging requirement.
Is the stand adjustable?
Yes: height adjustment 150, swivel -/+ 20 degree, tilt -5/20 degree.
Does it have built-in speakers?
Yes, 5 W x 2, DTS.
What warranty do I get?
3 years on-site warranty in Singapore, serviced by Philips. Pixel policy: more than 2 dead/bright pixels in year 1, more than 3 from year 2. Supplied by SourceIT with a GST invoice.
