Philips 32" QHD IPS 100Hz USB-C Docking Monitor with 90W Charging & LAN
PRODUCT DESCRIPTION
Philips 32B2U3601 32" QHD IPS 100Hz USB-C Docking Monitor with 90W Charging & LAN - 3 Years On-site Warranty
SoftBlue Technology with Low Blue Light Panel
SoftBlue Technology: for comfortable viewing.
Built-in stereo speakers
Built-in stereo speakers for multimedia.
Flicker-free technology
Less eye fatigue with Flicker-free technology.
eyesafe® CERTIFIED 2.0 (RPF 40)
Eyesafe certified blue light protection and colour accuracy.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Philips 32B2U3601 Datasheet — Technical Specifications
General
| Product Name | Philips 32" QHD IPS 100Hz USB-C Docking Monitor with 90W Charging & LAN |
| Model | 32B2U3601 (Philips CTN 32B2U3601/69) |
| Brand / Series | Philips monitors |
| Local Warranty (Singapore) | 3 years on-site warranty |
| Pixel Defect Policy | Replacement if more than 2 dead/bright pixels in year 1, or more than 3 from year 2 onwards |
Picture/Display
| Panel Size | 31.5 inch/80 cm |
| Aspect ratio | 16:9 |
| LCD panel type | IPS technology |
| Backlight type | W-LED system |
| Pixel pitch | 0.2727x0.2727mm |
| Brightness | 350 cd/m² |
| Display colors | 1.07B (10 bits) |
| Color gamut (typical) | NTSC area: 102%, sRGB area: 113%* |
| Contrast ratio (typical) | 1000:1 |
| SmartContrast | 50,000,000:1 |
| Response time (typical) | 4 ms (Gray to Gray)* |
| Viewing angle | 178º (H) / 178º (V), @ C/R > 10 |
| Picture enhancement | SmartImage |
| Maximum resolution | 2560x1440@100Hz (HDMI/DP/USBC)* |
| Effective viewing area | 698.112(H)x392.688(V) mm |
| Scanning Frequency | 30K-150KHz (H) / 48-100Hz (V) |
| sRGB | Yes |
| SoftBlue | Yes |
| Flicker-free | Yes |
| Pixel Density | 93 PPI |
| Display Screen Coating | Anti-Glare, 3H, Haze 25% |
| EasyRead | Yes |
| Adaptive sync (VRR) | Yes |
| EyeSafe | Yes |
| Smart Link Sync | When used as a primary or secondary monitor* |

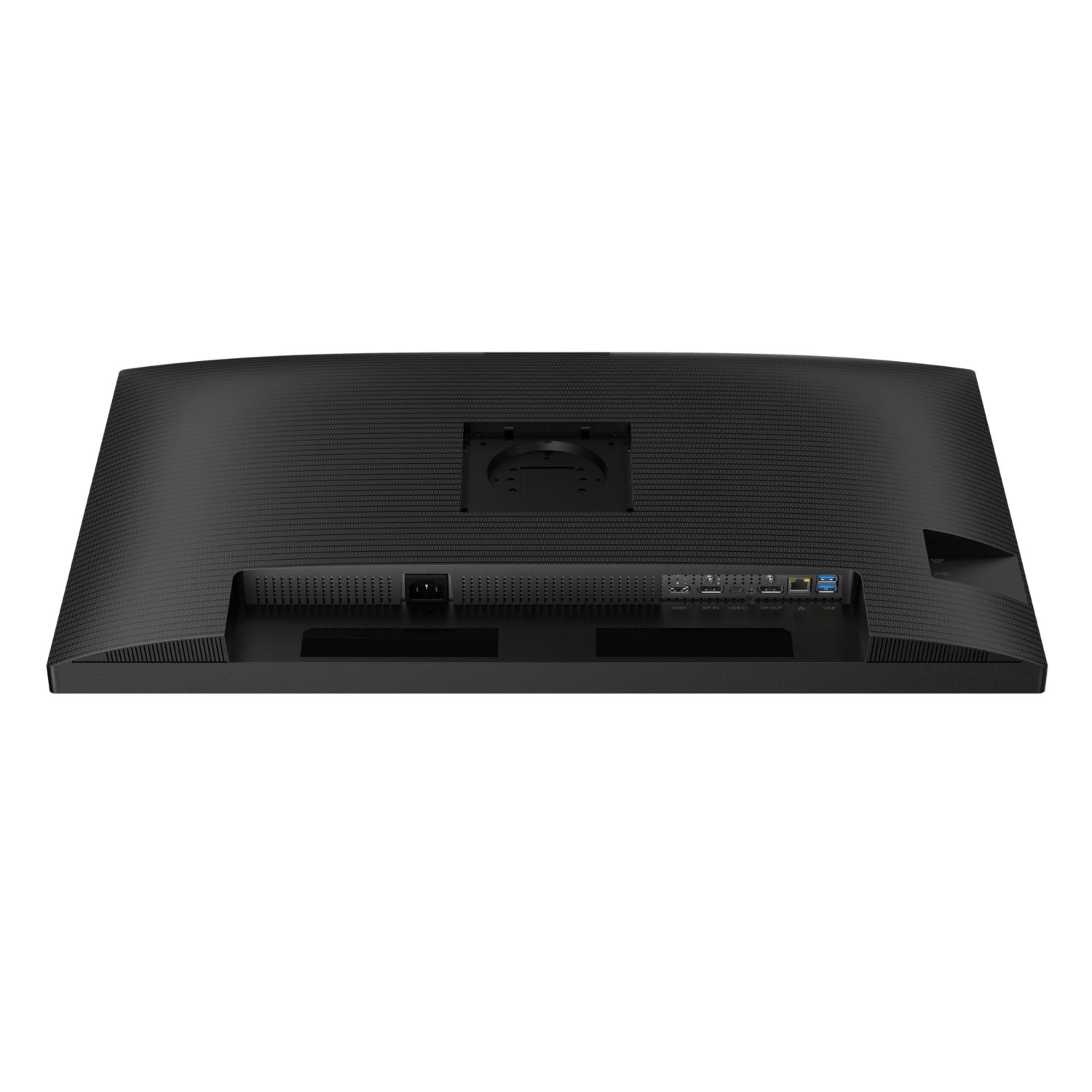

Connectivity
| Signal Input | HDMI 2.0 x 1, DisplayPort 1.4 x 1, USB-C x1 (upstream, DP Alt mode, data, PD) |
| Sync Input | Separate Sync, Sync on Green |
| Audio (In/Out) | Audio out x 1 |
| RJ45 | Ethermet LAN (10M/100M/1G) |
| Signal Output | DP out x 1 |
| HDCP | HDCP 1.4 (HDMI / DisplayPort / USB-C); HDCP 2.2 (HDMI / DisplayPort / USB-C) |
| HBR3 | Yes (DP,USB-C) |
| USB Hub | USB3.2, Gen1, 5G, upstream: USB-C x1 (Full); downstream :USB-A x4 (with x1 fast charge B.C 1.2) |
Power Delivery
| Max power delivery | Up to 90W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A, 20V/4.5A) |
| Version | USB PD version 3.0 |
Convenience
| Built-in Speakers | 2 W x 2 |
| Plug & Play Compatibility | DDC/CI, Mac OS, sRGB, Windows 11 / 10 |
| User convenience | SmartImage, Input, Brightness, Menu, Power On/Off |
| Other convenience | Kensington lock, VESA mount (100x100mm) |
| Control software | SmartControl |

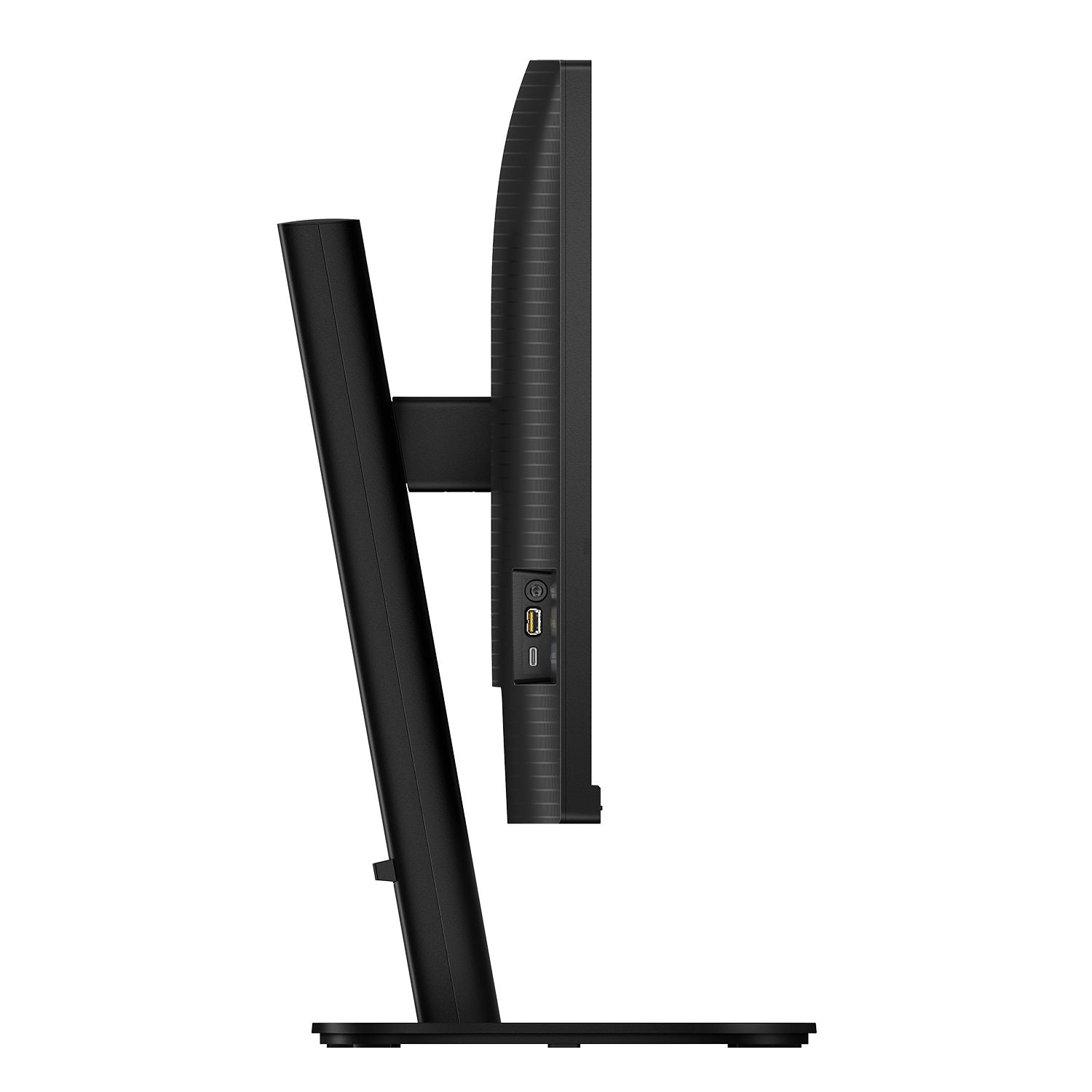

Stand
| Pivot | -/+90 degree |
| Height adjustment | 180 mm |
| Swivel | -/+180 |
| Tilt | -5/30 |
Power
| ECO mode | 17.4 W (typ.) |
| Power supply | Built-in, 100-240VAC, 50-60Hz |
| Off mode | 0.3 W (typ.) |
| On mode | 25.8 W (typ.) (EnergyStar test method) |
| Standby mode | 0.3 W (typ.) |
| Power LED indicator | Operation - White, Standby mode- White (blinking) |
Dimensions
| Packaging in mm (WxHxD) | 840 x 510 x 159 mm |
| Product without stand (mm) | 714 x 423 x 61 mm |
| Product with stand(max height) | 714 x 627 x 299 mm |
Weight
| Product with packaging (kg) | 13.70 kg |
| Product with stand (kg) | 9.87 kg |
| Product without stand (kg) | 7.07 kg |
Operating conditions
| Altitude | Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m) |
| Temperature range (operation) | 0°C to 40°C |
| Relative humidity | 20%-80% |
| Temperature range (storage) | -20°C to 60°C |
| MTBF (demonstrated) | 70,000 hrs (excluded backlight) |
Compliance and standards
| Regulatory Approvals | CB, CE Mark, ETL, CEC, TUV/GS, TUV Ergo, EAC ROHS, MEPS, UKCA, EMF, FCC, ICES-003, TCO Certified, TCO Certified Edge, EAC, eyesafe® CERTIFIED 2.0, TÜV Rheinland Low Blue Light (Hardware Solution) |
Cabinet
| Finish | Texture |
| Foot | Black |
| Front bezel | Black |
| Rear cover | Black |
* Values marked with an asterisk carry footnotes on the Philips datasheet (e.g. overclock or measurement conditions) — see the Philips leaflet for details.
Compatibility & Connectivity
Video Inputs
HDMI 2.0 x 1, DisplayPort 1.4 x 1, USB-C x1 (upstream, DP Alt mode, data, PD). Connect a desktop PC, laptop or docking station with a matching cable.
USB-C Laptops
One USB-C cable carries video (DisplayPort Alt Mode), USB data and up to 90 W charging to a USB-C laptop. The laptop's USB-C port must support DisplayPort Alt Mode for video.
Operating Systems
Plug & Play: DDC/CI, Mac OS, sRGB, Windows 11 / 10.
Software
SmartControl lets you adjust picture and monitor settings from your PC.
Mounting
VESA 100x100mm mount compatible for monitor arms and wall brackets.
Package Contents & Philips B Line Business Monitors Ordering Information
In the Box
32B2U3601 monitor with stand, power cable, signal cable and quick start guide. Cable types vary by Philips Singapore pack — email us to confirm before ordering.
Philips B Line Business Monitors
| Model | Key feature |
| 24B2N2200G | 23.8" FHD IPS 144 Hz, VGA/HDMI/DP |
| 24B2N3200J | 23.8" FHD IPS 120 Hz, USB hub, pivot |
| 24B2U3301 | 23.8" FHD IPS 120 Hz, USB-C 90 W |
| 24B2U3601 | 23.8" QHD IPS 120 Hz, USB-C 90 W |
| 27B2N2200G | 27" FHD IPS 144 Hz, VGA/HDMI/DP |
| 27B2N3500J | 27" QHD IPS 120 Hz, USB hub, pivot |
| 27B2N3500G | 27" QHD IPS 144 Hz, USB hub, pivot |
| 27B2U3601 | 27" QHD IPS 120 Hz, USB-C 90 W dock, LAN |
| 27B1U3900 | 27" 4K UHD IPS, USB-C 90 W dock, LAN |
| 32B2U3601 (this listing) | 31.5" QHD IPS 100 Hz, USB-C 90 W dock, LAN |
| 32B1U3900 | 31.5" 4K UHD VA, USB-C 90 W dock, LAN |
| 34B2U3600C | 34" WQHD 120 Hz curved, USB-C 90 W dock |
| 34B1U5600CH | 34" WQHD 120 Hz curved, USB-C 100 W, webcam |
| 34B2U5900C | 34" 5120x2160 120 Hz curved, USB-C 140 W |
| 49B2U5900CH | 48.8" 5120x1440 curved, USB-C 100 W, webcam |
Datasheet & Downloads
| Philips product page | 32B2U3601 on philips.com.sg |
| Product leaflet | 32B2U3601 Leaflet (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 32B2U3601.
Frequently Asked Questions — Philips 32B2U3601
What resolution and refresh rate does the 32B2U3601 support?
2560x1440@100Hz (HDMI/DP/USBC) (per Philips specification).
Can it charge my laptop?
Yes, the USB-C port supplies up to 90 W, enough for most USB-C laptops; check your laptop's charging requirement.
Is the stand adjustable?
Yes: height adjustment 180 mm, pivot -/+90 degree, swivel -/+180, tilt -5/30.
Does it have built-in speakers?
Yes, 2 W x 2.
What warranty do I get?
3 years on-site warranty in Singapore, serviced by Philips. Pixel policy: more than 2 dead/bright pixels in year 1, more than 3 from year 2. Supplied by SourceIT with a GST invoice.
