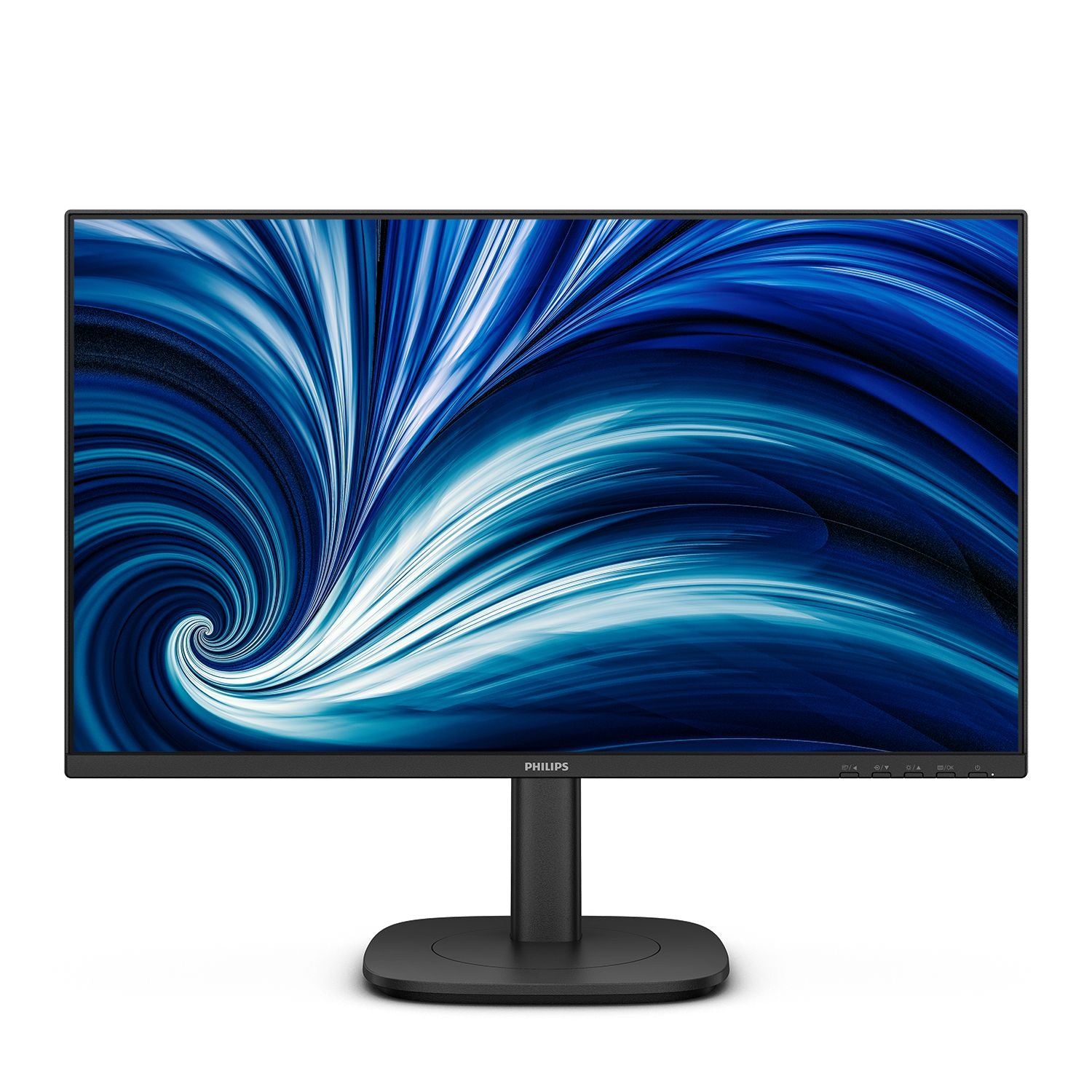

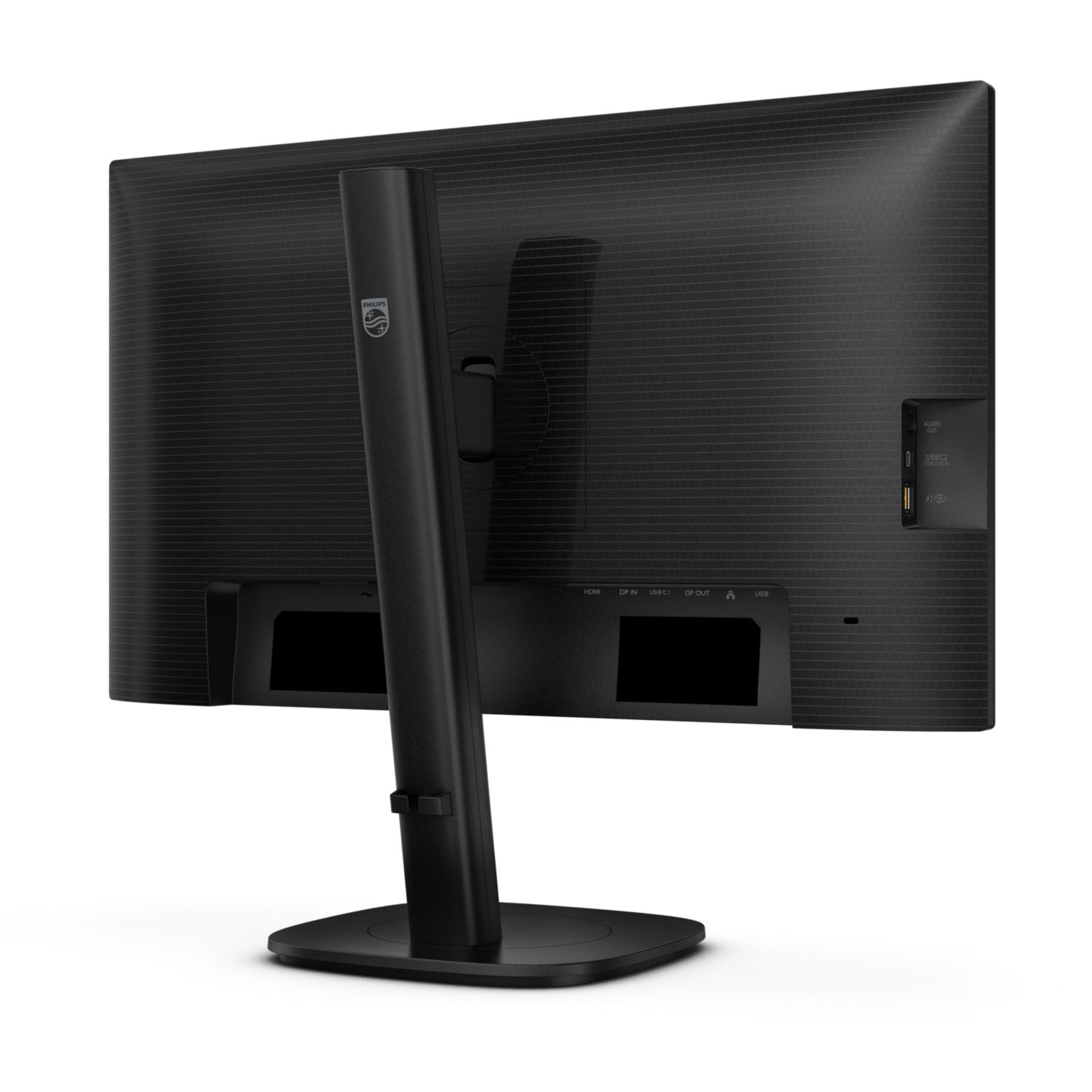

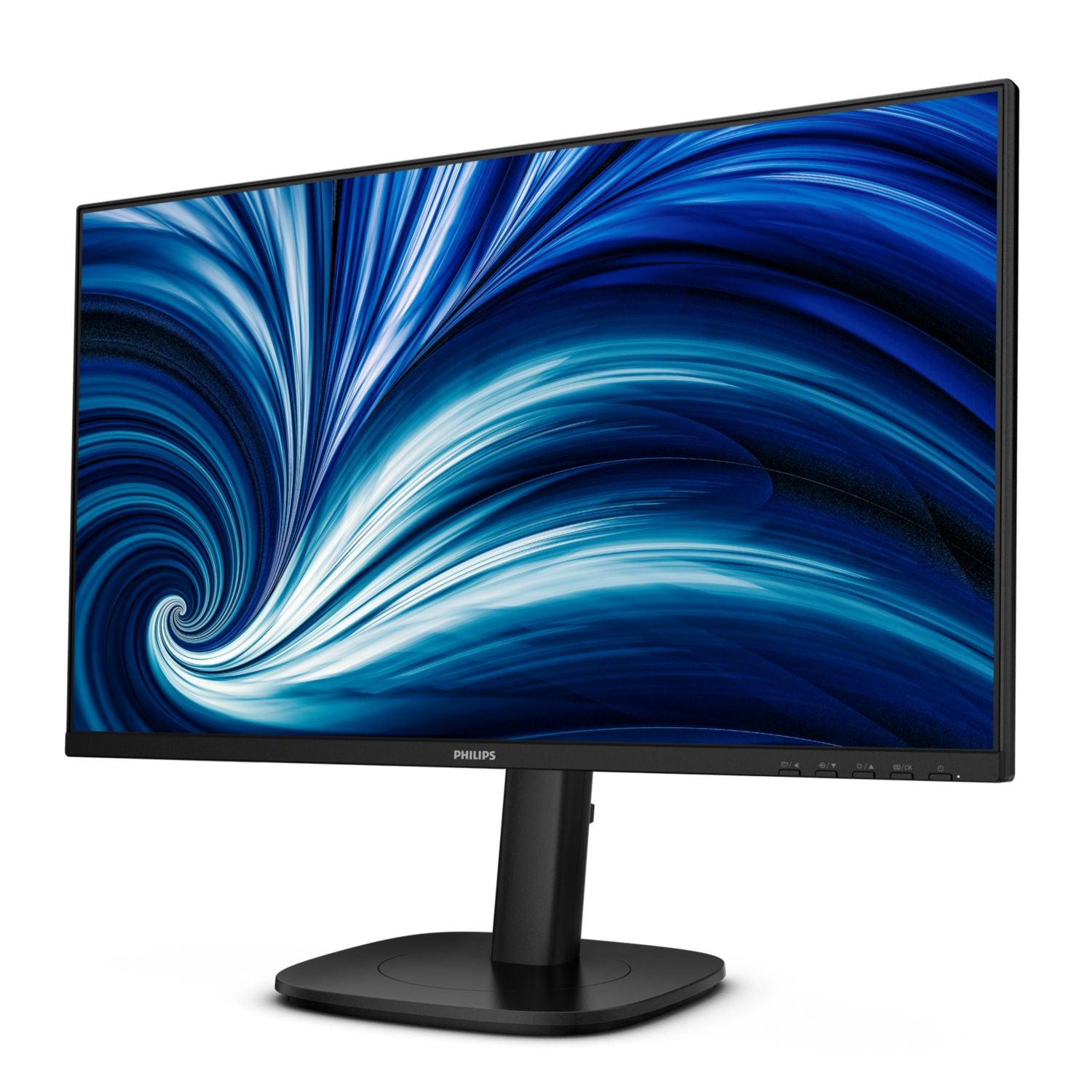

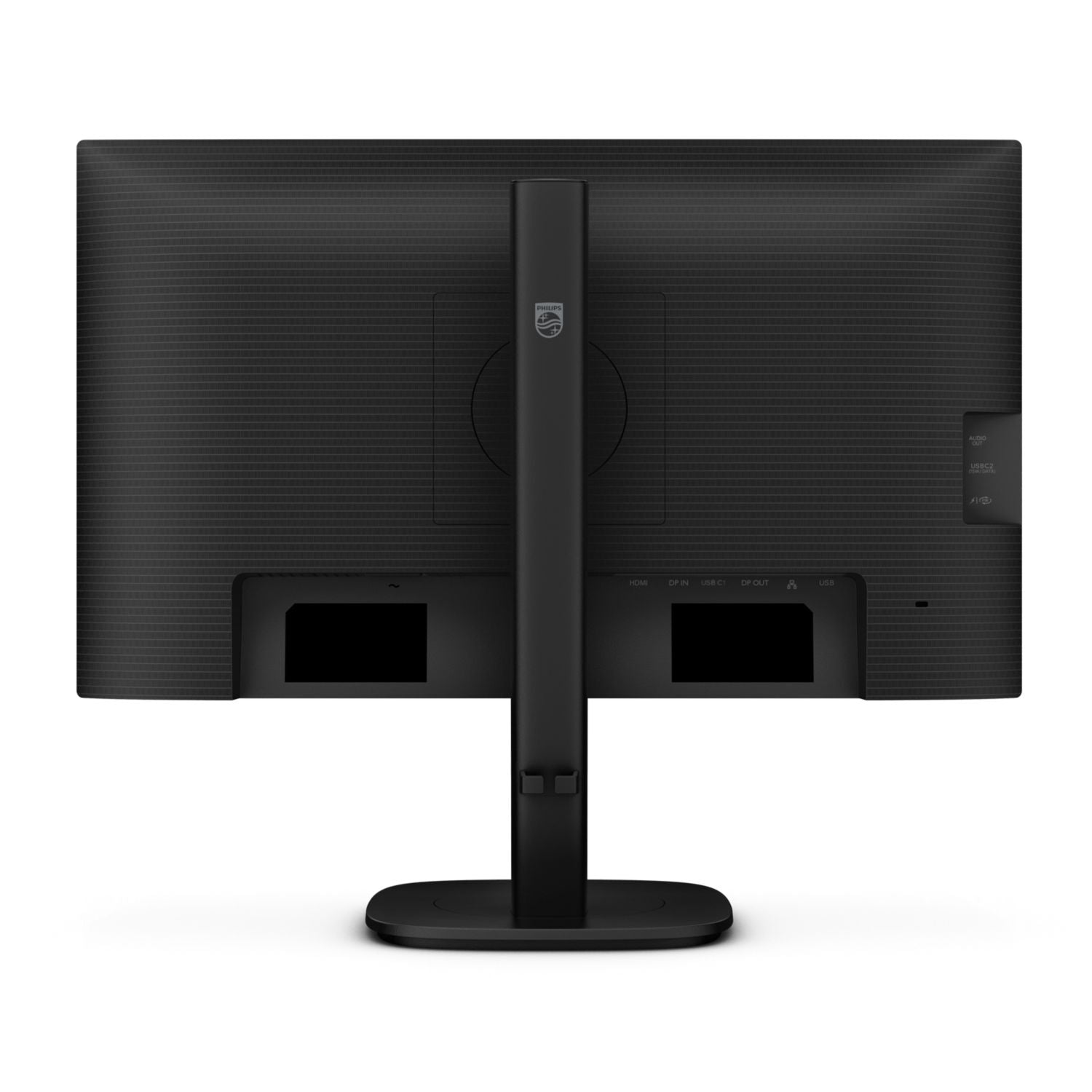

Philips 24" Full HD IPS 120Hz USB-C Business Monitor with 90W Charging
PRODUCT DESCRIPTION
Philips 24B2U3301 24" Full HD IPS 120Hz USB-C Business Monitor with 90W Charging - 3 Years On-site Warranty
IPS technology
IPS LED wide-view technology for image and colour accuracy.
16:9 Full HD display
16:9 Full HD display for crisp, detailed images.
Fast 120Hz refresh rate
120Hz refresh rate for ultra-smooth images.
SoftBlue Technology with Low Blue Light Panel
SoftBlue Technology: for comfortable viewing.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Philips 24B2U3301 Datasheet — Technical Specifications
General
| Product Name | Philips 24" Full HD IPS 120Hz USB-C Business Monitor with 90W Charging |
| Model | 24B2U3301 (Philips CTN 24B2U3301/69) |
| Brand / Series | Philips monitors |
| Local Warranty (Singapore) | 3 years on-site warranty |
| Pixel Defect Policy | Replacement if more than 2 dead/bright pixels in year 1, or more than 3 from year 2 onwards |
Picture/Display
| Panel Size | 23.8 inch/60.47 cm |
| Aspect ratio | 16:9 |
| LCD panel type | IPS technology |
| Backlight type | W-LED system |
| Pixel pitch | 0.2745(H)mm x 0.2745(V)mm |
| Brightness | 350 cd/m² |
| Display colors | 16.7M (8 bit) |
| Color gamut (typical) | sRGB 110% , NTSC 96% * |
| Contrast ratio (typical) | 1500:1 |
| SmartContrast | 50,000,000:1 |
| Response time (typical) | 4 ms (Grey to Grey)* |
| Viewing angle | 178º (H) / 178º (V), @ C/R > 10 |
| Picture enhancement | SmartImage |
| Maximum resolution | 1920x1080@120Hz |
| Effective viewing area | 527.04(H)x296.46(V) mm |
| Scanning Frequency | 30k-140 kHz (H) / 48-120 Hz (V) |
| sRGB | Yes |
| SoftBlue | Yes |
| Flicker-free | Yes |
| Pixel Density | 93 PPI |
| Display Screen Coating | Anti-Glare, 3H, Haze 25% |
| EasyRead | Yes |
| Adaptive sync (VRR) | Yes |
| EyeSafe | Yes |
| Smart Link Sync | When used as a primary or secondary monitor* |
| DICOM (D-mode) | Yes |
Connectivity

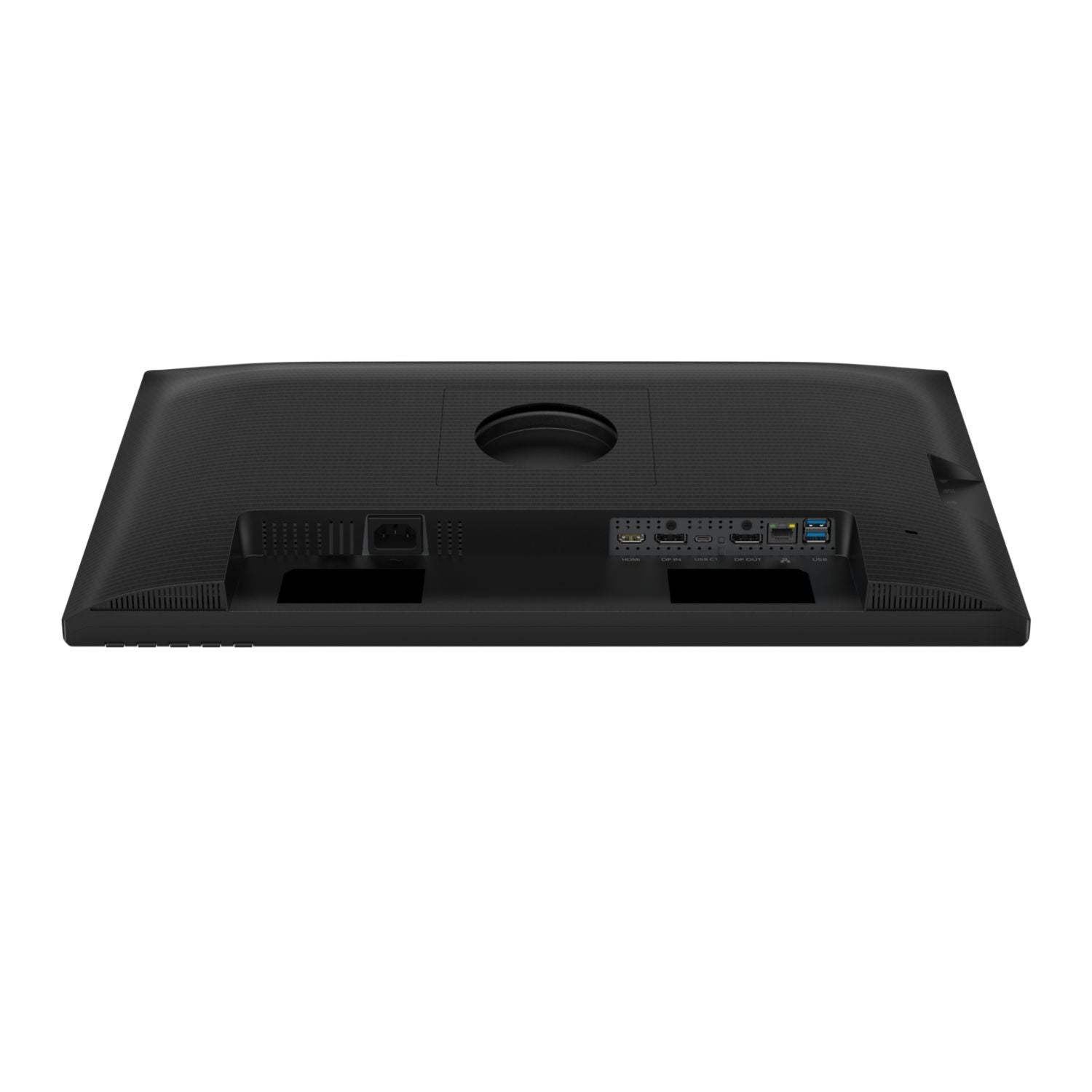

| Signal Input | HDMI 1.4 x 1, DisplayPort 1.4 x 1, USB-C x 1 (upstream, DP Alt mode, Data, PD) |
| Sync Input | Separate Sync, Sync on Green |
| Audio (In/Out) | Audio out |
| RJ45 | Ethernet LAN (USB 2.0: 10M/100M; USB 3.0: 1000M), PXE/MAPT/WOL* |
| Signal Output | DP out |
| HDCP | 1.4 ( HDMI/DP/USB-C) |
| HBR3 | Yes (DP,USB-C) |
| USB Hub | USB3.2, Gen1, 5G, upstream: 1x USB-C (Full) ,downstream: USB-A x3 (with x1 fast charge B.C 1.2), USB-C x1 (data, 15W) |
Power Delivery
| Max power delivery | Up to 90W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.5A) |
| Version | USB PD version 3.0 |
Convenience
| Built-in Speakers | 2W x 2 |
| Plug & Play Compatibility | DDC/CI, Mac OS, sRGB, Windows 11 / 10 |
| User convenience | SmartImage, Input, Brightness, Menu, Power On/Off |
| Other convenience | Kensington lock, VESA mount (100x100mm) |
| Control software | SmartControl |
Stand

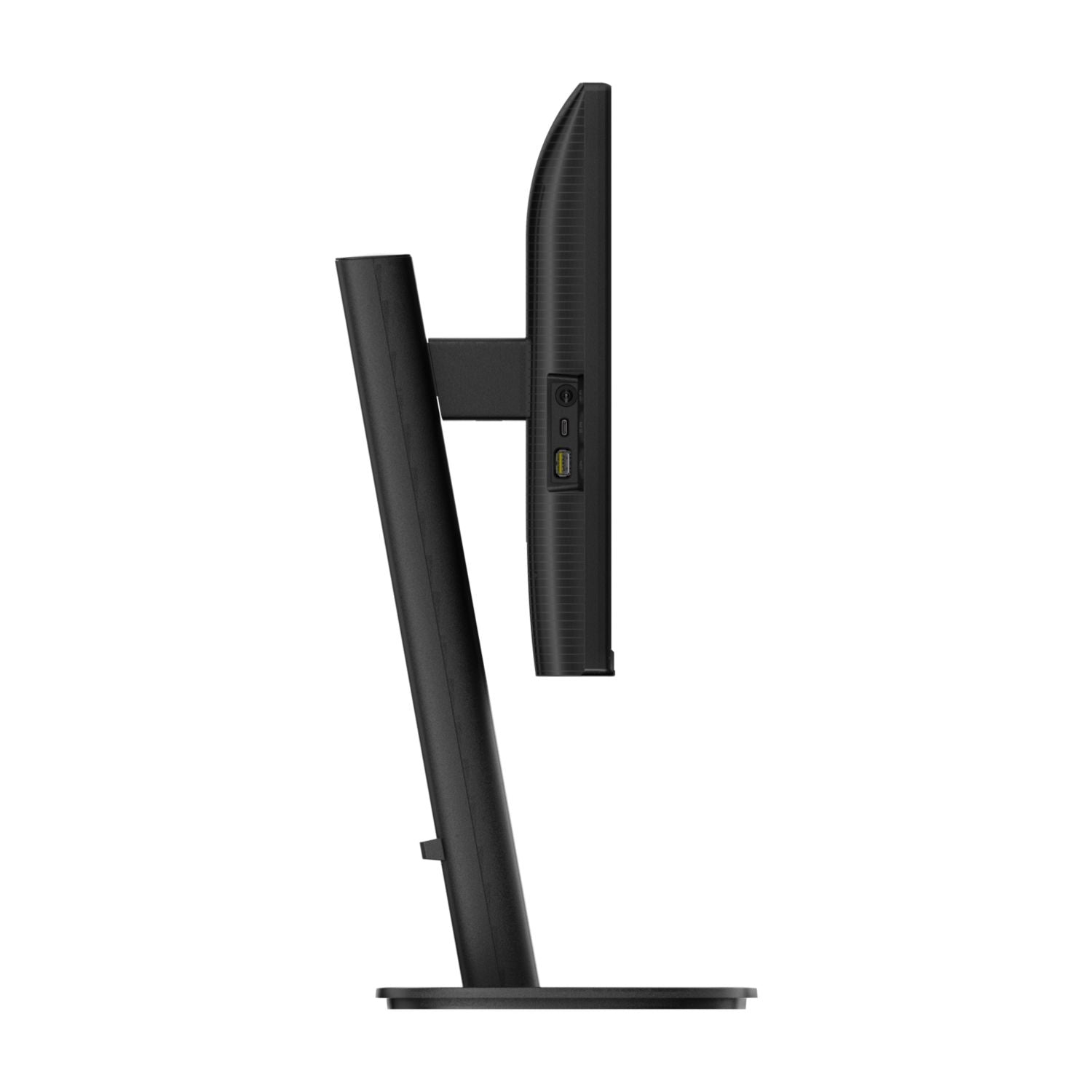

| Pivot | -/+90 degrees |
| Height adjustment | 150 mm |
| Swivel | -/+180 |
| Tilt | -5/30 |
Power
| ECO mode | 10.4 W (typ.) |
| Power supply | Built-in, 100-240VAC, 50-60Hz |
| Off mode | 0.3 W (typ.) |
| On mode | 13.53 W (typ.) (EnergyStar test method) |
| Standby mode | 0.3 W (typ.) |
| Power LED indicator | Operation - White, Standby mode- White (blinking) |
Dimensions
| Packaging in mm (WxHxD) | 690 x 395 x 124 mm |
| Product without stand (mm) | 542 x 320 x 48 mm |
| Product with stand(max height) | 542 x 499 x 228 mm |
Weight
| Product with packaging (kg) | 7.75 kg |
| Product with stand (kg) | 5.72 kg |
| Product without stand (kg) | 3.70 kg |
Operating conditions
| Altitude | Operating: +12,000ft (3,658m), Non-operating: +40,000ft (12,192m) |
| Temperature range (operation) | 0°C to 40°C |
| Relative humidity | 20%-80% |
| Temperature range (storage) | -20°C to 60°C |
| MTBF (demonstrated) | 70,000 hrs (excluded backlight) |
Compliance and standards
| Regulatory Approvals | "ETL, CEC, CB, TUV/GS, TUV Ergo, TCO Certified, TCO Certified Edge, EAC, EAEU RoHS, MEPS, CE Mark, UKCA, EMF, FCC, ICES-003, TÜV Rheinland Low Blue Light (Hardware Solution), eyesafe® CERTIFIED 2.0" |
Cabinet
| Finish | Texture |
| Foot | Black |
| Front bezel | Black |
| Rear cover | Black |
* Values marked with an asterisk carry footnotes on the Philips datasheet (e.g. overclock or measurement conditions) — see the Philips leaflet for details.
Compatibility & Connectivity
Video Inputs
HDMI 1.4 x 1, DisplayPort 1.4 x 1, USB-C x 1 (upstream, DP Alt mode, Data, PD). Connect a desktop PC, laptop or docking station with a matching cable.
USB-C Laptops
One USB-C cable carries video (DisplayPort Alt Mode), USB data and up to 90 W charging to a USB-C laptop. The laptop's USB-C port must support DisplayPort Alt Mode for video.
Operating Systems
Plug & Play: DDC/CI, Mac OS, sRGB, Windows 11 / 10.
Software
SmartControl lets you adjust picture and monitor settings from your PC.
Mounting
VESA 100x100mm mount compatible for monitor arms and wall brackets.
Package Contents & Philips B Line Business Monitors Ordering Information
In the Box
24B2U3301 monitor with stand, power cable, signal cable and quick start guide. Cable types vary by Philips Singapore pack — email us to confirm before ordering.
Philips B Line Business Monitors
| Model | Key feature |
| 24B2N2200G | 23.8" FHD IPS 144 Hz, VGA/HDMI/DP |
| 24B2N3200J | 23.8" FHD IPS 120 Hz, USB hub, pivot |
| 24B2U3301 (this listing) | 23.8" FHD IPS 120 Hz, USB-C 90 W |
| 24B2U3601 | 23.8" QHD IPS 120 Hz, USB-C 90 W |
| 27B2N2200G | 27" FHD IPS 144 Hz, VGA/HDMI/DP |
| 27B2N3500J | 27" QHD IPS 120 Hz, USB hub, pivot |
| 27B2N3500G | 27" QHD IPS 144 Hz, USB hub, pivot |
| 27B2U3601 | 27" QHD IPS 120 Hz, USB-C 90 W dock, LAN |
| 27B1U3900 | 27" 4K UHD IPS, USB-C 90 W dock, LAN |
| 32B2U3601 | 31.5" QHD IPS 100 Hz, USB-C 90 W dock, LAN |
| 32B1U3900 | 31.5" 4K UHD VA, USB-C 90 W dock, LAN |
| 34B2U3600C | 34" WQHD 120 Hz curved, USB-C 90 W dock |
| 34B1U5600CH | 34" WQHD 120 Hz curved, USB-C 100 W, webcam |
| 34B2U5900C | 34" 5120x2160 120 Hz curved, USB-C 140 W |
| 49B2U5900CH | 48.8" 5120x1440 curved, USB-C 100 W, webcam |
Datasheet & Downloads
| Philips product page | 24B2U3301 on philips.com.sg |
| Product leaflet | 24B2U3301 Leaflet (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 24B2U3301.
Frequently Asked Questions — Philips 24B2U3301
What resolution and refresh rate does the 24B2U3301 support?
1920x1080@120Hz (per Philips specification).
Can it charge my laptop?
Yes, the USB-C port supplies up to 90 W, enough for most USB-C laptops; check your laptop's charging requirement.
Is the stand adjustable?
Yes: height adjustment 150 mm, pivot -/+90 degrees, swivel -/+180, tilt -5/30.
Does it have built-in speakers?
Yes, 2W x 2.
What warranty do I get?
3 years on-site warranty in Singapore, serviced by Philips. Pixel policy: more than 2 dead/bright pixels in year 1, more than 3 from year 2. Supplied by SourceIT with a GST invoice.
