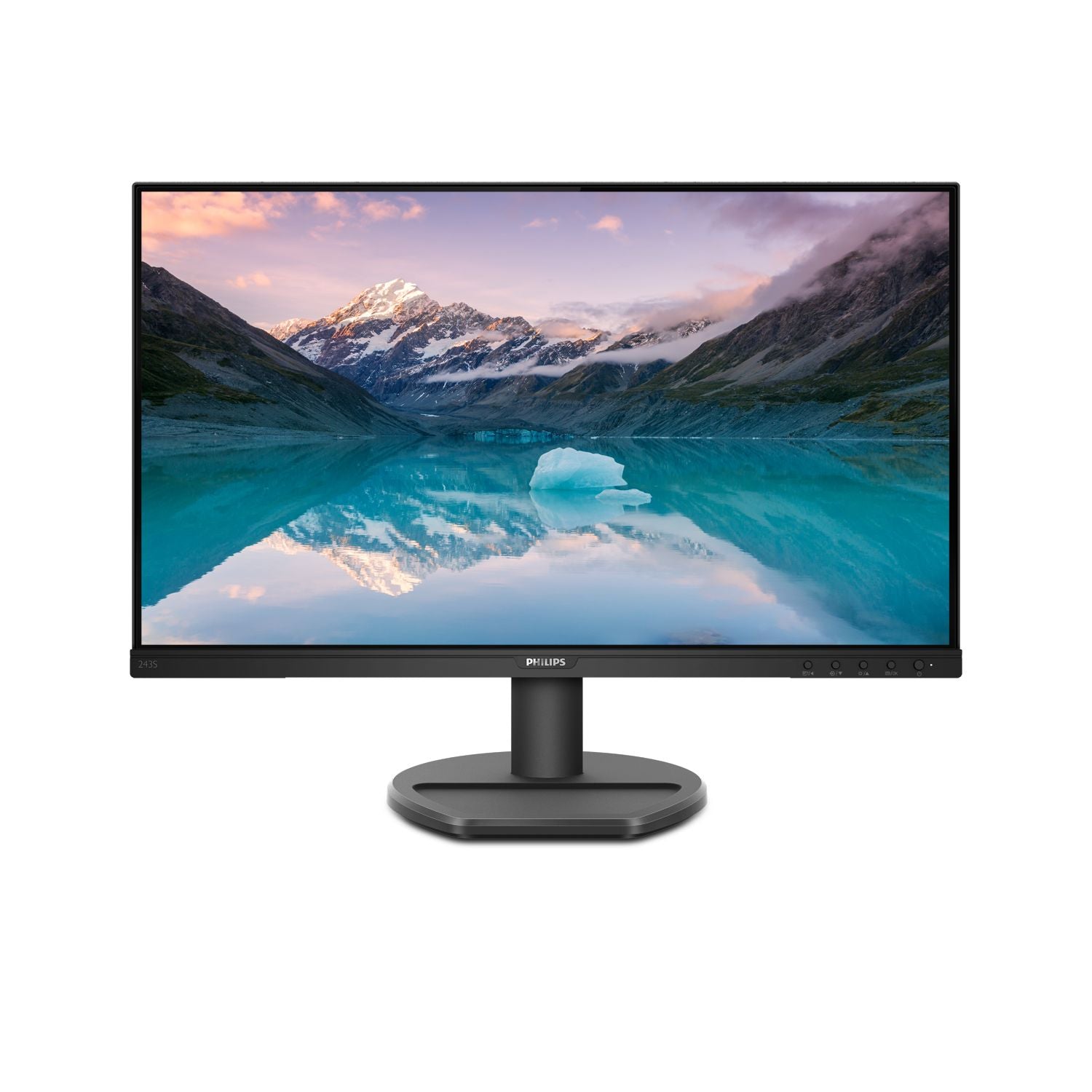

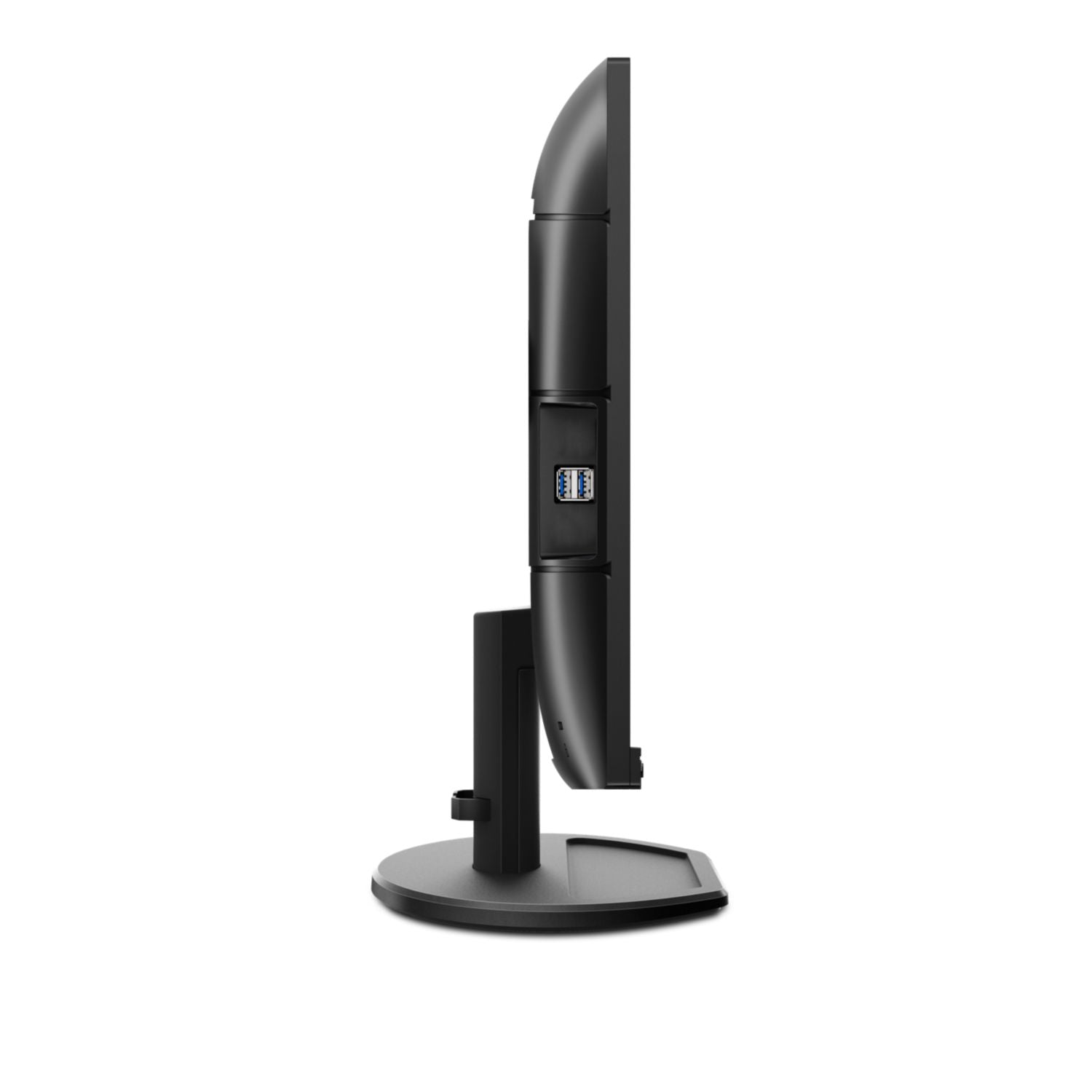

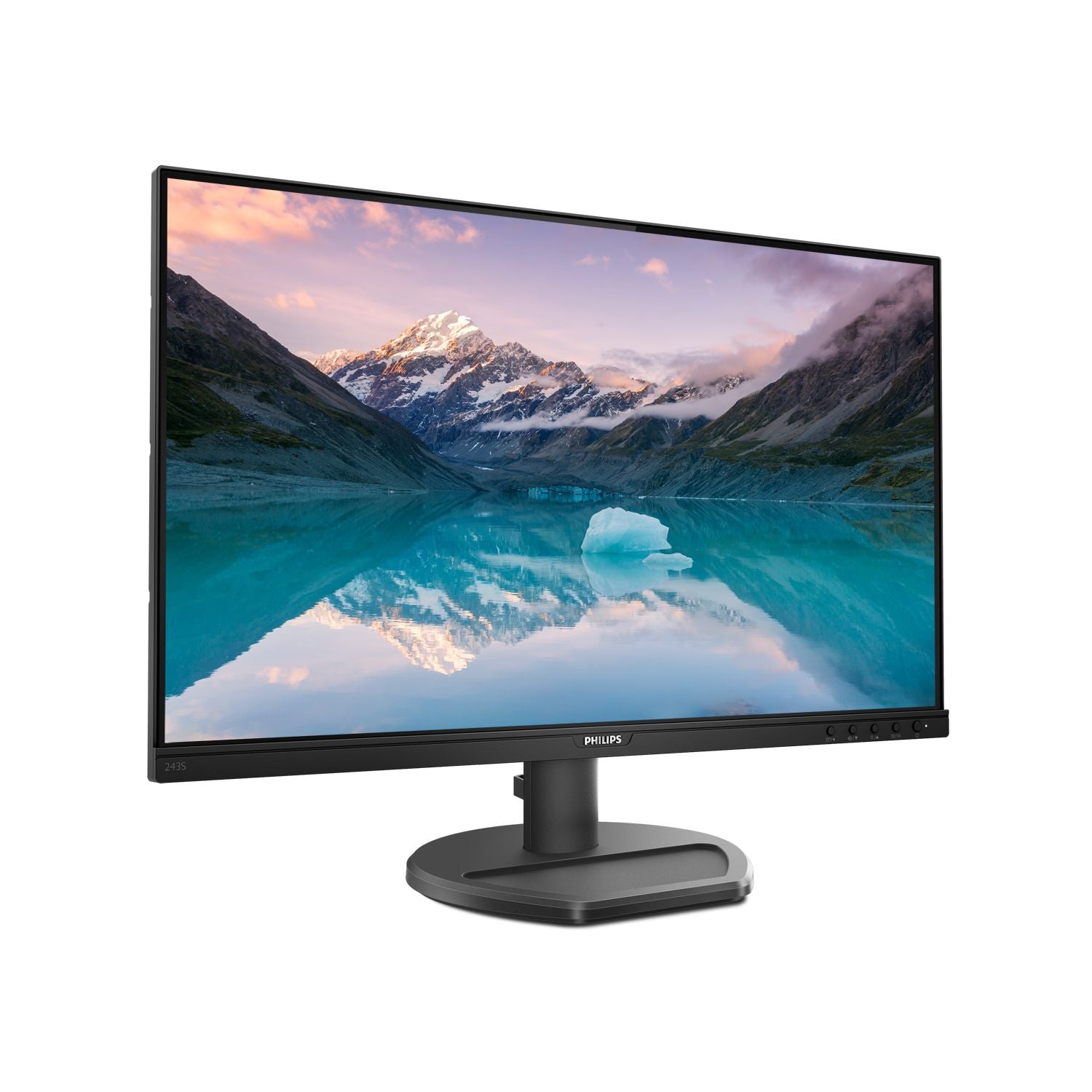

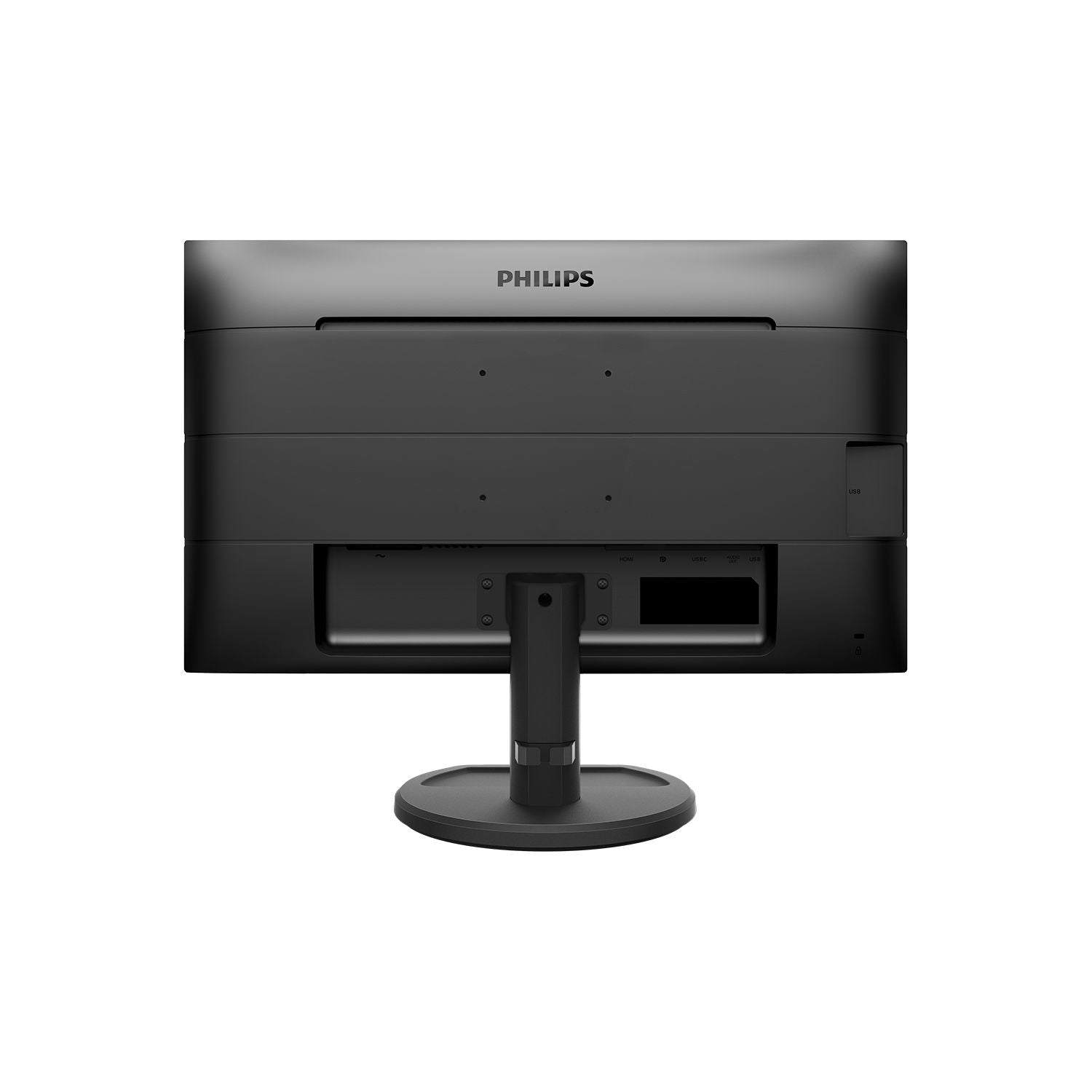

Philips 24" Full HD IPS Monitor with USB-C 65W & USB Hub
PRODUCT DESCRIPTION
Philips 243S9A 24" Full HD IPS Monitor with USB-C 65W & USB Hub - 3 Years On-site Warranty
USB-C connection
Connect your notebook with one USB-C cable.
High speed data transfer
USB 3.2 high speed data transfer.
Power & re-charge notebook
Power and re-charge compatible notebook from the monitor.
16:9 Full HD display
16:9 Full HD display for crisp detailed images.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Philips 243S9A Datasheet — Technical Specifications
General
| Product Name | Philips 24" Full HD IPS Monitor with USB-C 65W & USB Hub |
| Model | 243S9A (Philips CTN 243S9A/69) |
| Brand / Series | Philips monitors |
| Local Warranty (Singapore) | 3 years on-site warranty |
| Pixel Defect Policy | Replacement if more than 2 dead/bright pixels in year 1, or more than 3 from year 2 onwards |
Picture/Display
| Panel Size | 23.8 inch / 60.5 cm |
| Aspect ratio | 16:9 |
| LCD panel type | IPS technology |
| Backlight type | W-LED system |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Brightness | 250 cd/m² |
| Display colors | 16.7M |
| Color gamut (typical) | NTSC 90%*, sRGB 104%* |
| Contrast ratio (typical) | 1000:1 |
| SmartContrast | 50,000,000:1 |
| Response time (typical) | 4 ms (Gray to Gray)* |
| Viewing angle | 178º (H) / 178º (V) @ C/R > 10 |
| Picture enhancement | SmartImage |
| Maximum resolution | 1920 x 1080 @ 75 Hz* |
| Effective viewing area | 527 (H) x 296.5 (V) |
| Scanning Frequency | 30 - 85 kHz (H) / 48 - 75 Hz (V) |
| sRGB | Yes |
| Flicker-free | Yes |
| Pixel Density | 93 PPI |
| LowBlue Mode | Yes |
| Display Screen Coating | Anti-Glare, 3H, Haze 25% |
| EasyRead | Yes |
| Adaptive sync (VRR) | Yes |
Connectivity
| Signal Input | DisplayPort 1.2 x 1, HDMI 1.4 x 1, USB-C 3.2 Gen 1 x 1 (upstream, power delivery up to 65W) |
| Sync Input | Separate Sync |
| Audio (In/Out) | Audio out |
| USB | USB-C 3.2 Gen 1 x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2) |
| HDCP | HDCP 1.4 (DP / HDMI / USB-C) |
USB
| Power delivery | USB PD version 3.0 |
| Super speed | Data and Video transfer |
| DP | Built-in Display Port Alt mode |
| USB-C max. power delivery | Up to 65W (5V/3A; 9V/3A; 10V/3A; 12V/3A; 15V/3A; 20V/3.25A) |
| USB-C | Reversible plug connector |
Convenience
| Built-in Speakers | 2 W x 2 |
| Plug & Play Compatibility | DDC/CI, Mac OS X, sRGB, Windows 10 / 8.1 / 8 / 7 |
| User convenience | SmartImage, Input, Brightness, Menu, Power On/Off |
| Other convenience | Kensington lock, VESA mount (100x100mm) |
| Control software | SmartControl |
Stand
| Tilt | -5 ~ 25 degree |
Power
| ECO mode | 12.6 W (typ.) |
| Power supply | Built-in, 100-240VAC, 50-60Hz |
| Off mode | 0.3 W |
| On mode | 13.5 W (typ.) (EnergyStar test method) |
| Standby mode | 0.3 W |
| Power LED indicator | Operation - White, Standby mode- White (blinking) |
Dimensions
| Packaging in mm (WxHxD) | 600 x 500 x 163 mm |
| Product without stand (mm) | 541 x 332 x 63 mm |
| Product with stand(max height) | 541 x 455 x 226 mm |
Weight
| Product with packaging (kg) | 6.90 kg |
| Product with stand (kg) | 4.42 kg |
| Product without stand (kg) | 3.72 kg |
Operating conditions
| Altitude | Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m) |
| Temperature range (operation) | 0°C to 40 °C |
| Relative humidity | 20%-80 % |
| Temperature range (storage) | -20°C to 60 °C |
| MTBF (demonstrated) | 70,000 hrs (excluded backlight) |
Compliance and standards
| Regulatory Approvals | CB, FCC Class B, ICES-003, CE Mark, PSB |
Cabinet
| Finish | Texture |
| Foot | Black |
| Front bezel | Black |
| Rear cover | Black |
* Values marked with an asterisk carry footnotes on the Philips datasheet (e.g. overclock or measurement conditions) — see the Philips leaflet for details.
Compatibility & Connectivity
Video Inputs
DisplayPort 1.2 x 1, HDMI 1.4 x 1, USB-C 3.2 Gen 1 x 1 (upstream, power delivery up to 65W). Connect a desktop PC, laptop or docking station with a matching cable.
USB-C Laptops
One USB-C cable carries video (DisplayPort Alt Mode), USB data to a USB-C laptop. The laptop's USB-C port must support DisplayPort Alt Mode for video.
Operating Systems
Plug & Play: DDC/CI, Mac OS X, sRGB, Windows 10 / 8.1 / 8 / 7.
Software
SmartControl lets you adjust picture and monitor settings from your PC.
Mounting
VESA 100x100mm mount compatible for monitor arms and wall brackets.
Package Contents & Philips S Line, Touch & Large-Format Monitors Ordering Information
In the Box
243S9A monitor with stand, power cable, USB-C to USB-C cable, quick start guide.
Philips S Line, Touch & Large-Format Monitors
| Model | Key feature |
| 170S9A | 17" 5:4 SXGA, VGA/DVI, speakers |
| 19S4QAB | 19" 5:4 SXGA IPS, VGA/DVI, speakers |
| 243S9A (this listing) | 23.8" FHD IPS, USB-C 65 W, USB hub |
| 242B9T | 23.8" FHD IPS 10-point touch |
| 272S1AE | 27" FHD IPS 75 Hz, pivot stand |
| 438P1 | 42.5" 4K UHD IPS, MultiView |
Datasheet & Downloads
| Philips product page | 243S9A on philips.com.sg |
| Product leaflet | 243S9A Leaflet (PDF) |
| User manual | 243S9A User Manual (PDF, English) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 243S9A.
Frequently Asked Questions — Philips 243S9A
What resolution and refresh rate does the 243S9A support?
1920 x 1080 @ 75 Hz (per Philips specification).
Is the stand height-adjustable?
No, the stand tilts only (-5 ~ 25 degree). Use the VESA mount with a monitor arm for height adjustment.
Does it have built-in speakers?
Yes, 2 W x 2.
What warranty do I get?
3 years on-site warranty in Singapore, serviced by Philips. Pixel policy: more than 2 dead/bright pixels in year 1, more than 3 from year 2. Supplied by SourceIT with a GST invoice.
