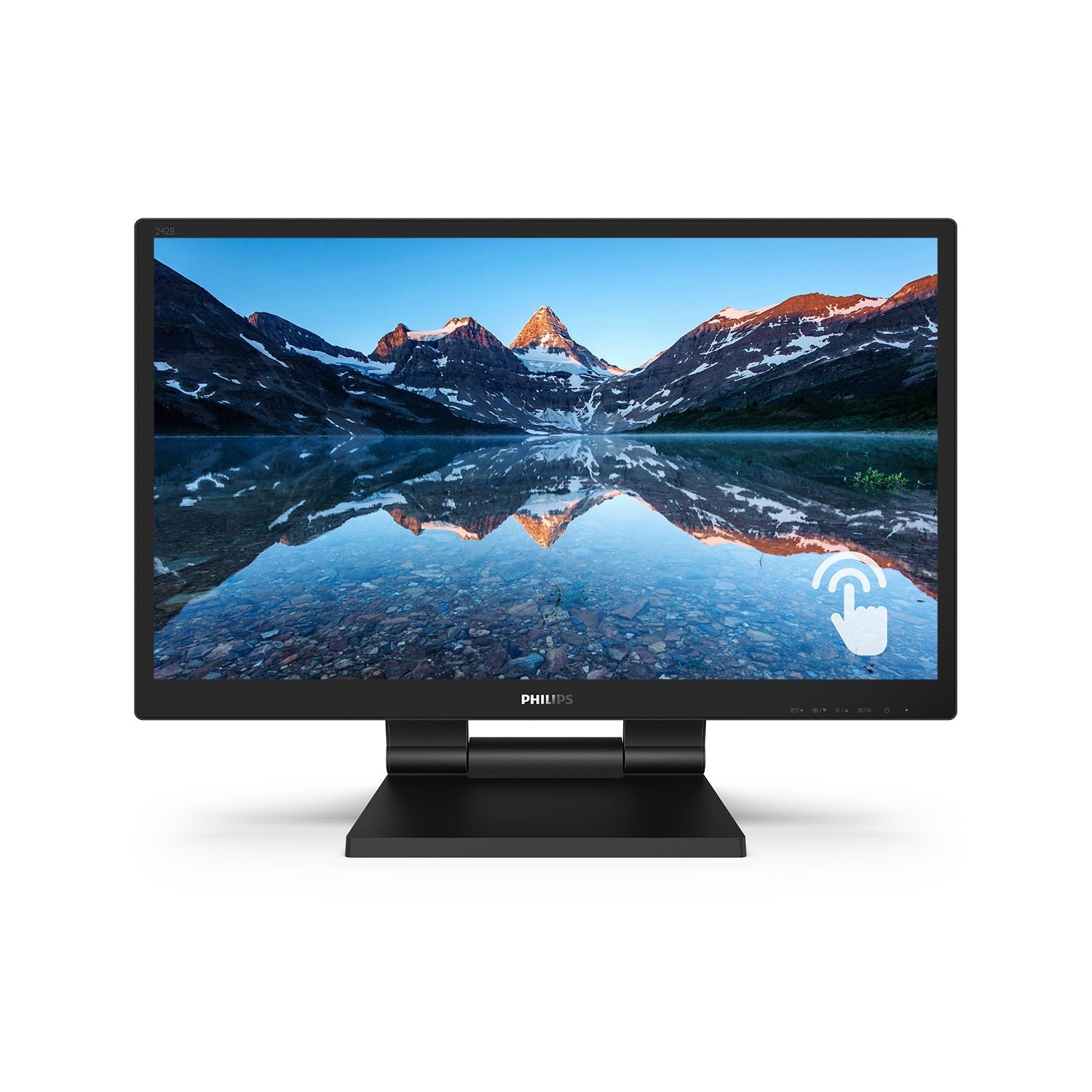

Philips 24" Full HD IPS 10-Point Touchscreen Monitor
PRODUCT DESCRIPTION
Philips 242B9T 24" Full HD IPS 10-Point Touchscreen Monitor - 3 Years On-site Warranty
16:9 Full HD display
16:9 Full HD display for crisp detailed images.
LowBlue Mode
LowBlue Mode for easy on-the-eyes productivity.
Flicker-free technology
Less eye fatigue with Flicker-free technology.
SmoothTouch
SmoothTouch display for natural, fluid touch response.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Philips 242B9T Datasheet — Technical Specifications
General
| Product Name | Philips 24" Full HD IPS 10-Point Touchscreen Monitor |
| Model | 242B9T (Philips CTN 242B9T/69) |
| Brand / Series | Philips monitors |
| Local Warranty (Singapore) | 3 years on-site warranty |
| Pixel Defect Policy | Replacement if more than 2 dead/bright pixels in year 1, or more than 3 from year 2 onwards |
Picture/Display
| Panel Size | 23.8 inch / 60.5 cm |
| Aspect ratio | 16:9 |
| LCD panel type | IPS technology |
| Backlight type | W-LED system |
| Pixel pitch | 0.275 x 0.275 mm |
| Optimum resolution | 1920 x 1080 @ 60Hz |
| Brightness | 250 cd/m² |
| Display colors | 16.7 M |
| Color gamut (typical) | NTSC 72% (CIE 1931) |
| Contrast ratio (typical) | 1000:1 |
| SmartContrast | 50,000,000:1 |
| Response time (typical) | 5 ms (Gray to Gray)* |
| Viewing angle | 178º (H) / 178º (V) @ C/R > 10 |
| Picture enhancement | SmartImage |
| Effective viewing area | 527 (H) x 296.5 (V) |
| Scanning Frequency | 30 - 85 kHz (H) / 48 - 75 Hz (V) |
| sRGB | Yes |
| Flicker-free | Yes |
| Pixel Density | 93 PPI |
| LowBlue Mode | Yes |
| EasyRead | Yes |
Touch
| Ingress protection | IP65 - front only |
| Operating system | Windows 10 / 8.1 / 8 / 7; Android 7.1 / 7.0 / 6.0 / 5.0 / 4.4; certain Linux versions* |
| Sealability | Touchscreen sealed to bezel; Touchscreen sealed to LCD |
| Touch active area | 527 mm (H) x 296.5 mm (V) |
| Touch glass hardness | 7 H |
| Touch interface | USB |
| Touch method | Stylus, Finger, Glove* |
| Touch points | 10 point |
| Touch technology | Projected capacitive |
| Palm rejection area | >= 30 x 30 mm |
| Touch glass coating | Glare |
Connectivity
| Signal Input | VGA (Analog), DVI-D (digital, HDCP), DisplayPort 1.2, HDMI 1.4 |
| USB | USB 3.1x2 (1 w/fast charging)* |
| Sync Input | Separate Sync, Sync on Green |
| Audio (In/Out) | PC audio-in, Headphone out |
| HDCP | HDCP 1.4 (HDMI / DP / DVI) |
Convenience
| Built-in Speakers | 2 W x 2 |
| Plug & Play Compatibility | DDC/CI, sRGB, Windows 11 / 10 / 8.1 / 8 / 7 |
| User convenience | SmartImage, Input, Brightness, Menu, Power On/Off |
| Other convenience | Kensington lock, VESA mount (100x100mm) |
| Control software | SmartControl |
Stand
| Height adjustment | 184 (Horizontal), 75 (Vertical) mm |
| Tilt | -5 ~ 90 degree |
| Folding angle | 0 ~ 70 degree |
Power
| ECO mode | 11.5 W (typ.) |
| Power supply | External, 100-240VAC, 50-60Hz |
| Off mode | < 0.3 W (typ.) |
| On mode | 15.68 W (typ.) (EnergyStar test method) |
| Standby mode | < 0.5 W (typ.) |
| Power LED indicator | Operation - White, Standby mode - White (blinking) |
Dimensions
| Packaging in mm (WxHxD) | 620 x 433 x 168 mm |
| Product without stand (mm) | 554 x 338 x 50 mm |
| Product with stand (max height) | 554 x 413 x 227 mm |
Weight
| Product with packaging (kg) | 11.06 kg |
| Product with stand (kg) | 8.15 kg |
| Product without stand (kg) | 4.86 kg |
Operating Conditions
| Altitude | Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m) |
| Temperature range (operation) | 0°C to 40°C |
| Relative humidity | 20%-80% |
| Temperature range (storage) | -20°C to 60°C |
| MTBF (demonstrated) | 70,000 hrs (excluded backlight) |
Compliance and Standards
| Regulatory Approvals | CB, CE Mark, FCC Class B, SEMKO, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, PSB, cETLus |
Cabinet
| Finish | Texture |
| Foot | Black |
| Front bezel | Black |
| Rear cover | Black |
* Values marked with an asterisk carry footnotes on the Philips datasheet (e.g. overclock or measurement conditions) — see the Philips leaflet for details.
Compatibility & Connectivity
Video Inputs
VGA (Analog), DVI-D (digital, HDCP), DisplayPort 1.2, HDMI 1.4. Connect a desktop PC, laptop or docking station with a matching cable.
Operating Systems
Plug & Play: DDC/CI, sRGB, Windows 11 / 10 / 8.1 / 8 / 7.
Software
SmartControl lets you adjust picture and monitor settings from your PC.
Mounting
VESA 100x100mm mount compatible for monitor arms and wall brackets.
Package Contents & Philips S Line, Touch & Large-Format Monitors Ordering Information
In the Box
242B9T monitor with stand, power cable, HDMI cable, DisplayPort cable, USB-A to USB-C cable, quick start guide.
Philips S Line, Touch & Large-Format Monitors
| Model | Key feature |
| 170S9A | 17" 5:4 SXGA, VGA/DVI, speakers |
| 19S4QAB | 19" 5:4 SXGA IPS, VGA/DVI, speakers |
| 243S9A | 23.8" FHD IPS, USB-C 65 W, USB hub |
| 242B9T (this listing) | 23.8" FHD IPS 10-point touch |
| 272S1AE | 27" FHD IPS 75 Hz, pivot stand |
| 438P1 | 42.5" 4K UHD IPS, MultiView |
Datasheet & Downloads
| Philips product page | 242B9T on philips.com.sg |
| Product leaflet | 242B9T Leaflet (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 242B9T.
Frequently Asked Questions — Philips 242B9T
What resolution and refresh rate does the 242B9T support?
1920 x 1080 @ 60Hz (per Philips specification).
Can it charge a laptop?
No, this model has no USB-C power delivery; use your laptop's own charger.
Is the stand adjustable?
Yes: height adjustment 184 (Horizontal), 75 (Vertical) mm, tilt -5 ~ 90 degree.
Does it have built-in speakers?
Yes, 2 W x 2.
What warranty do I get?
3 years on-site warranty in Singapore, serviced by Philips. Pixel policy: more than 2 dead/bright pixels in year 1, more than 3 from year 2. Supplied by SourceIT with a GST invoice.
