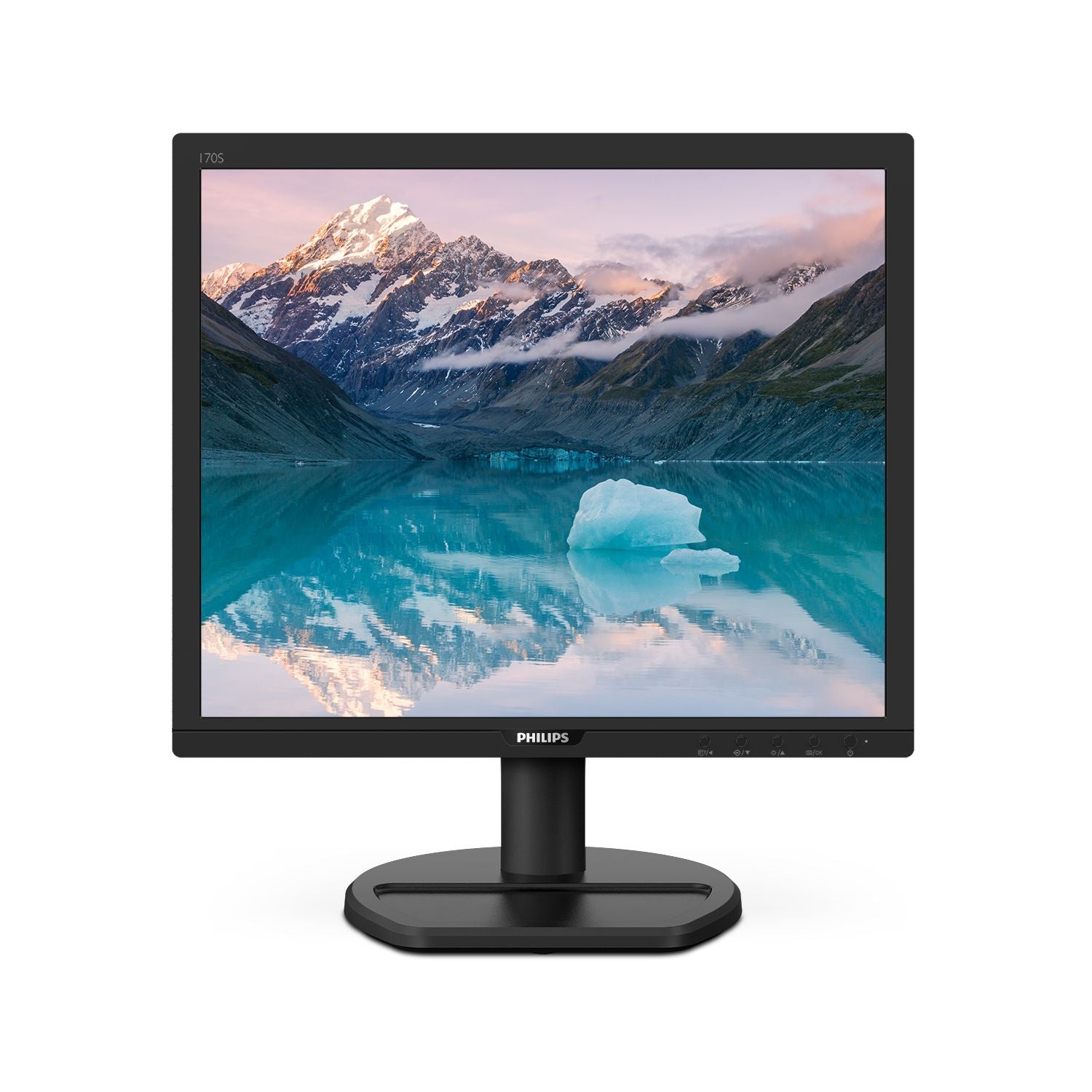

Philips 17" SXGA 5:4 Office Monitor with VGA, DVI & Speakers
PRODUCT DESCRIPTION
Philips 170S9A 17" SXGA 5:4 Office Monitor with VGA, DVI & Speakers - 3 Years On-site Warranty
Built-in speakers
Built-in speakers for audio without desktop clutter.

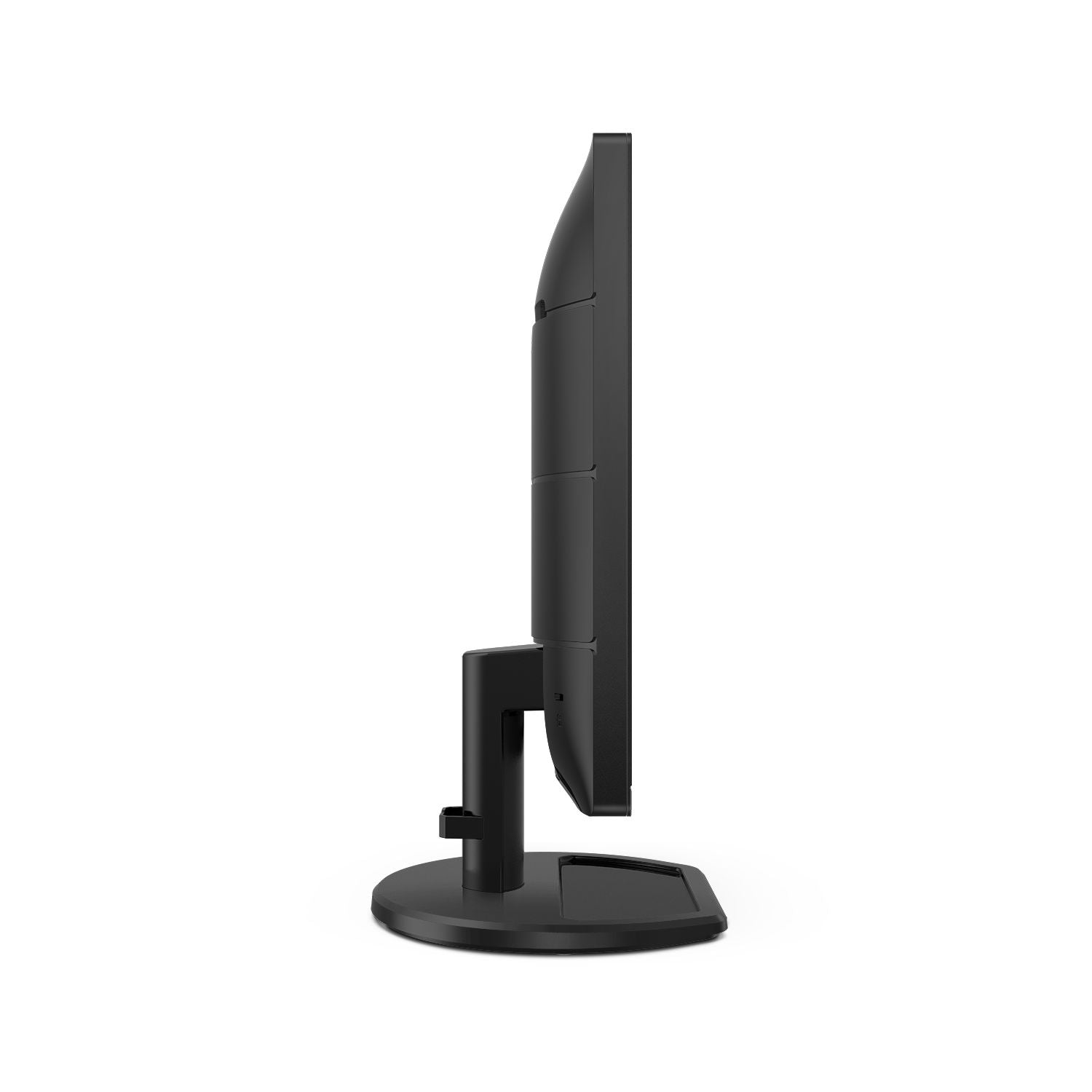

Screen tilts
Screen tilts to your ideal, individualized viewing angle.

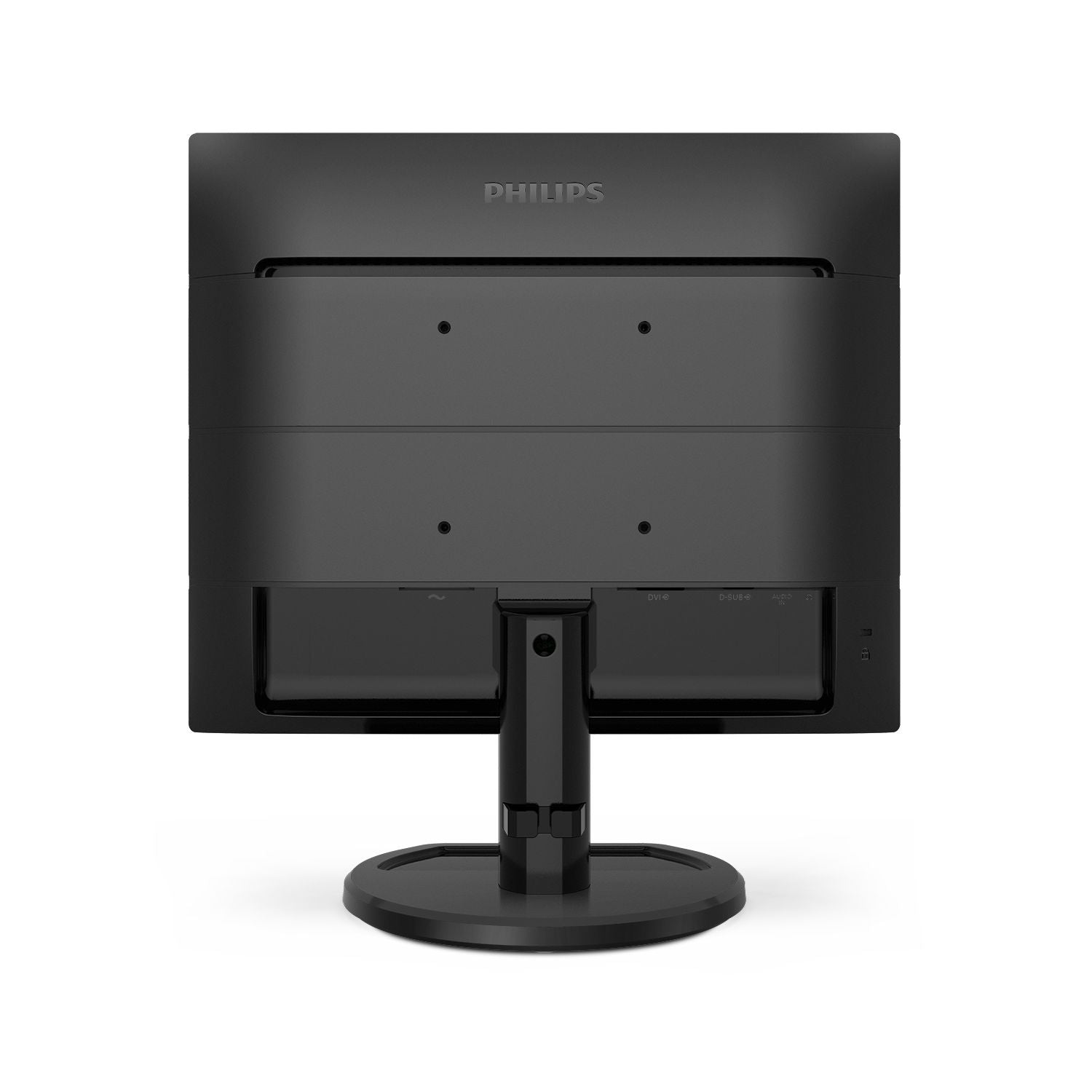

VESA mount
VESA mount allows for flexibility.
100% Recycled packing material
100% Recycled packing material.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Philips 170S9A Datasheet — Technical Specifications
General
| Product Name | Philips 17" SXGA 5:4 Office Monitor with VGA, DVI & Speakers |
| Model | 170S9A (Philips CTN 170S9A/69) |
| Brand / Series | Philips monitors |
| Local Warranty (Singapore) | 3 years on-site warranty |
| Pixel Defect Policy | Replacement if more than 2 dead/bright pixels in year 1, or more than 3 from year 2 onwards |
Picture/Display
| LCD panel type | TFT-LCD |
| Backlight type | W-LED system |
| Panel Size | 17 inch / 43.2 cm |
| Display Screen Coating | Anti-Glare, 3H, Haze 25% |
| Effective viewing area | 337.9 x 270.3 mm |
| Aspect ratio | 5:4 |
| Optimum resolution | 1280 x 1024 @ 60Hz |
| Pixel Density | 96 PPI |
| Response time (typical) | 1 ms (GtG)* |
| Brightness | 250 cd/m² |
| Contrast ratio (typical) | 1,000:1 |
| SmartContrast | 50,000,000:1 |
| Pixel pitch | 0.264 x 0.264 mm |
| Viewing angle | 170º (H) / 160º (V) @ C/R > 10 |
| Flicker-free | Yes |
| Picture enhancement | SmartImage |
| Display colors | 16.7 M |
| Color gamut (typical) | NTSC 87%*, sRGB 103%* |
| Scanning Frequency | 30 -83 kHz (H) / 50 -76 Hz (V) |
| sRGB | Yes |
| EasyRead | Yes |
| LowBlue Mode | Yes |
Connectivity
| Signal Input | DVI-D (digital, HDCP), VGA (Analog) |
| HDCP | HDCP 1.4 (DVI) |
| Sync Input | Separate Sync, Sync on Green |
| Audio (In/Out) | PC audio-in, Headphone out |
Convenience
| Built-in Speakers | 2 W x 2 |
| User convenience | SmartImage, Input, Brightness, Menu, Power On/Off |
| Control software | SmartControl |
| Other convenience | Kensington lock, VESA mount (100x100mm) |
| Plug & Play Compatibility | DDC/CI, Mac OS X, sRGB, Windows 10 / 8.1 / 8 / 7 |
Stand
| Tilt | -5 ~ 25 degree |
Power
| ECO mode | 8.3 W (typ.) |
| On mode | 8.87 W (typ.) (EnergyStar test method) |
| Standby mode | 0.4 W (typ.) |
| Off mode | 0.3 W (typ.) |
| Power LED indicator | Operation - White, Standby mode- White (blinking) |
| Power supply | Built-in, 100-240VAC, 50-60Hz |
Dimensions
| Product with stand (mm) | 367 x 393 x 196 mm |
| Product without stand (mm) | 367 x 309 x 46 mm |
| Packaging in mm (WxHxD) | 450 x 453 x 127 mm |
Weight
| Product with stand (kg) | 2.40 kg |
| Product without stand (kg) | 2.06 kg |
| Product with packaging (kg) | 3.66 kg |
Operating conditions
| Temperature range (operation) | 0°C to 40°C |
| Temperature range (storage) | -20°C to 60°C |
| Relative humidity | 20%-80 % |
| Altitude | Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m) |
| MTBF | 70,000 hrs (excluded backlight) hour(s) |
Compliance and standards
| Regulatory Approvals | CE Mark, FCC Class B, SEMKO, EPA, ICES-003, PSB |
Cabinet
| Front bezel | Black |
| Rear cover | Black |
| Foot | Black |
| Finish | Texture |
* Values marked with an asterisk carry footnotes on the Philips datasheet (e.g. overclock or measurement conditions) — see the Philips leaflet for details.
Compatibility & Connectivity
Video Inputs
DVI-D (digital, HDCP), VGA (Analog). Connect a desktop PC, laptop or docking station with a matching cable.
Operating Systems
Plug & Play: DDC/CI, Mac OS X, sRGB, Windows 10 / 8.1 / 8 / 7.
Software
SmartControl lets you adjust picture and monitor settings from your PC.
Mounting
VESA 100x100mm mount compatible for monitor arms and wall brackets.
Package Contents & Philips S Line, Touch & Large-Format Monitors Ordering Information
In the Box
170S9A monitor with stand, power cable, VGA cable, quick start guide.
Philips S Line, Touch & Large-Format Monitors
| Model | Key feature |
| 170S9A (this listing) | 17" 5:4 SXGA, VGA/DVI, speakers |
| 19S4QAB | 19" 5:4 SXGA IPS, VGA/DVI, speakers |
| 243S9A | 23.8" FHD IPS, USB-C 65 W, USB hub |
| 242B9T | 23.8" FHD IPS 10-point touch |
| 272S1AE | 27" FHD IPS 75 Hz, pivot stand |
| 438P1 | 42.5" 4K UHD IPS, MultiView |
Datasheet & Downloads
| Philips product page | 170S9A on philips.com.sg |
| Product leaflet | 170S9A Leaflet (PDF) |
| User manual | 170S9A User Manual (PDF, English) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 170S9A.
Frequently Asked Questions — Philips 170S9A
What resolution and refresh rate does the 170S9A support?
1280 x 1024 @ 60Hz (per Philips specification).
Can it charge a laptop?
No, this model has no USB-C power delivery; use your laptop's own charger.
Is the stand height-adjustable?
No, the stand tilts only (-5 ~ 25 degree). Use the VESA mount with a monitor arm for height adjustment.
Does it have built-in speakers?
Yes, 2 W x 2.
What warranty do I get?
3 years on-site warranty in Singapore, serviced by Philips. Pixel policy: more than 2 dead/bright pixels in year 1, more than 3 from year 2. Supplied by SourceIT with a GST invoice.
