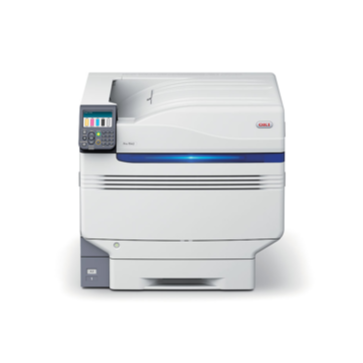

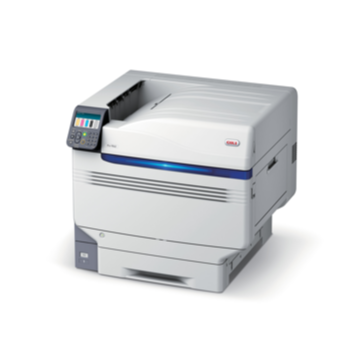

OKI Pro9542dn SRA3 5-Colour LED Printer, CMYK + White, 50ppm
PRODUCT DESCRIPTION
OKI Pro9542dn SRA3 5-Colour LED Printer, CMYK + White, 50ppm (45530622) - Local Warranty
The OKI Pro9542dn is an SRA3 five-colour LED printer that prints CMYK plus solid white in a single pass. It is rated at 50 ppm A4 and 28 ppm A3 in colour and mono, with 1200 x 1200 dpi output, for dark, coloured and transparent media.
Brilliant colour
Print in a full range of CMYK colours plus solid white, with high density white-under single pass printing on dark or transparent media.
Vibrant finish
1200 x 1200dpi print resolution and Multi-Level ProQ technology for advanced colour print output.
Media flexibility
Prints on a wide range of dark and transparent media including film, gloss, transfer and waterproof paper, with stock up to 360gsm single sided and 320gsm duplex.
Speedy turnaround
Time to first print less than 8 seconds, A4 speeds up to 50ppm colour/mono and 28ppm A3 colour/mono.
High-capacity consumables
Ultra-high capacity toner cartridges (up to 51K) and drums (up to 40K).
Ideal For
Print service providers, packaging and signage businesses in Singapore producing white-on-dark, window graphics, labels and transfer prints in-house. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
OKI Pro9542dn Datasheet — Technical Specifications
General
| Model | Pro9542dn |
| Official Product Name | OKI Pro9542dn |
| OKI Part Number | 45530622 |
| Brand | OKI |
| Warranty | Local Warranty (Singapore) - OKI Singapore standard warranty terms apply; please confirm the coverage period with SourceIT before ordering |
| Printing Method | Digital 5 LED Full-color Electrophotographic Printing Method |
| Printing Resolution | 1200 x 1200 dpi (2 levels), 1200 x 600 dpi (16 levels), 600 x 600 dpi (2 levels), Physical dot pitch: 1200 dpi |
| Warm-up Time | Approx. 50.0 seconds from power-on; Approx. 35.0 seconds from power save |
| First Print Out Time | Color: Approx. 8.0 seconds; Mono: Approx. 8.0 seconds |
| Print Speed | A4(Landscape) 50 ppm color, 50 ppm mono; A3 28 ppm color, 28 ppm mono |
| Printer Language | Adobe PostScript 3, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, PDF v1.7 emulation, IBM 5577H-02 Emulation |
| Font | Adobe PostScript 136 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts |
| Memory (Std./Max.) | 2GB/2GB |
| Hard Disk Drive | (Optional) 160 GB |
Paper Handling
| Paper Size | Tabloid extra (12" x 18"), Tabloid (11" x 17"), Legal 13, Legal 13.5, Legal 14, Letter, Executive, Index Card (3" x 5") (75 x 125mm), A3, A4, A5, A6, B5, B4, A3+, SRA3, SRA4, Statement, Envelopes, Postcard, Return postcard, Banner, B6 Half, B6, 8K, 16K |
| Paper Weight | Tray 1: 52 - 320 gsm; (Optional) Additional Tray: 52 - 320 gsm; Multi-purpose tray: 52 - 360 gsm |
| Input Capacity | Tray 1: 530 sheets; (Optional) Additional Tray: 530 sheets; Multi-purpose tray: 300 sheets |
| Output Capacity | Face Down: Max. 610 sheets; Face Up: Max. 300 sheets |
Connectivity & Software
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP, EtherTalk |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, OS X 10.10, OS X 10.9, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Linux |
Physical & Power
| Dimensions(WxDxH) | 699 x 625 x 640 mm |
| Weight(includes supplies) | Approx. 116.5 kg |
| Weight(not includes supplies) | Approx. 91.0 kg |
| Power Source | Single phase 230 VAC ±10%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. 1,600W / Ave. 1,100W; Idle: 40W; Power Save: 34.0W; Deep Sleep: 4.0W; Auto-Off: 0.5W |
| Noise Level | Operating: Approx. 57 dBA; Idle: < 34 dBA; Power Save: < 30 dBA or Background level |
| Operating Environment | Operating: 10 - 32 °C, 20 - 80 %RH, No condensation |
General
| Duty Cycle | Recommended: 25,000 pages/month; Maximum: 300,000 pages/month |
Compatibility & Software Support
Compatibility details below are taken from OKI Singapore's published specification for the OKI Pro9542dn. Drivers, utilities and firmware are available from OKI Singapore's support site (see Datasheet & Downloads).
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP, EtherTalk |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, OS X 10.10, OS X 10.9, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Linux |
Package Contents & Ordering Information
In the Box
- Manuals
- DVD-ROM
- Starter toner cartridge x 5
- Image Drum x 5
- Power cable
Ordering Information
| Model | Pro9542dn |
| OKI Part Number | 45530622 |
| Recommended Retail Price (incl. GST) | S$12,983.10 |

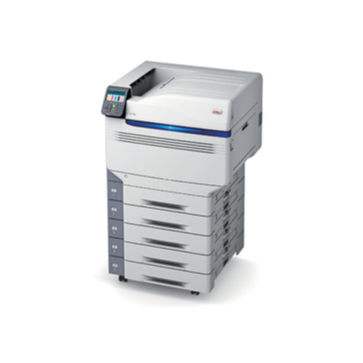

Optional Accessories
- Additional Paper Tray (530 sheets of 80gsm) - 45530703
- Large Capacity Feeder (1,590 sheets of 80gsm) - 45530803
- 160 GB Hard Disk Drive - 44622302
- Additional paper tray with castor (530 sheets of 80gsm) - 45530903
Consumables
- White Toner cartridge (15,000 pages) - 45536574
- Yellow Large capacity toner cartridge (24,000 pages) - 45536458
- Black Ultra-high capacity print cartridge (51,000 pages) - 45536573
- Magenta Ultra-high capacity print cartridge (42,000 pages) - 45536571
- Cyan Ultra-high capacity print cartridge (42,000 pages) - 45536572
- Black Image Drum (40,000 pages) - 45103740
- Yellow Image Drum (40,000 pages) - 45103737
- Magenta Image Drum (40,000 pages) - 45103738
- Cyan Image Drum (40,000 pages) - 45103739
- White Image Drum (20,000 pages) - 45103742
- Fuser unit (150,000 pages) - 45531113
- Transfer Belt (150,000 pages) - 45531223
- Waste toner box (40,000 pages) - 45531503
Options and consumables are sold separately. Page yields are OKI figures. Ask SourceIT to quote the printer together with trays, toner and drums.
Datasheet & Downloads
Frequently Asked Questions — OKI Pro9542dn
What warranty does the OKI Pro9542dn come with?
The printer is covered by OKI Singapore's standard local warranty. OKI Singapore does not state the coverage period on the product page, so please ask SourceIT to confirm the warranty term and service arrangement before ordering. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the OKI Pro9542dn use?
OKI lists: White Toner cartridge (15,000 pages) - 45536574; Yellow Large capacity toner cartridge (24,000 pages) - 45536458; Black Ultra-high capacity print cartridge (51,000 pages) - 45536573; Magenta Ultra-high capacity print cartridge (42,000 pages) - 45536571; Cyan Ultra-high capacity print cartridge (42,000 pages) - 45536572; Black Image Drum (40,000 pages) - 45103740. Always use genuine OKI consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
How does the OKI Pro9542dn connect?
OKI specifies: 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed).
Is stock held locally?
Anything not in local stock is ordered through OKI Data (Singapore). Ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with options and consumables, with local warranty and GST invoice.
