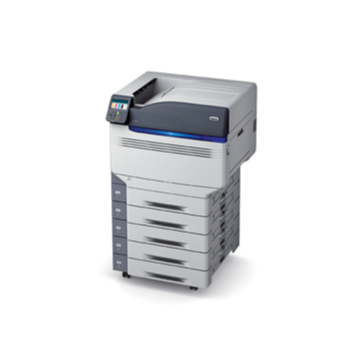

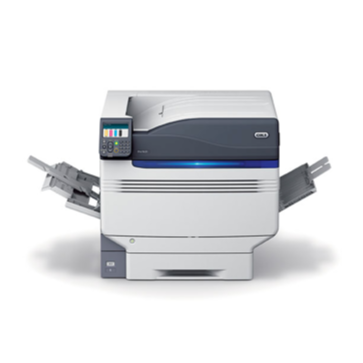

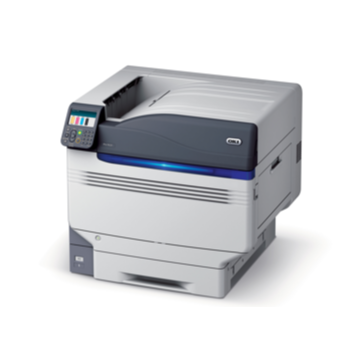

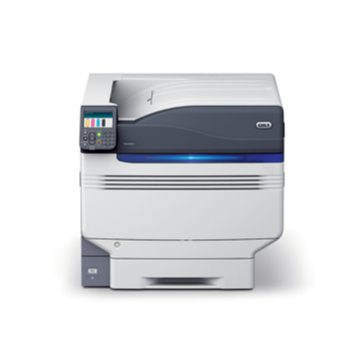

OKI Pro9431dn SRA3 Colour LED Production Printer, 50ppm, Duplex
PRODUCT DESCRIPTION
OKI Pro9431dn SRA3 Colour LED Production Printer, 50ppm, Duplex (45530407) - Local Warranty
The OKI Pro9431dn is an SRA3 CMYK LED production printer rated at 50 ppm A4 and 28 ppm A3 in colour and mono, with 1200 x 1200 dpi output and banner support, built for print service providers and in-house print rooms.
Professional print quality in-house
A4/A3/A3+ four colour printer with 1200 x 1200dpi print resolution and Multi-Level ProQ technology for enhanced colour output.
Media Flexibility
Paper handling from A6 to SRA3 and banner lengths up to 1.3m; prints on stock up to 360gsm single sided and 320gsm duplex, including gloss paper, film, transfer paper and waterproof paper.
Cost-efficient productivity
Up to 50ppm colour/mono A4 and 28ppm A3, with less than 8 seconds to first print. 2GB RAM and 1.2GHz processor.
High paper capacity, duplex as standard
830 sheet standard paper capacity (up to 2,950 sheets) with duplex printing as standard.
One printer, multiple uses
Serves graphic arts and general office requirements, eliminating the need for separate graphic arts and office printers; ultra-high capacity toner cartridges available.
Ideal For
Print shops, marketing teams and in-house print rooms in Singapore producing short-run colour collateral, packaging prototypes and banners up to SRA3. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
OKI Pro9431dn Datasheet — Technical Specifications
General
| Model | Pro9431dn |
| Official Product Name | OKI Pro9431dn |
| OKI Part Number | 45530407 |
| Brand | OKI |
| Warranty | Local Warranty (Singapore) - OKI Singapore standard warranty terms apply; please confirm the coverage period with SourceIT before ordering |
| Printing Method | Digital 4 LED Full-color Electrophotographic Printing Method |
| Printing Resolution | 1200 x 1200 dpi (2 levels), 1200 x 600 dpi (16 levels), 600 x 600 dpi (2 levels), Physical dot pitch: 1200 dpi |
| Warm-up Time | Approx. 50.0 seconds from power-on; Approx. 35.0 seconds from power save |
| First Print Out Time | Color: Approx. 8.0 seconds; Mono: Approx. 8.0 seconds |
| Print Speed | A4(Landscape) 50 ppm color, 50 ppm mono; A3 28 ppm color, 28 ppm mono |
| Printer Language | Adobe PostScript 3, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, PDF v1.7 emulation, IBM ProPrinter emulation, Epson FX Emulation |
| Font | Adobe PostScript 136 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts |
| Memory (Std./Max.) | 2GB/2GB |
| Hard Disk Drive | (Optional) 160 GB |
Paper Handling
| Paper Size | SRA3, SRA4, A3+, A3, A4, A5, A6, B5, B4, Tabloid extra (12" x 18"), Tabloid (11" x 17"), Legal 13, Legal 13.5, Legal 14, Letter, Executive, Index Card (3" x 5") (75 x 125mm), Statement, Envelopes, Postcard, Return postcard, Banner, B6 Half, B6, 8K, 16K, Custom Size: Width 64-330 mm x Length 89-1321 mm |
| Paper Weight | Tray 1: 52 - 320 gsm; (Optional) Additional Tray: 52 - 320 gsm; Multi-purpose tray: 52 - 360 gsm |
| Input Capacity | Tray 1: 530 sheets; (Optional) Additional Tray: 530 sheets; Multi-purpose tray: 300 sheets |
| Output Capacity | Face Down: Max. 610 sheets; Face Up: Max. 300 sheets |
Connectivity & Software
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP, EtherTalk |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, OS X 10.10, OS X 10.9, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Linux |
Physical & Power
| Dimensions(WxDxH) | 699 x 625 x 640 mm |
| Weight(includes supplies) | Approx. 96.5 kg |
| Weight(not includes supplies) | Approx. 82.0 kg |
| Power Source | Single phase 230 VAC ±10%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. 1,600W / Ave. 1,100W; Idle: 40W; Power Save: 34.0W; Deep Sleep: 4.0W; Auto-Off: 0.5W |
| Noise Level | Operating: Approx. 57 dBA; Idle: < 34 dBA; Power Save: < 30 dBA or Background level |
| Operating Environment | Operating: 10 - 32 °C, 20 - 80 %RH, No condensation |
General
| Duty Cycle | Recommended: 25,000 pages/month; Maximum: 300,000 pages/month |
Compatibility & Software Support
Compatibility details below are taken from OKI Singapore's published specification for the OKI Pro9431dn. Drivers, utilities and firmware are available from OKI Singapore's support site (see Datasheet & Downloads).
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP, EtherTalk |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, OS X 10.10, OS X 10.9, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Linux |
Package Contents & Ordering Information
In the Box
- Manuals
- Starter toner cartridge x 4
- Image Drum x 4
- Power cable
- DVD-ROM
Ordering Information
| Model | Pro9431dn |
| OKI Part Number | 45530407 |
| Recommended Retail Price (incl. GST) | S$6,260.63 |
Optional Accessories
- Additional Paper Tray (530 sheets of 80gsm) - 45530703
- Large Capacity Feeder (1,590 sheets of 80gsm) - 45530803
- 160 GB Hard Disk Drive - 44622302
- Additional paper tray with castor (530 sheets of 80gsm) - 45530903
Consumables
- Black Ultra-high capacity print cartridge (51,000 pages) - 45536573
- Yellow Ultra-high capacity print cartridge (42,000 pages) - 45536570
- Magenta Ultra-high capacity print cartridge (42,000 pages) - 45536571
- Cyan Ultra-high capacity print cartridge (42,000 pages) - 45536572
- Black Image Drum (40,000 pages) - 45103740
- Yellow Image Drum (40,000 pages) - 45103737
- Magenta Image Drum (40,000 pages) - 45103738
- Cyan Image Drum (40,000 pages) - 45103739
- Fuser unit (150,000 pages) - 45531113
- Transfer Belt (150,000 pages) - 45531223
- Waste toner box (40,000 pages) - 45531503
Options and consumables are sold separately. Page yields are OKI figures. Ask SourceIT to quote the printer together with trays, toner and drums.
Datasheet & Downloads
Frequently Asked Questions — OKI Pro9431dn
What warranty does the OKI Pro9431dn come with?
The printer is covered by OKI Singapore's standard local warranty. OKI Singapore does not state the coverage period on the product page, so please ask SourceIT to confirm the warranty term and service arrangement before ordering. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the OKI Pro9431dn use?
OKI lists: Black Ultra-high capacity print cartridge (51,000 pages) - 45536573; Yellow Ultra-high capacity print cartridge (42,000 pages) - 45536570; Magenta Ultra-high capacity print cartridge (42,000 pages) - 45536571; Cyan Ultra-high capacity print cartridge (42,000 pages) - 45536572; Black Image Drum (40,000 pages) - 45103740; Yellow Image Drum (40,000 pages) - 45103737. Always use genuine OKI consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
How does the OKI Pro9431dn connect?
OKI specifies: 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed).
Is stock held locally?
Anything not in local stock is ordered through OKI Data (Singapore). Ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with options and consumables, with local warranty and GST invoice.
