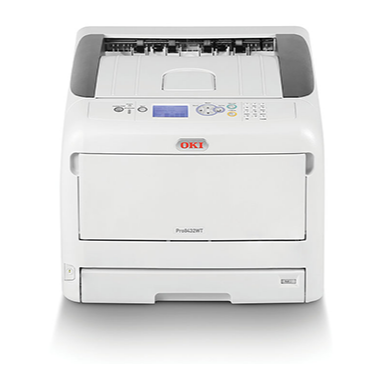

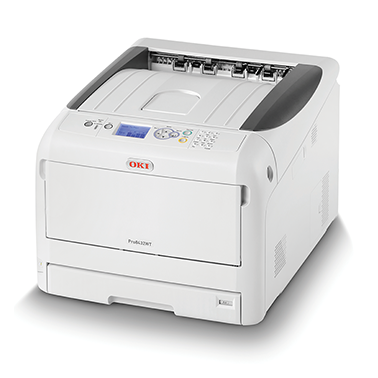

OKI Pro8432WT A3 White Toner Printer, CMYW, 35ppm
PRODUCT DESCRIPTION
OKI Pro8432WT A3 White Toner Printer, CMYW, 35ppm (46396654) - Local Warranty
The OKI Pro8432WT is an A3 CMYW LED printer that replaces black with white toner, so it can print solid white and colour on dark, coloured and clear media and on transfer media. OKI rates it at 35 ppm A4 and 20 ppm A3 on plain paper.
CMYW White Toner Printing
A3 white toner printer that prints in any colour including white, combining High Definition digital LED and OKI white toner technology.
Ideal for graphics, design and merchandising
Easy-to-use and affordable; prints solid, sharp, bright white designs on a wide range of media.
Stand-out printing on coloured and clear media
Creates vibrant print on dark backgrounds, coloured media, clear film and transfer media, including white graphic and lettering transfers for dark garments and hard surfaces.
Speed and paper handling
35ppm A4 and 20ppm A3 plain paper; standard 400-sheet paper supply; paper sizes A6 to A3 and weights up to 256gsm.
Ideal For
Garment decorators, signage makers and merchandise printers in Singapore producing white graphics, heat-transfer designs and prints on dark or clear media. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
OKI Pro8432WT Datasheet — Technical Specifications
General
| Model | Pro8432WT |
| Official Product Name | OKI Pro8432WT |
| OKI Part Number | 46396654 |
| Brand | OKI |
| Warranty | Local Warranty (Singapore) - OKI Singapore standard warranty terms apply; please confirm the coverage period with SourceIT before ordering |
| Printing Method | Digital 4 LED Full-color Electrophotographic Printing Method |
| Printing Resolution | 600 x 600 dpi (4 levels), 600 x 600 dpi, 600 x 1200 dpi, Physical dot pitch: 600 dpi |
| Print Speed | 35ppm A4 plain paper, 20ppm A3 plain paper |
| Warm-up Time | Approx. 25.0 seconds from power-on; Approx. 20.0 seconds from power save |
| Printer Language | PostScript 3 emulation |
| Font | PostScript emulation 80 fonts |
| Memory (Std./Max.) | 256MB/768MB |
Paper Handling
| Paper Size | A3, A4, A5, A6, B4, B5, B6, B6 Half, Tabloid (11" x 17"), Letter, Legal 13, Legal 13.5, Legal 14, Executive, Statement, 8.5" SQ, Folio, 8K, 16K, Photo Size (4" x 6", 5" x 7") (100 x 150mm, 125 x 175mm), Index Card (3" x 5") (75 x 125mm), Custom Size: Width 64-297 mm x Length 90-431 mm |
| Paper Weight | Tray 1: 64 - 220 gsm; Multi-purpose tray: 64 - 256 gsm |
| Input Capacity | Tray 1: 300 sheets; Multi-purpose tray: 100 sheets |
| Output Capacity | Face Down: Max. 200 sheets; Face Up: Max. 100 sheets |
Connectivity & Software
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, (Optional) Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) |
| Protocol | TCP/IP |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, macOS 10.12, OS X 10.11, OS X 10.10, OS X 10.9, OS X 10.8 |
Physical & Power
| Dimensions(WxDxH) | 449 x 552 x 360 mm |
| Weight(includes supplies) | Approx. 37.0 kg |
| Power Consumption | Operating: Max. 1,400W / Ave. 700W; Idle: 100W; Power Save: 12.0W; Deep Sleep: 1.0W; Auto-Off: 0.15W |
| Noise Level | Operating: Approx. 52 dBA; Idle: < 32 dBA |
| Operating Environment | Operating: 10 - 32 °C, 20 - 80 %RH, No condensation |
General
| Duty Cycle | Recommended: 5,000 pages/month; Maximum: 75,000 pages/month |
Compatibility & Software Support
Compatibility details below are taken from OKI Singapore's published specification for the OKI Pro8432WT. Drivers, utilities and firmware are available from OKI Singapore's support site (see Datasheet & Downloads).
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, (Optional) Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) |
| Protocol | TCP/IP |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, macOS 10.12, OS X 10.11, OS X 10.10, OS X 10.9, OS X 10.8 |
Package Contents & Ordering Information
In the Box
- Image Drum x 4
- Starter toner cartridge x 4
- DVD-ROM
- Manuals
- Power cable
Ordering Information
| Model | Pro8432WT |
| OKI Part Number | 46396654 |
| Recommended Retail Price (incl. GST) | S$7,714.15 |
Optional Accessories
- 256 MB RAM - 44302203
- 512 MB RAM - 44302207
- 16 GB SDHC Memory Card - 44848903
- WLAN Interface - 45830202
Consumables
- Yellow Toner cartridge (10,000 pages) - 46606509
- Magenta Toner cartridge (10,000 pages) - 46606510
- Cyan Toner cartridge (10,000 pages) - 46606511
- White Toner cartridge (4,500 pages) - 46606512
- Yellow Image Drum (30,000 pages) - 44844425
- Magenta Image Drum (30,000 pages) - 44844426
- Cyan Image Drum (30,000 pages) - 44844427
- White Image Drum (9,000 pages) - 45878118
- Fuser unit (50,000 pages) - 44848814
- Transfer Belt (30,000 pages for Pro8432WT) - 44846204
Options and consumables are sold separately. Page yields are OKI figures. Ask SourceIT to quote the printer together with trays, toner and drums.
Datasheet & Downloads
Frequently Asked Questions — OKI Pro8432WT
What warranty does the OKI Pro8432WT come with?
The printer is covered by OKI Singapore's standard local warranty. OKI Singapore does not state the coverage period on the product page, so please ask SourceIT to confirm the warranty term and service arrangement before ordering. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the OKI Pro8432WT use?
OKI lists: Yellow Toner cartridge (10,000 pages) - 46606509; Magenta Toner cartridge (10,000 pages) - 46606510; Cyan Toner cartridge (10,000 pages) - 46606511; White Toner cartridge (4,500 pages) - 46606512; Yellow Image Drum (30,000 pages) - 44844425; Magenta Image Drum (30,000 pages) - 44844426. Always use genuine OKI consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
How does the OKI Pro8432WT connect?
OKI specifies: 1000BASE-T/100BASE-TX/10BASE-T, (Optional) Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed).
Is stock held locally?
Anything not in local stock is ordered through OKI Data (Singapore). Ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with options and consumables, with local warranty and GST invoice.
