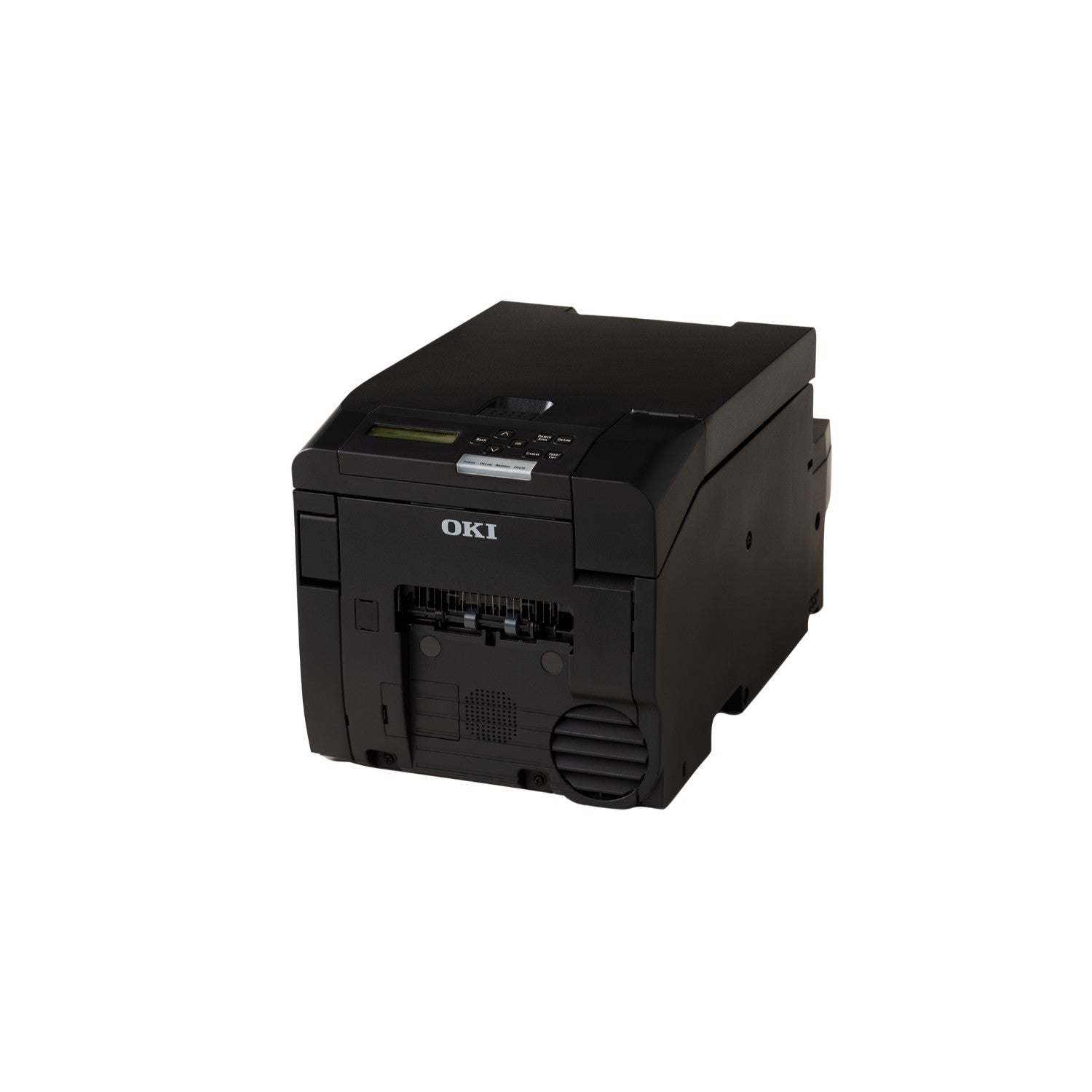

OKI Pro330S Compact Colour Label Printer, CMY, 6 ips, 1200 dpi, Auto Cutter
PRODUCT DESCRIPTION
OKI Pro330S Compact Colour Label Printer, CMY, 6 ips, 1200 dpi, Auto Cutter (47097011) - Local Warranty
The OKI Pro330S is a compact CMY LED toner colour label printer for labels and tags up to 86 mm wide, printing at up to 152.4 mm/s (6 ips) and 1200 x 1200 dpi, with a built-in rotary auto cutter, USB 2.0 and Ethernet.
Compact LED Toner Colour Label Printer
OKI describes the Pro330S as the world's most compact LED toner colour label printer, suitable for environments from general printing to retail, production, POS and kiosks.
Media Flexibility
Easily print on a wide variety of media - plain paper, plain paper label, glossy paper label and film label, roll-fed, fan-fold or cut sheet.
Toner technology delivers high print quality
Toner-based printing eliminates the need for expensive inkjet media and offers superior water and alcohol resistance.
CMY all-in-one toner cartridge
A single three-colour all-in-one toner cartridge simplifies inventory management and allows quick replacement.
Eye-catching colour labels / Profit creation
Produce high-quality color results that catch the eyes of customers, and create new profits by colorizing the black-and-white thermal printing environment.
Various interface support
USB and wired LAN as well as optional wireless LAN are provided. Print without restrictions on the environment.
Ideal For
Retail, food and beverage, logistics and small manufacturers in Singapore that want to replace black-and-white thermal labels with durable colour labels and tags printed on demand. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
OKI Pro330S Datasheet — Technical Specifications
General
| Model | Pro330S |
| Official Product Name | OKI Pro330S Label Printer |
| OKI Part Number | 47097011 |
| Brand | OKI |
| Warranty | Local Warranty (Singapore) - OKI Singapore standard warranty terms apply; please confirm the coverage period with SourceIT before ordering |
| Printing Method | Digital 3 LED Full-color Electrophotographic Printing Method |
| Print Resolution | 1200 x 1200 dpi, 600 x 600 dpi |
| Print Speed | Max. 152.4mm/s (6ips) - printing speed varies depending on paper size, type, and thickness |
| Print Width | Max. 80mm |
| Minimum Print Margin | Top: 2.03mm, Bottom: 2.03mm, Right: 2.03mm, Left: 2.03mm |
| Print Position Accuracy | Vertical: ±1.0mm, Horizontal: ±1.0mm |
| Warm-up Time | ~23 seconds (power-on), ~28 seconds (power save) |
| Time To First Print | ~5 seconds (cold start), ~4 seconds (pre heat) |
Media
| Media Type | Plain Paper, Plain Paper Label, Glossy Paper Label, Film Label |
| Media Width | 25 - 86mm |
| Media Thickness | 0.08 - 0.25mm (for single paper (cut paper), it will be 0.06 to 0.25 mm) |
| Media Length | 53 - 551mm |
| Media Form | Roll-fed, Fan-Fold, Cut Sheet (Do not use seam paper; do not use roll paper that is taped or glued to the roll core) |
| Media Detection | None, Black Mark (bottom), Black Mark (top), Hole, Gap |
| Media Sensors | Transmission Hole, Gap, Notch; Reflective Black Mark sensors |
| Roll Outer Diameter | Max. Ф203.2mm (Ф8") |
| Core Inner Diameter | Min. Ф50.8mm |
| Roll Wind Direction | Face-out |
| Total Media Weight | Max. 2.4kg |
| Force of Tugging at Media of Feed Roller | 10N or more |
| Auto Cutter | Rotary blade full cut |
| Cut Accuracy | Media ≤216mm: ±1.5mm; >216mm: ±0.7% |
| Cuttable Media Length | 53 - 551mm |
| Presenter Mode | Optional |
Connectivity & Software
| Interface | USB 2.0, 100BASE-TX/10BASE-T, Optional Wireless LAN |
| Protocol | TCP/IP |
| Printer Language | PCL 6 (XL) emulation, PCL 5c emulation |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012 |
| Memory | 512 MB / 512 MB |
| Font | 27 scalable fonts, 4 bitmap fonts |
Physical & Power
| Dimensions (WxDxH) | 198 x 380 x 195 mm |
| Weight | Approx. 9.5 kg |
| Power Source | Single phase 220-240 VAC ±10%, 50/60 Hz ±2% (operation is not guaranteed when using a UPS or an inverter) |
| Power Consumption | Operating: Max. 650W / Ave. 250W; Idle: 10W; Power Save: <5.0W |
| Noise Level | Operating: ~55 dBA; Idle: <37 dBA |
General
| Operating Environment | 10-32°C, 20-80% RH, no condensation |
| Buzzer | Standard |
| Safety & Environment Regulation | RCM Mark |
| Unit Life | 5 Years or 120 km (equipment life depends on customer usage) |
| Cutter Life | 1.0 million cuts |
| Duty Cycle | Recommended: 1,500 pages/month; Maximum: 12,000 pages/month |
Compatibility & Software Support
Compatibility details below are taken from OKI Singapore's published specification for the OKI Pro330S. Drivers, utilities and firmware are available from OKI Singapore's support site (see Datasheet & Downloads).
| Interface | USB 2.0, 100BASE-TX/10BASE-T, Optional Wireless LAN |
| Protocol | TCP/IP |
| Printer Language | PCL 6 (XL) emulation, PCL 5c emulation |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012 |
| Memory | 512 MB / 512 MB |
| Font | 27 scalable fonts, 4 bitmap fonts |
Package Contents & Ordering Information
In the Box
- DVD-ROM
- Power cable
- Guide Rib x 4
Ordering Information
| Model | Pro330S |
| OKI Part Number | 47097011 |
| Recommended Retail Price (incl. GST) | S$2,690.67 |
Optional Accessories

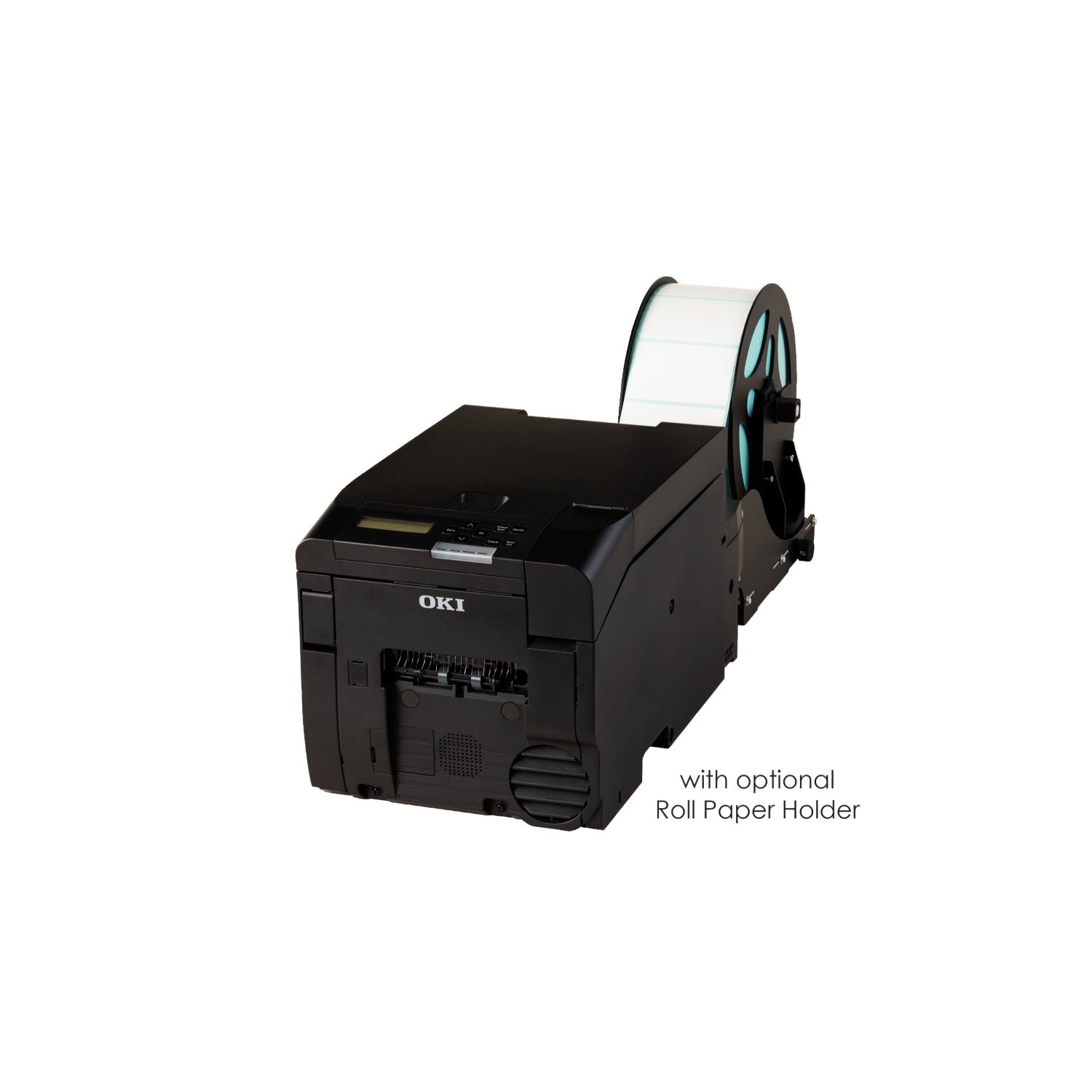

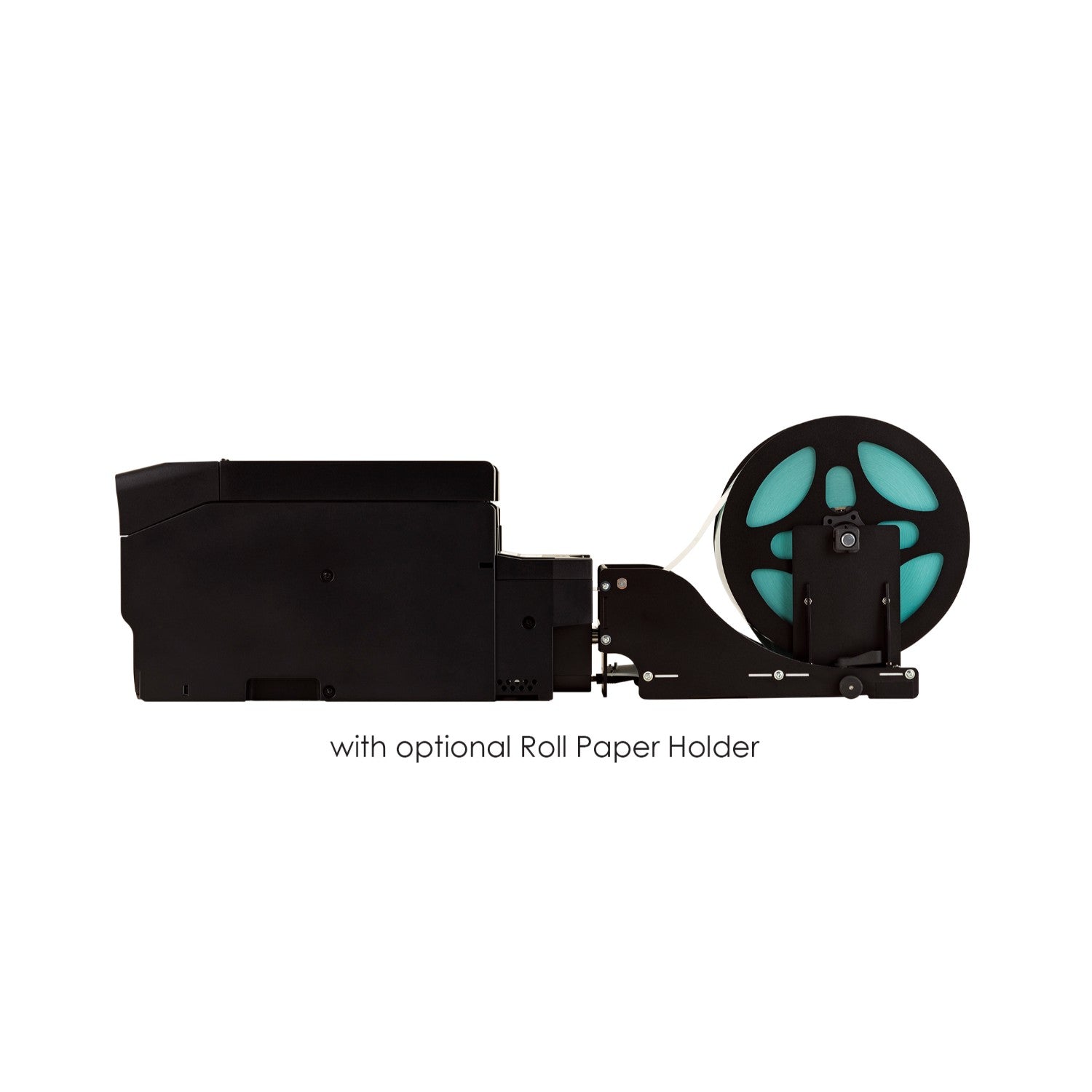

- Roll Paper Folder - YB8001-4899P001

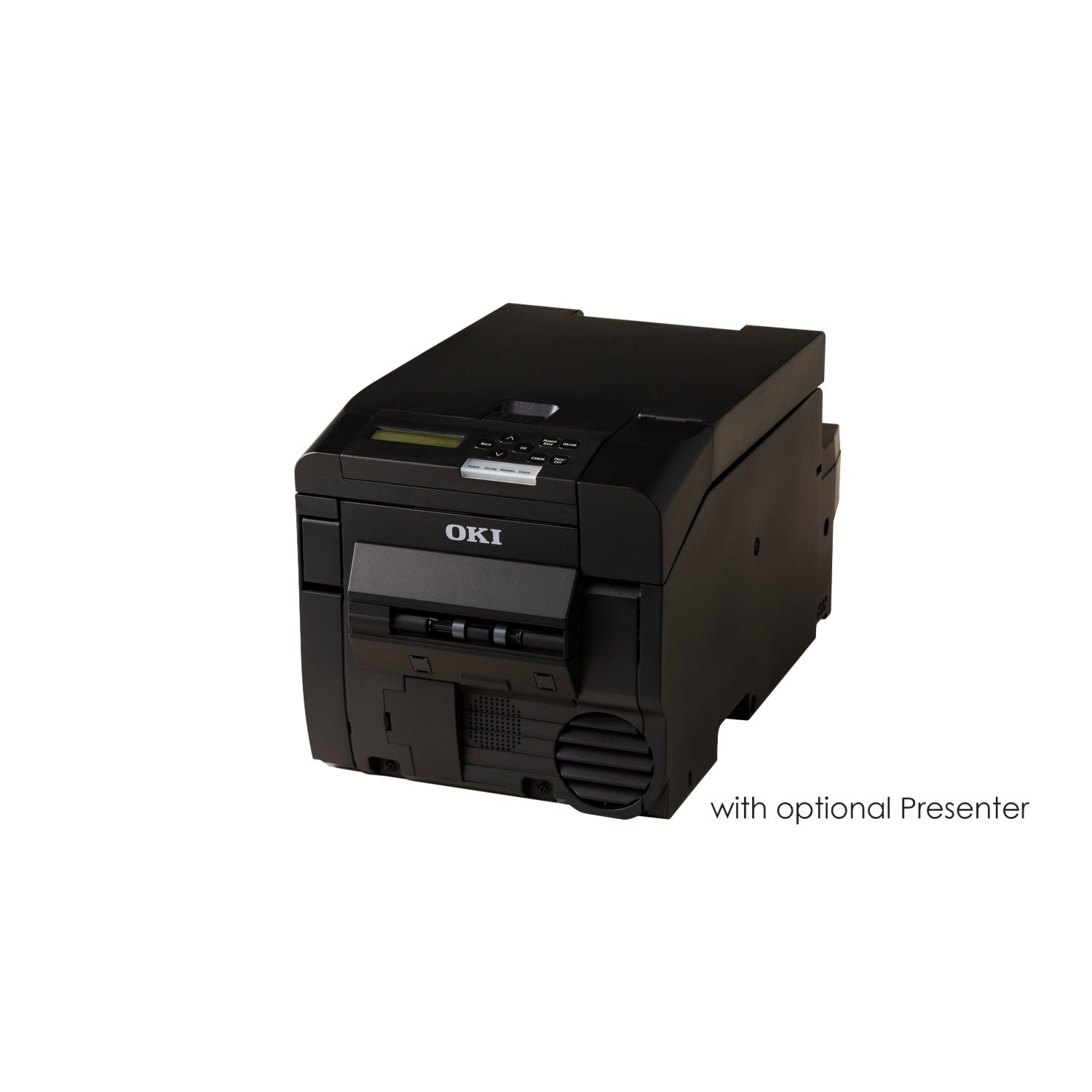

- Presenter Unit - 47097406
Consumables
- CMY all-in-one Toner cartridge - 47097608 - 5,000 pages
- CMY all-in-one Image Drum Unit - 47097508 - 25,000 pages
- Fuser unit - 47097209 - 100,000 pages
- Transfer Belt - 47097306 - 100,000 pages
- Cleaning kit - YA8001-5016G001
- Cleaning paper - YA8001-5015G001
Options and consumables are sold separately. Page yields are OKI figures. Ask SourceIT to quote the printer together with trays, toner and drums.
Datasheet & Downloads
Frequently Asked Questions — OKI Pro330S
What warranty does the OKI Pro330S come with?
The printer is covered by OKI Singapore's standard local warranty. OKI Singapore does not state the coverage period on the product page, so please ask SourceIT to confirm the warranty term and service arrangement before ordering. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the OKI Pro330S use?
OKI lists: CMY all-in-one Toner cartridge - 47097608 - 5,000 pages; CMY all-in-one Image Drum Unit - 47097508 - 25,000 pages; Fuser unit - 47097209 - 100,000 pages; Transfer Belt - 47097306 - 100,000 pages; Cleaning kit - YA8001-5016G001; Cleaning paper - YA8001-5015G001. Always use genuine OKI consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
How does the OKI Pro330S connect?
OKI specifies: USB 2.0, 100BASE-TX/10BASE-T, Optional Wireless LAN.
Is stock held locally?
Anything not in local stock is ordered through OKI Data (Singapore). Ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with options and consumables, with local warranty and GST invoice.
