OKI Pro1050 CMYK + White Colour Label Printer, 6 ips, 1200 dpi
PRODUCT DESCRIPTION
OKI Pro1050 CMYK + White Colour Label Printer, 6 ips, 1200 dpi (46672103) - Local Warranty

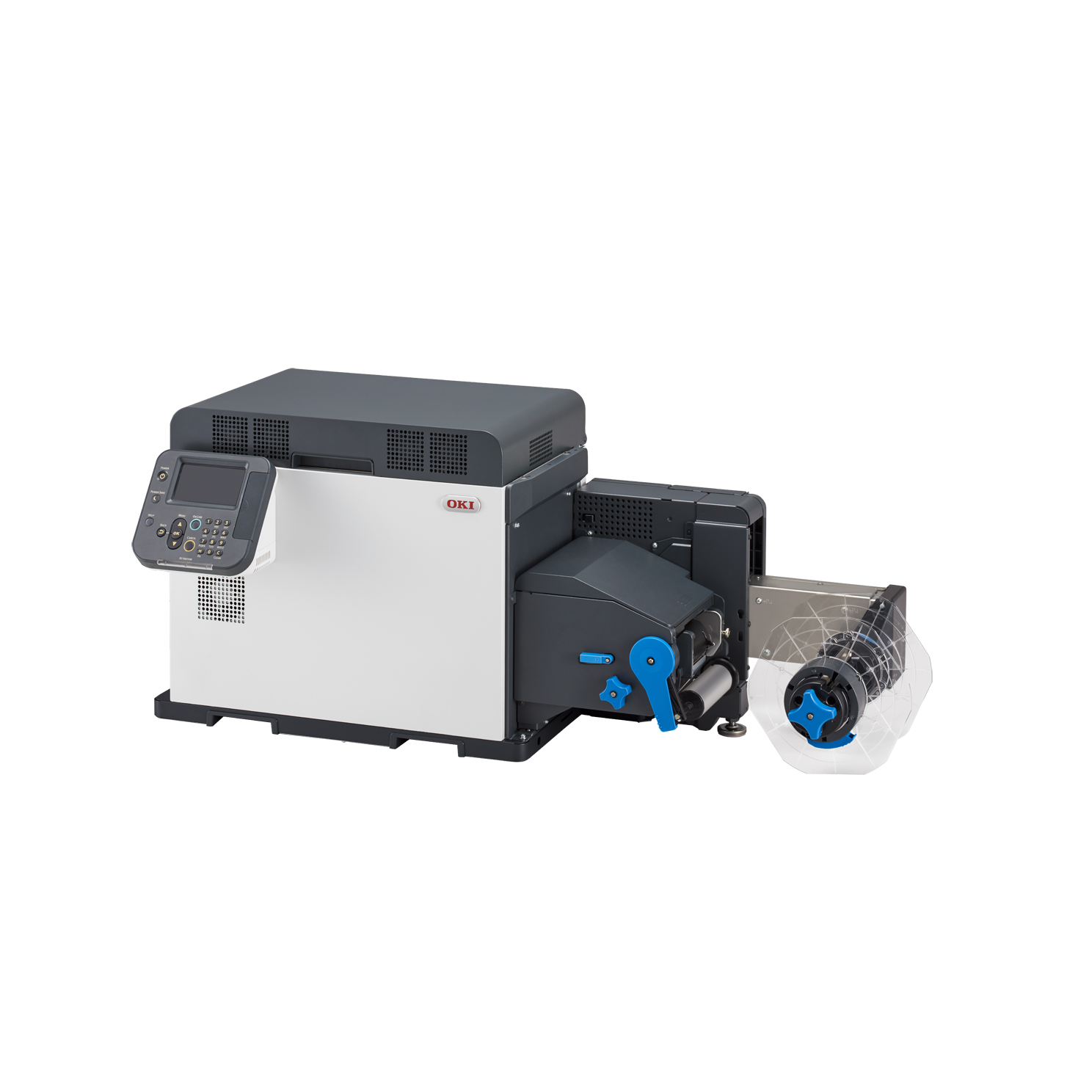

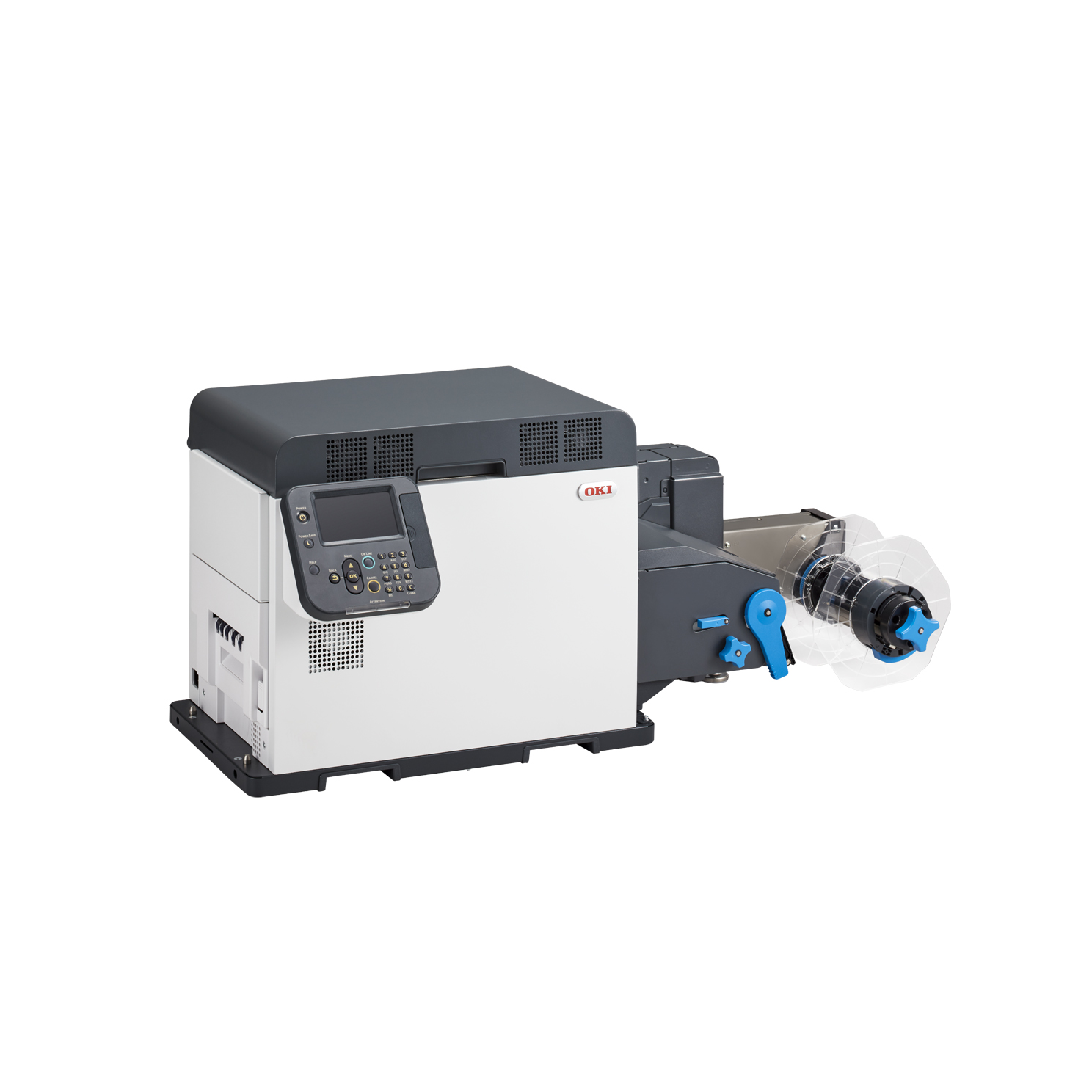

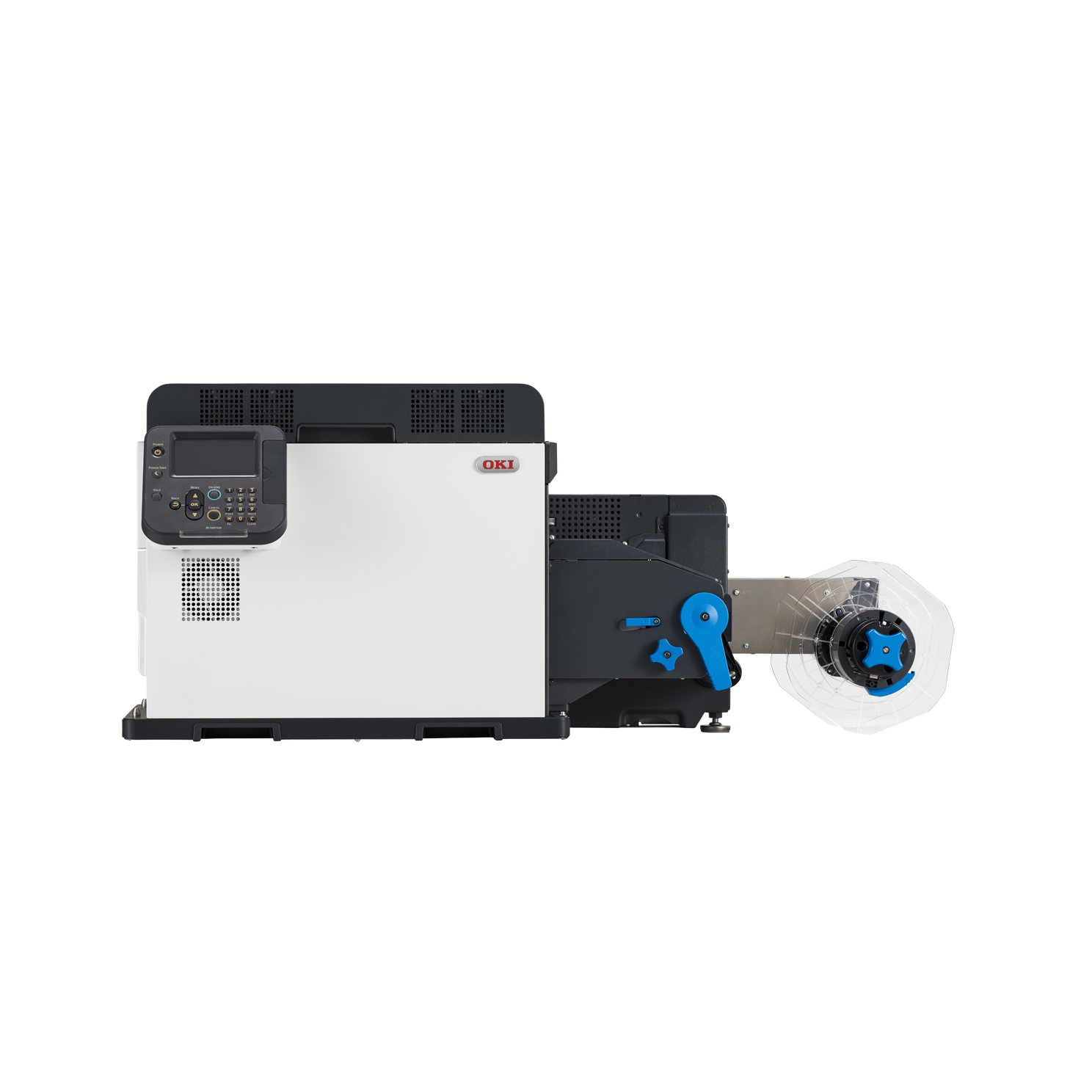

The OKI Pro1050 is a five-colour (CMYK + white) LED narrow-format label printer for rolls up to 130 mm wide, printing at up to 152.4 mm/s (6 ips) and 1200 x 1200 dpi. The white toner prints opaque white on coloured, clear and metallised label stock.
Profitable in-house label printing
Delivers on-demand, short-run colour label printing capability that drives new revenue streams; set up jobs in minutes, with minimal training.
Versatile media handling
Handles textured papers, synthetics, and coloured, clear and opaque materials, so new creative ideas and complex jobs can be taken on with no setup fees and runs as small as a single label.
Bringing a new colour dimension to labels
Fifth colour or CMYK+W option enables greater flexibility in label design; digital LED with dry toner technology prints opaque white on coloured or metallised substrates.
Robust water/chemical resistant printing
Can produce waterproof labels that are robust and resistant to UV fading.
Ideal For
Cosmetics, beverage, food and specialty brands in Singapore printing premium short-run labels on clear, coloured or metallic media with a white underprint. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
OKI Pro1050 Datasheet — Technical Specifications
General
| Model | Pro1050 |
| Official Product Name | OKI Pro1050 Label Printer |
| OKI Part Number | 46672103 |
| Brand | OKI |
| Warranty | Local Warranty (Singapore) - OKI Singapore standard warranty terms apply; please confirm the coverage period with SourceIT before ordering |
| Printing Method | Digital 5 LED Full-color Electrophotographic Printing Method |
| Print Resolution | 1200 x 1200 dpi, 600 x 600 dpi |
| Print Speed | Max. 152.4mm/s (6ips) |
| Print Width | Max. 125.76mm |
| Minimum Print Margin | Top: 2.12mm, Bottom: 2.12mm, Right: 2.12mm, Left: 2.12mm |
| Warm-up Time | Approx. 50.0 seconds from power-on, Approx. 25.0 seconds from power save |
Media
| Media Format | Roll |
| Media Type | Plain Paper, Plain Paper Label, Glossy Paper Label, Film Label, Synthetic paper Label |
| Media Width | 25.4 - 130.0mm |
| Media Thickness | 0.076 - 0.25mm |
| Label Length | 12.7 - 1,320.8mm |
| Label Width | 25.4 - 126.0mm |
| Media Detection | Gap, Black Mark (bottom), None |
| Media Sensors | Position adjustable Transmission Gap, None Sensor; Position adjustable Reflective Black Mark (bottom) Sensor |
| Roll Outer Diameter | Max. Ф203.2mm (Ф8") |
| Core Inner Diameter | Ф76.2mm (Ф3") |
| Roll Wind Direction | Face-out, Face-in |
| Auto Cutter | Full cut |
| Cuttable Media Length | Min. 101.6mm |
Connectivity & Software
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP |
| Printer Language | PCL 5c emulation, PCL 6 (XL) emulation, Adobe PostScript 3 |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64 |
| Processor | ARM CPU 1.2 GHz |
| Memory (Std./Max.) | 2048 MB / 2048 MB |
| Hard Disk Drive | 250 GB |
| Font | Adobe PostScript 136 fonts, PCL emulation 81 scalable fonts, 4 bitmap fonts |
Physical & Power
| Dimensions (WxDxH) | 1,040 x 477 x 441 mm |
| Weight (includes supplies) | Approx. 62.0 kg |
| Weight (not includes supplies) | Approx. 50.0 kg |
| Power Source | Single phase 220 - 240 VAC ±10%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. 1,200W / Ave. 710W; Idle: 27W; Power Save: < 25.0W; Auto-Off: < 1.0W |
General
| Operating Environment | Operating: 10 - 30 °C, 20 - 70 %RH, No condensation |
| Safety & Environment Regulation | GS Mark, CE Mark |
| Unit Life | 5 Years |
Compatibility & Software Support
Compatibility details below are taken from OKI Singapore's published specification for the OKI Pro1050. Drivers, utilities and firmware are available from OKI Singapore's support site (see Datasheet & Downloads).
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP |
| Printer Language | PCL 5c emulation, PCL 6 (XL) emulation, Adobe PostScript 3 |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64 |
| Processor | ARM CPU 1.2 GHz |
| Memory (Std./Max.) | 2048 MB / 2048 MB |
| Hard Disk Drive | 250 GB |
| Font | Adobe PostScript 136 fonts, PCL emulation 81 scalable fonts, 4 bitmap fonts |
Package Contents & Ordering Information
In the Box
- DVD-ROM
- Power cable
Ordering Information
| Model | Pro1050 |
| OKI Part Number | 46672103 |
| Recommended Retail Price (incl. GST) | S$17,904.23 |
Consumables
- Black Print Cartridge - 46844014 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing)
- Yellow Print Cartridge - 46844011 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing)
- Magenta Print Cartridge - 46844012 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing)
- Cyan Print Cartridge - 46844013 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing)
- White Print Cartridge - 46844015 - 4,500 pages (Based on A6 size, 20% coverage, continuous printing)
- Fuser and Exit Unit - 46672506 - 150,000 pages (Based on A6 size, 50 pages per job printing)
- Transfer Belt - 46672305 - 150,000 pages (Based on A6 size, 3 pages per job printing)
- Waste Toner Box - 46672402 - 25,000 pages (Based on A6 size, 20% coverage, 3 pages per job printing)
Options and consumables are sold separately. Page yields are OKI figures. Ask SourceIT to quote the printer together with trays, toner and drums.
Datasheet & Downloads
Frequently Asked Questions — OKI Pro1050
What warranty does the OKI Pro1050 come with?
The printer is covered by OKI Singapore's standard local warranty. OKI Singapore does not state the coverage period on the product page, so please ask SourceIT to confirm the warranty term and service arrangement before ordering. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the OKI Pro1050 use?
OKI lists: Black Print Cartridge - 46844014 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing); Yellow Print Cartridge - 46844011 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing); Magenta Print Cartridge - 46844012 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing); Cyan Print Cartridge - 46844013 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing); White Print Cartridge - 46844015 - 4,500 pages (Based on A6 size, 20% coverage, continuous printing); Fuser and Exit Unit - 46672506 - 150,000 pages (Based on A6 size, 50 pages per job printing). Always use genuine OKI consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
How does the OKI Pro1050 connect?
OKI specifies: 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed).
Is stock held locally?
Anything not in local stock is ordered through OKI Data (Singapore). Ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with options and consumables, with local warranty and GST invoice.
