OKI Pro1040 CMYK Colour Label Printer, 6 ips, 1200 dpi
PRODUCT DESCRIPTION
OKI Pro1040 CMYK Colour Label Printer, 6 ips, 1200 dpi (46672003) - Local Warranty

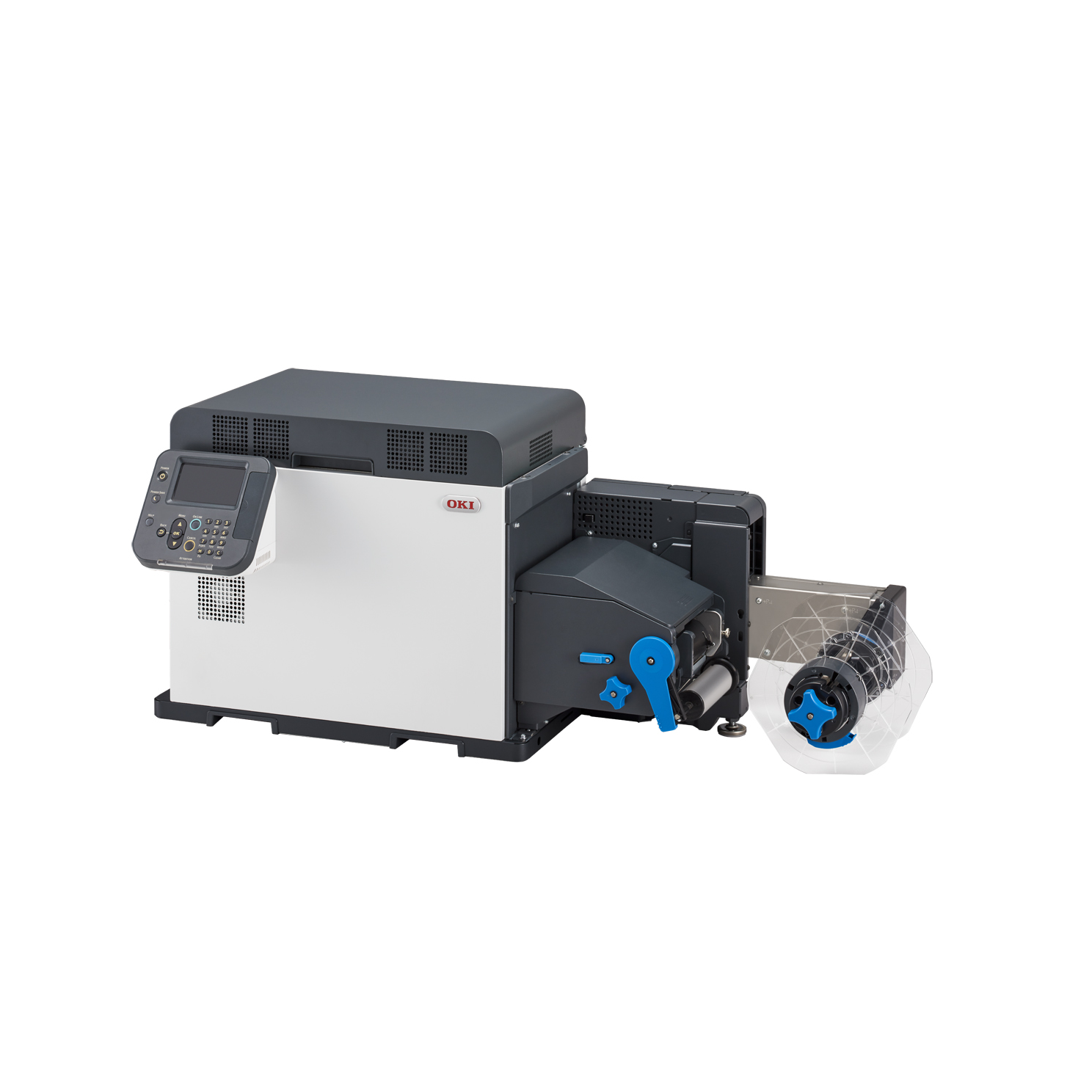

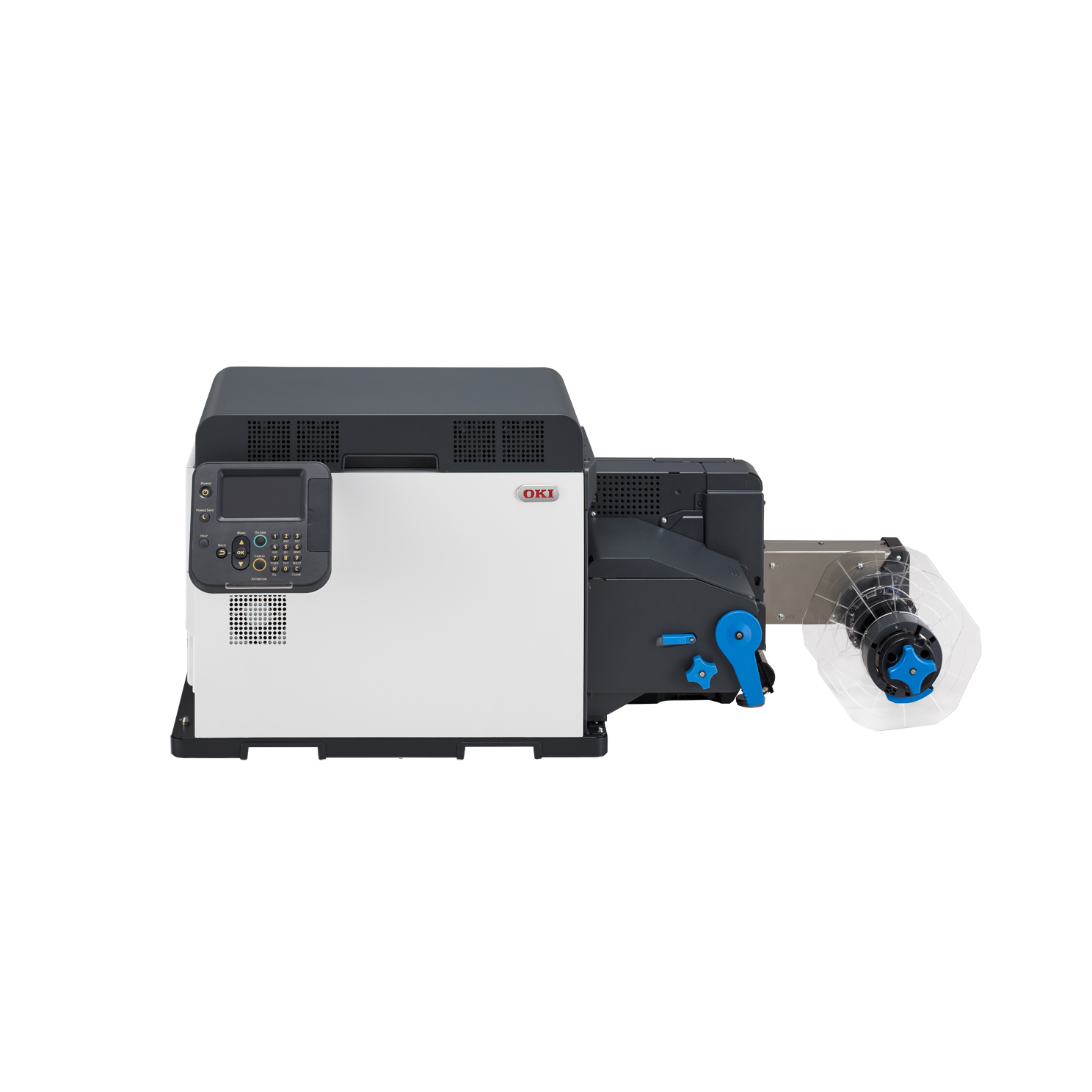

The OKI Pro1040 is a four-colour (CMYK) LED narrow-format label printer for rolls up to 130 mm wide, printing at up to 152.4 mm/s (6 ips) and 1200 x 1200 dpi, with Gigabit Ethernet, USB 2.0 and an auto cutter.
Professional four colour narrow-format printing
The Pro1040 Label Printer offers professional four colour narrow-format printing across a range of different label media including textured papers and synthetics.
Profitable, in-house label printing
Delivers on-demand, short-run colour label printing capability that drives new revenue streams; jobs set up in minutes with no proofing needed.
Media flexibility
Makes it easy to print on a huge range of label media - paper and synthetic film rolls, printed and cut into label rolls with a minimum volume of a single label.
Eye-catching labels
Generate labels with impact to capture attention, at 1200 dpi with High Definition Colour LED technology.
Robust water/chemical resistant printing
Proven ability to produce labels that survive underwater and are robust enough to resist UV fading.
Ideal For
Brand owners, label converters and manufacturers in Singapore producing short-run, full-colour product labels in-house instead of outsourcing. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
OKI Pro1040 Datasheet — Technical Specifications
General
| Model | Pro1040 |
| Official Product Name | OKI Pro1040 Label Printer |
| OKI Part Number | 46672003 |
| Brand | OKI |
| Warranty | Local Warranty (Singapore) - OKI Singapore standard warranty terms apply; please confirm the coverage period with SourceIT before ordering |
| Printing Method | Digital 4 LED Full-color Electrophotographic Printing Method |
| Print Resolution | 1200 x 1200 dpi, 600 x 600 dpi |
| Print Speed | Max. 152.4mm/s (6ips) |
| Print Width | Max. 125.76mm |
| Minimum Print Margin | Top: 2.12mm, Bottom: 2.12mm, Right: 2.12mm, Left: 2.12mm |
Media
| Media Format | Roll |
| Media Type | Plain Paper, Film, Plain Paper Label, Glossy Paper Label, Film Label, Synthetic paper Label |
| Media Width | 25.4 - 130.0mm |
| Media Thickness | 0.076 - 0.25mm |
| Label Length | 12.7 - 1,320.8mm |
| Label Width | 25.4 - 126.0mm |
| Media Detection | Gap, Black Mark (printed on back of liner), None |
| Media Sensors | Position adjustable Transmission Gap Sensor; Position adjustable Reflective Black Mark (printed on back of liner) Sensor |
| Roll Outer Diameter | Max. Ф203.2mm (Ф8") |
| Core Inner Diameter | Ф76.2mm (Ф3") |
| Roll Wind Direction | Face-out, Face-in |
| Auto Cutter | Rotary blade Full cut |
| Cuttable Media Length | Min. 101.6mm |
Connectivity & Software
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP |
| Printer Language | PCL 5c emulation, PCL 6 (XL) emulation, Adobe PostScript 3 |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64 |
| Processor | ARM CPU 1.2 GHz |
| Memory (Std./Max.) | 2048 MB / 2048 MB |
| Hard Disk Drive | 250 GB |
| Font | Adobe PostScript 136 fonts, PCL emulation 81 scalable fonts, 4 bitmap fonts |
Physical & Power
| Dimensions (WxDxH) | 1,040 x 477 x 441 mm |
| Weight (includes supplies) | Approx. 61.0 kg |
| Weight (not includes supplies) | Approx. 50.0 kg |
| Power Source | Single phase 220 - 240 VAC ±10%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. 1,200W / Ave. 710W; Idle: 27W; Power Save: < 25.0W; Auto-Off: < 1.0W |
General
| Operating Environment | Operating: 10 - 30 °C, 20 - 70 %RH, No condensation |
| Safety & Environment Regulation | CE Mark, GS Mark |
| Unit Life | 5 Years |
Compatibility & Software Support
Compatibility details below are taken from OKI Singapore's published specification for the OKI Pro1040. Drivers, utilities and firmware are available from OKI Singapore's support site (see Datasheet & Downloads).
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP |
| Printer Language | PCL 5c emulation, PCL 6 (XL) emulation, Adobe PostScript 3 |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64 |
| Processor | ARM CPU 1.2 GHz |
| Memory (Std./Max.) | 2048 MB / 2048 MB |
| Hard Disk Drive | 250 GB |
| Font | Adobe PostScript 136 fonts, PCL emulation 81 scalable fonts, 4 bitmap fonts |
Package Contents & Ordering Information
In the Box
- DVD-ROM
- Power cable
Ordering Information
| Model | Pro1040 |
| OKI Part Number | 46672003 |
| Recommended Retail Price (incl. GST) | S$13,446.13 |
Consumables
- Black Print Cartridge - 46844014 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing)
- Yellow Print Cartridge - 46844011 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing)
- Magenta Print Cartridge - 46844012 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing)
- Cyan Print Cartridge - 46844013 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing)
- Fuser and Exit Unit - 46672506 - 150,000 pages (Based on A6 size, 50 pages per job printing)
- Transfer Belt - 46672305 - 150,000 pages (Based on A6 size, 3 pages per job printing)
- Waste Toner Box - 46672402 - 25,000 pages (Based on A6 size, 20% coverage, 3 pages per job printing)
Options and consumables are sold separately. Page yields are OKI figures. Ask SourceIT to quote the printer together with trays, toner and drums.
Datasheet & Downloads
Frequently Asked Questions — OKI Pro1040
What warranty does the OKI Pro1040 come with?
The printer is covered by OKI Singapore's standard local warranty. OKI Singapore does not state the coverage period on the product page, so please ask SourceIT to confirm the warranty term and service arrangement before ordering. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the OKI Pro1040 use?
OKI lists: Black Print Cartridge - 46844014 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing); Yellow Print Cartridge - 46844011 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing); Magenta Print Cartridge - 46844012 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing); Cyan Print Cartridge - 46844013 - 9,000 pages (Based on A6 size, 20% coverage, continuous printing); Fuser and Exit Unit - 46672506 - 150,000 pages (Based on A6 size, 50 pages per job printing); Transfer Belt - 46672305 - 150,000 pages (Based on A6 size, 3 pages per job printing). Always use genuine OKI consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
How does the OKI Pro1040 connect?
OKI specifies: 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed).
Is stock held locally?
Anything not in local stock is ordered through OKI Data (Singapore). Ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with options and consumables, with local warranty and GST invoice.
