OKI ES8473 MFP A3 Colour LED Multifunction Printer, Print / Copy / Scan / Fax, 35ppm
PRODUCT DESCRIPTION
OKI ES8473 MFP A3 Colour LED Multifunction Printer, Print / Copy / Scan / Fax, 35ppm (45850215) - Local Warranty
The OKI ES8473 MFP is an A3 colour LED 4-in-1 multifunction printer (print, copy, scan, fax) rated at 35 ppm A4 and 20 ppm A3, with a 100-sheet reverse automatic document feeder, 1,280 MB memory and a 250 GB hard disk.
Fast print and copy speeds
A4 35ppm colour and mono printing and 35cpm copying; A3 20ppm.
Built for large, demanding workgroups
High capacity A3 colour multifunction printer with low user intervention and lower running costs.

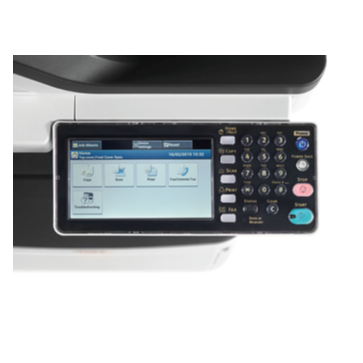

Easy-to-use operator panel
Helps keep busy teams productive.
4-in-1 with duplex RADF
Print, copy, scan (up to 50 ipm) and Super G3 fax, with a 100-sheet Reverse Automatic Document Feeder and 250 GB HDD.
Ideal For
Medium to large workgroups in Singapore that need one A3 colour device for printing, copying, scanning to network folders and faxing. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
OKI ES8473 MFP Datasheet — Technical Specifications
General
| Model | ES8473 MFP |
| Official Product Name | OKI ES8473 MFP |
| OKI Part Number | 45850215 |
| Brand | OKI |
| Warranty | Local Warranty (Singapore) - OKI Singapore standard warranty terms apply; please confirm the coverage period with SourceIT before ordering |
| Printing Method | Digital 4 LED Full-color Electrophotographic Printing Method |
| Print Speed | A4(Landscape) 35 ppm color, 35 ppm mono; A3 20 ppm color, 20 ppm mono |
| First Print Out Time | Color: Approx. 9.5 seconds; Mono: Approx. 9.5 seconds |
| Printing Resolution | 600 x 600 dpi, 600 x 1200 dpi (4 levels), 600 x 600 dpi, Physical dot pitch: 600 dpi |
| Printer Language | PostScript 3 emulation, PDF v1.7 emulation, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, IBM ProPrinter emulation, Epson FX Emulation |
| Font | PostScript emulation 80 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts |
| Memory (Std./Max.) | 1,280MB/1,280MB |
| Hard Disk Drive | 250 GB |
| Warm-up Time | Approx. 32.0 seconds from power-on |
Paper Handling
| Paper Size | A3, A4, A5, A6, B4, B5, B6, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio, 8K, 16K, Envelopes, Postcard, Return postcard, Custom Size: Width 64-297 mm x Length 90-1321 mm |
| Paper Weight | Tray 1: 64 - 220 gsm; (Optional) Additional Tray: 64 - 176 gsm; Multi-purpose tray: 64 - 256 gsm |
| Input Capacity | Tray 1: 300 sheets; (Optional) Additional Tray: 535 sheets; Multi-purpose tray: 100 sheets |
| Output Capacity | Upper tray: Max. 100 sheets; Face Down: Max. 250 sheets; Face Up: Max. 100 sheets |
Copy, Scan & Fax
| Type | Floor / Desktop |
| Scanning Method | Color CIS |
| Copy Speed | A4 35 cpm color, 35 cpm mono |
| First Copy Out Time | Color: Approx. 10.0 seconds, Mono: Approx. 10.0 seconds |
| Copy Density Adjustment | 7 levels (Manual) |
| Copy Scaling | 25 – 400 % |
| Maximum Copies | 999 sheets |
| Scanning Resolution (Copy) | Up to 600 x 600 dpi |
| Writing Resolution (Copy) | Up to 600 x 1200 dpi |
| Acceptable Original | Sheet, Book |
| Original Size | Flatbed and ADF: A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio |
| Copy Paper Size | A3, A4, A5, A6, B4, B5, B6, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio, 8K, 16K, Envelopes, Postcard, Return postcard |
| Scan Resolution | Max. 600 x 600 dpi |
| Scan Speed | Max. 50 ipm Color, 50 ipm mono |
| Scan Supported Protocol | SMB, FTP(S), TWAIN, WIA2.0 |
| Scan Output Format | Secure PDF, High compression PDF, JPEG, TIFF, XPS |
| Scan Driver | TWAIN, WIA2.0(Windows Vista or later), ICA(Mac OS X 10.6 or later) |
| Document Feeder Type | Reverse Automatic Document Feeder (RADF) |
| ADF Original Size | A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio, Custom Size: Width 0-297 mm x Length 0-431 mm |
| ADF Original Weight | 60 - 120 gsm |
| ADF Loading Capacity | Max. 100 sheets |
| ADF Original Exchange Speed | Simplex 50 ppm color, 50 ppm mono; Duplex 17 ppm color, 17 ppm mono |
| Fax Applicable Line | PSTN, PBX |
| Fax Interface | RJ-11 x 2 (Line, Tel) |
| Fax Transmission Resolution | Normal: 8 dots/mm x 3.85 lines/mm; Fine/Photo: 8 dots/mm x 7.7 lines/mm; Extra Fine: 8 dots/mm x 15.4 lines/mm |
| Fax Communication Speed | Super G3: 33.6kbps |
| Fax Encoding Method | MH, MR, MMR, JBIG |
| Fax Communication Mode | ITU-T G3, Super G3 |
| Fax Transmission Original Size | Max. A3, Length 420 mm |
| Fax Paper Size | Max. A3, Min. A5 |
| Fax Transmission Time | Approx. 2.0 sec. / page |
| Fax Memory | Max. 400 pages (256MB) |
| Fax Other Function | Speed Dial(1000 locations), Broadcast(32 group, 100 locations/group), Duplex scanning, F-Code Confidential FAX, Delayed Tx, LDAP, PC Fax, PDF Store/Distribution |
Connectivity & Software
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional) Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) Host |
| Protocol | TCP/IP |
| Supported OS | Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Linux |
Physical & Power
| Dimensions(WxDxH) | 563 x 600 x 700 mm |
| Weight(includes supplies) | Approx. 64.0 kg |
| Power Source | Single phase 220 - 240 VAC, 50/60 Hz |
| Power Consumption | Operating: Max. 1,400W / Ave. 850W; Idle: 120W; Power Save: 30.0W; Deep Sleep: 3.0W; Auto-Off: 0.15W |
| Noise Level | Operating: Approx. 54 dBA; Idle: < 37 dBA |
| Operating Environment | Operating: 10 - 32 °C, 20 - 80 %RH, No condensation |
General
| Duty Cycle | Recommended: 10,000 pages/month; Maximum: 75,000 pages/month |
Compatibility & Software Support
Compatibility details below are taken from OKI Singapore's published specification for the OKI ES8473 MFP. Drivers, utilities and firmware are available from OKI Singapore's support site (see Datasheet & Downloads).
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional) Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) Host |
| Protocol | TCP/IP |
| Supported OS | Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Linux |
Package Contents & Ordering Information
In the Box
- Starter toner cartridge x 4
- Image Drum x 4
- Power cable
- DVD-ROM
- Ferrite Core
Ordering Information
| Model | ES8473 MFP |
| OKI Part Number | 45850215 |
| Recommended Retail Price (incl. GST) | S$4,156.50 |
Optional Accessories
- IC Card Secure kit - 46181602
- Castor base - 45889502
- Cabinet - 45893702
- WLAN Interface - 45830202
Consumables
- Black Toner cartridge - 45862836
- Yellow Toner cartridge - 45862833
- Magenta Toner cartridge - 45862834
- Cyan Toner cartridge - 45862835
- Black Image Drum (30,000 pages) - 44844488
- Yellow Image Drum (30,000 pages) - 44844485
- Magenta Image Drum (30,000 pages) - 44844486
- Cyan Image Drum (30,000 pages) - 44844487
- Fuser unit (100,000 pages, A4 LEF) - 44848805
- Transfer Belt (80,000 pages) - 44846204
- Staples (for Off line stapler) - 45513301
Options and consumables are sold separately. Page yields are OKI figures. Ask SourceIT to quote the printer together with trays, toner and drums.
Datasheet & Downloads
Frequently Asked Questions — OKI ES8473 MFP
What warranty does the OKI ES8473 MFP come with?
The printer is covered by OKI Singapore's standard local warranty. OKI Singapore does not state the coverage period on the product page, so please ask SourceIT to confirm the warranty term and service arrangement before ordering. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the OKI ES8473 MFP use?
OKI lists: Black Toner cartridge - 45862836; Yellow Toner cartridge - 45862833; Magenta Toner cartridge - 45862834; Cyan Toner cartridge - 45862835; Black Image Drum (30,000 pages) - 44844488; Yellow Image Drum (30,000 pages) - 44844485. Always use genuine OKI consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
How does the OKI ES8473 MFP connect?
OKI specifies: 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional) Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) Host.
Is stock held locally?
Anything not in local stock is ordered through OKI Data (Singapore). Ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with options and consumables, with local warranty and GST invoice.
