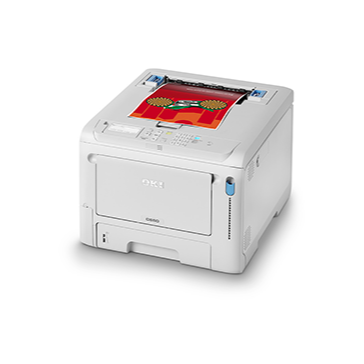

OKI C650dn A4 Colour LED Printer, 35ppm, Duplex, Gigabit Network
PRODUCT DESCRIPTION
OKI C650dn A4 Colour LED Printer, 35ppm, Duplex, Gigabit Network (YA8001-1023G003) - Local Warranty
The OKI C650dn is a compact A4 colour LED printer rated at 35 ppm in both colour and mono, with 1200 x 1200 dpi output, automatic duplex printing, Gigabit Ethernet, USB 2.0 and PCL / PostScript 3 emulation. Both the main tray and the multi-purpose tray accept media up to 256 gsm.
Cost-Efficient Consumables
High duty cycle supported by separate toners and drums for maximum consumables usage
Media Flexibility
Print a wide range of applications in a variety of sizes and weights in rich LED colour at high-speed
Space-Saving A4 Colour Printer
OKI describes the C650 as the world's smallest high-performance A4 colour printer, designed to fit into tight spaces with full front access.
Built for Reliability
OKI builds the C650 with high-value components for robust, dependable operation in busy offices.
Ideal For
Offices, retail and healthcare counters in Singapore that need fast, reliable A4 colour output in a small footprint, including envelopes, cards and heavier stock. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
OKI C650dn Datasheet — Technical Specifications
General
| Model | C650dn |
| Official Product Name | OKI C650dn |
| OKI Part Number | YA8001-1023G003 |
| Brand | OKI |
| Warranty | Local Warranty (Singapore) - OKI Singapore standard warranty terms apply; please confirm the coverage period with SourceIT before ordering |
| Printing Method | Digital LED Electrophotographic Printing Method |
| Printing Resolution | 600 x 600 dpi, 1200 x 1200 dpi, Physical dot pitch: 1200 dpi |
| Warm-up Time | Approx. 20.0 seconds from power-on, Approx. 11.0 seconds from power save |
| First Print Out Time | Color: Approx. 6.5 seconds, Mono: Approx. 6.5 seconds |
| Print Speed | A4 35 ppm color, 35 ppm mono |
| Printer Language | PCL 6 (XL) emulation, PCL 5c emulation, PostScript 3 emulation, PDF v2.0 emulation, IBM ProPrinter emulation, Epson FX Emulation |
| Font | PCL emulation 87 scalable fonts, 4 bitmap fonts, PostScript emulation 80 fonts |
| Memory (Std./Max.) | 1GB/1GB |
| Duty Cycle | Recommended: 8,000 pages/month, Maximum: 100,000 pages/month |
Paper Handling
| Paper Size | A4, A5, A6, B5, B6, B6 Half, B7, B8, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Statement, 8.5" SQ, Folio, 16K, Index Card (3" x 5") (75 x 125mm), Photo Size (4" x 6", 5" x 7") (100 x 150mm, 125 x 175mm), Envelopes, Postcard, Return postcard, Custom Size: Width 55-216 mm x Length 91-1321 mm |
| Paper Weight | Tray 1: 60 - 256 gsm, Multi-purpose tray: 60 - 256 gsm, (Optional) Additional Tray: 64 - 176 gsm |
| Input Capacity | Tray 1: 250 sheets, Multi-purpose tray: 100 sheets, (Optional) Additional Tray: 530 sheets |
| Output Capacity | Face Down: Max. 150 sheets, Face Up: Max. 100 sheets |
Connectivity & Software
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), USB 2.0 (High Speed) Host, (Optional) Wireless LAN (IEEE802.11a/b/g/n) |
| Protocol | TCP/IP |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, macOS 10.15, macOS 10.14, macOS 10.13, macOS 10.12, OS X 10.11, iOS, Chrome OS, Android |
Physical & Power
| Dimensions (WxDxH) | 395 x 430 x 290 mm |
| Weight (includes supplies) | Approx. 28.2 kg |
| Weight (not includes supplies) | Approx. 24.6 kg |
| Power Source | Single phase 220 - 240 VAC ±10%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. 1,150W / Ave. 840W, Idle: 20W, Power Save: 14.0W, Deep Sleep: 1.1W, Auto-Off: 0.15W |
| Noise Level | Operating: Approx. 54 dBA, Idle: < 32 dBA, Quiet Mode: < 51 dBA, Power save: Background level |
General
| Operating Environment | Operating: 10 - 32 °C, 20 - 80 %RH, No condensation |
Compatibility & Software Support
Compatibility details below are taken from OKI Singapore's published specification for the OKI C650dn. Drivers, utilities and firmware are available from OKI Singapore's support site (see Datasheet & Downloads).
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), USB 2.0 (High Speed) Host, (Optional) Wireless LAN (IEEE802.11a/b/g/n) |
| Protocol | TCP/IP |
| Supported OS | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, macOS 10.15, macOS 10.14, macOS 10.13, macOS 10.12, OS X 10.11, iOS, Chrome OS, Android |
Package Contents & Ordering Information
In the Box
- Manuals
- Starter toner cartridge x 4
- Image Drum x 4
- Power cable
- DVD-ROM
Ordering Information
| Model | C650dn |
| OKI Part Number | YA8001-1023G003 |
| Recommended Retail Price (incl. GST) | S$1,225.71 |
Optional Accessories

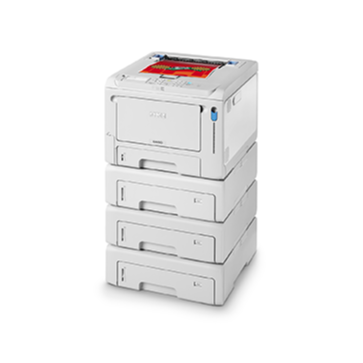

- Additional Paper Tray (YA8001-1025G004)
- IC Card Holder (46539501)
- Castor base (YB8001-1833G004)
- WLAN Interface (45830222)
Consumables
- Black Toner cartridge (YA8001-1088G036) - 7,000 pages
- Yellow Toner cartridge (YA8001-1088G033) - 6,000 pages
- Magenta Toner cartridge (YA8001-1088G034) - 6,000 pages
- Cyan Toner cartridge (YA8001-1088G035) - 6,000 pages
- Black Image Drum (YA8001-1099G016) - 50,000 pages
- Yellow Image Drum (YA8001-1099G013) - 50,000 pages
- Magenta Image Drum (YA8001-1099G014) - 50,000 pages
- Cyan Image Drum (YA8001-1099G015) - 50,000 pages
- Fuser unit (YA8001-1032G014) - 60,000 pages
- Transfer Belt (YA8001-1027G014) - 60,000 pages
Options and consumables are sold separately. Page yields are OKI figures. Ask SourceIT to quote the printer together with trays, toner and drums.
Datasheet & Downloads
Frequently Asked Questions — OKI C650dn
What warranty does the OKI C650dn come with?
The printer is covered by OKI Singapore's standard local warranty. OKI Singapore does not state the coverage period on the product page, so please ask SourceIT to confirm the warranty term and service arrangement before ordering. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the OKI C650dn use?
OKI lists: Black Toner cartridge (YA8001-1088G036) - 7,000 pages; Yellow Toner cartridge (YA8001-1088G033) - 6,000 pages; Magenta Toner cartridge (YA8001-1088G034) - 6,000 pages; Cyan Toner cartridge (YA8001-1088G035) - 6,000 pages; Black Image Drum (YA8001-1099G016) - 50,000 pages; Yellow Image Drum (YA8001-1099G013) - 50,000 pages. Always use genuine OKI consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
How does the OKI C650dn connect?
OKI specifies: 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), USB 2.0 (High Speed) Host, (Optional) Wireless LAN (IEEE802.11a/b/g/n).
Is stock held locally?
Anything not in local stock is ordered through OKI Data (Singapore). Ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with options and consumables, with local warranty and GST invoice.
