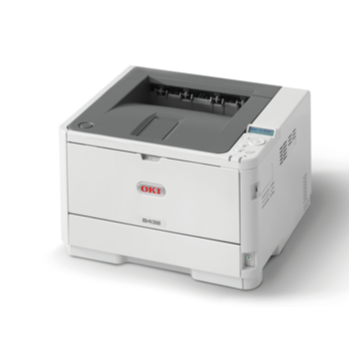

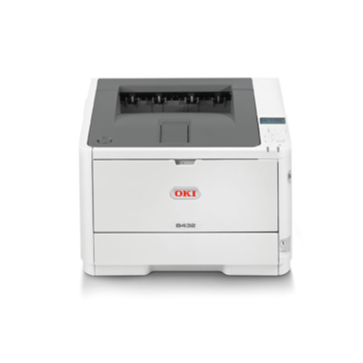

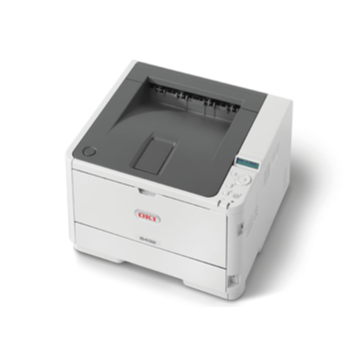

OKI B432dn A4 Mono LED Printer, 40ppm, Duplex, Gigabit Network, PostScript
PRODUCT DESCRIPTION
OKI B432dn A4 Mono LED Printer, 40ppm, Duplex, Gigabit Network, PostScript (45762013) - 3 Years Local Warranty
The OKI B432dn is an A4 monochrome LED printer rated at 40 ppm with 1200 x 1200 dpi output, automatic duplex printing, Gigabit Ethernet and USB 2.0, and both PCL and PostScript 3 emulation.
Fast performance
Super-quick A4 print speeds of up to 40ppm
Great results
High-quality print capability
Flexible use
Great for shared workgroups, mobile print option
Eco features
Energy and cost-saving functions, high-capacity consumables
Ideal For
Busy workgroups and offices in Singapore that print high volumes of A4 mono documents and need PostScript support for mixed Windows and Mac environments. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
OKI B432dn Datasheet — Technical Specifications
General
| Model | B432dn |
| Official Product Name | OKI B432dn |
| OKI Part Number | 45762013 |
| Brand | OKI |
| Warranty | 3 Years Local Warranty (Singapore) - OKI Singapore 3 Year On-Site Warranty |
| Printing Method | Digital LED Electrophotographic Printing Method |
| Printing Resolution | 1200 x 1200 dpi |
| Warm-up Time | Approx. 17.0 seconds from power-on; Approx. 17.0 seconds from power save |
| First Print Out Time | Approx. 4.5 seconds |
| Print Speed | A4 40 ppm |
| Printer Language | PostScript 3 emulation, PCL 5e emulation, PCL 6 (XL) emulation, XPS emulation, IBM ProPrinter emulation, Epson FX Emulation, PDF v1.7 emulation |
| Font | PostScript emulation 136 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts |
| Memory (Std./Max.) | 512MB/512MB |
| Duty Cycle | Recommended: 5,000 pages/month; Maximum: 80,000 pages/month |
Paper Handling
| Paper Size | A4, A5, B5, A6, Letter, Legal 13, Legal 14, Executive, Statement, Envelopes, Custom Size: Width 86-216 mm x Length 140-1321 mm |
| Paper Weight | Tray 1: 60-120 gsm; (Optional) Additional Tray: 60-120 gsm; Multi-purpose tray: 60-163 gsm |
| Input Capacity | Tray 1: 250 sheets; (Optional) Additional Tray: 530 sheets; Multi-purpose tray: 100 sheets |
| Output Capacity | Face Down: Max. 150 sheets; Face Up: Max. 100 sheets |
Connectivity & Software
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional) Wireless LAN (IEEE802.11a/b/g/n) |
| Protocol | TCP/IP |
| Supported OS | Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2003, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Linux |
Physical & Power
| Dimensions (WxDxH) | 387 x 364 x 245 mm |
| Weight (includes supplies) | Approx. 12.0 kg |
| Weight (not includes supplies) | Approx. 10.5 kg |
| Power Source | Single phase 230 VAC ±10%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. 900W / Ave. 600W; Idle: 80W; Power Save: 7.0W; Deep Sleep: 1.4W; Auto-Off: 0.5W |
| Noise Level | Operating: Approx. 55 dBA; Idle: < 30 dBA; Power Save: < 7 dBA or Background level; Quiet Mode: < 52 dBA |
General
| Operating Environment | Operating: 10-32 °C, 20-80 %RH; No condensation |
Compatibility & Software Support
Compatibility details below are taken from OKI Singapore's published specification for the OKI B432dn. Drivers, utilities and firmware are available from OKI Singapore's support site (see Datasheet & Downloads).
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional) Wireless LAN (IEEE802.11a/b/g/n) |
| Protocol | TCP/IP |
| Supported OS | Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2003, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Linux |
Package Contents & Ordering Information
In the Box
- Image Drum x 1
- Starter toner cartridge x 1
- DVD-ROM
- Power cable
- Ferrite Core
Ordering Information
| Model | B432dn |
| OKI Part Number | 45762013 |
| Recommended Retail Price (incl. GST) | S$499.22 |
Optional Accessories

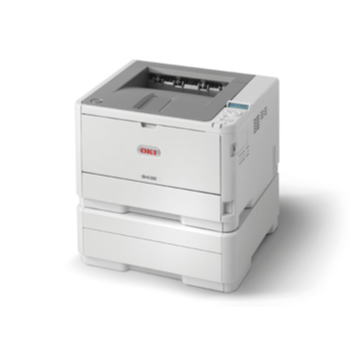

- Additional Paper Tray (44575714) - 530 sheets of 80gsm
- WLAN Interface (45830202)
- WLAN Interface (45830222)
Consumables
- Black Small Capacity Toner Cartridge (45807103) - 3,000 pages
- Black Toner Cartridge (45807107) - 7,000 pages
- Black Large Capacity Toner Cartridge (45807112) - 12,000 pages
- Black Image Drum (44574303) - 30,000 pages
Options and consumables are sold separately. Page yields are OKI figures. Ask SourceIT to quote the printer together with trays, toner and drums.
Datasheet & Downloads
Frequently Asked Questions — OKI B432dn
What warranty does the OKI B432dn come with?
3 Years Local Warranty from OKI Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the OKI B432dn use?
OKI lists: Black Small Capacity Toner Cartridge (45807103) - 3,000 pages; Black Toner Cartridge (45807107) - 7,000 pages; Black Large Capacity Toner Cartridge (45807112) - 12,000 pages; Black Image Drum (44574303) - 30,000 pages. Always use genuine OKI consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
How does the OKI B432dn connect?
OKI specifies: 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional) Wireless LAN (IEEE802.11a/b/g/n).
Is stock held locally?
Anything not in local stock is ordered through OKI Data (Singapore). Ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with options and consumables, with local warranty and GST invoice.
