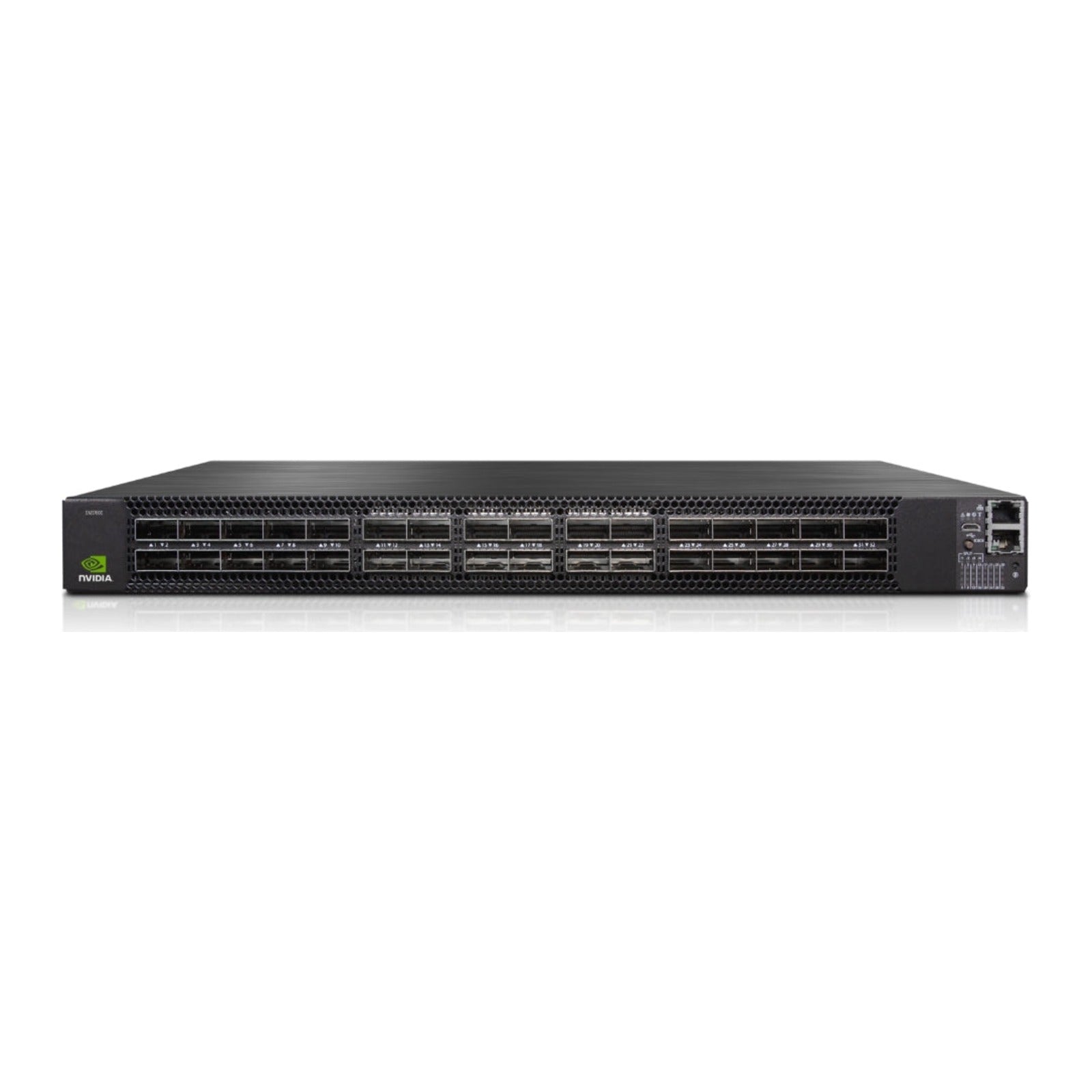

NVIDIA Spectrum-2 SN3700 32-Port 200GbE QSFP56 1U Open Ethernet Switch, Cumulus Linux, P2C Airflow
PRODUCT DESCRIPTION
NVIDIA Spectrum-2 SN3700 32-Port 200GbE QSFP56 1U Open Ethernet Switch with Cumulus Linux, P2C Airflow (MSN3700-VS2FC)
32 x 200GbE Spine and Super-Spine Switch
The NVIDIA SN3700 is a 1U spine/super-spine switch built on the NVIDIA Spectrum-2 ASIC, with 32 QSFP56 ports at 200GbE. Ports run as 32 x 200GbE or 40GbE, 64 x 100GbE, or split to 128 x 1/10/25/50GbE, connecting endpoints at different speeds in one fabric.
6.4 Tb/s Throughput, 425 ns Latency
Spectrum-2 delivers 6.4 Tb/s throughput (12.8 Tb/s full duplex) and 8.33 Bpps packet processing, with a 42 MB fully shared on-chip packet buffer and consistent low cut-through latency of 425 ns.
Built for AI, Storage and Cloud Fabrics
RoCE transport for NVMe over Fabrics and GPUDirect workloads, single-pass VXLAN routing, IPv6 segment routing, up to 512K shared forwarding entries and NVIDIA What Just Happened (WJH) telemetry for fast root-cause analysis.
Cumulus Linux Pre-Installed

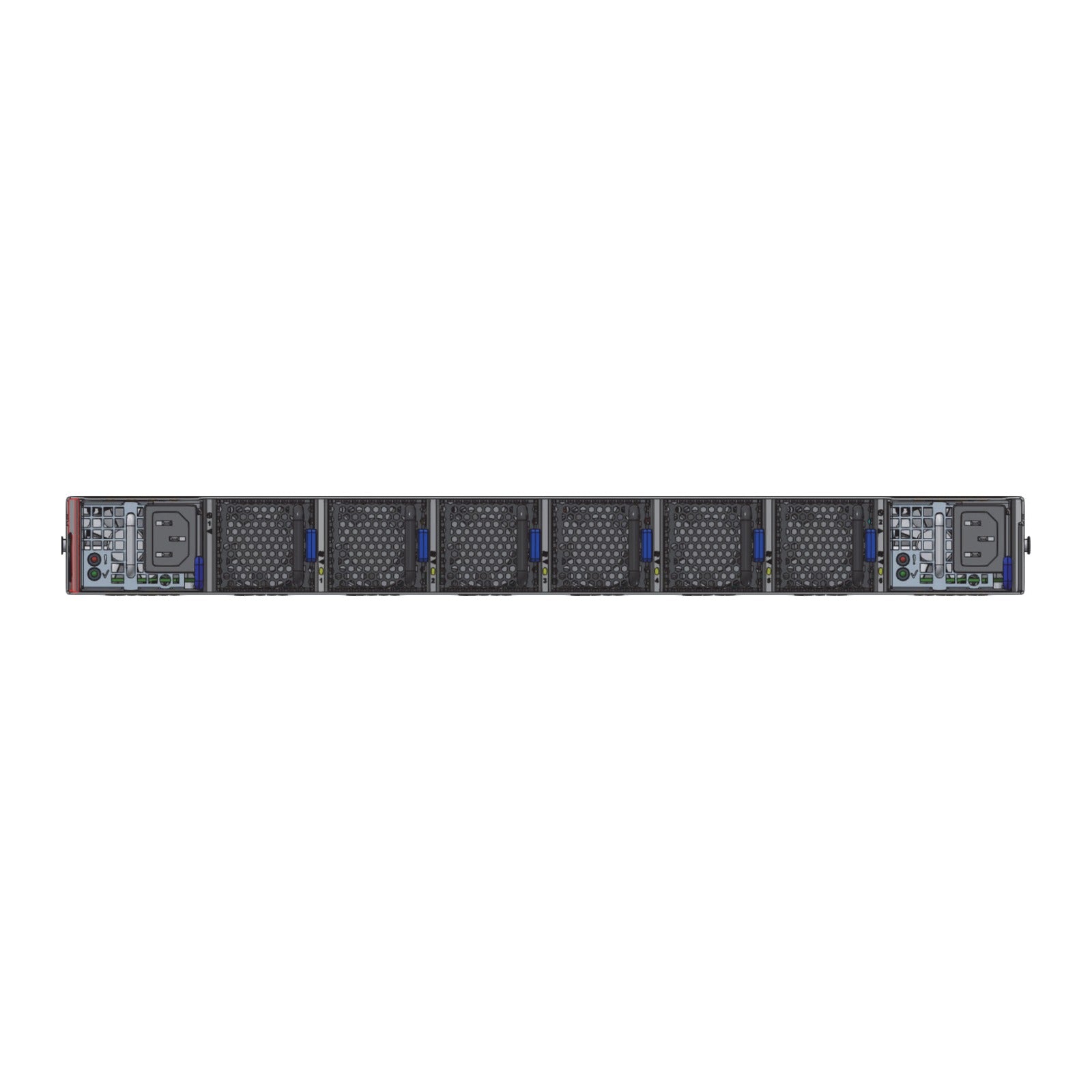

This MSN3700-VS2FC model ships with NVIDIA Cumulus Linux, with dual hot-swap AC power supplies (1+1), six hot-swap fans (N+1), port-to-cable (P2C) airflow and a rail kit.
NVIDIA SN3700 Datasheet — Technical Specifications
General
| Product Name | NVIDIA Spectrum-2 based 200GbE 1U Open Ethernet Switch with Cumulus Linux |
| Part Number (SKU) | MSN3700-VS2FC (NVIDIA OPN 920-9N201-00FA-0C0) |
| Form Factor | 1U, standard depth, 19-inch rack mount (rail kit included) |
| Airflow | P2C (port-to-cable / power-side exhaust) |
| Local Warranty (Singapore) | 1 Year limited hardware return-and-repair, supplied by SourceIT with a GST invoice |
Interfaces

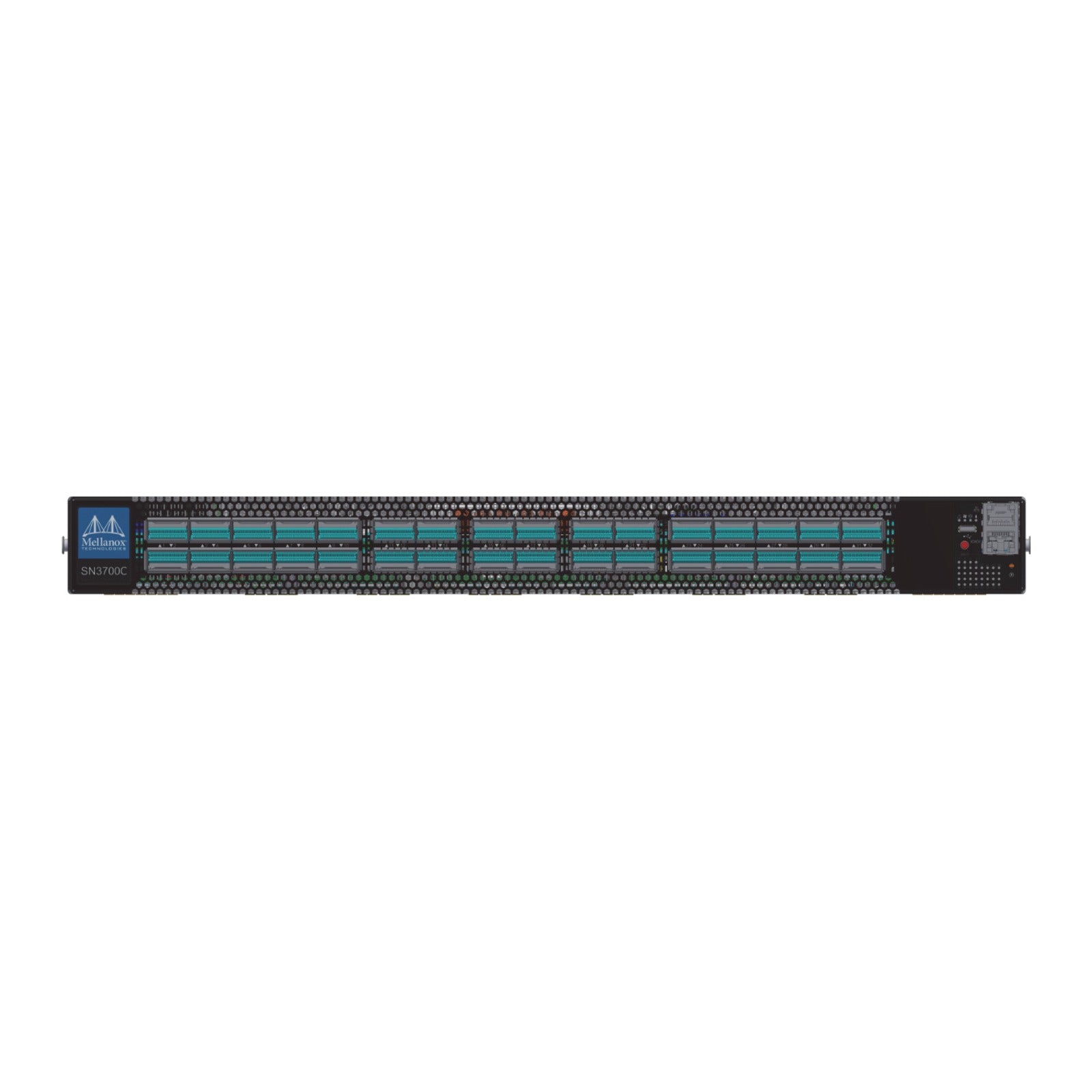

| Data Ports | 32 x QSFP56 200GbE |
| Supported Port Configurations | 32 x 200GbE / 40GbE; 64 x 100GbE; 128 x 1/10/25/50GbE (breakout) |
| Management Ports | 1 x 100/1000 Mb/s RJ-45 management, 1 x RJ-45 serial console, 1 x USB |
Performance
| Switch ASIC | NVIDIA Spectrum-2 |
| Throughput | 6.4 Tb/s (12.8 Tb/s full duplex) |
| Packet Rate | 8.33 Bpps |
| Latency | 425 ns |
| Packet Buffer | 42 MB fully shared |
| Forwarding Entries | Up to 512K shared |
| Flow Counters | 512K on-chip |
System
| CPU | Intel x86 2.20 GHz quad-core |
| Memory | 16 GB DDR4 RAM (per NVIDIA hardware user manual) |
| Storage | 32 GB SSD |
| Network OS | NVIDIA Cumulus Linux (factory pre-installed) |
Power & Cooling
| Power Supplies | 2 x hot-swap AC, 1+1 redundant |
| Input | 100-127 VAC 10 A / 200-240 VAC 6 A, 50/60 Hz |
| Power Consumption | 250 W (200GbE models, per NVIDIA) |
| Fans | 6 x hot-swap, N+1 redundant |
Physical & Environmental
| Dimensions (H x W x D) | 44 x 428 x 559 mm (1.72 x 16.84 x 22 in) |
| Weight | 14 kg (per NVIDIA hardware user manual) |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 10% - 85% non-condensing (operating) |
| Altitude | Up to 3,050 m |
| Certifications | CB, cTUVus, CE, CU, S_Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC; RoHS compliant |
Compatibility & Software Support
Network Operating Systems
This model ships with NVIDIA Cumulus Linux. The SN3000 series also supports NVIDIA Onyx (model MSN3700-VS2F), ONIE bare metal for any ONIE-installable OS (MSN3700-VS2FO), SONiC, and Switchdev-based Linux such as DENT. Please tell us if you need a different OS before ordering.
Key Features
Layer 2, Layer 3 and RoCE; single-pass VXLAN routing; IPv6 segment routing; NAT with 100K+ sessions; programmable pipeline with deep packet inspection of the first 512 bytes; algorithmic TCAM up to half a million rules; Multi-chassis LAG; 64-way ECMP; Docker containers on the switch; NVIDIA NetQ operations tooling; What Just Happened telemetry, hardware histograms, INT-ready hardware and streaming telemetry.
Typical Use
200GbE spine or super-spine for data centres, AI/GPU clusters with RoCE, and NVMe-oF storage fabrics, with 25/50/100GbE breakout to leaf switches and servers.
Package Contents & NVIDIA SN3700 Ordering Information
In the Box
SN3700 switch with 2 x AC power supplies and 6 fans installed, rail kit.
NVIDIA SN3700 200GbE Models
| Part No. | OS / Airflow | NVIDIA OPN |
| MSN3700-VS2FC (this listing) | Cumulus Linux, P2C | 920-9N201-00FA-0C0 |
| MSN3700-VS2RC | Cumulus Linux, C2P | 920-9N201-00RA-0C0 |
| MSN3700-VS2F | NVIDIA Onyx, P2C | 920-9N201-00FA-0X0 |
| MSN3700-VS2R | NVIDIA Onyx, C2P | 920-9N201-00RA-0X0 |
| MSN3700-VS2FO | ONIE, P2C | 920-9N201-00FA-0N0 |
| MSN3700-VS2RO | ONIE, C2P | 920-9N201-00RA-0N0 |
Datasheet & Downloads
| NVIDIA hardware user manual | SN3000 1U/2U Switch Systems User Manual |
| Specifications | SN3000 Series Specifications |
| Ordering information | SN3000 Series Ordering Information |
Frequently Asked Questions — NVIDIA SN3700 (MSN3700-VS2FC)
Which operating system does the MSN3700-VS2FC run?
NVIDIA Cumulus Linux, pre-installed. The Onyx version is MSN3700-VS2F and the ONIE version is MSN3700-VS2FO.
Can the 200GbE ports be split?
Yes. The 32 QSFP56 ports support 64 x 100GbE or up to 128 x 1/10/25/50GbE with breakout cables.
What does P2C airflow mean?
Air enters at the port side and exits at the power-supply side. Choose the C2P model (MSN3700-VS2RC) if your rack needs the reverse direction.
Are transceivers or cables included?
No. QSFP56 optics and DAC/AOC cables are sold separately.
What warranty do I get?
1 Year limited hardware return-and-repair warranty, supplied by SourceIT with a GST invoice.
