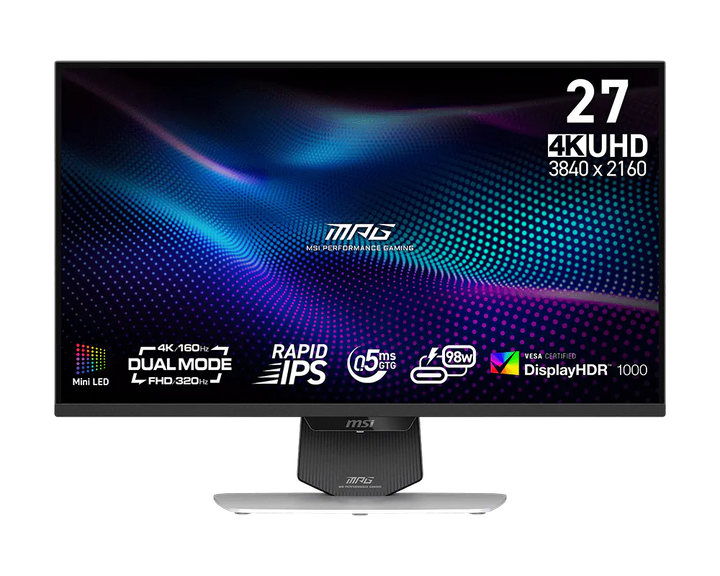

MSI MPG 274URDFW E16M 27" 4K UHD 160Hz / Full HD 320Hz Dual-Mode Mini-LED Gaming Monitor (White)
PRODUCT DESCRIPTION
MSI MPG 274URDFW E16M 27" 4K UHD 160Hz / Full HD 320Hz Dual-Mode Mini-LED Gaming Monitor (White)
Key specifications: 27" · Dual-Mode FHD-320Hz & UHD-160Hz · Rapid IPS · Mini-LED · 1ms(MPRT) · 0.5ms(GtG) · AdaptiveSync · HDR1000 · Adjustable Stand · Pivot 90° · 2x HDMI2.1 · DP1.4a · USB-C PD98W · White
Stunning Mini-LED Visuals
Mini-LED technology with 1,152 full-array local dimming zones delivers superior contrast, deeper blacks and vibrant colors, enhancing HDR performance.
Brilliance in Every Shade
Quantum Dot technology and DisplayHDR 1000 with DCI-P3 98% color gamut and Delta E≤2 accuracy deliver rich, lifelike colors.
Dual Mode — Two Displays in One
Dual Mode lets you choose a higher refresh rate at lower resolution for fast-paced FPS games, or crisp 4K visuals at a lower refresh rate.
AI Navigator
Features AI Menu, AI Crosshair and AI Vision capabilities for gaming enhancement.
Gaming Intelligence App
The Gaming Intelligence app lets you set up and configure the monitor using your keyboard and mouse.
Console Mode
Supports Console Mode with VRR and ALLM for a smoother, low-latency console gaming experience at up to 120Hz.
MSI MPG 274URDFW E16M Datasheet — Technical Specifications
General
| Product Name | MSI MPG 274URDFW E16M 27" 4K UHD 160Hz / Full HD 320Hz Dual-Mode Mini-LED Gaming Monitor (White) |
| Model | MPG 274URDFW E16M |
| MSI Part Number | 9S6-3CF09H-020 |
| EAN | 4711377300322 |
| Brand / Series | MSI MAG / MPG Gaming Monitors |
Display
| Panel Size | 27" |
| Active Display Area (mm) | 596.16 (H) x 335.34 (V) |
| Curvature | Flat |
| Panel Type | Rapid IPS with Mini-LED (1152 Zones) |
| Panel Resolution | Normal: 3840 x 2160 (UHD); Dual Mode: 1920 x 1080 (FHD) |
| Pixel Pitch (H x V) | 0.15525 (H) x 0.15525 (V) |
| Aspect Ratio | 16:9 |
| Brightness (nits) | SDR: 400 cd/m²; HDR: 1000 cd/m² (Peak) |
| Contrast Ratio | 1000:1 (Typ.) |
| DCR | 100000000:1 |
| Signal Frequency | Normal: 180~356KHz (H) / 48~160Hz (V); Dual Mode: 180~356KHz (H) / 48~320Hz (V) |
| Activated Range | Normal: 48~160Hz; Dual Mode: 48~320Hz |
| Refresh Rate | Normal: 160Hz; Dual Mode: 320Hz |
| Response time | 0.5ms (GtG, Min.) |
| Dynamic Refresh Rate Technology | NVIDIA G-SYNC Compatible; AMD FreeSync™ Premium |
| HDR Support | VESA DisplayHDR 1000 |
| Viewing Angle | 178° (H) / 178° (V) |
| Adobe RGB / DCI-P3 / sRGB | 100% / 98% / 140% (CIE1976 Standard) |
| Surface Treatment | Anti-glare |
| Display Colors | 1.07B, 10 bits (8 bits + FRC) |
| Frameless Design | Yes |
Connectivity & Features
| Video ports | 1x DisplayPort 1.4a (HBR3); 2x HDMI™ 2.1 (UHD@160Hz); 1x Type-C (DP alt.) w/ 98W Power Delivery |
| Audio ports | 1x Headphone-out |
| Console Mode | Supported Resolution & Refresh Rate: 1080p: 60Hz and 120Hz; 1440p: 60Hz and 120Hz; 2160p: 60Hz and 120Hz; HDMI™ CEC: Supported; VRR: PS5 and Xbox Supported |
| PIP / PBP Function | Yes |
Ergonomics & Mounting
| Adjustment (Tilt) | -5° ~ 20° |
| Adjustment (Swivel) | -30° ~ 30° |
| Adjustment (Pivot) | -90° ~ 90° |
| Adjustment (Height) | 0~110 mm |
| Kensington Lock | Yes |
| VESA Mounting | 100 x 100 mm |
Power
| Power Type | External Adaptor 24V 11A |
| Power Input | 100~240V, 50/60Hz |
Dimensions & Weight
| Dimension with Stand (W x D x H) | 613.1 x 202.38 x 400.85 mm (24.14 x 7.97 x 15.78 inch) |
| Dimension without Stand (W x D x H) | 613.1 x 68.77 x 375.31 mm (24.14 x 2.71 x 14.78 inch) |
| Weight (NW / GW) | 8.2 kg (18.08 lbs) / 12.4 kg (27.34 lbs) |
| Carton Dimension (W X D X H) | 905 x 195 x 470 mm (35.63 x 7.68 x 18.50 inch) |
Certifications, Warranty & Accessories
| Accessories | 1x DP Cable (1.4a); 1x HDMI™ Cable (2.1); 1x USB Type-B to A Cable; 1x USB Type-C Cable; 1x Power Cord (C5); 1x AC Adaptor; 1x Quick Guide; 4x VESA Wall Mount Screw |
Specifications are as published by MSI and may change without notice — see the MSI product page for the latest details.
Compatibility & Connectivity
Video Inputs
1x DisplayPort 1.4a (HBR3); 2x HDMI™ 2.1 (UHD@160Hz); 1x Type-C (DP alt.) w/ 98W Power Delivery
Audio
1x Headphone-out
Console Mode
Supported Resolution & Refresh Rate: 1080p: 60Hz and 120Hz; 1440p: 60Hz and 120Hz; 2160p: 60Hz and 120Hz; HDMI™ CEC: Supported; VRR: PS5 and Xbox Supported
Mounting
VESA 100 x 100 mm — fits standard VESA monitor arms; check the arm's weight rating against the monitor weight in the datasheet.
Package Contents & MSI MAG / MPG Gaming Monitors Ordering Information
In the Box
1x DP Cable (1.4a); 1x HDMI™ Cable (2.1); 1x USB Type-B to A Cable; 1x USB Type-C Cable; 1x Power Cord (C5); 1x AC Adaptor; 1x Quick Guide; 4x VESA Wall Mount Screw
MSI MAG / MPG Gaming Monitors
| Model | Key feature |
| MAG401QR | 40" / UWQHD / IPS / 155Hz / 1ms(MPRT) |
| MAG 342CQRF E20 | 34" / UWQHD / Curved 1500R / Rapid VA / 200Hz |
| MAG 325QF E18V | 31.5" / WQHD / Rapid VA / 180Hz / 1ms(MPRT) |
| MAG 321CQF E18 | 31.5" / WQHD / Curved 1500R / Rapid VA / 180Hz |
| MAG 322URDF E16 | 31.5" / Dual-Mode FHD-320Hz & UHD-160Hz / Rapid IPS / 1ms(MPRT) / 0.5ms(GtG) |
| MAG 321CUPDF | 31.5" / Dual-Mode FHD-320Hz & UHD-160Hz / Curved 1500R / Rapid VA / 1ms(MPRT) |
| MAG 271KPD7 | 27" / Dual-Mode WQHD-300Hz & 5K UHD-75Hz / Rapid IPS / 0.5ms(MPRT) / 0.5ms(GtG) |
| MPG 274URDFW E16M (this listing) | 27" / Dual-Mode FHD-320Hz & UHD-160Hz / Rapid IPS / Mini-LED / 1ms(MPRT) |
| MAG 274QPF X30MV | 27" / WQHD / Rapid VA / 300Hz / Mini-LED |
| MAG 275UPD E14 | 27" / Dual-Mode FHD-288Hz & UHD-144Hz / Rapid IPS / 1ms(MPRT) / 0.5ms(GtG) |
| MAG 274QRFW X32 | 27" / WQHD / Rapid IPS / 320Hz / 1ms(MPRT) |
| MAG 274QPF E20 | 27" / WQHD / Rapid IPS / 200Hz / 1ms(MPRT) |
| MAG 274QF X24 | 27" / WQHD / Rapid IPS / 240Hz / 1ms(MPRT) |
| MAG 274F | 27" / FHD / Rapid IPS / 200Hz / 1ms(MPRT) |
| MAG 255F X24 | 24.5" / FHD / Rapid IPS / 240Hz / 1ms(MPRT) |
Datasheet & Downloads
| MSI product page | MPG 274URDFW E16M on msi.com |
| Specifications | MPG 274URDFW E16M specifications |
| Drivers, manuals & firmware | MPG 274URDFW E16M support |
Frequently Asked Questions — MSI MPG 274URDFW E16M
What resolution and refresh rate does the MPG 274URDFW E16M support?
Resolution: Normal: 3840 x 2160 (UHD); Dual Mode: 1920 x 1080 (FHD). Refresh rate: Normal: 160Hz; Dual Mode: 320Hz (per MSI specification).
Can it charge a laptop over USB-C?
Yes, the USB-C port supplies up to 98W power delivery, so one cable can carry video, data and charging.
Is the stand height-adjustable?
Yes — height 0~110 mm, tilt -5° ~ 20°, swivel -30° ~ 30°, pivot -90° ~ 90°.
Does it have built-in speakers?
No, connect headphones or external speakers.
What warranty do I get?
Singapore local MSI warranty through the authorised distributor. Supplied by SourceIT with a GST invoice.
