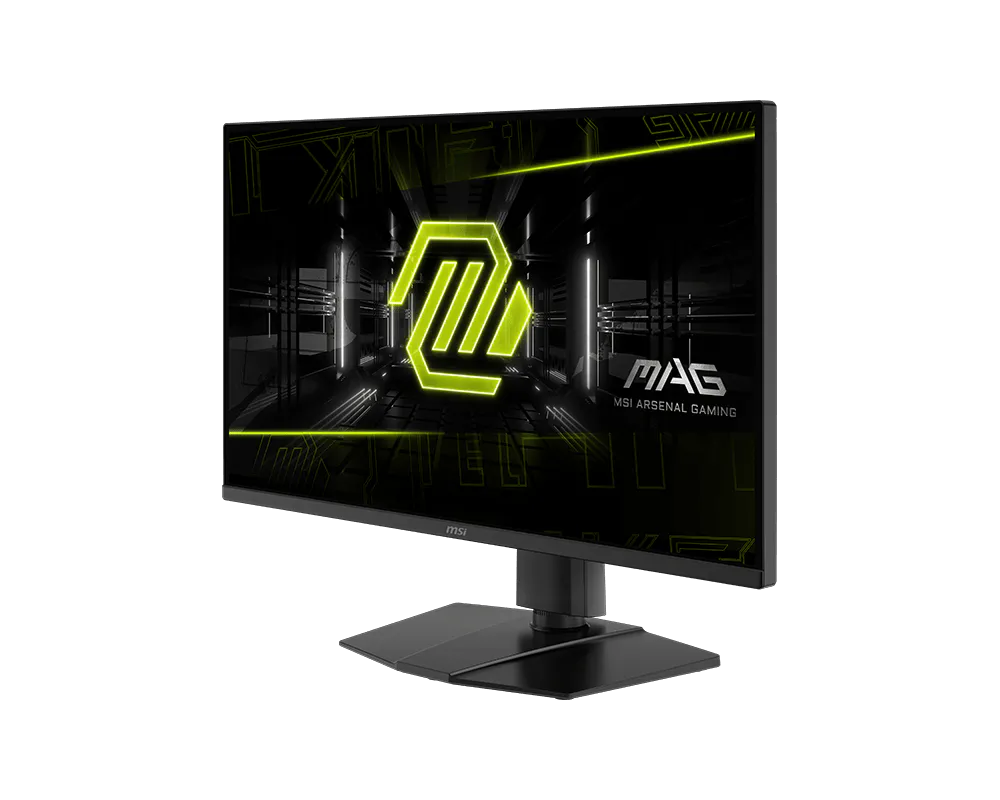

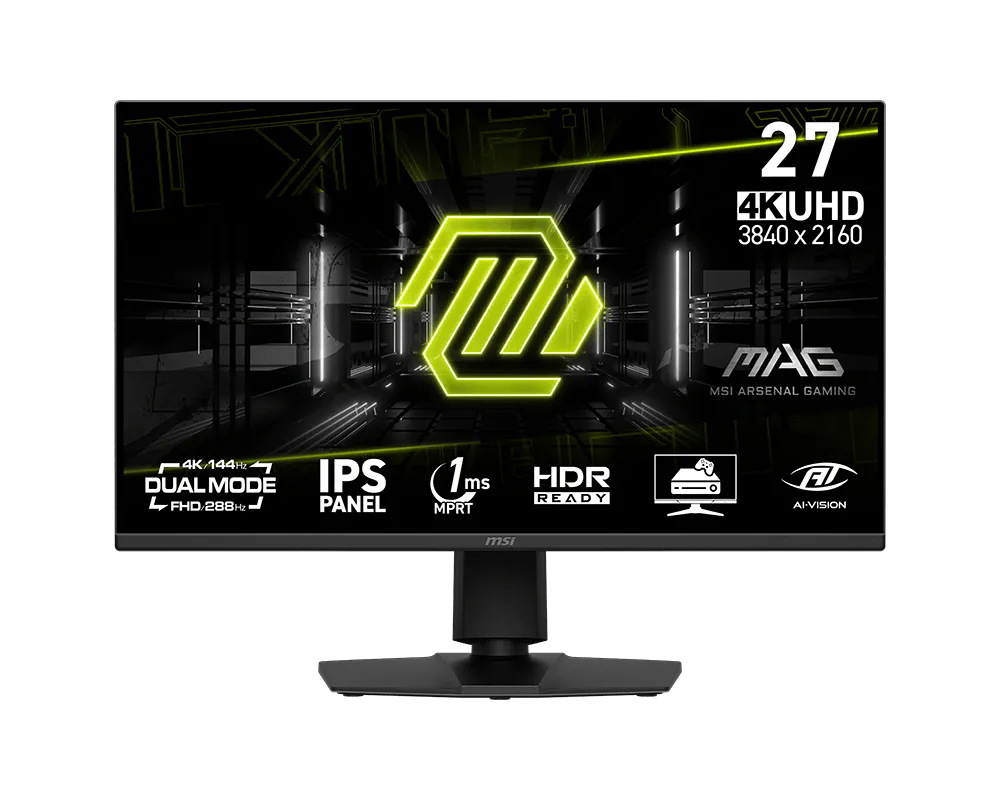

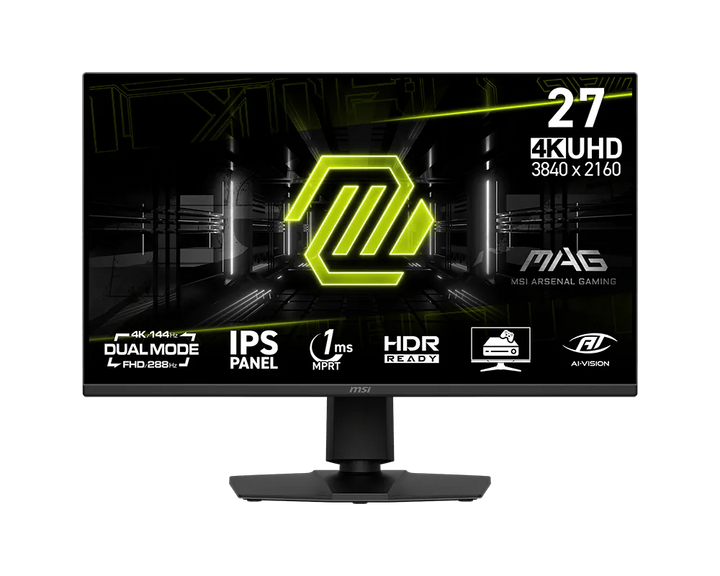

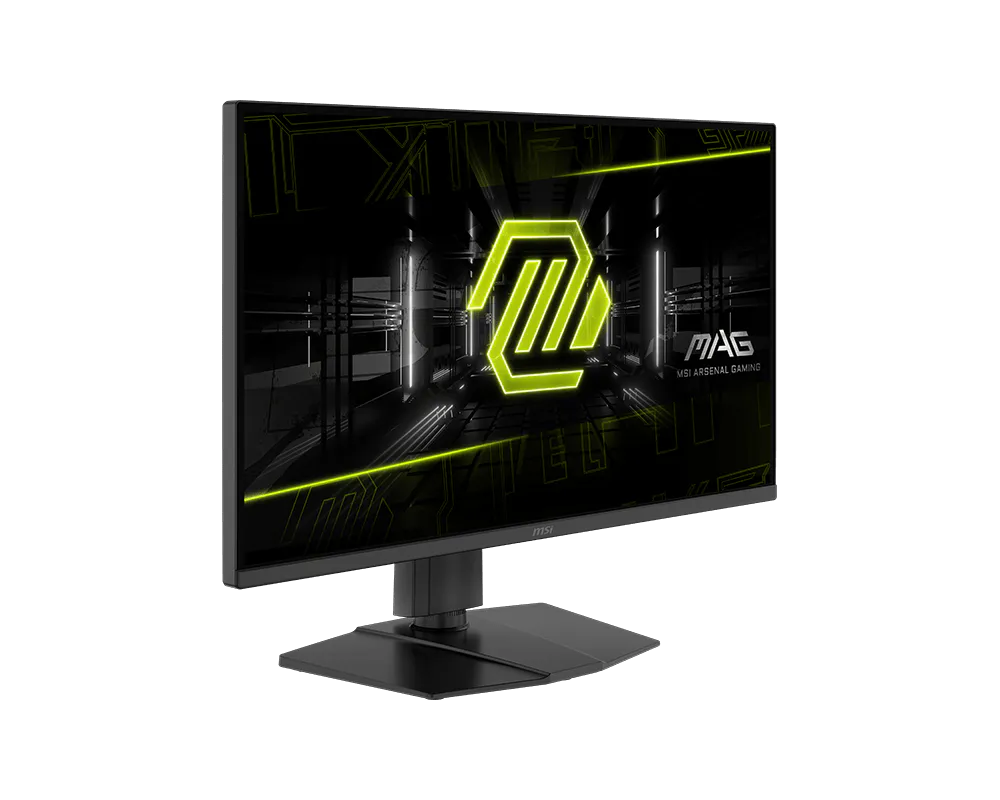

MSI MAG 275UPD E14 27" 4K UHD 144Hz / Full HD 288Hz Dual-Mode Rapid IPS Gaming Monitor
PRODUCT DESCRIPTION
MSI MAG 275UPD E14 27" 4K UHD 144Hz / Full HD 288Hz Dual-Mode Rapid IPS Gaming Monitor
Key specifications: 27" · Dual-Mode FHD-288Hz & UHD-144Hz · Rapid IPS · 1ms(MPRT) · 0.5ms(GtG) · AdaptiveSync · HDR Ready · Adjustable Stand · Pivot 90° · 2x HDMI2.1 · DP1.4a · Spk
Dual Mode
Dual Mode allows you to select the resolution and refresh rate that best suit your game, switching between UHD at 144Hz and FHD at 288Hz.
AI Dual Mode
Detects resolution and refresh rate and automatically switches to the optimal configuration.
AI Vision
Can not only reveal details in dark areas but also enhance overall brightness and saturate colors.
Console Mode + HDMI 2.1
HDMI 2.1 delivers full bandwidth up to 48Gbps, supporting VRR and ALLM for console gaming.
AMD FreeSync Premium
Ensures tear-free and stutter-free gameplay.
See Clearly, See Comfortably
Anti-Flicker and Less Blue Light technologies reduce fatigue during extended sessions.
MSI MAG 275UPD E14 Datasheet — Technical Specifications
General
| Product Name | MSI MAG 275UPD E14 27" 4K UHD 144Hz / Full HD 288Hz Dual-Mode Rapid IPS Gaming Monitor |
| Model | MAG 275UPD E14 |
| MSI Part Number | 9S6-3CE89M-015 |
| EAN | 4711377318266 |
| Brand / Series | MSI MAG / MPG Gaming Monitors |
Display
| Panel Size | 27" |
| Active Display Area (mm) | 596.736 (H) x 335.664 (V) |
| Curvature | Flat |
| Panel Type | IPS |
| Panel Resolution | Normal: 3840 x 2160 (UHD); Dual Mode: 1920 x 1080 (FHD) |
| Pixel Pitch (H x V) | 0.1554 (H) x 0.1554 (V) |
| Aspect Ratio | 16:9 |
| Brightness (nits) | SDR: 250 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) |
| DCR | 100000000:1 |
| Signal Frequency | UHD : 106.1~318.2KHz (H) / 48~144Hz (V); FHD : 106.1~318.2KHz (H) / 48~288Hz (V) |
| Activated Range | Normal: 48~144Hz; Dual Mode: 48~288Hz |
| Refresh Rate | Normal: 144Hz; Dual Mode: 288Hz |
| Response time | 1ms MPRT |
| Dynamic Refresh Rate Technology | AMD FreeSync™ Premium |
| HDR Support | HDR Ready |
| Viewing Angle | 178° (H) / 178° (V) |
| Adobe RGB / DCI-P3 / sRGB | 84% / 90% / 130% (CIE1976 Standard) |
| Surface Treatment | Anti-glare |
| Display Colors | 1.07B, 10 bits (8 bits + FRC) |
Connectivity & Features
| Video ports | 1 x DisplayPort 1.4a (HBR3); 2 x HDMI™ 2.1 (4K@144Hz) |
| Audio ports | 1x Headphone-out |
| Speaker | 2W x2 |
| Console Mode | Supported Resolution & Refresh Rate: 1080p: 60Hz and 120Hz; 1440p: 60Hz and 120Hz; 2160p: 60Hz and 120Hz; HDMI™ CEC: Supported; VRR: PS5 and Xbox Supported |
| Note | HDMI™: Normal (UHD) : 3840 x 2160 (Up to 144Hz); Dual (FHD) : 1920 x 1080 (Up to 288Hz); DisplayPort: Normal (UHD) : 3840 x 2160 (Up to 144Hz); Dual (FHD) : 1920 x 1080 (Up to 288Hz); Support: HDMI™ CEC, PIP/PBP; Non Support: KVM |

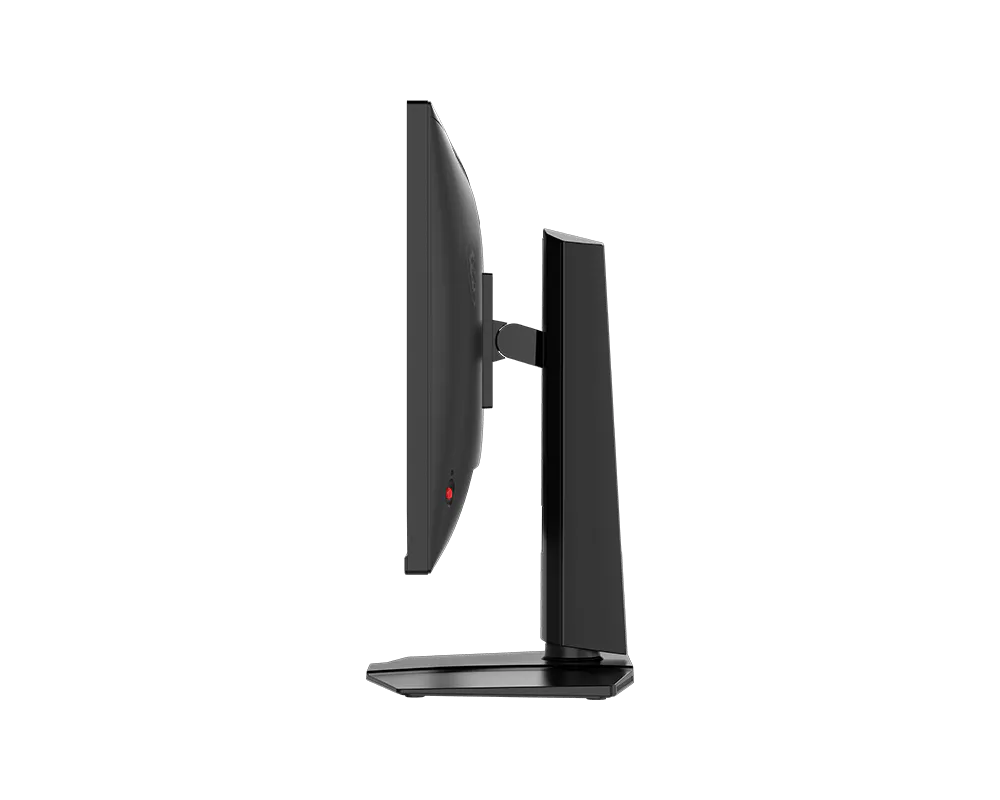

Ergonomics & Mounting
| Adjustment (Tilt) | -5° ~ 20° |
| Adjustment (Swivel) | -30° ~ 30° |
| Adjustment (Pivot) | -90° ~ 90° |
| Adjustment (Height) | 0~130 mm |
| Kensington Lock | Yes |

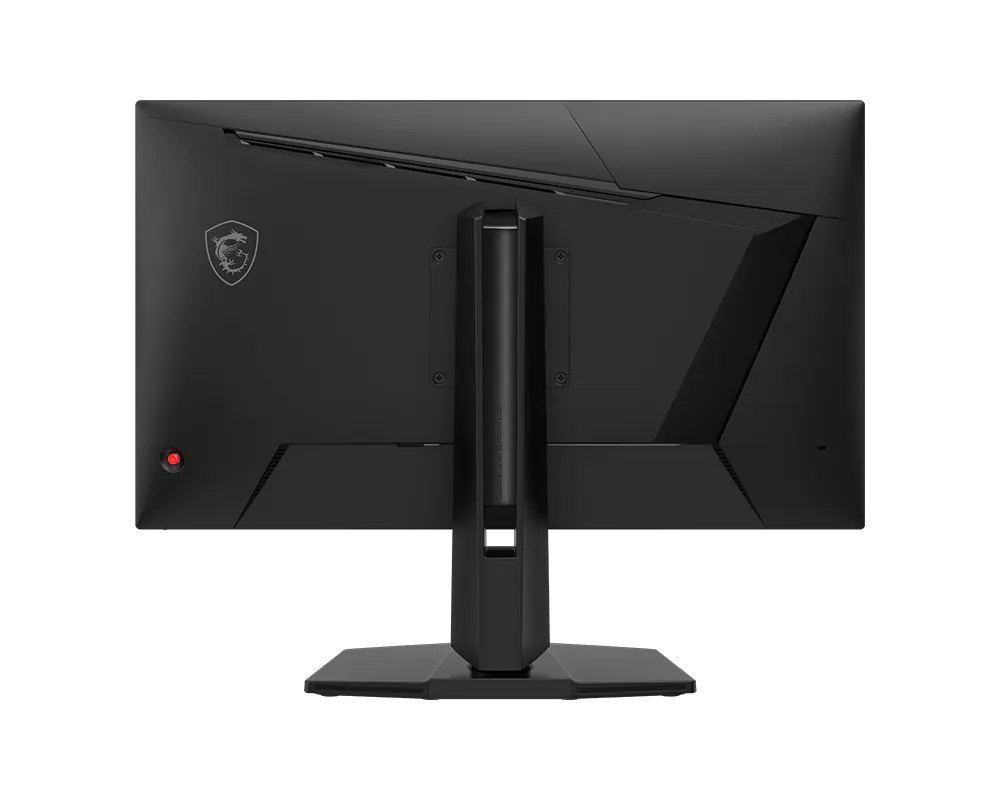

| VESA Mounting | 100 x 100 mm |
Power
| Power Type | Internal Power Board |
| Power Input | 100~240V, 50/60Hz |
Dimensions & Weight
| Dimension with Stand (W x D x H) | 613.3 x 227.9 x 534.2mm (24.1 x 8.9 x 21.1 inch) |
| Dimension without Stand (W x D x H) | 613.3 x 57.9 x 360.7mm (24.1 x 2.2 x 14.3 inch) |
| Weight (NW / GW) | 6.1 kg (13.4lbs) / 8.7 kg (19.1 lbs) |
| Carton Dimension (W X D X H) | 810 x 150 x 462mm (31.8 x 5.9 x 18.1 inch) |
Certifications, Warranty & Accessories
| Accessories | 1x DisplayPort Cable (1.4a); 1x Power Cord (C13); 1x Quick Guide |
Specifications are as published by MSI and may change without notice — see the MSI product page for the latest details.
Compatibility & Connectivity
Video Inputs
1 x DisplayPort 1.4a (HBR3); 2 x HDMI™ 2.1 (4K@144Hz)
Audio
1x Headphone-out
Supported Modes (MSI note)
HDMI™: Normal (UHD) : 3840 x 2160 (Up to 144Hz); Dual (FHD) : 1920 x 1080 (Up to 288Hz); DisplayPort: Normal (UHD) : 3840 x 2160 (Up to 144Hz); Dual (FHD) : 1920 x 1080 (Up to 288Hz); Support: HDMI™ CEC, PIP/PBP; Non Support: KVM
Console Mode
Supported Resolution & Refresh Rate: 1080p: 60Hz and 120Hz; 1440p: 60Hz and 120Hz; 2160p: 60Hz and 120Hz; HDMI™ CEC: Supported; VRR: PS5 and Xbox Supported
Mounting
VESA 100 x 100 mm — fits standard VESA monitor arms; check the arm's weight rating against the monitor weight in the datasheet.
Package Contents & MSI MAG / MPG Gaming Monitors Ordering Information
In the Box
1x DisplayPort Cable (1.4a); 1x Power Cord (C13); 1x Quick Guide
MSI MAG / MPG Gaming Monitors
| Model | Key feature |
| MAG401QR | 40" / UWQHD / IPS / 155Hz / 1ms(MPRT) |
| MAG 342CQRF E20 | 34" / UWQHD / Curved 1500R / Rapid VA / 200Hz |
| MAG 325QF E18V | 31.5" / WQHD / Rapid VA / 180Hz / 1ms(MPRT) |
| MAG 321CQF E18 | 31.5" / WQHD / Curved 1500R / Rapid VA / 180Hz |
| MAG 322URDF E16 | 31.5" / Dual-Mode FHD-320Hz & UHD-160Hz / Rapid IPS / 1ms(MPRT) / 0.5ms(GtG) |
| MAG 321CUPDF | 31.5" / Dual-Mode FHD-320Hz & UHD-160Hz / Curved 1500R / Rapid VA / 1ms(MPRT) |
| MAG 271KPD7 | 27" / Dual-Mode WQHD-300Hz & 5K UHD-75Hz / Rapid IPS / 0.5ms(MPRT) / 0.5ms(GtG) |
| MPG 274URDFW E16M | 27" / Dual-Mode FHD-320Hz & UHD-160Hz / Rapid IPS / Mini-LED / 1ms(MPRT) |
| MAG 274QPF X30MV | 27" / WQHD / Rapid VA / 300Hz / Mini-LED |
| MAG 275UPD E14 (this listing) | 27" / Dual-Mode FHD-288Hz & UHD-144Hz / Rapid IPS / 1ms(MPRT) / 0.5ms(GtG) |
| MAG 274QRFW X32 | 27" / WQHD / Rapid IPS / 320Hz / 1ms(MPRT) |
| MAG 274QPF E20 | 27" / WQHD / Rapid IPS / 200Hz / 1ms(MPRT) |
| MAG 274QF X24 | 27" / WQHD / Rapid IPS / 240Hz / 1ms(MPRT) |
| MAG 274F | 27" / FHD / Rapid IPS / 200Hz / 1ms(MPRT) |
| MAG 255F X24 | 24.5" / FHD / Rapid IPS / 240Hz / 1ms(MPRT) |
Datasheet & Downloads
| MSI product page | MAG 275UPD E14 on msi.com |
| Specifications | MAG 275UPD E14 specifications |
| Drivers, manuals & firmware | MAG 275UPD E14 support |
Frequently Asked Questions — MSI MAG 275UPD E14
What resolution and refresh rate does the MAG 275UPD E14 support?
Resolution: Normal: 3840 x 2160 (UHD); Dual Mode: 1920 x 1080 (FHD). Refresh rate: Normal: 144Hz; Dual Mode: 288Hz (per MSI specification).
Can it charge a laptop?
No, this model has no USB-C power delivery; use your laptop's own charger.
Is the stand height-adjustable?
Yes — height 0~130 mm, tilt -5° ~ 20°, swivel -30° ~ 30°, pivot -90° ~ 90°.
Does it have built-in speakers?
Yes, 2W x2.
What warranty do I get?
Singapore local MSI warranty through the authorised distributor. Supplied by SourceIT with a GST invoice.
