MikroTik CRS804 DDQ 4-Port 400G QSFP56-DD Cloud Router Switch, 2x 10GbE, Dual Hot-Swap PSU
PRODUCT DESCRIPTION
MikroTik CRS804 DDQ 4-Port 400G QSFP56-DD Cloud Router Switch with 2 x 10GbE, Dual Hot-Swap PSU (CRS804-4DDQ-hRM) - Local Warranty

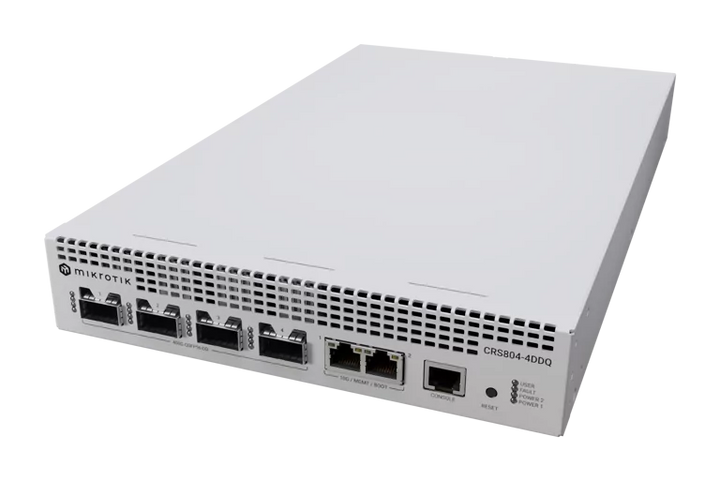

Four 400G QSFP56-DD Ports in a Compact 1U Chassis

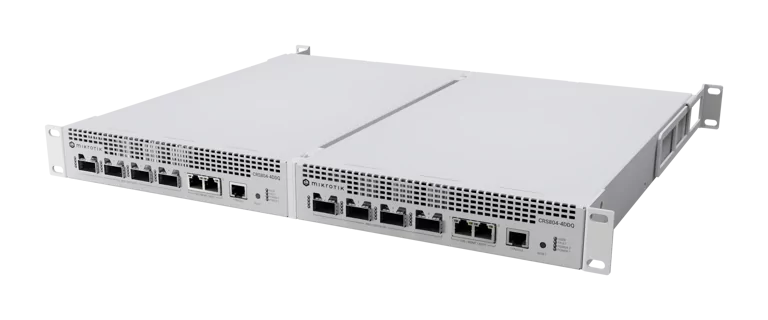

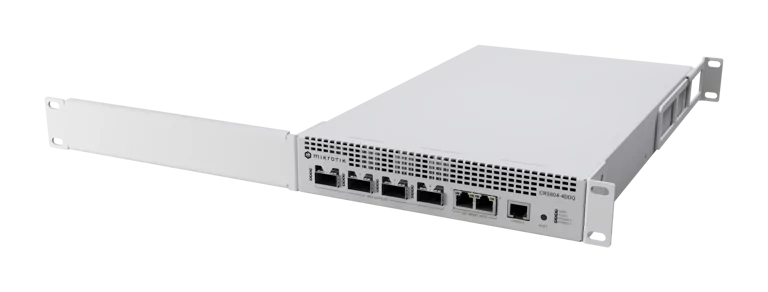

The MikroTik CRS804 DDQ is a compact 400 Gigabit switch for AI and GPU clusters, all-flash storage fabrics and high-speed core or aggregation. It has four 400G QSFP56-DD ports plus two 1G/10G RJ-45 Ethernet ports, and is half-width, so two units fit side by side in a single 1U rack slot using the included RMK-2x10/19 kit.
Wire-Speed Switching on the Marvell 98DX7335
A Marvell 98DX7335 switch chip delivers wire-speed switching on all ports — 1.6 Tbps non-blocking Layer 2 throughput in MikroTik's RFC 2544 tests — managed by a quad-core 2 GHz ARM CPU (AL52400) with 4 GB DDR4 RAM, running RouterOS v7 with a Level 6 licence included.
Flexible Breakout for Today's and Tomorrow's Networks
Each QSFP-DD port is built from eight independent lanes and supports 40G, 50G, 100G, 200G and 400G, plus breakout modes down to 1G/2.5G/5G/10G/25G/50G — for example two 200G links per port for AI workloads. With the right breakout cables it can connect to virtually any SFP or QSFP device, so you can deploy it now and move to higher speeds later without replacing the switch.
Built for Reliability and Low Running Cost

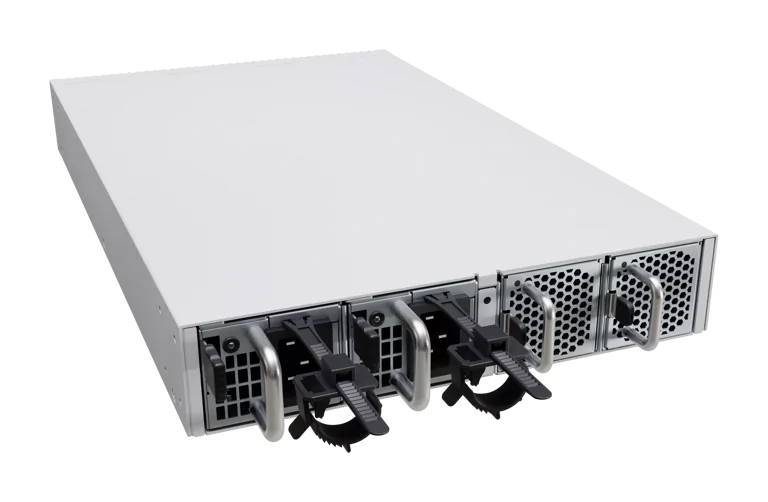

Dual redundant hot-swap AC power supplies (both included) and two hot-swap cooling fans keep the switch running, while power draw is only 92 W without attachments and 123 W at full load with optics installed.
MikroTik CRS804 DDQ Datasheet — Technical Specifications
General
| Product Name | MikroTik CRS804 DDQ Cloud Router Switch |
| Part Number (SKU) | CRS804-4DDQ-hRM |
| Form Factor | 1U half-width, rackmount or desktop |
| Local Warranty (Singapore) | 1 Year, supplied by SourceIT with a GST invoice |
Interfaces
| 400G Ports | 4 x QSFP56-DD (40G/50G/100G/200G/400G) |
| Breakout Modes | 1G/2.5G/5G/10G/25G/50G on QSFP-DD ports |
| Ethernet Ports | 2 x RJ-45 10M/100M/1G/10G (MGMT/BOOT, selectable Etherboot port) |
| Serial Console | 1 x RJ-45 (115200 bit/s, 8N1) |
Hardware & Performance
| Switch Chip | Marvell 98DX7335 |
| CPU | AL52400 quad-core, 2000 MHz, ARM 64-bit |
| RAM | 4 GB DDR4 |
| Storage | 512 MB NAND |
| L2 Switching (RFC 2544) | 1.6 Tbps non-blocking throughput, 3.2 Tbps capacity (1518 / 512-byte frames) |
| L3 Hardware Routing (RFC 2544) | Approx. 1.59 Tbps (1518 / 512-byte frames) |
| Monitoring | CPU temperature, PCB temperature, voltage; fan FAULT LED |
Software
| Operating System | RouterOS v7, licence level 6 (pre-installed and licensed) |
| Management | WebFig (web browser), WinBox, RJ-45 serial console |
| Software Updates | Free for the life of the product or a minimum of 5 years from purchase (per MikroTik) |
Power & Cooling
| Power Supplies | 2 x hot-swap IEC AC PSU (G1394-0350WNA), redundant, included |
| AC Input | 100-240 V, 50-60 Hz |
| Power Consumption | 92 W max without attachments; 123 W max with optics |
| Cooling | 2 x hot-swap fans (MT-HotSwapFan-V2) |
Physical & Environmental
| Dimensions | 387 x 218 x 44 mm |
| Operating Temperature | -10 °C to +60 °C (tested ambient) |
| MTBF | Approx. 200,000 hours at 25 °C |
| Ingress Protection | IP20 (indoor use) |
| Certification | CE, EAC, RoHS |
Compatibility & Software Support
RouterOS v7
Ships with RouterOS v7 and a Level 6 licence — no separate licence purchase is needed. Configure it with WebFig in a browser, the WinBox tool, or the RJ-45 serial console; the full RouterOS feature set and MikroTik's Marvell switch-chip hardware offload are available.
Optics & Cables
MikroTik offers matching 400G accessories: DDQ+DA0001 (1 m) and DDQ+DA0003 (3 m) QSFP-DD DAC cables, and the DDQ+85MP01D 400G 100 m multimode MPO transceiver. Check MikroTik's wired interface compatibility table for other supported modules. Optics and cables are sold separately.
Typical Use
Spine or backbone for small data centres and edge pods, interconnect for small to medium AI/GPU clusters, 400G or dual-200G uplinks for all-flash storage, and a high-speed core in existing racks using breakout cables to SFP/QSFP gear.
Package Contents & MikroTik 400G Ordering Information
In the Box
CRS804 DDQ switch with 2 x hot-swap PSUs and 2 x hot-swap fans installed, 2 x IEC power cords, rackmount bracket, long rackmount bracket, rackmount rear support ears, RMK-2x10/19 dual-mount kit, K-99 fastening set.
MikroTik 400G Switch & Accessories
| Model | Description | Part No. |
| CRS804 DDQ (this listing) | 4 x 400G QSFP56-DD + 2 x 10GbE, dual hot-swap PSU | CRS804-4DDQ-hRM |
| CRS812 DDQ | 2 x 400G QSFP-DD + 2 x 200G QSFP56 + 8 x 50G SFP56 + 2 x 10GbE | CRS812-8DS-2DQ-2DDQ-RM |
| DDQ+DA0001 | 400G QSFP-DD direct attach cable, 1 m | DDQ+DA0001 |
| DDQ+DA0003 | 400G QSFP-DD direct attach cable, 3 m | DDQ+DA0003 |
| DDQ+85MP01D | 400G QSFP-DD multimode transceiver, MPO, 100 m | DDQ+85MP01D |
| G1394-0350WNA | Spare hot-swap AC power supply | G1394-0350WNA |
| G1382-0350WNA | -48 V DC telecom-input hot-swap power supply | G1382-0350WNA |
| MT-HotSwapFan-V2 | Spare hot-swap cooling fan | MT-HotSwapFan-V2 |
Datasheet & Downloads
| MikroTik brochure | CRS804 DDQ Brochure (PDF) |
| Dimensions drawing | CRS804 Dimensions (PDF) |
| Block diagram | CRS804 DDQ Block Diagram |
| User manual | CRS804-4DDQ-hRM User Manual |
| MikroTik product page | CRS804 DDQ on mikrotik.com |
Frequently Asked Questions — MikroTik CRS804 DDQ
What ports does the CRS804 DDQ have?
Four 400G QSFP56-DD ports, two 1G/10G RJ-45 Ethernet ports and an RJ-45 serial console port.
Can the 400G ports be split into lower speeds?
Yes. The QSFP-DD ports run at 40G/50G/100G/200G/400G and support breakout to 1G/2.5G/5G/10G/25G/50G, such as two 200G links per port.
Are the power supplies redundant?
Yes. Two hot-swap AC power supplies are included, along with two hot-swap fans.
Can I mount two in one rack unit?
Yes. The included RMK-2x10/19 kit mounts two CRS804 DDQ switches side by side in a single 1U slot of a 19-inch rack.
Are transceivers or DAC cables included?
No. 400G optics and DAC cables are sold separately.
What warranty do I get?
1 Year local warranty in Singapore, supplied by SourceIT with a GST invoice.
