MAXHUB CMA Series ND75CMA 75" 4K Commercial Display
PRODUCT DESCRIPTION
MAXHUB CMA Series ND75CMA 75" 4K UHD 500-nit Commercial Display (ND75CMA) - Local Warranty

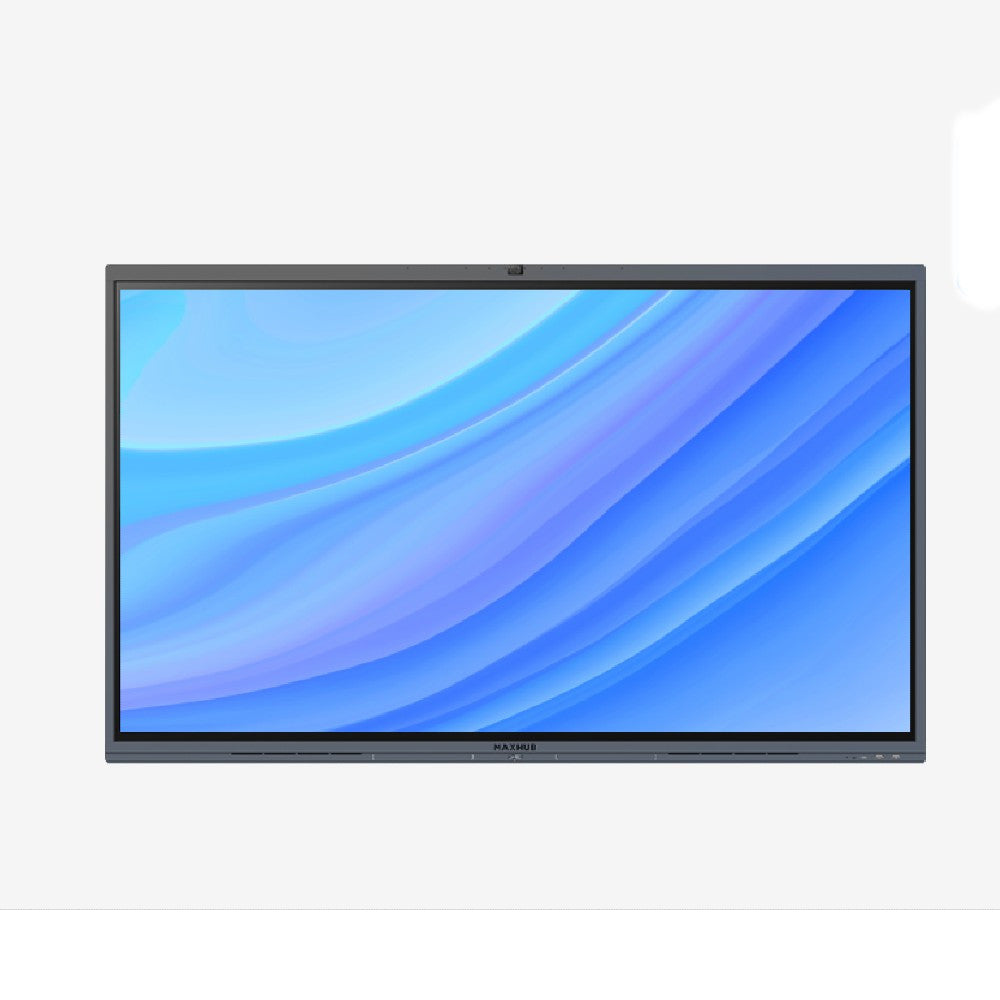

75" 4K UHD Commercial Display

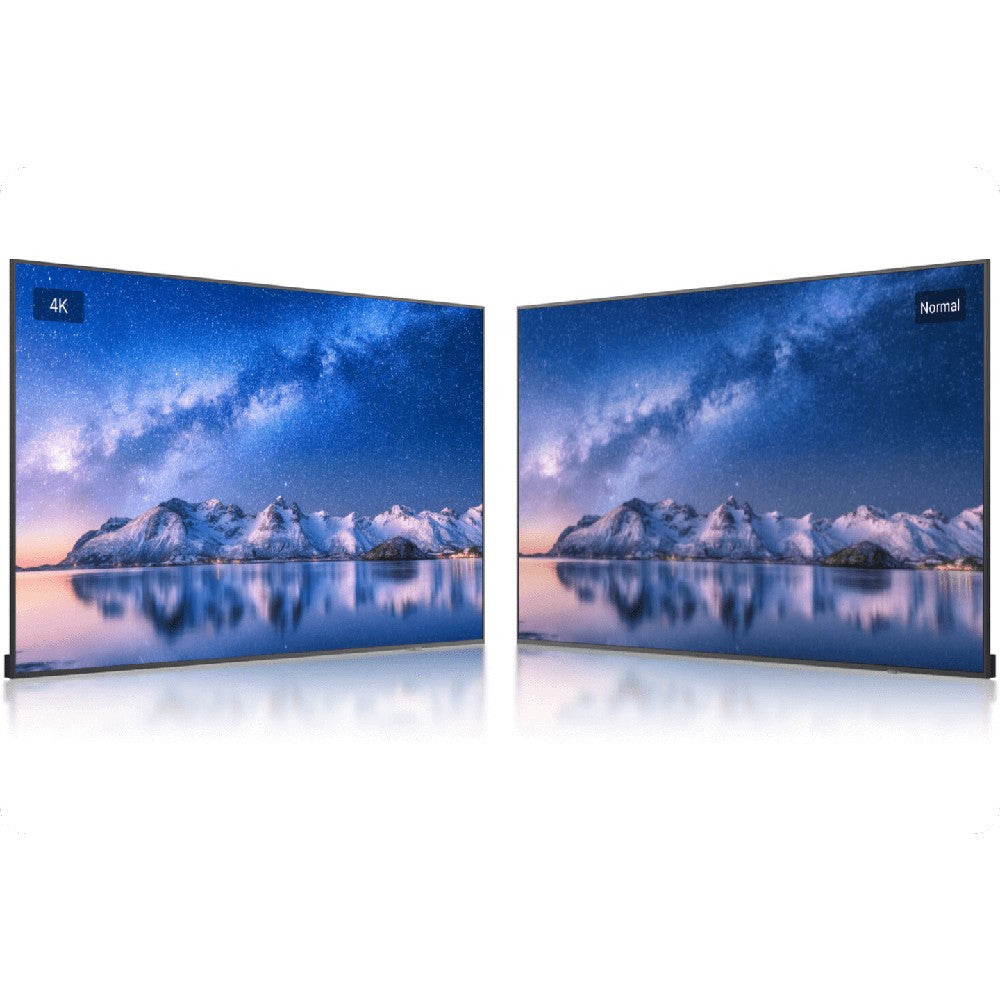

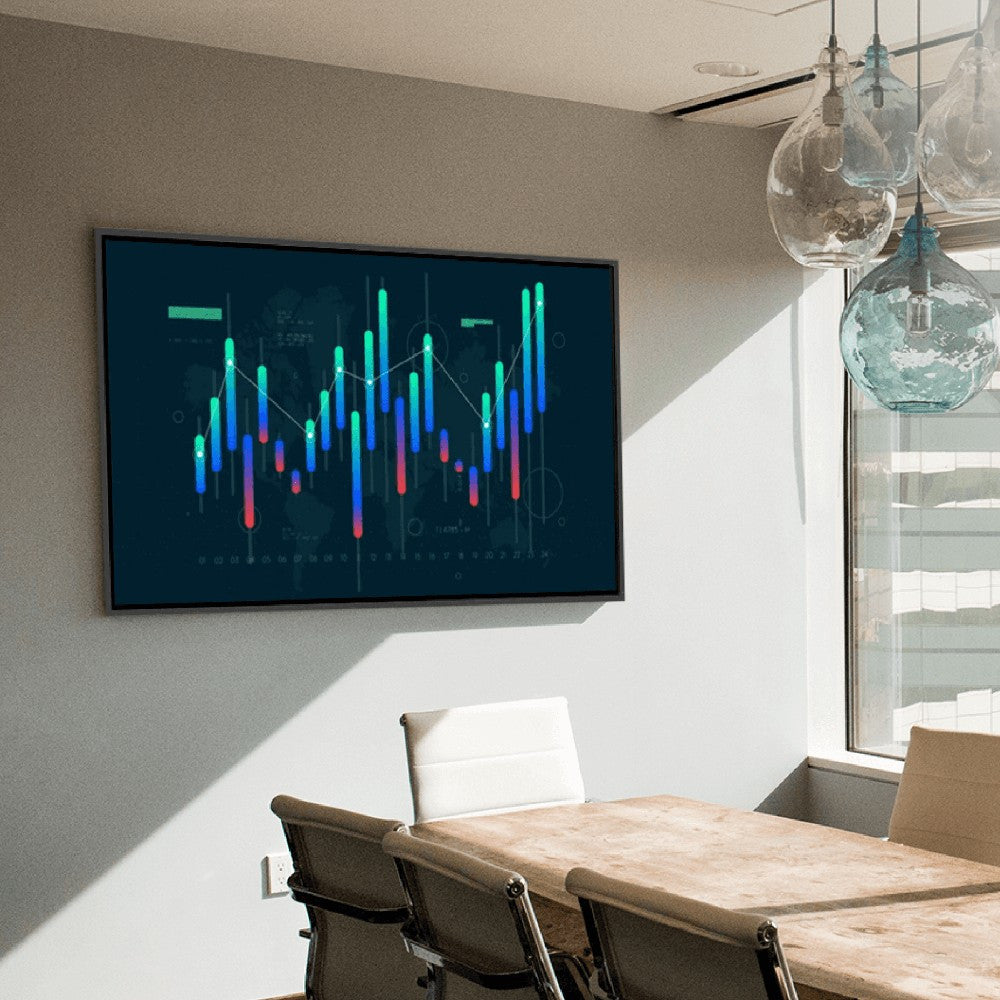

The MAXHUB CMA series is a 4K UHD (3840 x 2160) commercial display built for meeting rooms, reception areas, retail and other business settings. The 75" model is rated at 500 nits with a 178° viewing angle, and is designed for 24/7 operation in portrait or landscape orientation.
Non-glare Panel with Conformal Coating
MAXHUB's non-glare coating keeps the picture clear in bright conditions, while the increased haze level improves text readability. Conformal coating reduces the risk of damage from salt, dust and humidity for stable long-term performance.
Full-function USB Type-C and Wireless Sharing
Per MAXHUB, the full-function USB Type-C port supports ScreenShare and NetworkShare, with 65 W power output to charge a connected laptop. MAXHUB Share adds wireless screen sharing for up to four devices at once.

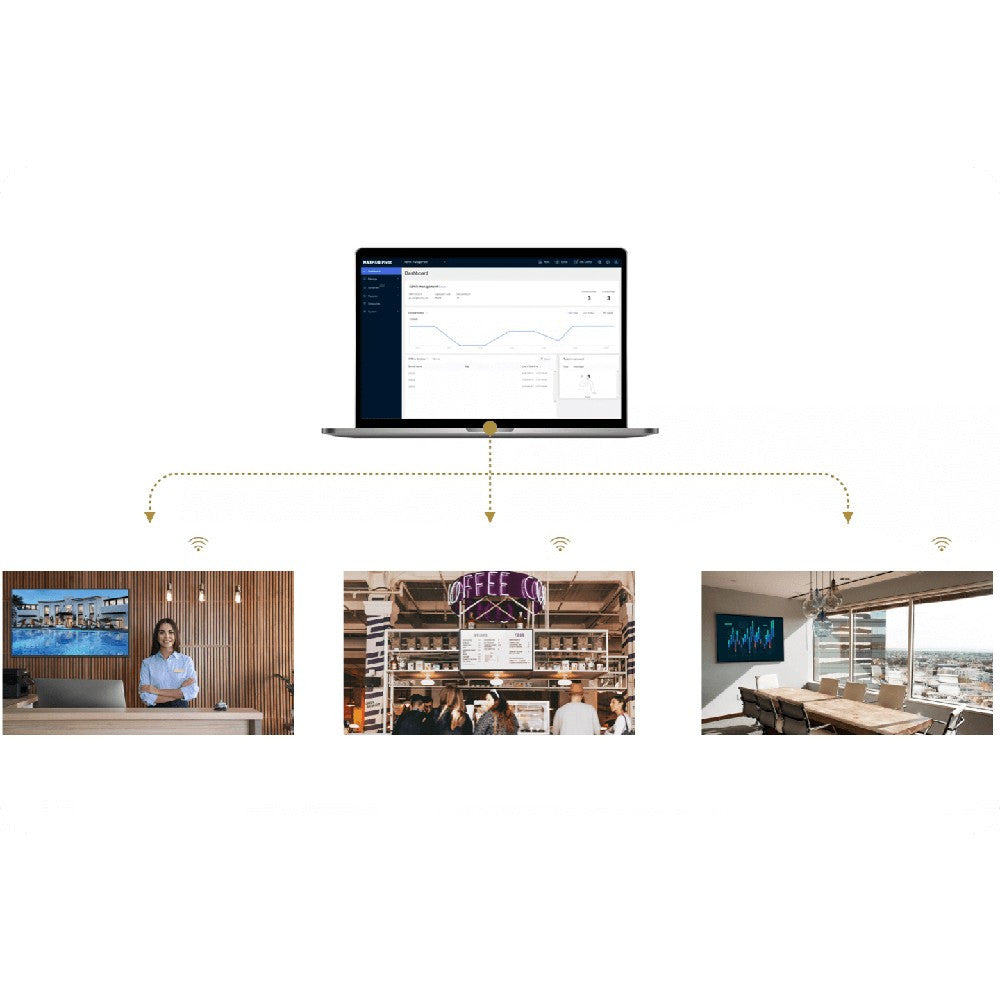

Remote Management with MAXHUB Pivot
MAXHUB Pivot lets IT administrators manage displays and distribute content remotely. MAXHUB lists the CMA series as Crestron-certified for AV integration and NDI-certified for digital signage workflows. The display is OPS-capable (80-pin, OPS62A) for adding a slot-in PC.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB ND75CMA Datasheet — Technical Specifications
General
| Product Name | MAXHUB CMA Series Commercial Display |
| Part Number | ND75CMA |
| Series | MAXHUB CMA Series |
| Local Warranty (Singapore) | Local warranty supplied by SourceIT with a GST invoice |
Display
| Screen Size | 75" |
| Resolution | 4K UHD |
| Panel Type | ADS |
| Brightness | 500 nits |
| Contrast Ratio | 1,200:1 (typical), 1,000,000:1 (dynamic) |
| Viewing Angle | 178° (H/V) |
| Bezel | 15.9 mm |
| Lifespan | ≥ 50,000 hours |
| Operation | 24/7, portrait or landscape |
Expansion & Audio
| OPS | Capable (80-pin, OPS62A) |
| Speakers | 2 x 16 W |
Physical
| Net Weight | 34.65 kg |
Figures are from MAXHUB's CMA series leaflet; MAXHUB has not published a separate ND75CMA datasheet. Contact us for any figure not listed here.
Compatibility & Software Support
Operating System & Content
OPS-capable (80-pin, OPS62A) for a slot-in Windows PC. Content can also be played from a connected PC or media player.
Screen Sharing & BYOD
MAXHUB Share wireless screen sharing (up to four devices simultaneously, per MAXHUB); full-function USB Type-C with ScreenShare, NetworkShare and 65 W charging; HDMI inputs for wired sources.
Management & Integration
MAXHUB Pivot device management and remote content distribution. MAXHUB lists the CMA series as Crestron-certified and NDI-certified.
Package Contents & MAXHUB CMA Series Ordering Information
In the Box
MAXHUB has not published the 75" in-box accessory list — email us and we will confirm the packing list before you order.

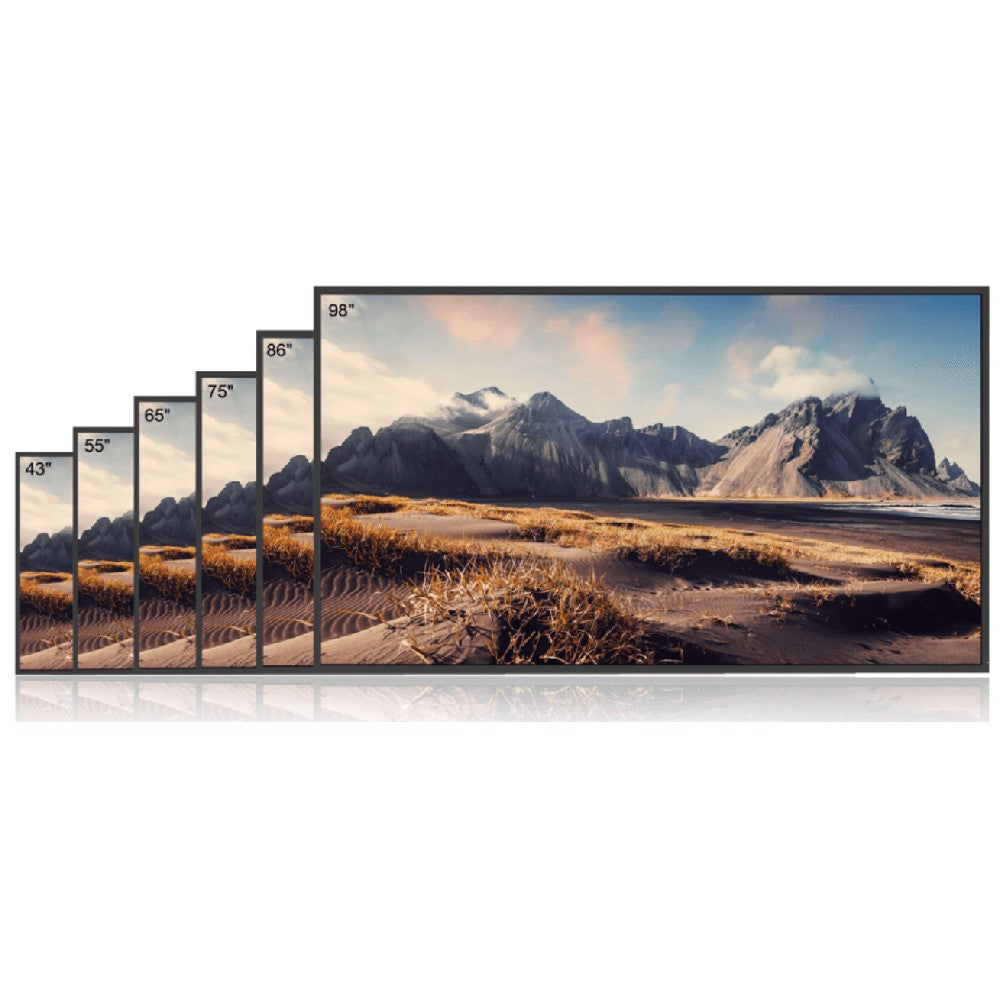

MAXHUB CMA Series Models
| Model | Size | Notes |
| ND43CMA | 43" | VA panel, 500 nits |
| ND55CMA | 55" | VA panel, 500 nits |
| ND65CMA | 65" | ADS panel, 500 nits |
| ND75CMA (this listing) | 75" | ADS panel, 500 nits |
| ND86CMA | 86" | ADS panel, 500 nits |
| ND98CMA | 98" | ADS panel, 500 nits |
Need a brighter panel? The MAXHUB CMA-T series (ND65CMA-T, ND75CMA-T) is rated at 800 nits.
Datasheet & Downloads
| Series leaflet | CMA Series Leaflet (PDF) |
| Mechanical drawing | ND75CMA Mechanical Drawing (PDF) |
| MAXHUB product page | CMA Series on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ND75CMA.
Frequently Asked Questions — MAXHUB ND75CMA
Can it run around the clock?
Yes. MAXHUB rates the CMA series for 24/7 operation, and the 75" model can be installed in portrait or landscape orientation.
Can I share my laptop screen?
Yes — wirelessly with MAXHUB Share, or by cable through HDMI or the full-function USB Type-C port, which also charges the laptop at up to 65 W.
Can I add a PC?
Yes. The display is OPS-capable (80-pin, OPS62A), so a slot-in PC module can be installed — ask us for a bundle quote.
What warranty do I get?
This product is supplied with local warranty support in Singapore by SourceIT, with a GST invoice. Contact us for the warranty terms that apply.
