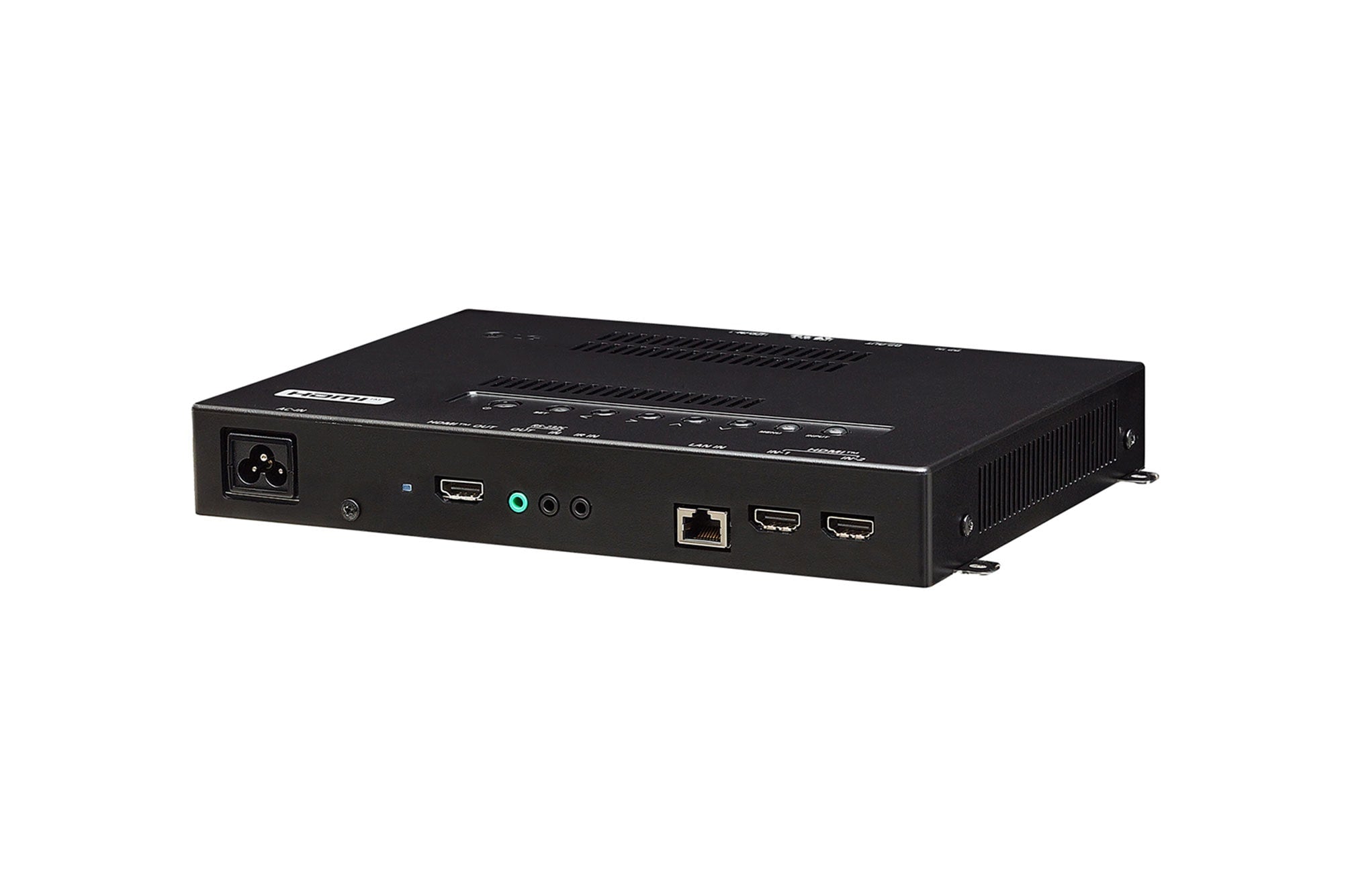

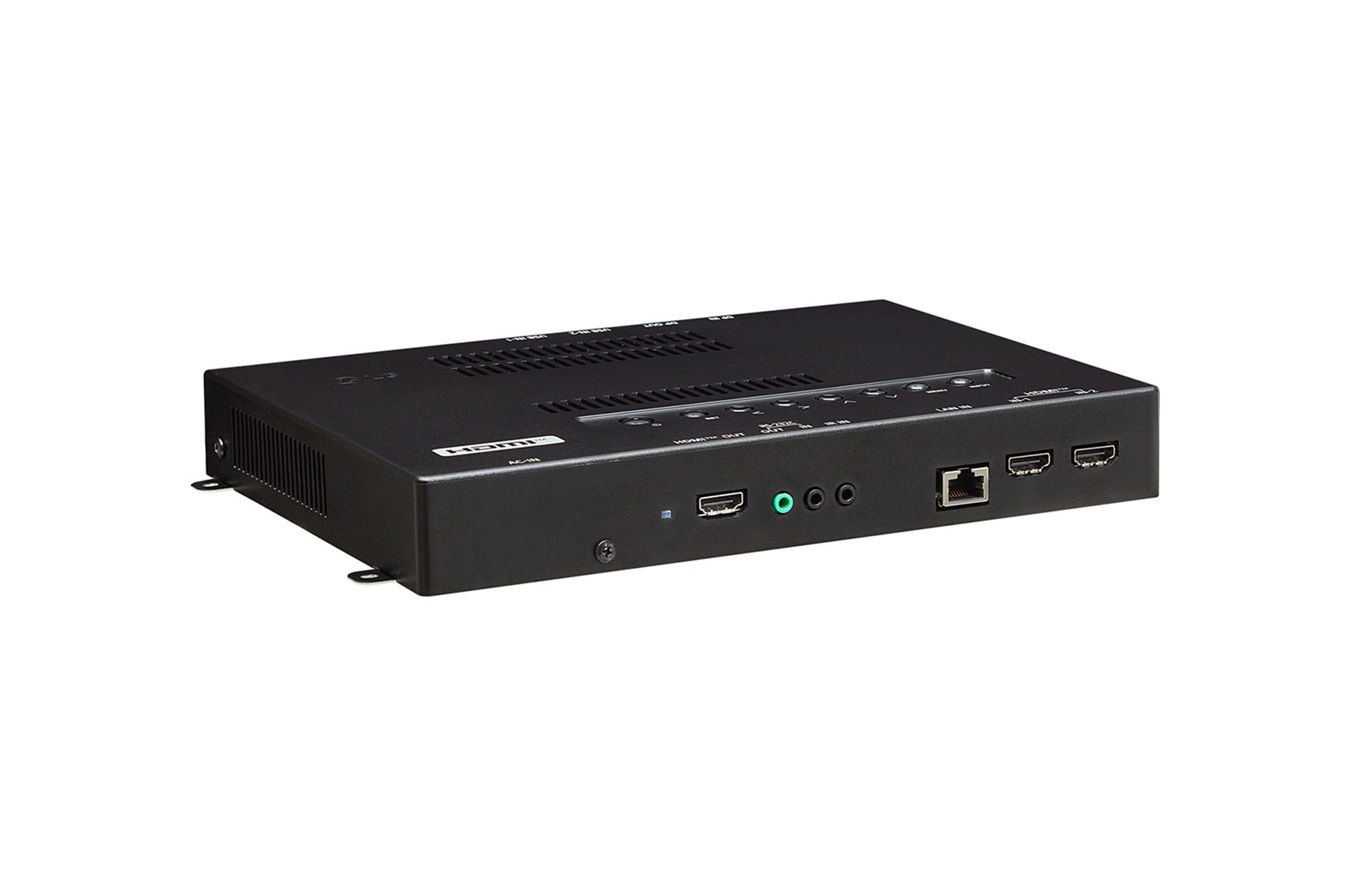

LG WP601 webOS Box Media Player, webOS 6.0, UHD Playback, 16 GB
PRODUCT DESCRIPTION
LG WP601 webOS Box Media Player (WP601) - 3 Years Local Warranty
Great Scalability for Existing Displays
The LG WP601 webOS Box upgrades existing displays to LG's webOS 6.0 smart signage platform, so you can add scheduling and content management without replacing the screen.
High-Performance UHD Media Player
With 16 GB internal memory and UHD video playback, the WP601 supports multitasking features such as PIP, PBP (4) and up to four Video Tags on one screen.
User-Friendly Smart Platform
An all-in-one home menu and embedded content management make it easy to build and schedule playlists locally, while RS-232C lets the player control the connected display.
Compatible with LG SuperSign and ConnectedCare
The WP601 works with SuperSign CMS, Control / Control+, WB and SuperSign Cloud, and with LG ConnectedCare for real-time remote monitoring.
Adding webOS to an existing display fleet? Email sales@sourceit.com.sg with your display models and content plan, and we will confirm the right setup.
LG WP601 Datasheet — Technical Specifications
General
| Product Name | LG WP601 webOS Box |
| Part Number | WP601 (listed as WP601-B on LG Singapore) |
| Type | webOS media player |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Platform & Performance
| Operating System | LG webOS 6.0 |
| Internal Memory | 16 GB |
| Hardware Features | Wi-Fi, temperature sensor, power indicator, local key operation |
| Software Features | Local contents scheduling, PIP, PBP (4), Video Tag (4), Tile Mode (max. 15 x 15), webRTC, Pro:Idiom |
| Video Playback | UHD video playback supported |
Connectivity

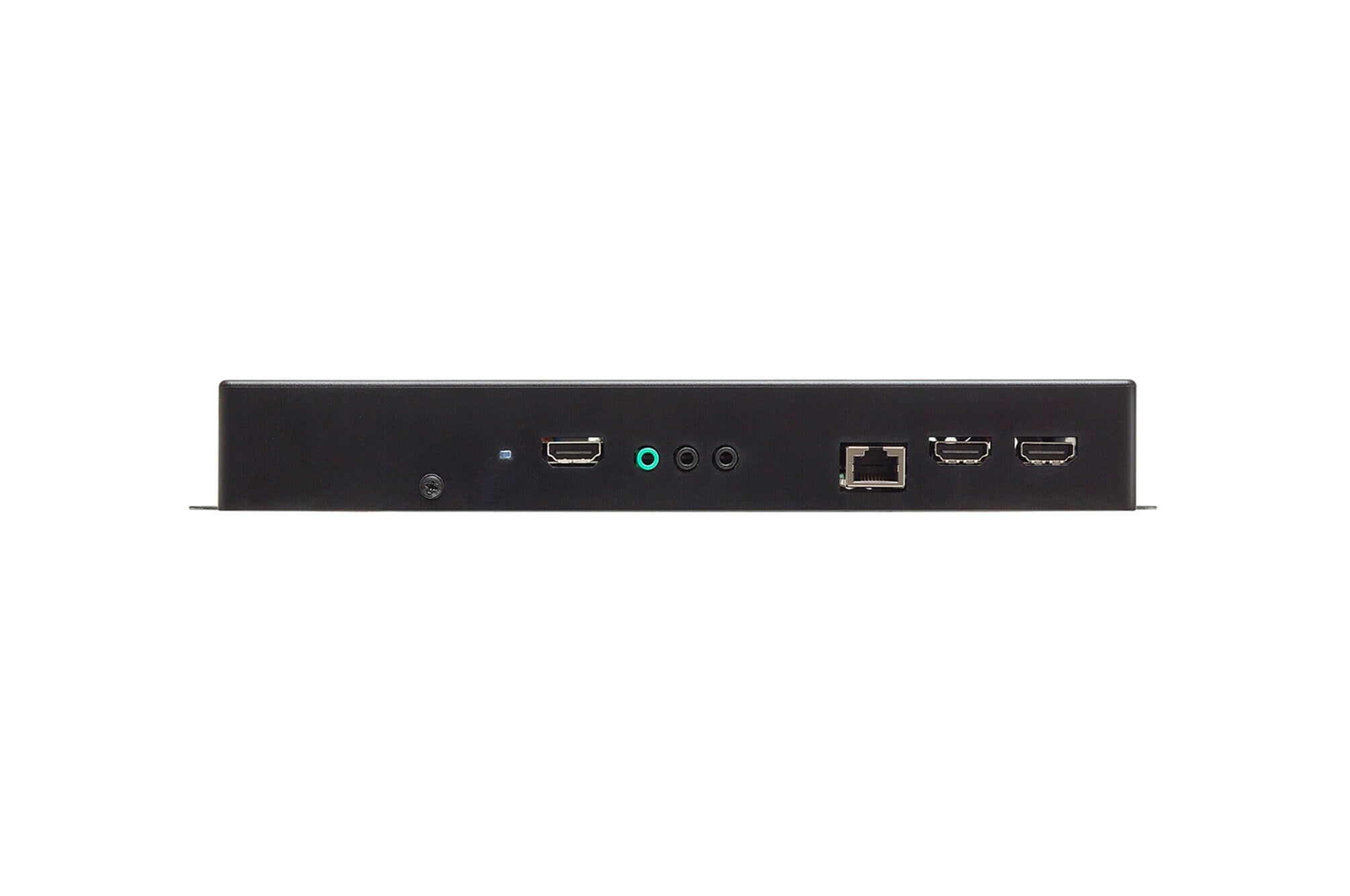

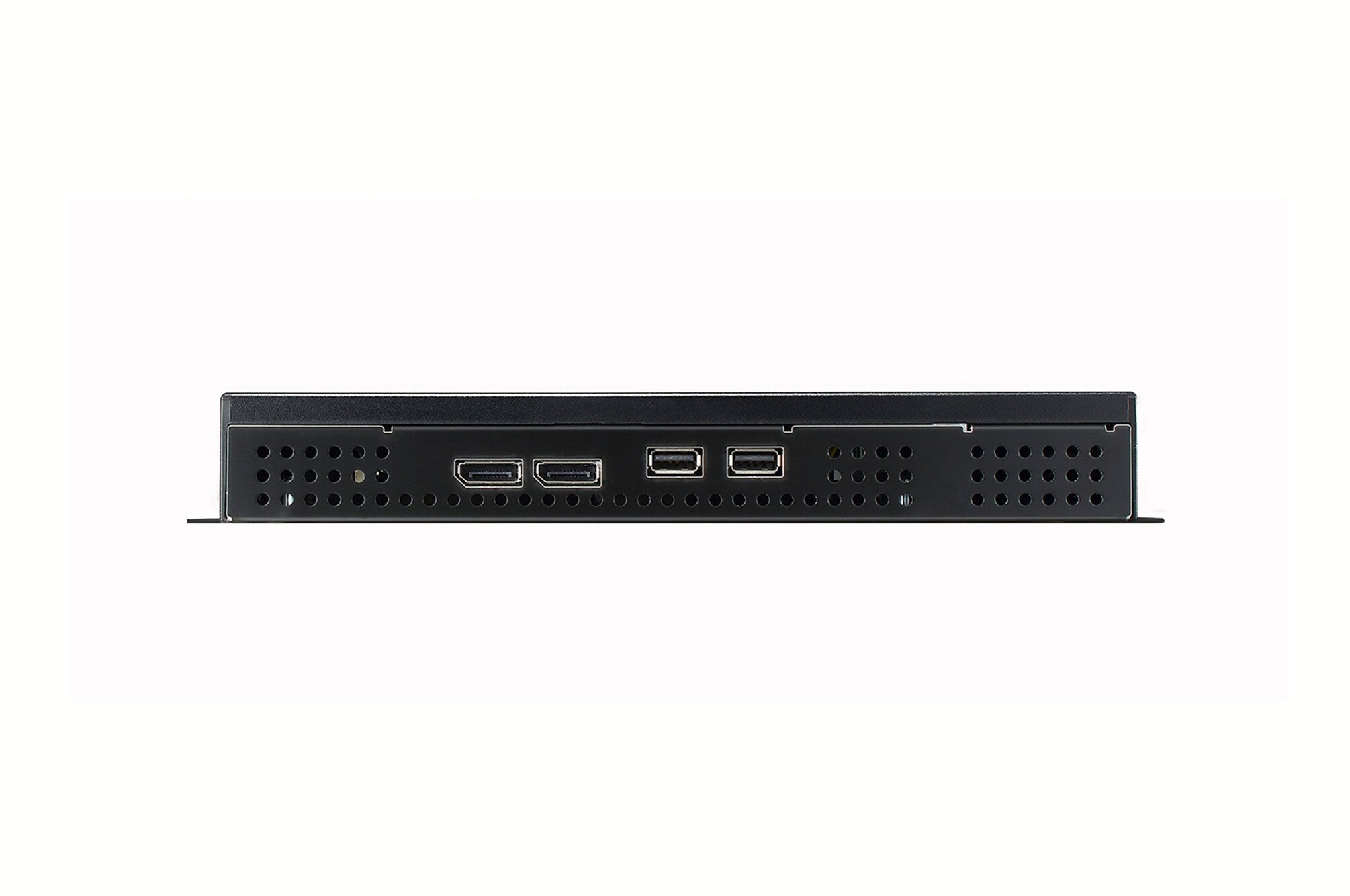

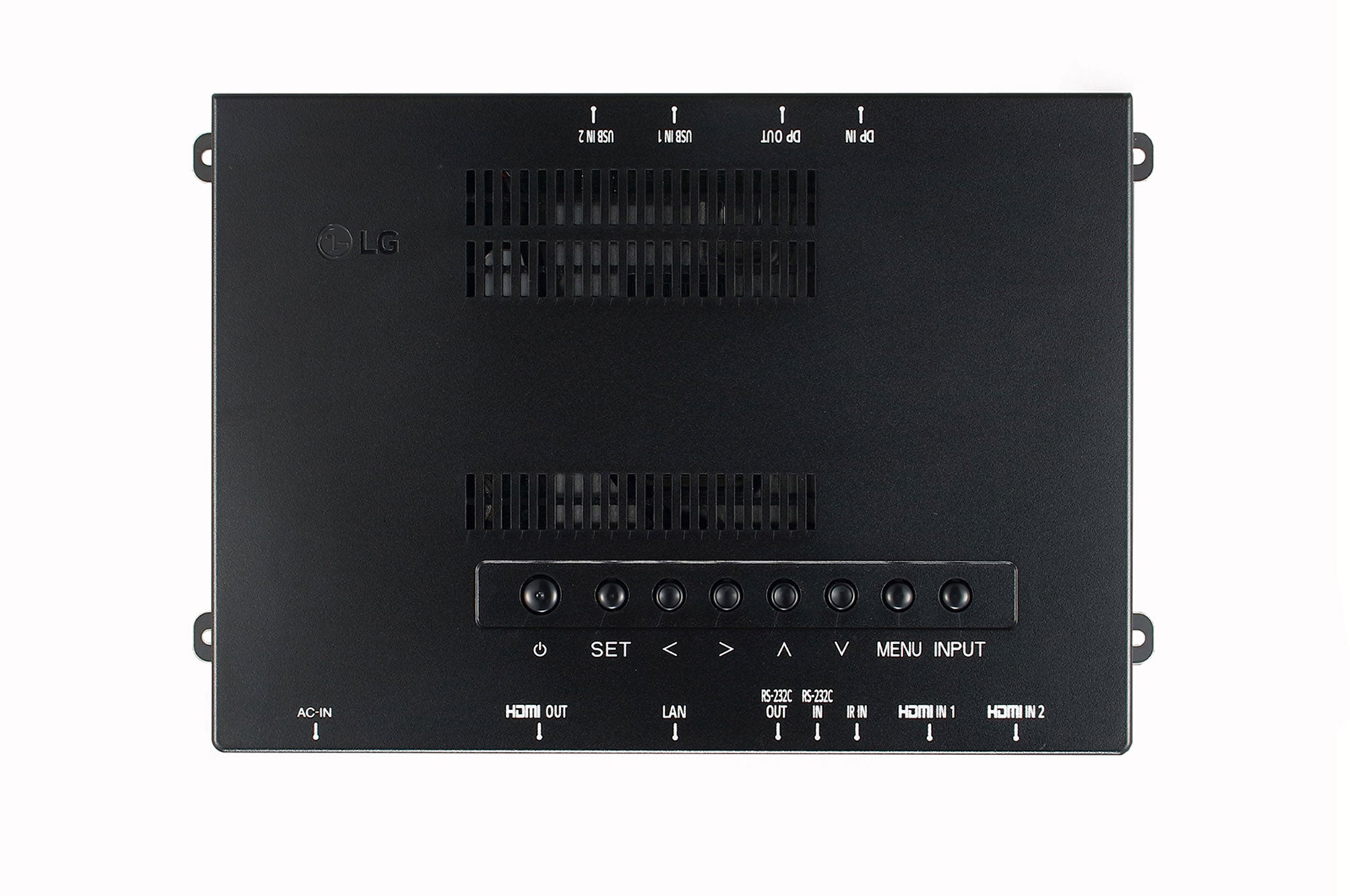

| Inputs | HDMI x 2 (HDCP 2.2), DisplayPort (HDCP 1.3), RS-232C (phone jack), RJ45 (LAN), IR (phone jack), USB 2.0 Type-A x 2 |
| Outputs | HDMI (FHD or UHD 4K at 30/60 Hz), DisplayPort (SST, daisy chain), RS-232C (phone jack) |
Mechanical
| Colour | Black |
| Dimensions (W x H x D) | 258.0 x 36.5 x 186.0 mm |
| Weight | 1.12 kg |
| Carton Dimensions (W x H x D) | 359.0 x 124.0 x 314.0 mm |
| Packed Weight | 2.01 kg |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 23 W typ. / 27 W max.; DPM 0.5 W (WOL off) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80% |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class A / CE Class A |
Compatibility & Software Support
Platform
The WP601 brings LG webOS 6.0 to an existing display over HDMI or DisplayPort, with an all-in-one home menu, embedded content management, local scheduling, multi-screen PIP / PBP (4), multi Video Tags (4) and Tile Mode up to 15 x 15. It can control the connected display over RS-232C.
LG Software
| SuperSign CMS | Yes |
| SuperSign Control / Control+ | Yes |
| SuperSign WB | Yes |
| SuperSign Cloud | Yes |
| LG ConnectedCare | Yes |
| Promota | Yes |
| Mobile CMS | Yes |
Languages
English, French, German, Spanish, Italian, Korean, Chinese (Simplified / Traditional), Portuguese (Brazil / Europe), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Dutch, Czech, Greek, Turkish and Arabic.
Package Contents & WP601 Ordering Information
In the Box
Remote controller, power cord, quick setup guide, HDMI cable, regulation book, phone-to-RS232C gender.
Model
| Model | Part No. |
| webOS Box (this listing) | WP601 |
Datasheet & Downloads
| LG product page (Singapore) | WP601-B on lg.com/sg |
| LG spec sheet and datasheet (PDF) | WP601 on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting WP601.
Frequently Asked Questions — LG WP601
What does the WP601 do?
It is an external webOS 6.0 player that adds LG's smart signage platform — scheduling, embedded content management, Video Tags and PIP / PBP — to a connected display over HDMI or DisplayPort.
Can it drive a video wall?
LG lists Tile Mode up to 15 x 15 and a DisplayPort output with SST daisy chain.
Which LG software does it support?
SuperSign CMS, Control / Control+, WB and Cloud, LG ConnectedCare, Promota and Mobile CMS.
Does it play 4K content?
Yes. LG states UHD video playback is supported, with HDMI output in FHD or UHD 4K at 30/60 Hz.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
