LG LASA136 136" MAGNIT Essential All-in-One Micro LED, P1.56, FHD, 600 nit
PRODUCT DESCRIPTION
LG LASA136 136" MAGNIT Essential All-in-One LED Display (LASA136) - 2 Years Local Warranty

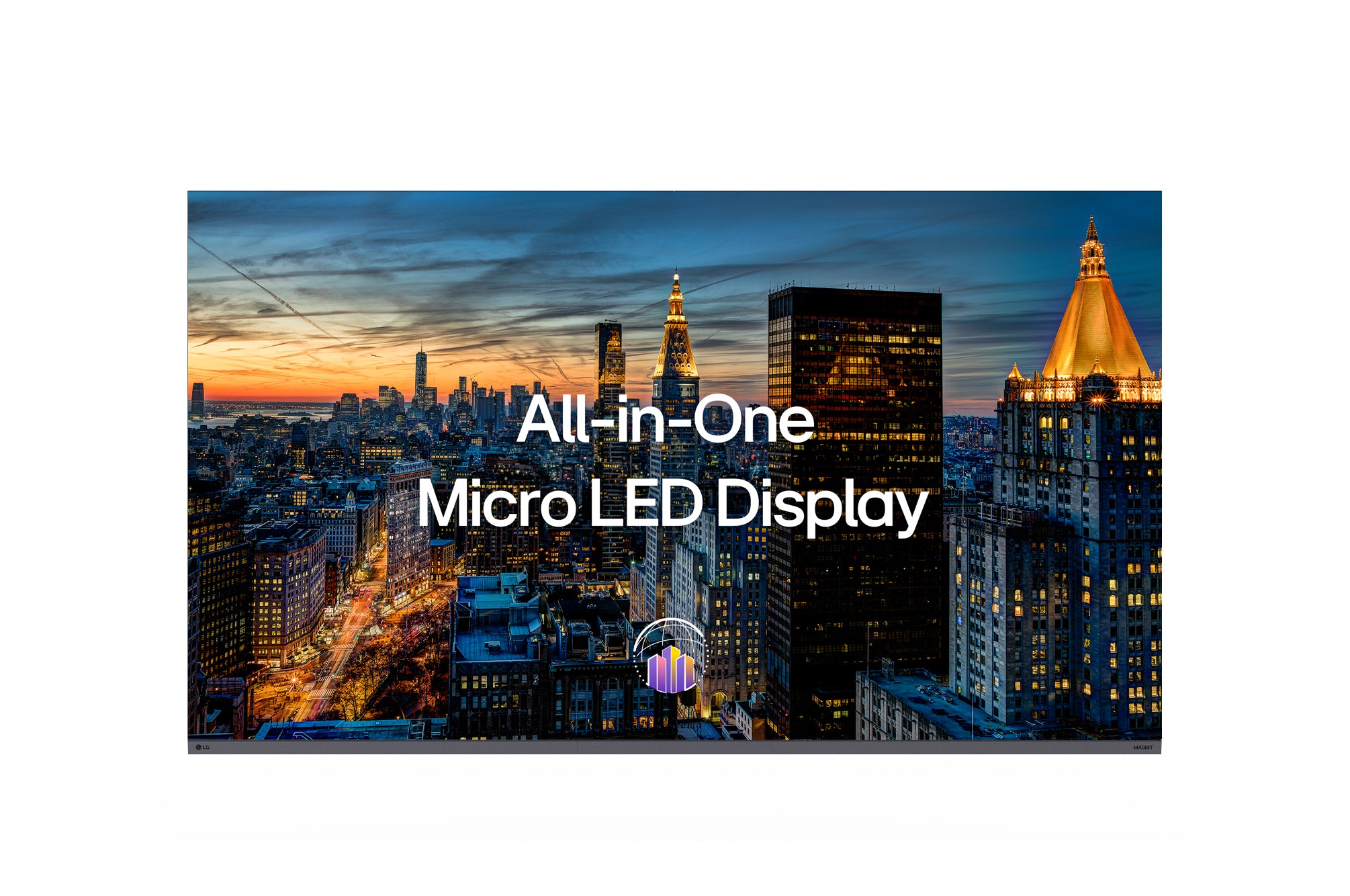

136-inch COB Micro LED in an All-in-One Package
The LG LASA136 is a 136-inch all-in-one LED display in the LG MAGNIT Essential line, with a 1.56 mm pixel pitch, 1,920 x 1,080 resolution and 600 nit (typ.) brightness after calibration. LG uses COB (chip-on-board) Micro LED packaging, which it states improves black levels and contrast over conventional SMD, rating contrast at 15,000:1 at 10 lux.
Embedded webOS Controller and Speakers
The controller is embedded (webOS), so no external sending box or media player is needed, and 9 W + 9 W speakers are built in. Power runs from a single AC cable. Inputs include three HDMI, DisplayPort in and out, USB, LAN, RS-232C and optical audio out, with Wi-Fi and Bluetooth.
Front Service and Scalable Layouts
All 100 modules are serviced from the front using the supplied suction tool. LG lists 1x2, 2x1 and 2x2 side-by-side arrangements with an expansion kit (sold separately), and DisplayPort daisy-chain for up to 4K. LG rates the LEDs at 150,000 hours to half brightness and operation at altitudes up to 5,000 m.
Need help planning a large-format LED wall for a boardroom or lobby? Email sales@sourceit.com.sg with the wall size and viewing distance, and we will recommend the right model.
LG LASA136 Datasheet — Technical Specifications
General
| Product Name | LG LASA136 136" MAGNIT Essential All-in-One LED Display |
| Part Number | LASA136 |
| Series | LG MAGNIT Essential (All-in-One) |
| Local Warranty (Singapore) | 2 years, with 5% spare modules per LG pricebook; supplied by SourceIT with a GST invoice |
Display
| Screen Size | 136" (16:9) |
| Pixel Configuration | COB |
| Pixel Pitch | 1.56 mm (P1.56) |
| Screen Resolution | 1,920 x 1,080 (FHD) |
| Brightness (after calibration) | 600 nit (typ.) |
| Contrast Ratio | 15,000:1 @ 10 lux |
| Viewing Angle (H x V) | 160 x 160 |
| Colour Temperature | 3,200–9,300 K |
| Processing Depth | 16 bit (HDR10, HDR10 Pro) |
| Brightness / Colour Uniformity | 95% / ±0.010 Cx, Cy |
| Frame Rate / Refresh Rate | 50 / 60 Hz; 3,840 Hz |
| Physical Pixel Density | 410,208 pixels/m² |
Module & Cabinet Configuration
| Module Resolution (W x H) | 192 x 108 |
| Module Dimensions (W x H) | 300 x 168.75 mm |
| Modules per Screen (W x H) | 10 x 10 (total 100) |
| Cabinet Material | Aluminium |
| Flatness of Unit Case | ±0.10 mm |
| Service Access | Front |
Mechanical & Mounting

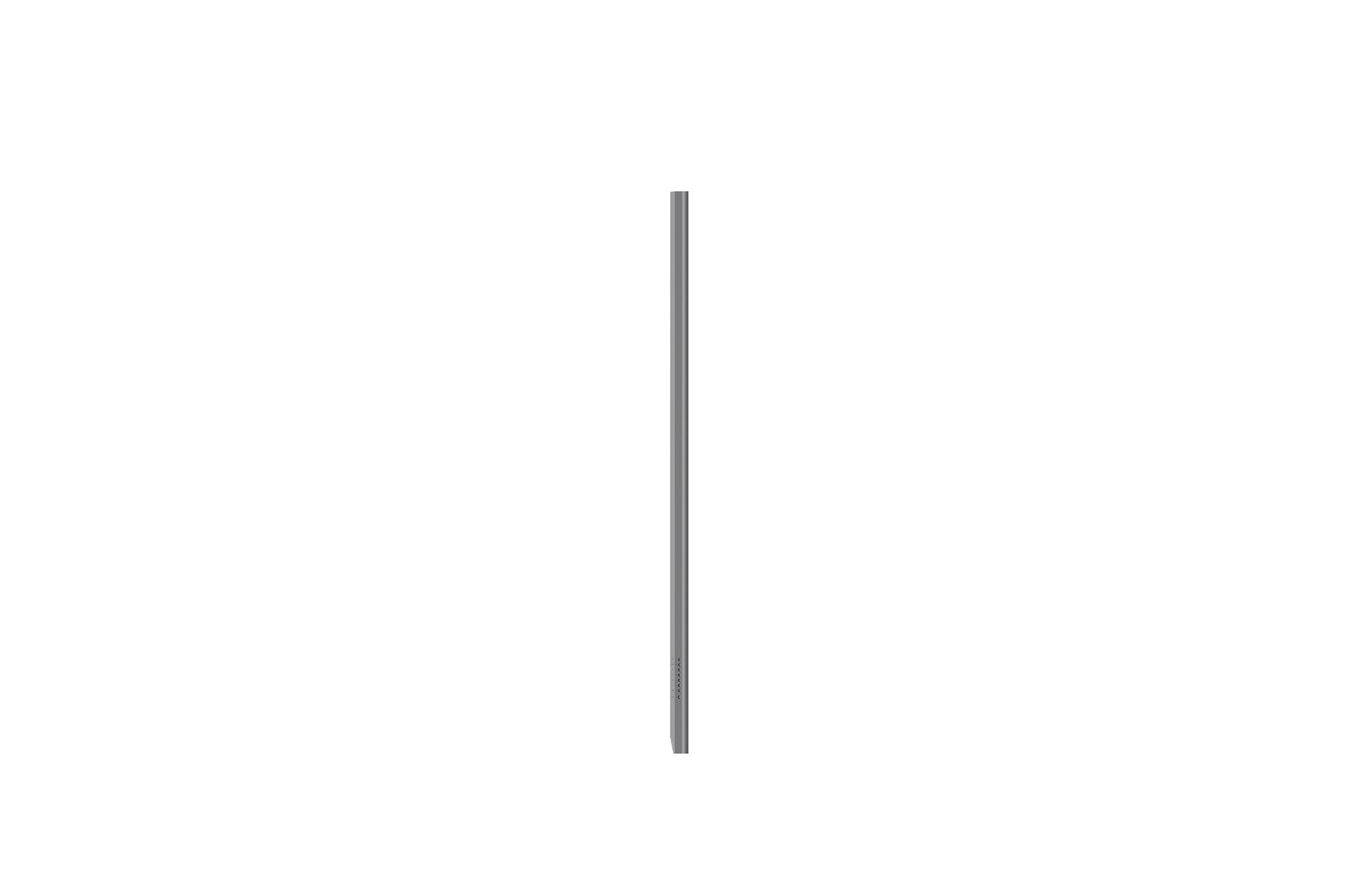

| Screen Dimensions (W x H x D) | 3,005 x 1,692.5 x 32 mm (thickest 62.05 mm) |
| Screen Surface Area | 5.06 m² |
| Screen Weight | 111 kg |
| Wall Mount | Landscape wall mount included (LG in-box) |
| Side-by-Side | Yes (1x2, 2x1, 2x2 with expansion kit, sold separately) |
Controller & Connectivity
| Controller | Embedded (webOS) |

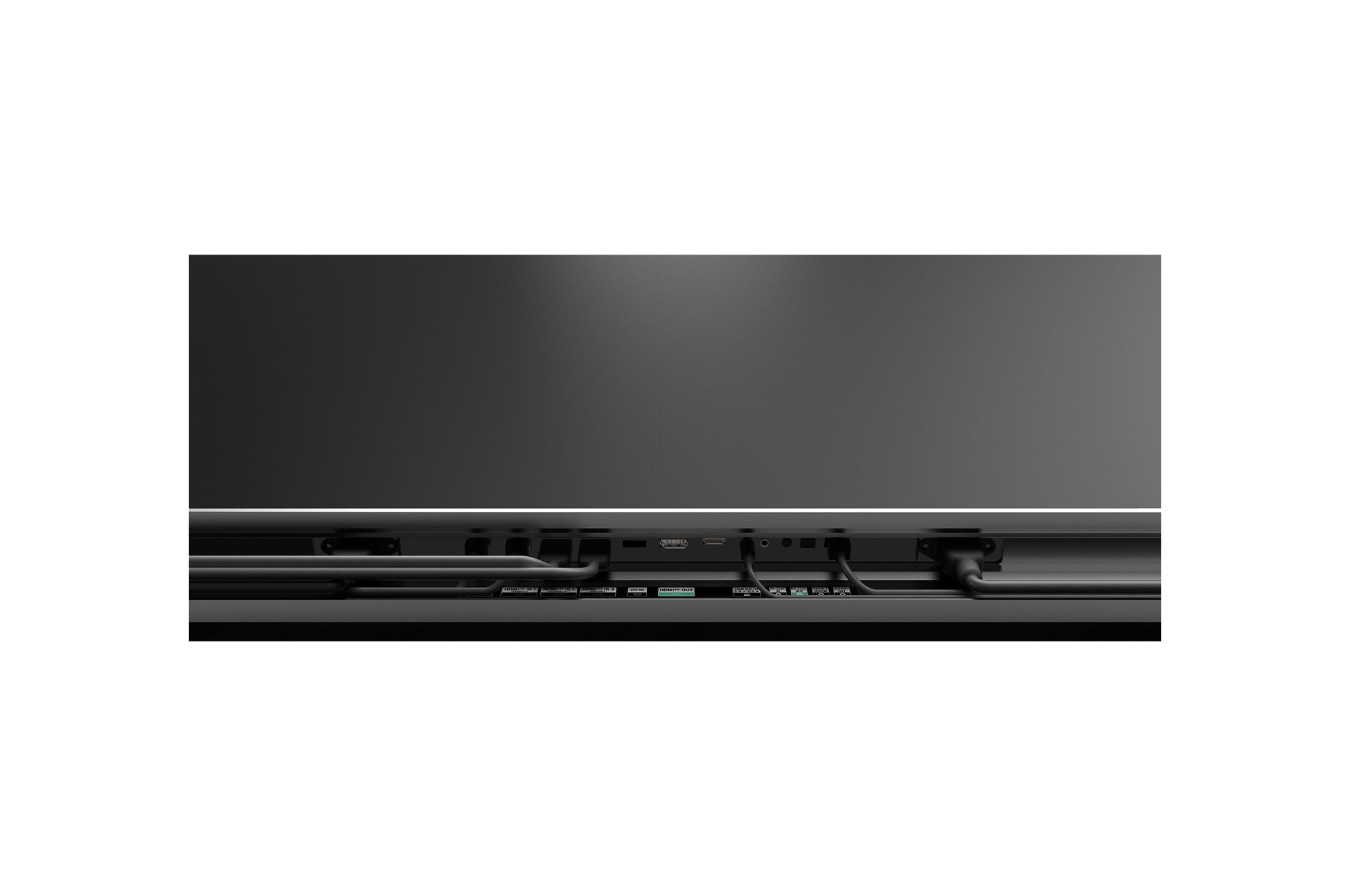

| I/O Ports | HDMI (3), DP in, DP out, USB, LAN, RS-232C in/out, IR, digital audio out (SPDIF optical) |
| Wi-Fi / Bluetooth | Yes / Yes |
| Speakers | Built-in, 9 W + 9 W |
| Remote | IR remote (in-box) |
Power & Environment
| Power Supply | 100–240 V |
| Power Consumption | 500 W avg. / 1,200 W max. per screen; 237 W/m² max. |
| Heat Dissipation | 1,706 BTU/h avg. / 4,092 BTU/h max. per screen; 809 BTU/h/m² max. |
| Lifetime | 150,000 hours to half brightness |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10–90% RH |
| IP Rating (Front / Rear) | IP50 / IP30 |
Certifications
| Certification | CE, FCC, ETL, CB, CE-RED, EMC Class A |
| Fire Protection | BS476 Part 7 Class 1 |
| Environment | RoHS, REACH |
Compatibility & Software Support
Platform
Embedded webOS controller: content plays directly on the display without an external controller or media player.
Multi-Screen
Side-by-side installation in 1x2, 2x1 or 2x2 layouts requires LG's expansion kit (sold separately); DisplayPort daisy-chain supports configurations up to 4K.
Control
RS-232C in/out, LAN and IR for control-system integration.
Package Contents & LG MAGNIT Essential Ordering Information
In the Box
IR remote, landscape wall mount, installation tools (including suction tool for front module removal).
Optional Accessories (LG)
Dedicated stand and expansion kit for multi-screen configurations, sold separately. Installation is not included in the price.
LG MAGNIT Essential Models
| Size | Part No. |
| 136" (this listing) | LASA136 |
Datasheet & Downloads
| LG spec sheet and datasheet (PDF) | LASA136 on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LASA136.
Frequently Asked Questions — LG LASA136
Does it need an external LED controller?
No. The controller is embedded and runs webOS, and power connects with a single AC cable.
How is it serviced?
From the front: LG supplies a suction tool to remove modules for maintenance.
Is a wall mount included?
Yes. LG lists a landscape wall mount and installation tools in the box. Installation itself is quoted separately.
Can several units be combined?
Yes. LG lists 1x2, 2x1 and 2x2 side-by-side layouts using an expansion kit sold separately.
What warranty do I get?
2 years local warranty with 5% spare modules per LG pricebook, supplied by SourceIT with a GST invoice.
