LG LAPA163-GF 163" All-in-One LED Display, P1.88, FHD, 500 nit
PRODUCT DESCRIPTION
LG LAPA163-GF 163" All-in-One LED Display (LAPA163-GF) - 2 Years Local Warranty

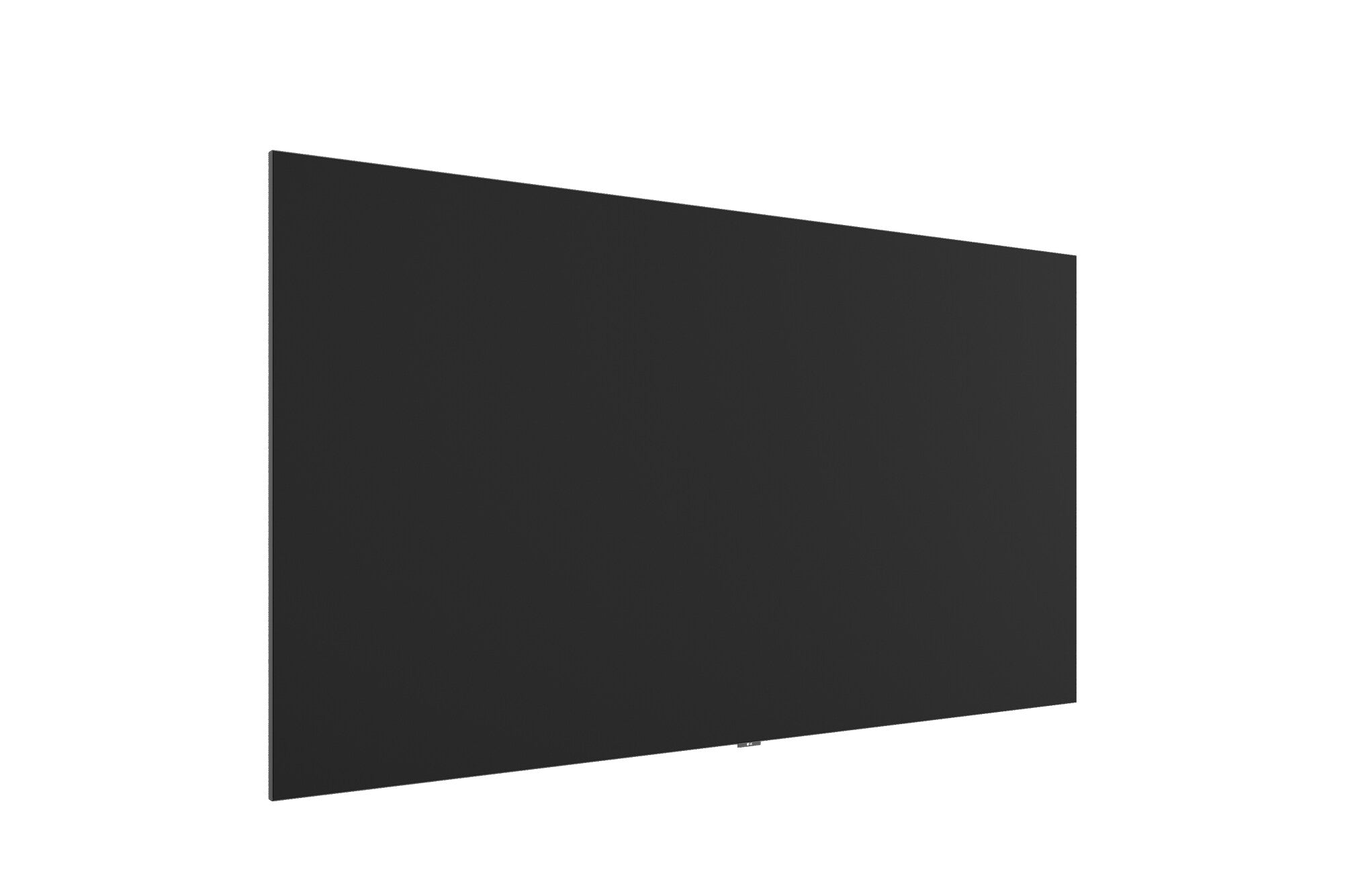

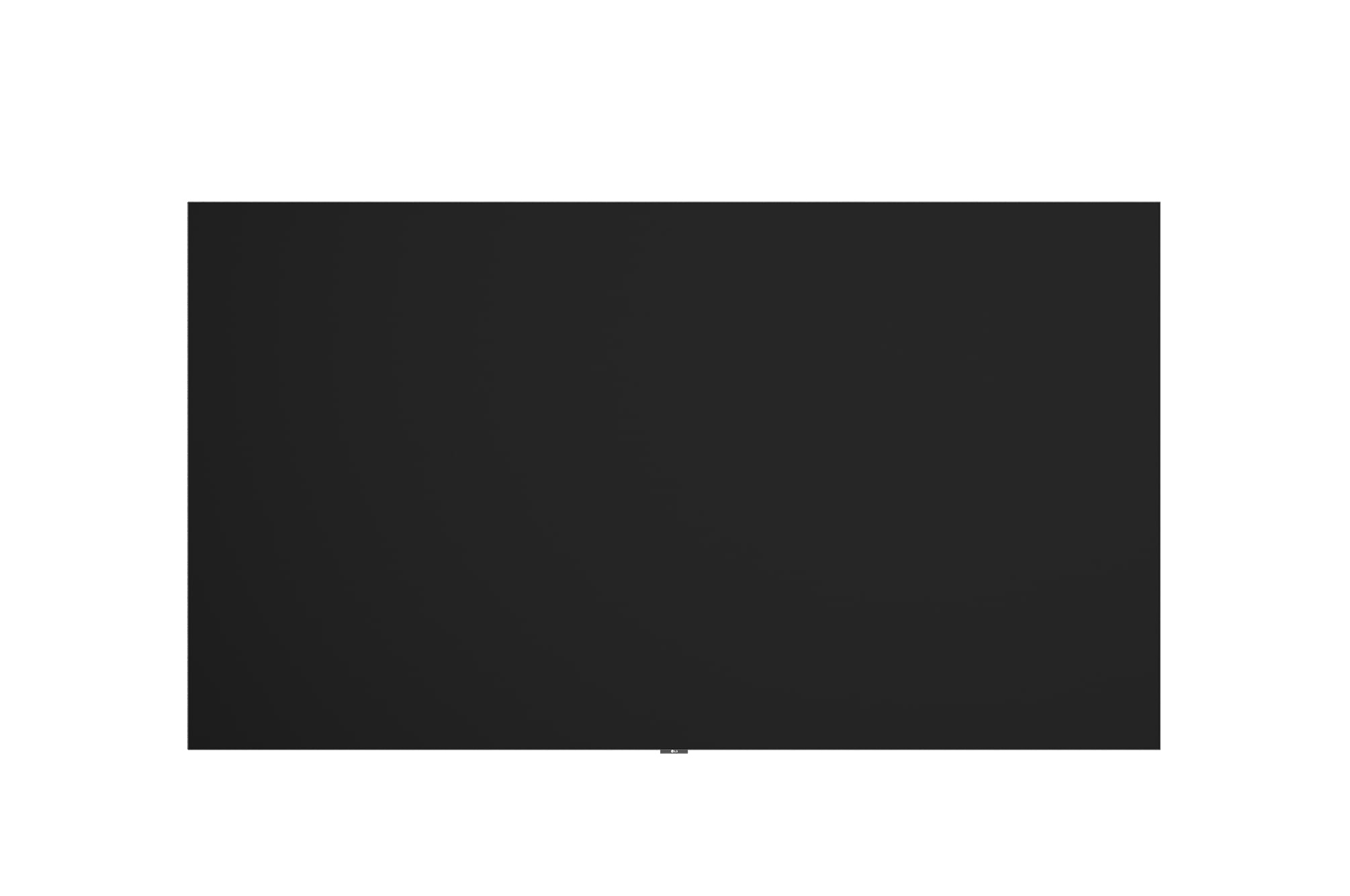

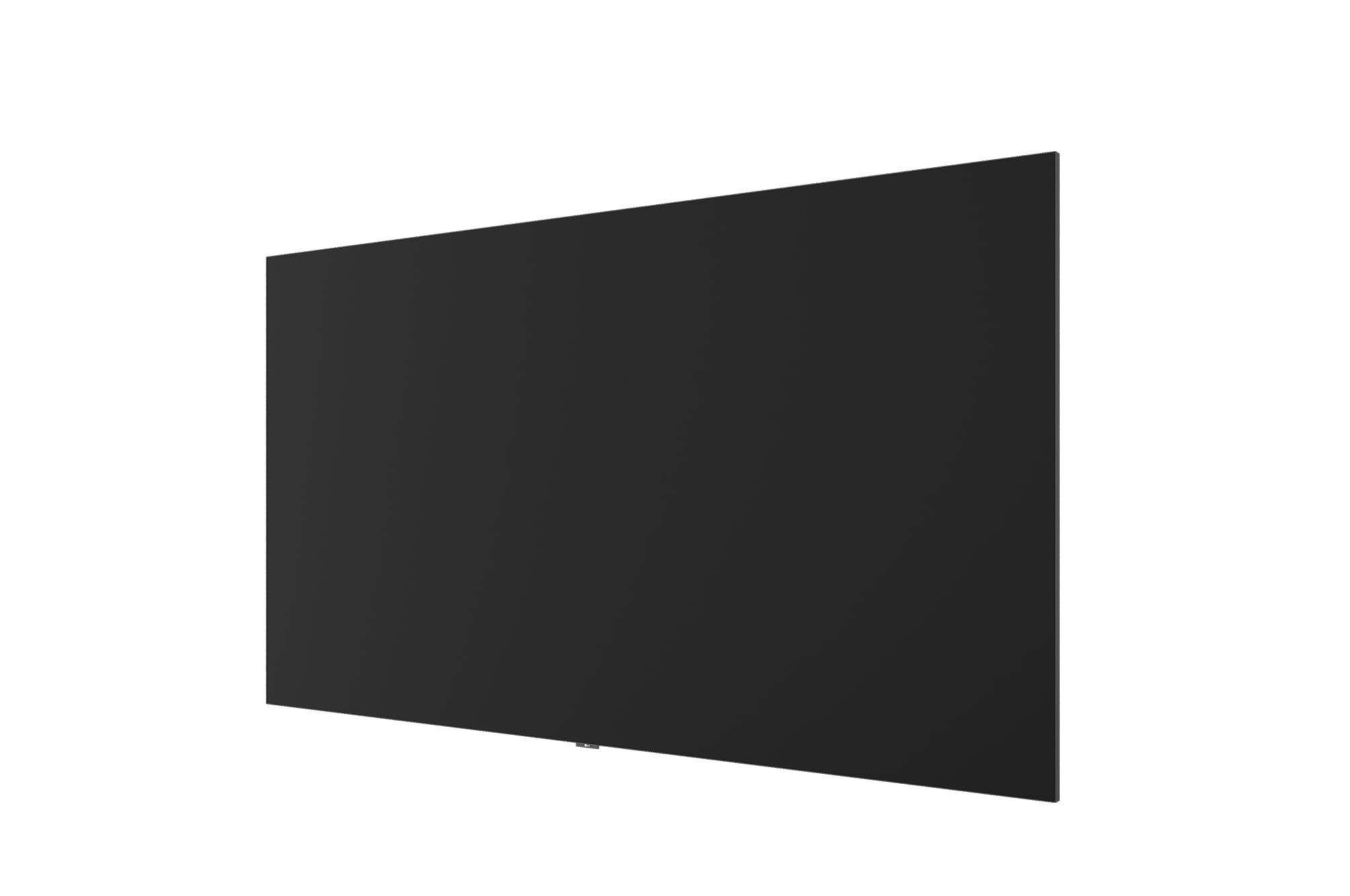

163-inch Full HD LED Wall in One Package
The LG LAPA163-GF is a 163-inch all-in-one LED display with a 1.88 mm pixel pitch, 1,920 x 1,080 resolution and 500 nit (typ.) brightness after calibration. With 12 x 12 (total 144) front-serviceable modules on an aluminium cabinet, it suits boardrooms, lecture halls and lobbies that need a larger image than a flat panel can deliver.
Embedded webOS Controller and Built-in Speakers
LG builds in a quad-core SoC running webOS, so no external controller or media player is needed, plus 9 W + 9 W speakers. Inputs include three HDMI, DisplayPort, USB, LAN, RS-232C in/out and optical audio out, and the display supports HDCP 2.2 and Crestron Connected.
Quick Installation and Front Maintenance
LG supplies a landscape wall mount, installation tools and a magnetic tool for module removal, and all maintenance is done from the front. Optional LG ConnectedCare (availability varies by region) adds remote status monitoring and fault diagnosis.
Need help planning a large-format LED wall for a boardroom or lecture hall? Email sales@sourceit.com.sg with the wall size and viewing distance, and we will recommend the right model.
LG LAPA163-GF Datasheet — Technical Specifications
General
| Product Name | LG LAPA163-GF 163" All-in-One LED Display |
| Part Number | LAPA163-GF |
| Series | LG LED All-in-One (LAPA) |
| Local Warranty (Singapore) | 2 years, with 5% spare modules per LG pricebook; supplied by SourceIT with a GST invoice |
Display
| Screen Size | 163" (16:9) |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 1.88 mm |
| Screen Resolution | 1,920 x 1,080 (FHD) |
| Brightness (after calibration) | 500 nit (typ.) |
| Contrast Ratio | 3,000:1 |
| Viewing Angle (H x V) | 150 x 150 |
| Colour Temperature | 3,200–9,300 K |
| Processing Depth | 16 bit |
| Brightness / Colour Uniformity | 98% / ±0.015 Cx, Cy |
| Frame Rate / Refresh Rate | 50 / 60 Hz; 3,840 Hz |
| Physical Pixel Density | 284,444 pixels/m² |
Module & Cabinet Configuration
| Module Resolution (W x H) | 160 x 90 |
| Module Dimensions (W x H) | 300 x 168.75 mm |
| Modules per Screen (W x H) | 12 x 12 (total 144) |
| Cabinet Material | Aluminium |
| Service Access | Front |
Mechanical & Mounting
| Screen Dimensions (W x H x D) | 3,605 x 2,030 x 29.95 mm (thickest 59.5 mm) |
| Screen Surface Area | 7.29 m² |
| Screen Weight | 155 kg |

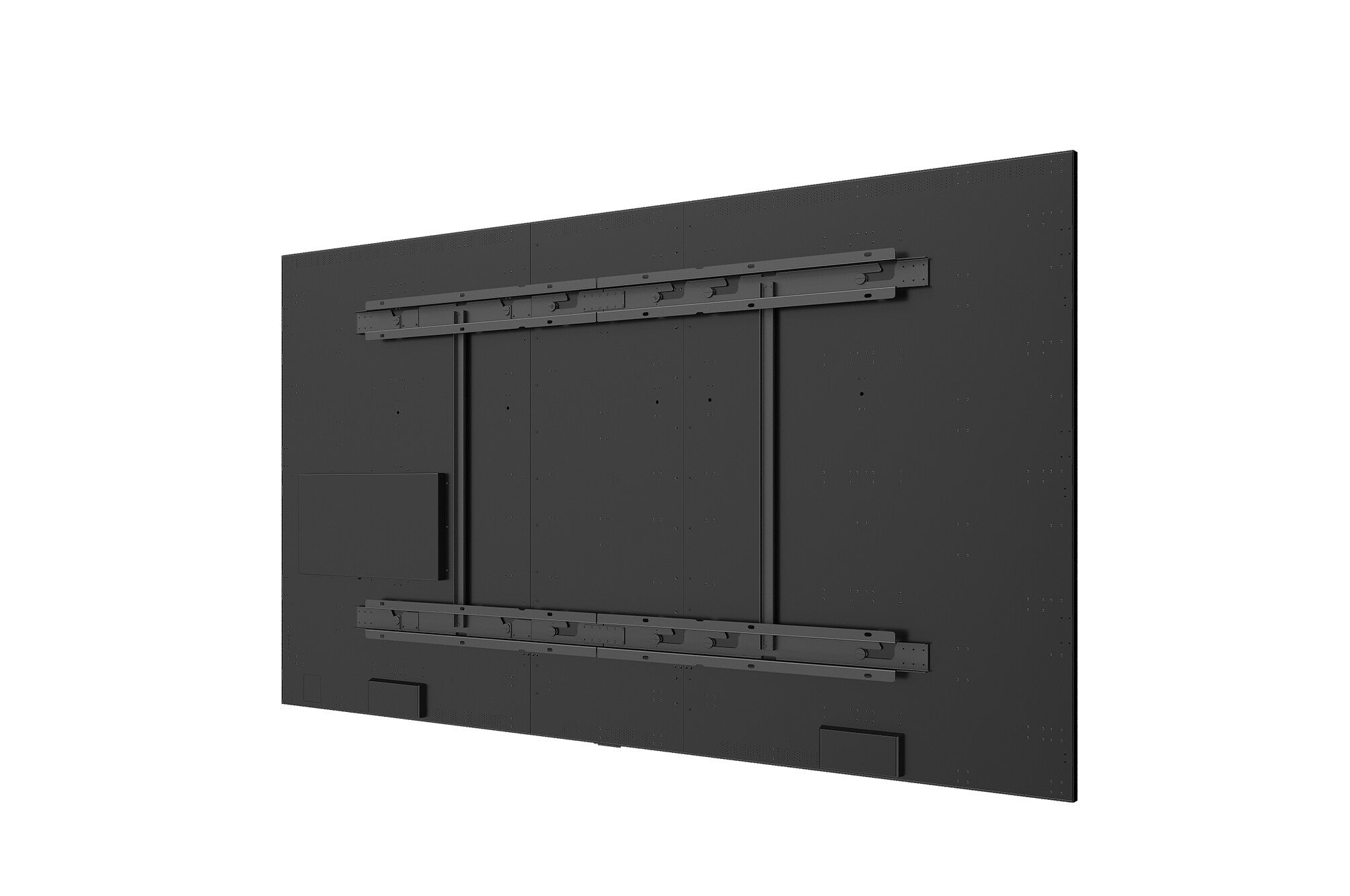

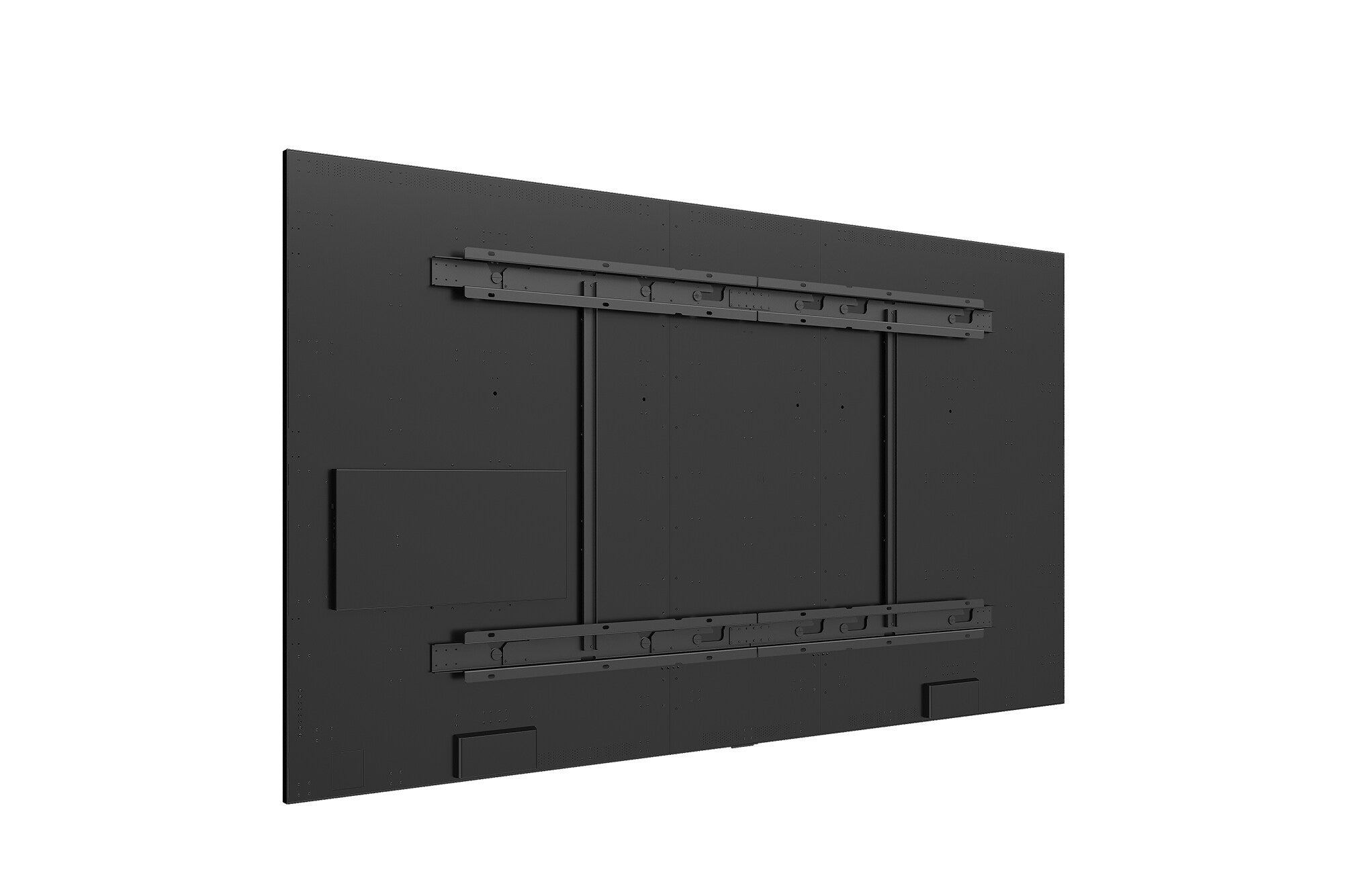

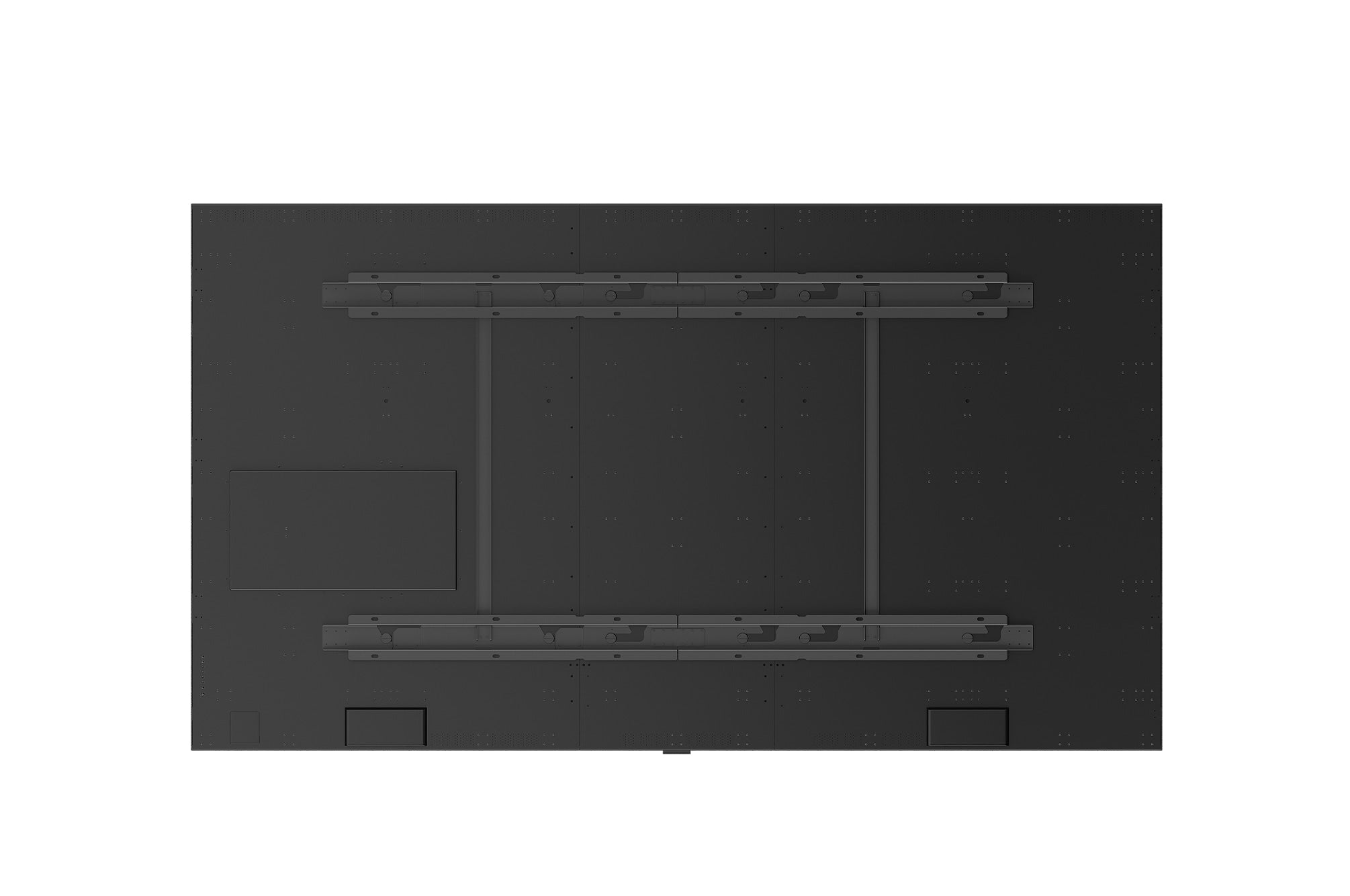

| Wall Mount | Landscape wall mount included (LG in-box) |
| Side-by-Side | Yes (1 x N) |
Controller & Connectivity
| Controller | Embedded (webOS) |
| I/O Ports | HDMI (3), DP (1), USB, LAN, RS-232C in/out, IR, digital audio out (1, SPDIF optical) |
| Wi-Fi / Bluetooth | Yes / No |
| Speakers | Built-in, 9 W + 9 W |
| Remote | IR remote (in-box); Magic Remote not supported |
| Other | HDCP 2.2, Crestron Connected |
Power & Environment
| Power Supply | 100–240 V |
| Power Consumption | 750 W avg. / 2,000 W max. per screen; 275 W/m² max. |
| Heat Dissipation | 2,560 BTU/h avg. / 6,825 BTU/h max. per screen; 939 BTU/h/m² max. |
| Lifetime | 100,000 hours to half brightness |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10–90% RH |
| IP Rating (Front / Rear) | IP30 / IP30 |
Certifications
| Certification | CE, FCC, ETL, CB, CE-RED, EMC Class A |
| Fire Protection | BS476 Part 7 Class 1; EN13501-1 (Class B-s1,d0) |
| Environment | RoHS, REACH |
Compatibility & Software Support
Platform
Embedded webOS on a quad-core SoC: content plays directly on the display without an external controller or media player. LG offers the webOS Signage SDK for app development.
LG Services & Integration
| LG ConnectedCare | Optional (availability varies by region) |
| Crestron Connected | Yes (separate purchase and setup) |
| LG One:Quick Share | Optional wireless screen sharing (separate purchase) |
Package Contents & LAPA LED All-in-One Ordering Information
In the Box
IR remote, landscape wall mount, installation tools, magnetic tool for LED module removal.
Optional Accessories (LG)
Dedicated stand (sold separately). Installation is not included in the price.
LAPA LED All-in-One Models
| Size | Part No. |
| 136" | LAPA136-GF |
| 163" (this listing) | LAPA163-GF |
Datasheet & Downloads
| LG product page (Singapore) | LAPA163-GF on lg.com/sg |
| LG spec sheet and datasheet (PDF) | LAPA163 on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LAPA163-GF.
Frequently Asked Questions — LG LAPA163-GF
Does it need an external LED controller?
No. The controller is embedded and runs webOS on a quad-core SoC.
How is it serviced?
From the front. LG includes a magnetic tool for LED module removal.
Is a wall mount included?
Yes. LG lists a landscape wall mount and installation tools in the box. Installation itself is quoted separately.
Does it have built-in audio?
Yes, 9 W + 9 W built-in speakers, plus an optical digital audio output.
What warranty do I get?
2 years local warranty with 5% spare modules per LG pricebook, supplied by SourceIT with a GST invoice.
