LG LAED015-GN 171" 21:9 All-in-One LED Display, P1.56, 2560x1080, 500 nit
PRODUCT DESCRIPTION
LG LAED015-GN 171" 21:9 All-in-One LED Display (LAED015-GN) - 3 Years Local Warranty

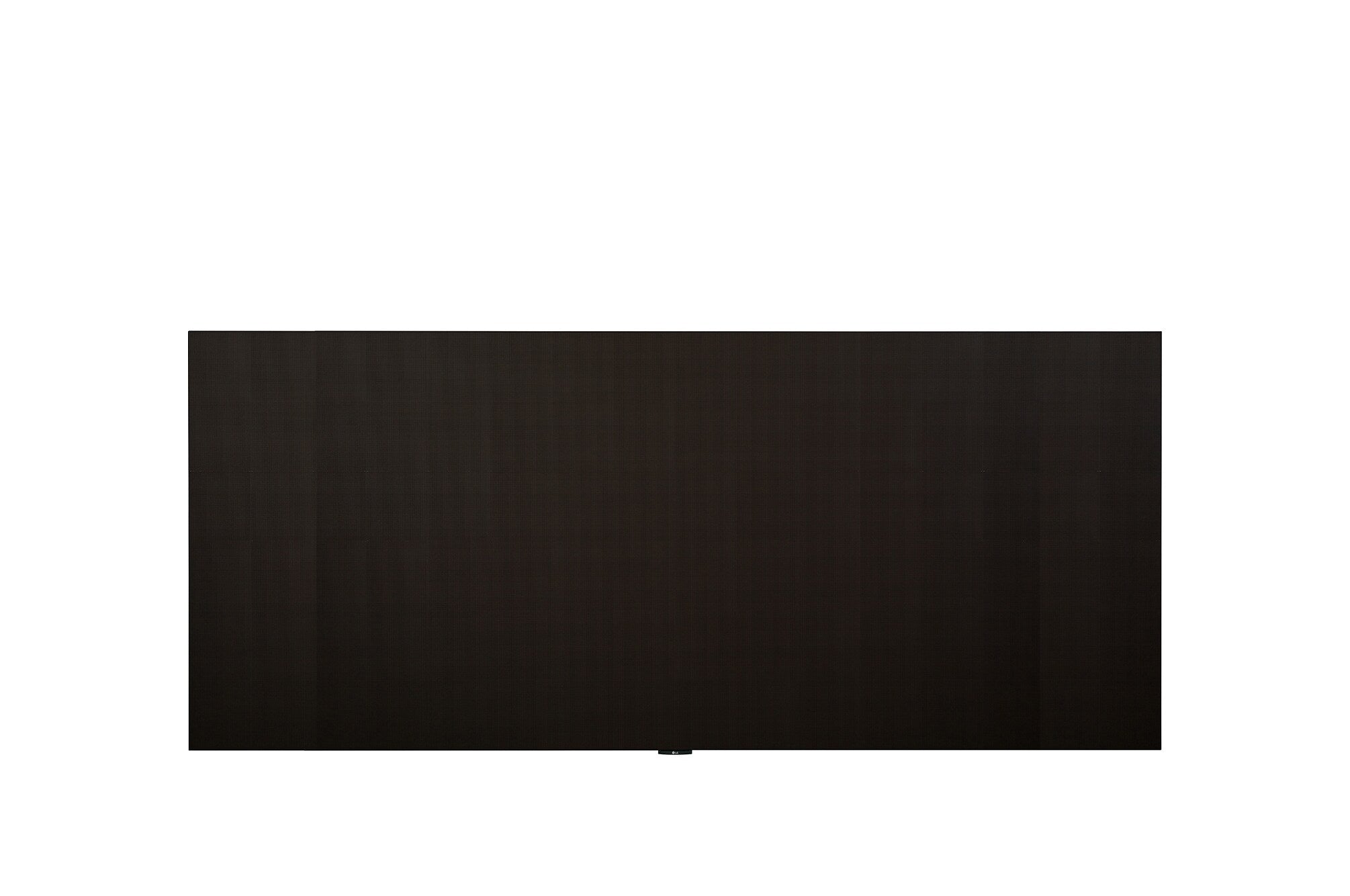

171-inch 21:9 Ultrawide LED Canvas

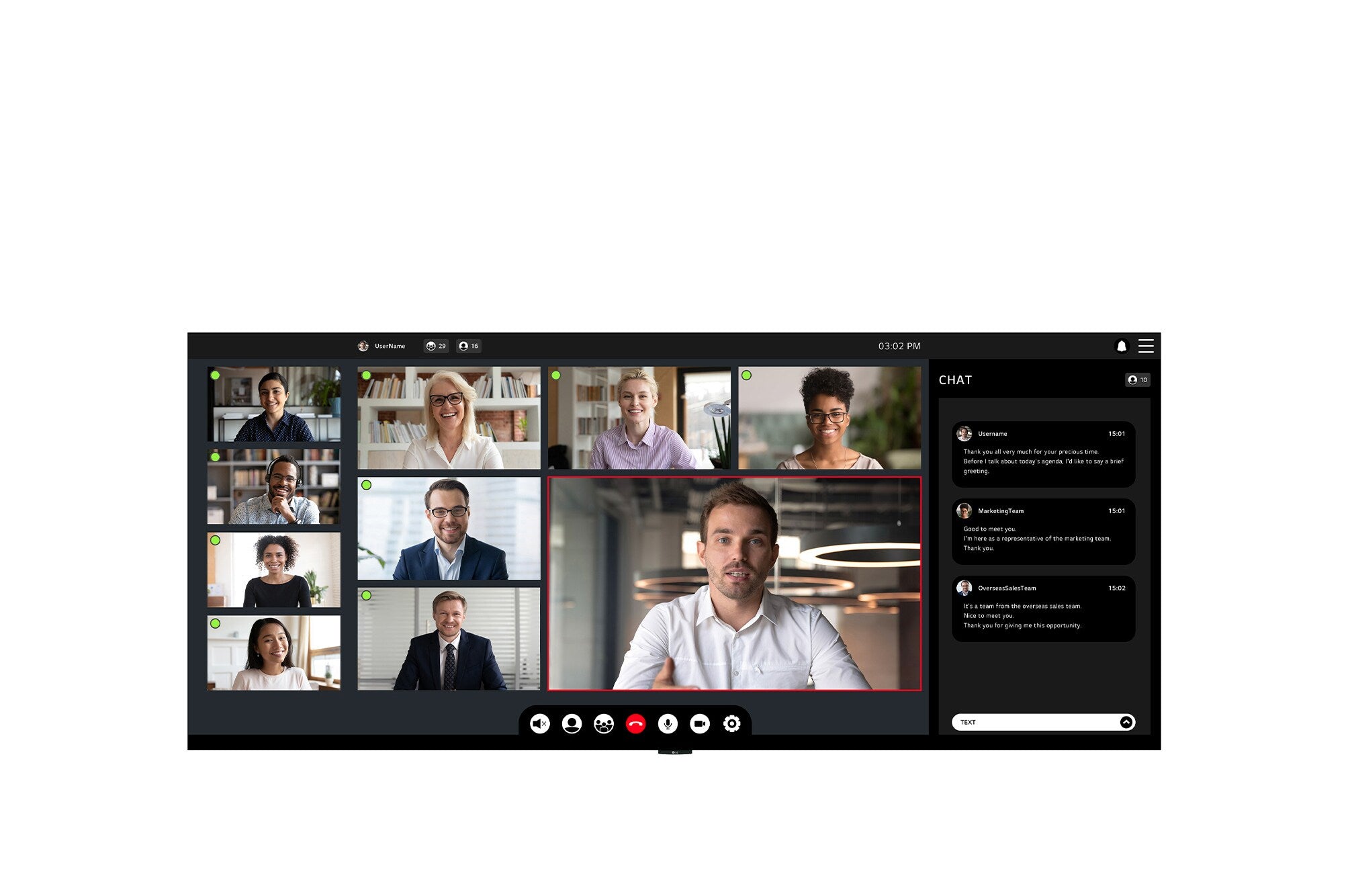

The LG LAED015-GN is a 171-inch all-in-one LED display in a 21:9 format, with a 1.56 mm pixel pitch and 2,560 x 1,080 resolution. Brightness is 500 nit after calibration, suiting boardrooms, auditoriums and lobbies that show side-by-side content, video conferencing or panoramic material.
Embedded Controller and Built-in Speakers
The controller is embedded, so no external sending box or media player is needed, and 9 W + 9 W speakers are built in. Inputs include three HDMI, DisplayPort, USB, LAN, RS-232C in/out and optical audio out.

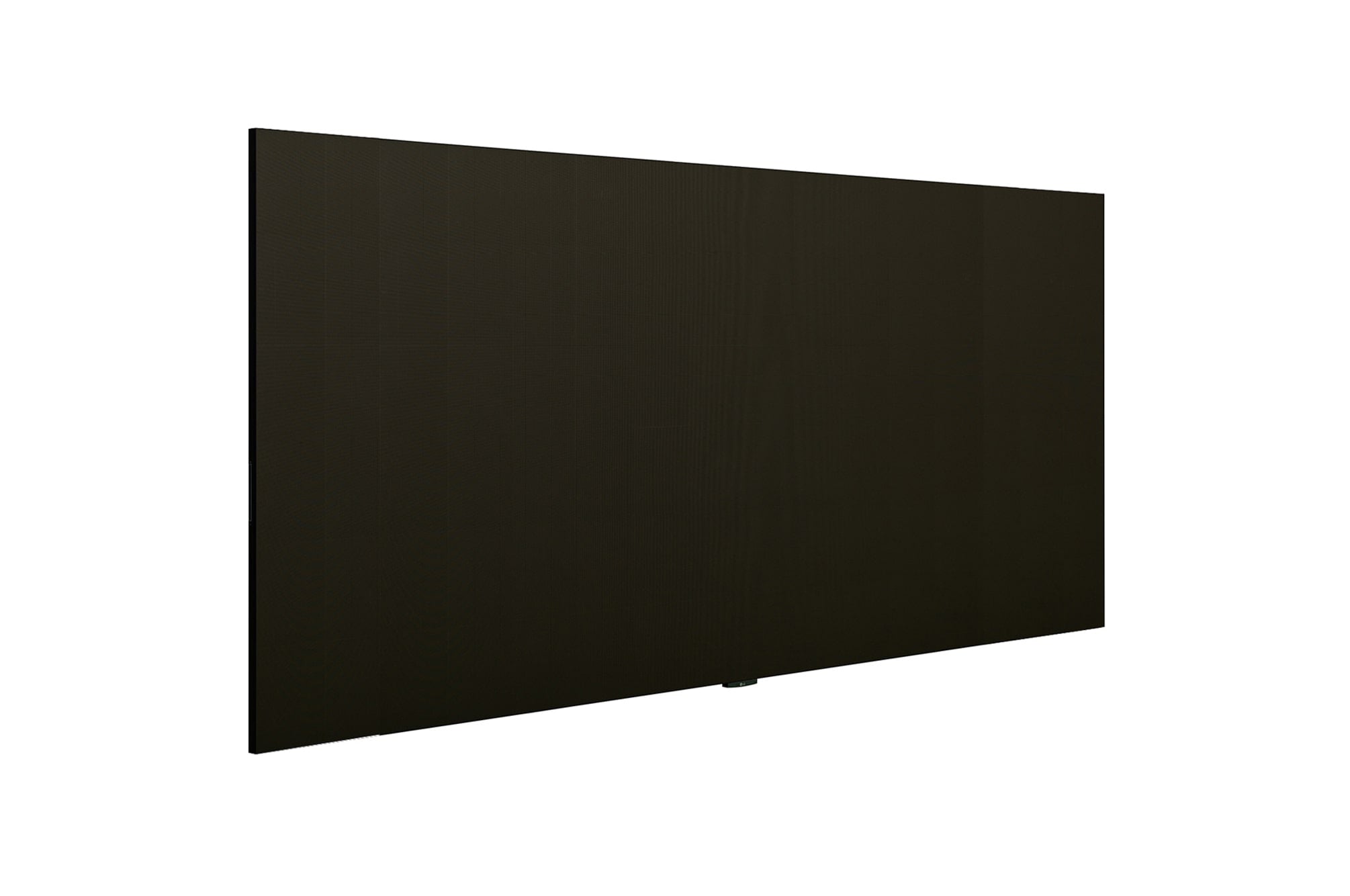

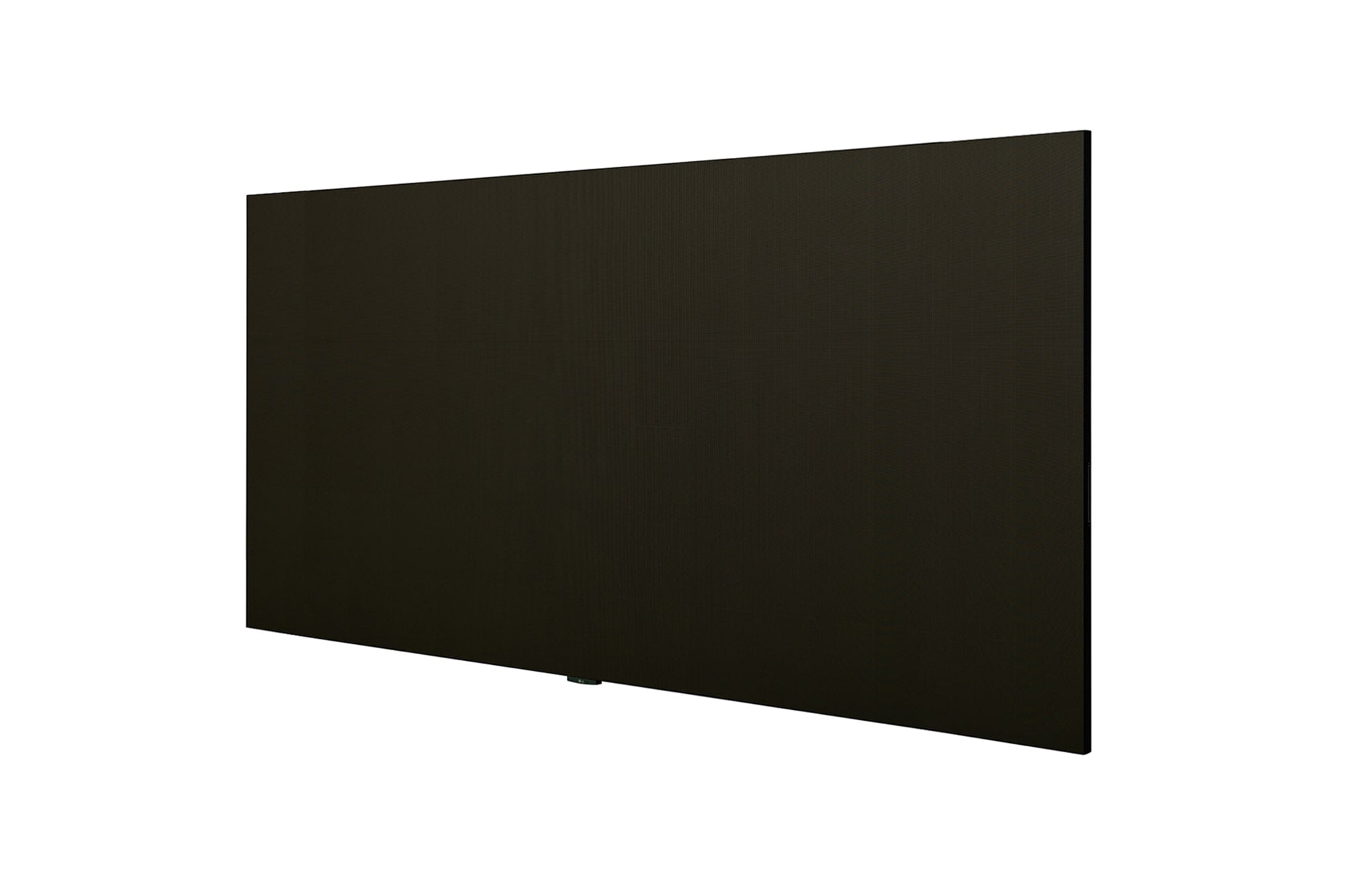

Front-Serviceable Aluminium Build
96 modules sit on an aluminium cabinet with front service access. LG rates the LEDs at 100,000 hours to half brightness, with a 3,960 Hz refresh rate and 16-bit processing with HDR10 and HDR10 Pro.
Need help planning an ultrawide LED wall? Email sales@sourceit.com.sg with the wall size and viewing distance, and we will recommend the right model.
LG LAED015-GN Datasheet — Technical Specifications
General
| Product Name | LG LAED015-GN 171" 21:9 All-in-One LED Display |
| Part Number | LAED015-GN |
| Series | LAED 21:9 All-in-One LED |
| Local Warranty (Singapore) | 3 years, with 5% spare modules per LG pricebook; supplied by SourceIT with a GST invoice |
Display
| Screen Size | 171" (21:9) |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 1.56 mm |
| Screen Resolution | 2,560 x 1,080 |
| Brightness (after calibration) | 500 nit |
| Contrast Ratio | 3,000:1 |
| Viewing Angle (H x V) | 160 x 160 |
| Colour Temperature | 3,200–9,300 K |
| Processing Depth | 16 bit (HDR10, HDR10 Pro) |
| Brightness / Colour Uniformity | 98% / ±0.015 Cx, Cy |
| Frame Rate / Refresh Rate | 50 / 60 Hz; 3,960 Hz |
| Physical Pixel Density | 409,600 pixels/m² |
Module & Cabinet Configuration
| Module Dimensions (W x H) | 250 x 281.25 mm |
| Modules per Screen (W x H) | 16 x 6 (total 96) |
| Cabinet Material | Aluminium |
| Flatness of Cabinet | ±0.2 mm |
| Service Access | Front |
Mechanical & Mounting
| Screen Dimensions (W x H x D) | 4,003.3 x 1,691.8 x 36.5 mm (thickest 70 mm) |
| Screen Surface Area | 6.8 m² |
| Weight | 176 kg |
| Wall Mount | Included (per LG pricebook) |
Controller & Connectivity
| Controller | Embedded |
| I/O Ports | HDMI (3), DP (1), USB, LAN, RS-232C in/out, IR, optical digital audio out |
| Speakers | Built-in, 9 W + 9 W |
Power & Environment
| Power Supply | 100–240 V |
| Power Consumption | 840 W avg. / 2,100 W max. per screen; 311 W/m² max. |
| Heat Dissipation | 7,165 BTU/h max. per screen |
| Lifetime | 100,000 hours to half brightness |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10–90% RH |
| IP Rating (Front / Rear) | IP30 / IP20 |
Certifications
| Certification | CE, FCC, ETL, CB |
| Environment | RoHS, REACH |
Compatibility & Software Support
Platform
Embedded controller: content plays directly on the display without an external sending box or media player.
Control
RS-232C in/out, LAN and IR for control-system integration.
Package Contents & LAED 21:9 All-in-One Ordering Information
In the Box
Wall mount included per LG pricebook. Installation is not included in the price; email us for the full LG packing list.
LAED 21:9 All-in-One Models
| Size | Part No. |
| 171" (this listing) | LAED015-GN |
Datasheet & Downloads
| LG product page (Global) | LAED015-GN on lg.com (Global) |
| LG product page (UK spec table) | LAED015-GN on lg.com/uk |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LAED015-GN.
Frequently Asked Questions — LG LAED015-GN
What aspect ratio is it?
21:9 ultrawide, at 2,560 x 1,080 resolution across a 171-inch screen.
Does it need an external LED controller?
No. LG lists an embedded controller.
Is a wall mount included?
Yes, per the LG pricebook. Installation itself is quoted separately.
How is it serviced?
From the front, per LG's specification.
What warranty do I get?
3 years local warranty with 5% spare modules per LG pricebook, supplied by SourceIT with a GST invoice.
