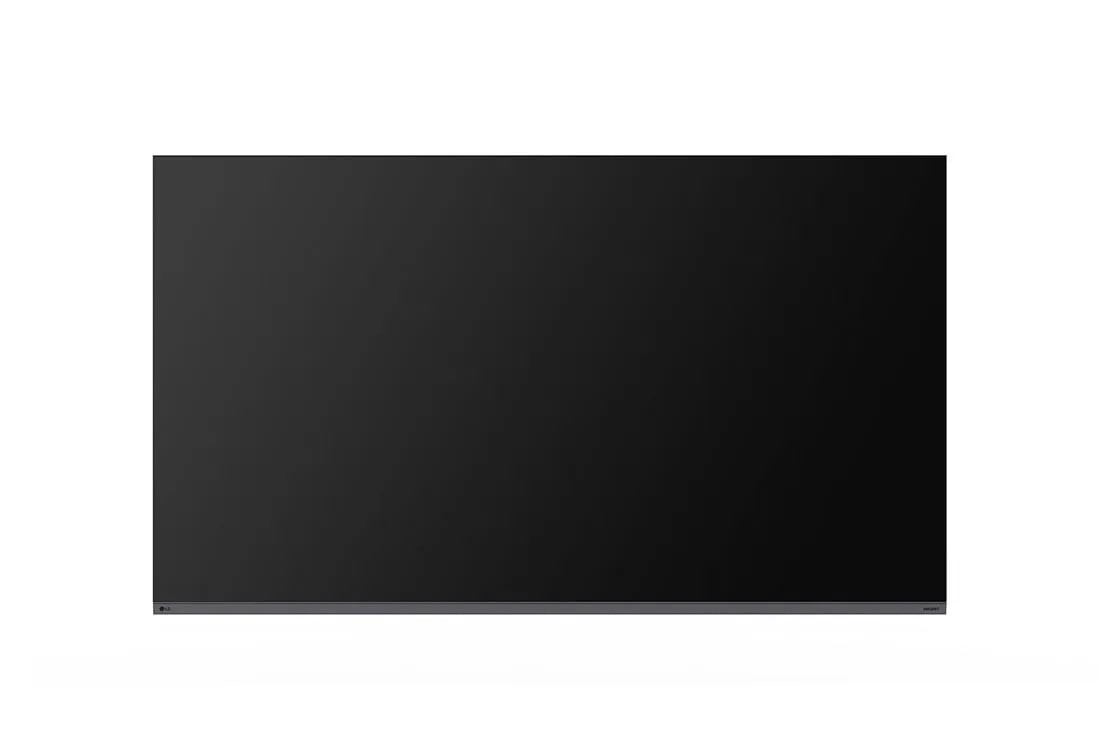

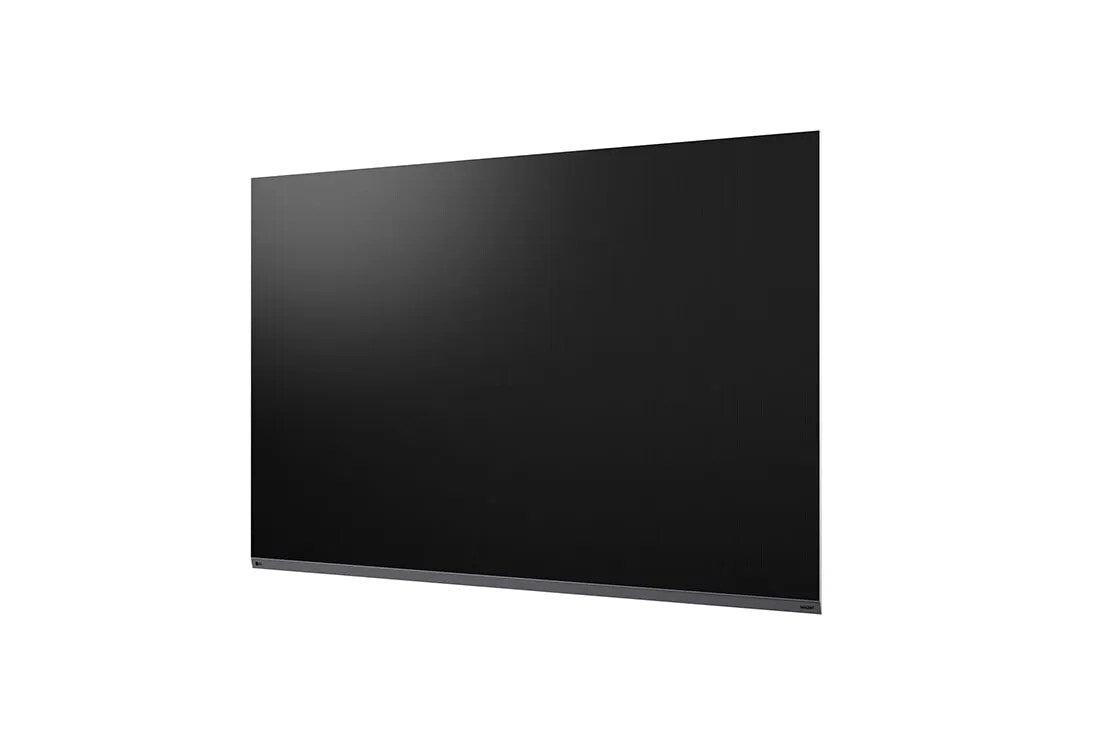

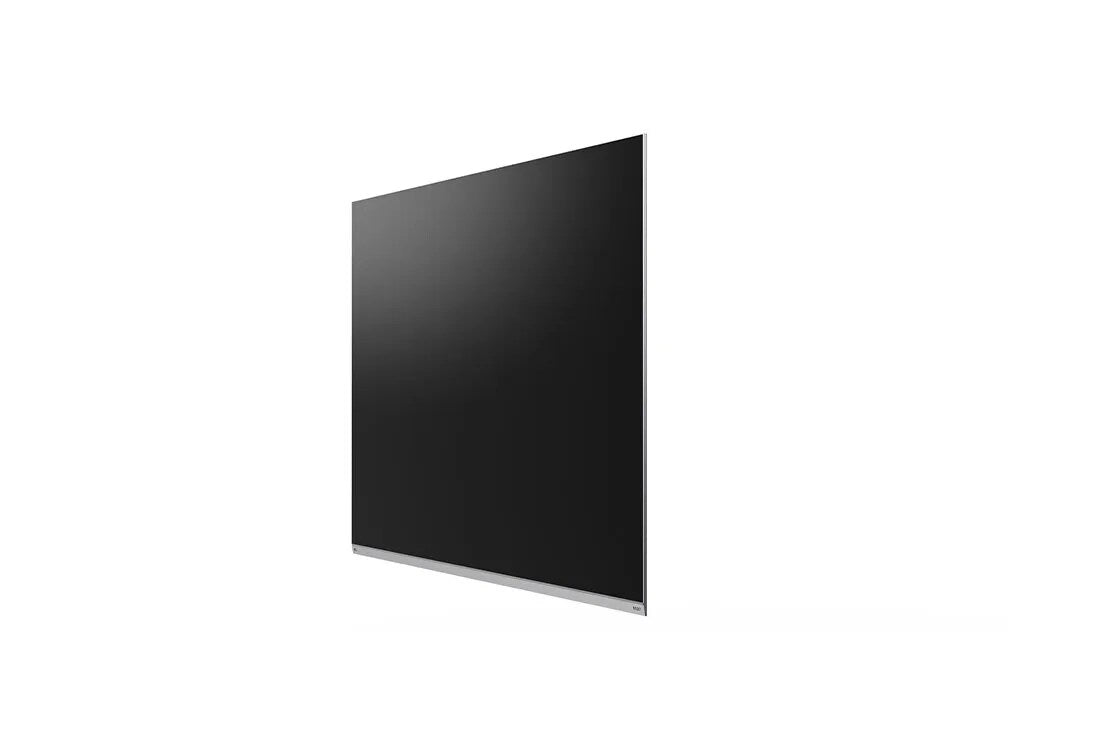

LG LAAA009 163" MAGNIT All-in-One Micro LED, P0.94, 4K UHD, 500 nit
PRODUCT DESCRIPTION
LG LAAA009 163" MAGNIT All-in-One Micro LED Display (LAAA009) - 3 Years Local Warranty
163-inch LG MAGNIT Micro LED
The LG LAAA009 is a 163-inch all-in-one Micro LED display from LG's MAGNIT range, with a 0.94 mm pixel pitch and 3,840 x 2,160 (4K UHD) resolution. Brightness is 500 nit after calibration with 1,500 nit peak, and LG lists a 40,000:1 contrast ratio at 10 lux with 20-bit processing (HDR10, HDR10 Pro).
Embedded webOS and Built-in Audio
The embedded webOS controller runs content without an external controller or player, and 10 W + 10 W speakers are built in. Wi-Fi and Bluetooth, three HDMI inputs, DisplayPort, USB, LAN and RS-232C in/out are included, and LG supports Crestron Connected and optional LG One:Quick Share wireless sharing.

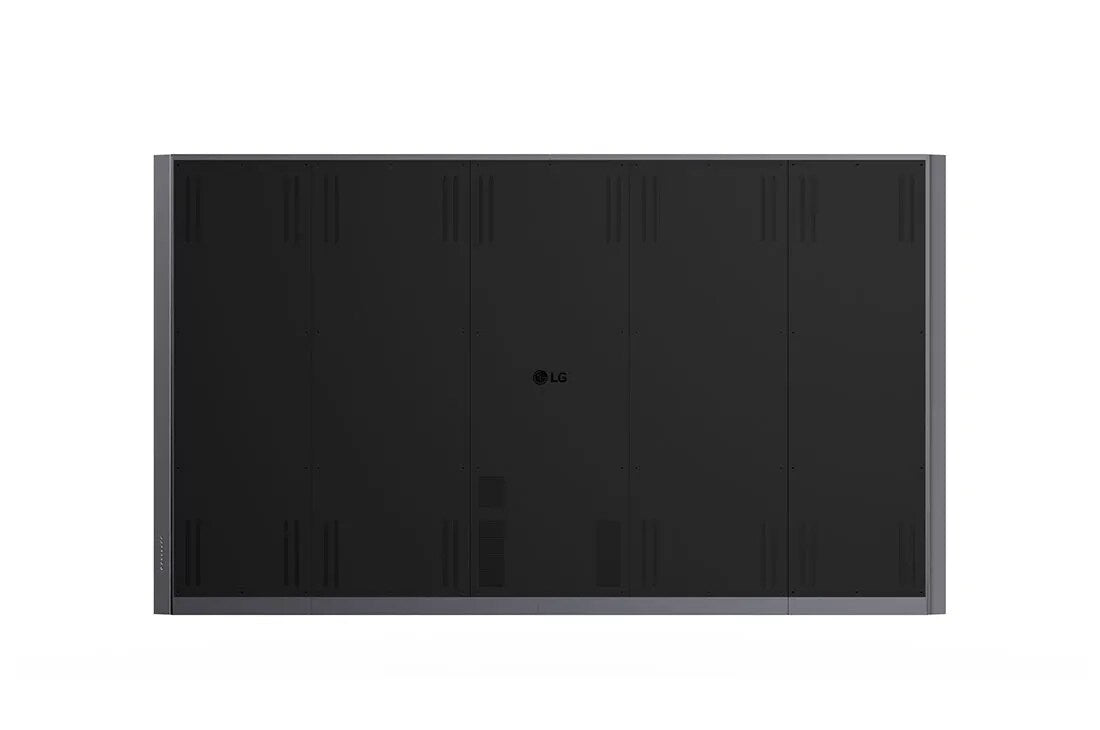

Front Service, Steel Cabinet
The 216 modules sit on a steel cabinet with front service access, and LG lists IP50 front protection. Both an IR remote and a Magic Remote are supplied in the box.
Need help planning a premium Micro LED installation? Email sales@sourceit.com.sg with the wall size and viewing distance, and we will recommend the right model.
LG LAAA009 Datasheet — Technical Specifications
General
| Product Name | LG LAAA009 163" MAGNIT All-in-One Micro LED Display |
| Part Number | LAAA009 |
| Series | LG MAGNIT All-in-One (LAAA) |
| Local Warranty (Singapore) | 3 years, with 5% spare modules per LG pricebook; supplied by SourceIT with a GST invoice |
Display
| Screen Size | 163" (16:9) |
| Pixel Configuration | Micro LED |
| Pixel Pitch | 0.94 mm |
| Screen Resolution | 3,840 x 2,160 (4K UHD) |
| Brightness (after calibration) | 500 nit; 1,500 nit peak |
| Contrast Ratio | 40,000:1 @ 10 lux |
| Viewing Angle (H x V) | 160 x 160 |
| Colour Temperature | 3,200–9,300 K |
| Processing Depth | 20 bit (HDR10, HDR10 Pro) |
| Brightness / Colour Uniformity | 95% / ±0.015 Cx, Cy |
| Frame Rate / Refresh Rate | 50 / 60 Hz; 3,840 Hz |
| Physical Pixel Density | 1,137,778 pixels/m² |
Module & Cabinet Configuration
| Module Resolution (W x H) | 320 x 120 |
| Module Dimensions (W x H) | 300 x 112.5 mm |
| Modules per Screen (W x H) | 12 x 18 (total 216) |
| Cabinet Material | Steel |
| Flatness of Cabinet | ±0.2 mm |
| Service Access | Front |
Mechanical & Mounting
| Screen Dimensions (W x H x D) | 3,604 x 2,078.8 x 54.9 mm (thickest 57.4 mm) |
| Screen Surface Area | 7.29 m² |
| Screen Weight | 258.4 kg |
| Wall Mount | Not included |
| Side-by-Side | Yes (1 x N) |
Controller & Connectivity
| Controller | Embedded (webOS) |
| I/O Ports | HDMI (3), DP (1), USB, LAN, RS-232C in/out, IR, digital audio out (SPDIF optical) |
| Wi-Fi / Bluetooth | Yes |
| Speakers | Built-in, 10 W + 10 W |
| Remote | IR remote and Magic Remote (in-box) |
| Third-Party Control | Crestron Connected |
Power & Environment
| Power Supply | 100–240 V |
| Power Consumption | 900 W avg. / 1,750 W max. per screen; 240 W/m² max. |
| Heat Dissipation | 3,071 BTU/h avg. / 5,971 BTU/h max. per screen; 819 BTU/h/m² max. |
| Lifetime | 100,000 hours to half brightness |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10–80% RH |
| IP Rating (Front / Rear) | IP50 / IP20 |
Certifications
| Certification | 62368-1 & 60950-1, EMC Class A, BS476 Part 7 Class 1 |
| Environment | RoHS |
Compatibility & Software Support
Platform
Embedded webOS on a quad-core SoC: content plays directly on the display without an external controller or media player. LG offers the webOS Signage SDK for app development.
Integration
| Crestron Connected | Yes |
| LG One:Quick Share | Optional wireless screen sharing (Windows 10+ / macOS 10.15+; dongle sold separately) |
Package Contents & LG MAGNIT All-in-One Ordering Information
In the Box
IR remote, Magic Remote.
No wall mount is supplied (pricebook: no accessories). Wall mounting hardware and installation are quoted separately.
LG MAGNIT All-in-One Models
| Size | Part No. |
| 136" (P1.56, FHD) | LAAA015 |
| 163" (P0.94, 4K UHD) (this listing) | LAAA009 |
Datasheet & Downloads
| LG product page (Global) | LAAA009 on lg.com (Global) |
| LG spec sheet and datasheet (PDF) | LAAA009 on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LAAA009.
Frequently Asked Questions — LG LAAA009
Does it need an external LED controller?
No. The controller is embedded and runs webOS.
What is the difference between LAAA015 and LAAA009?
LAAA015 is 136" with a 1.56 mm pitch at Full HD; LAAA009 is 163" with a 0.94 mm pitch at 4K UHD.
Is a wall mount included?
No. The pricebook lists no accessories for this model, so wall mounting hardware and installation are quoted separately.
How is it serviced?
From the front, per LG's specification.
What warranty do I get?
3 years local warranty with 5% spare modules per LG pricebook, supplied by SourceIT with a GST invoice.
