LG 86BH5F-M 86" Ultra Stretch Signage, 58:9, 3840x600, 500 nit, 24/7
PRODUCT DESCRIPTION
LG 86BH5F-M 86" Ultra Stretch Signage (86BH5F-M) - 3 Years Local Warranty

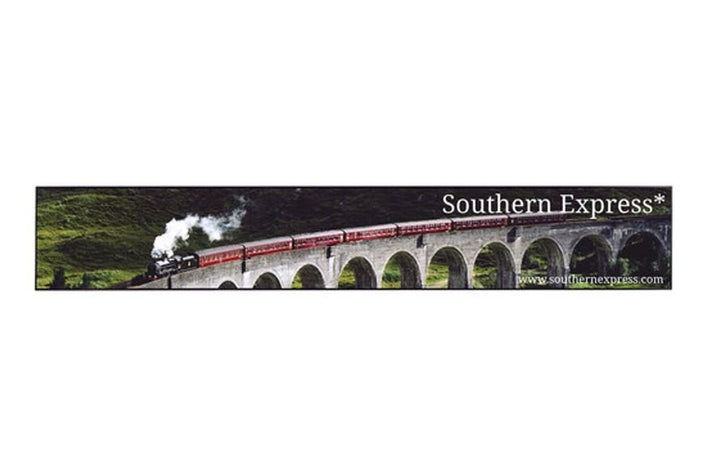

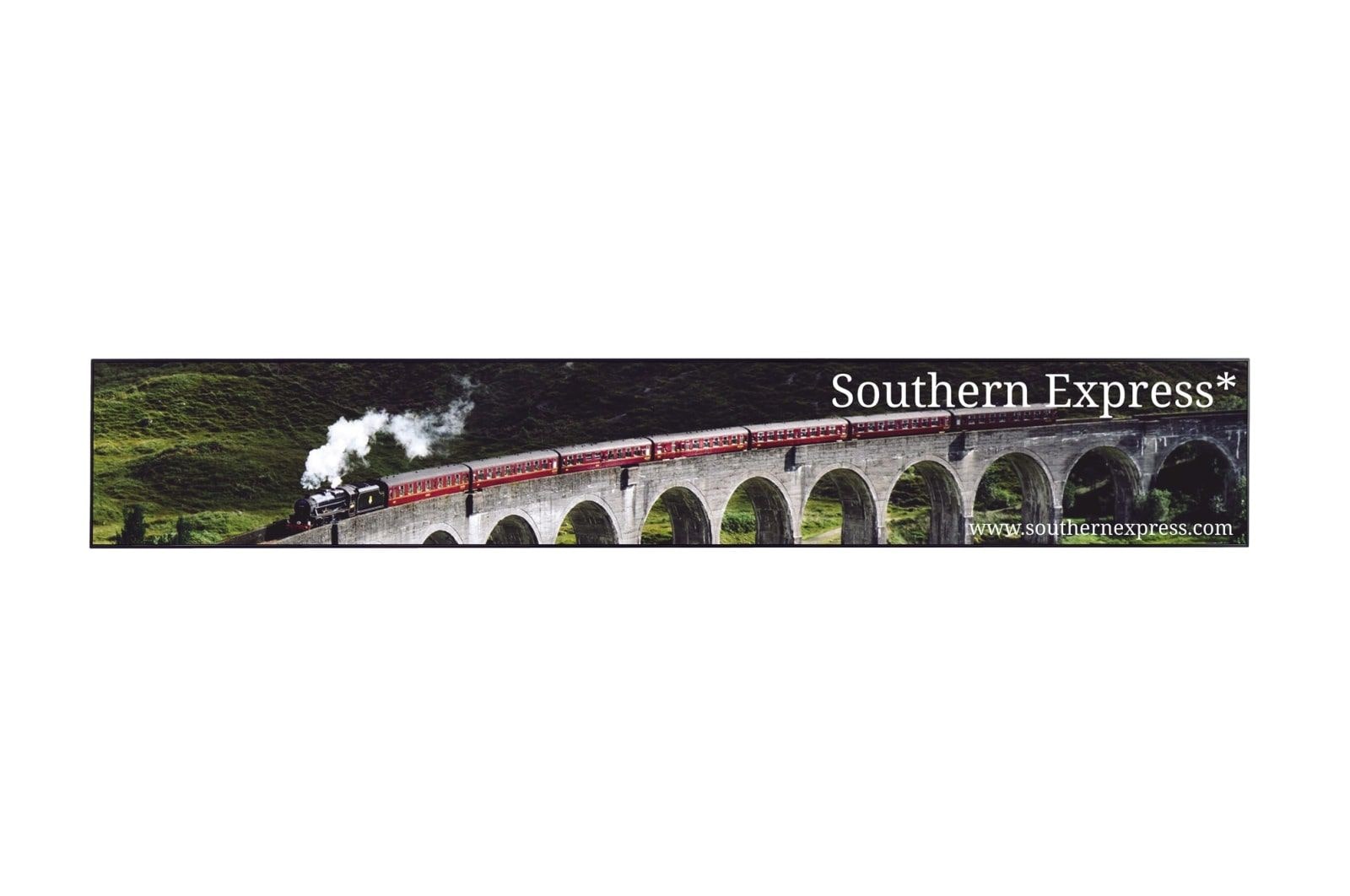

58:9 Ultra Stretch Format

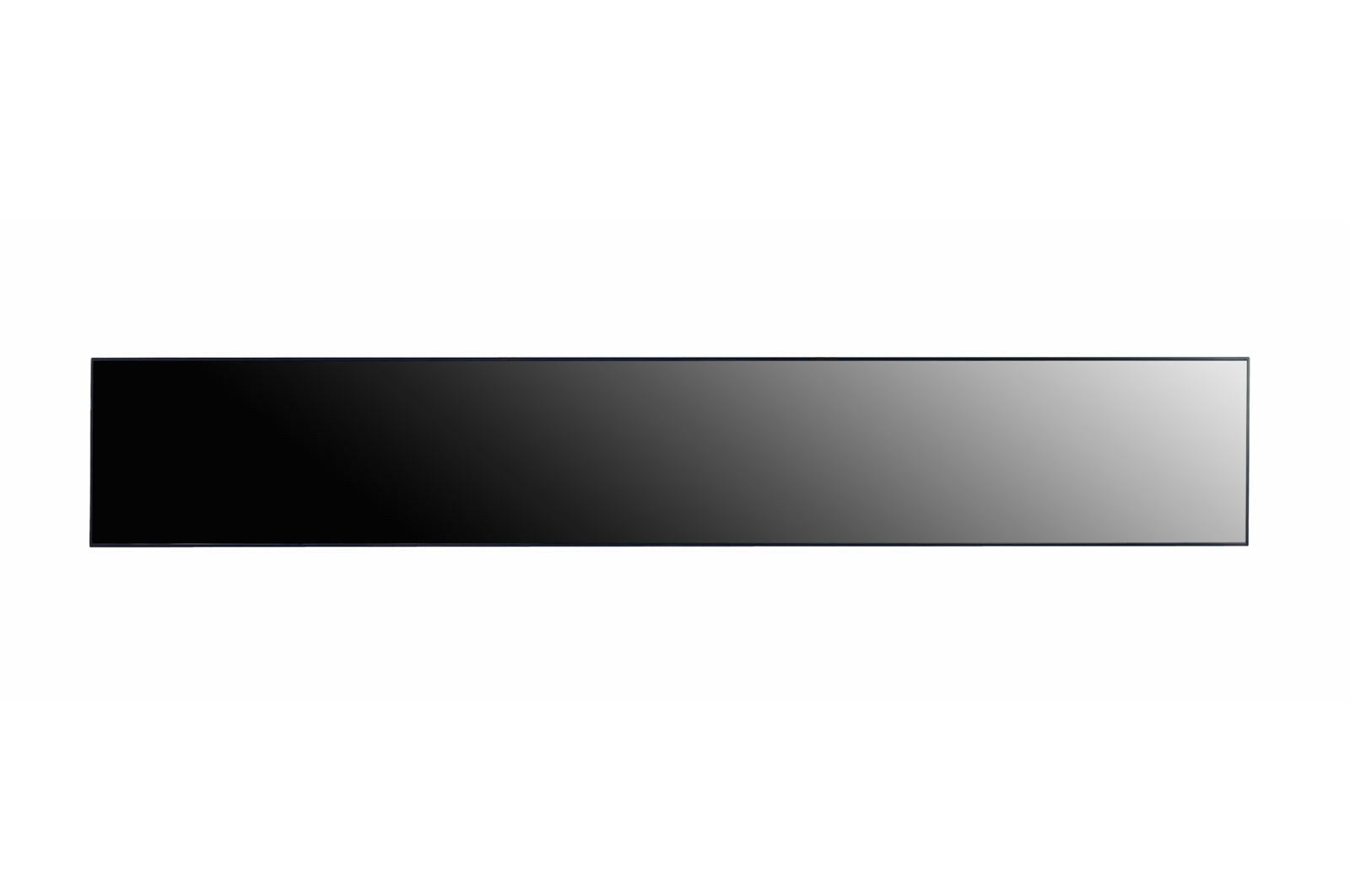

The LG 86BH5F-M is an 86-inch ultra stretch display with a 58:9 aspect ratio and 3,840 x 600 resolution. Its long, narrow shape suits shelf-edge, wayfinding, menu and transport information displays where a standard 16:9 screen does not fit.
500 nit IPS for 24/7 Use
The IPS panel delivers 500 nit (typ.) brightness with a 3% haze surface, and LG rates it for 24/7 operation with a 50,000-hour typical lifetime. LG lists landscape and portrait installation.

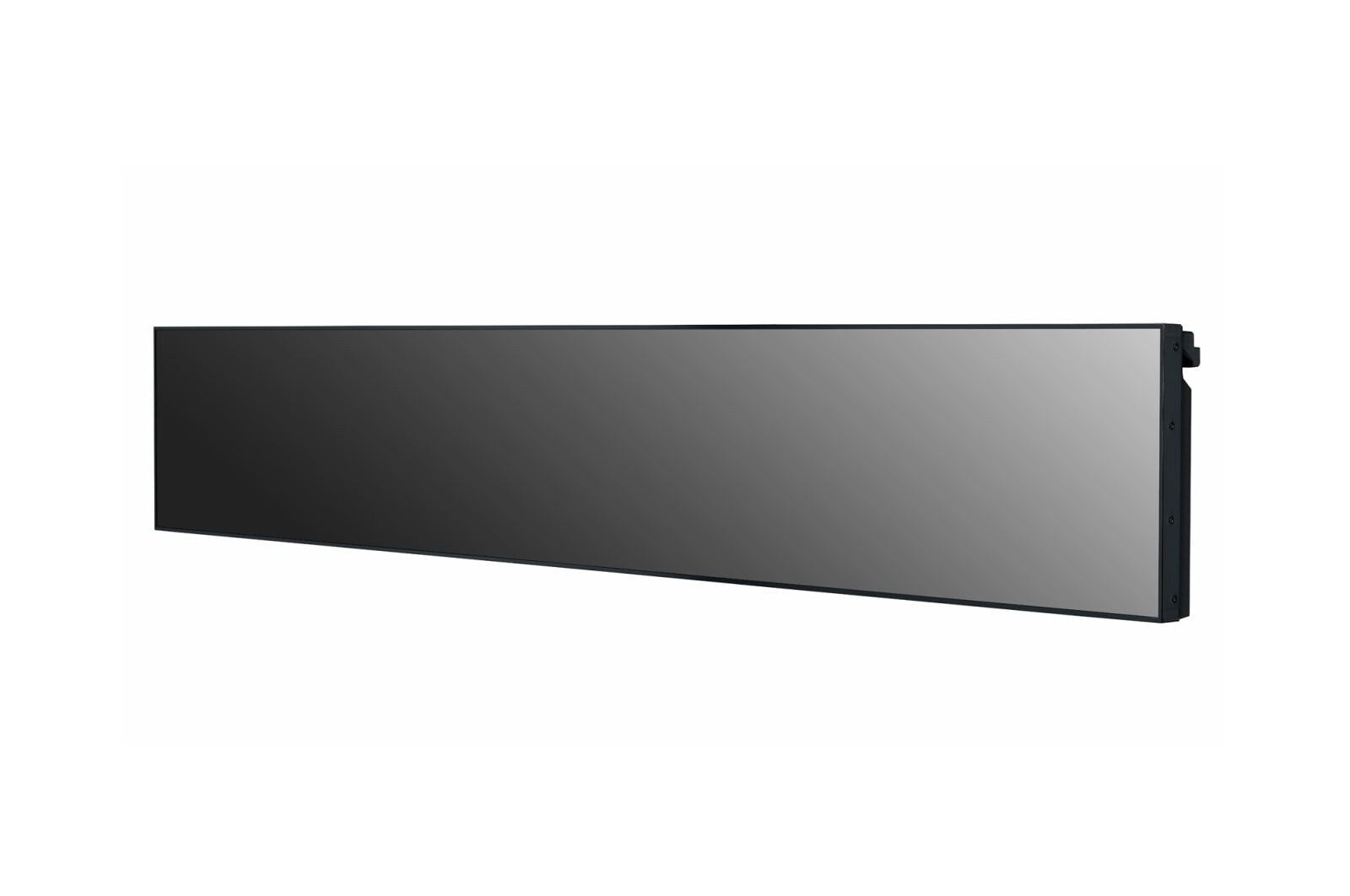

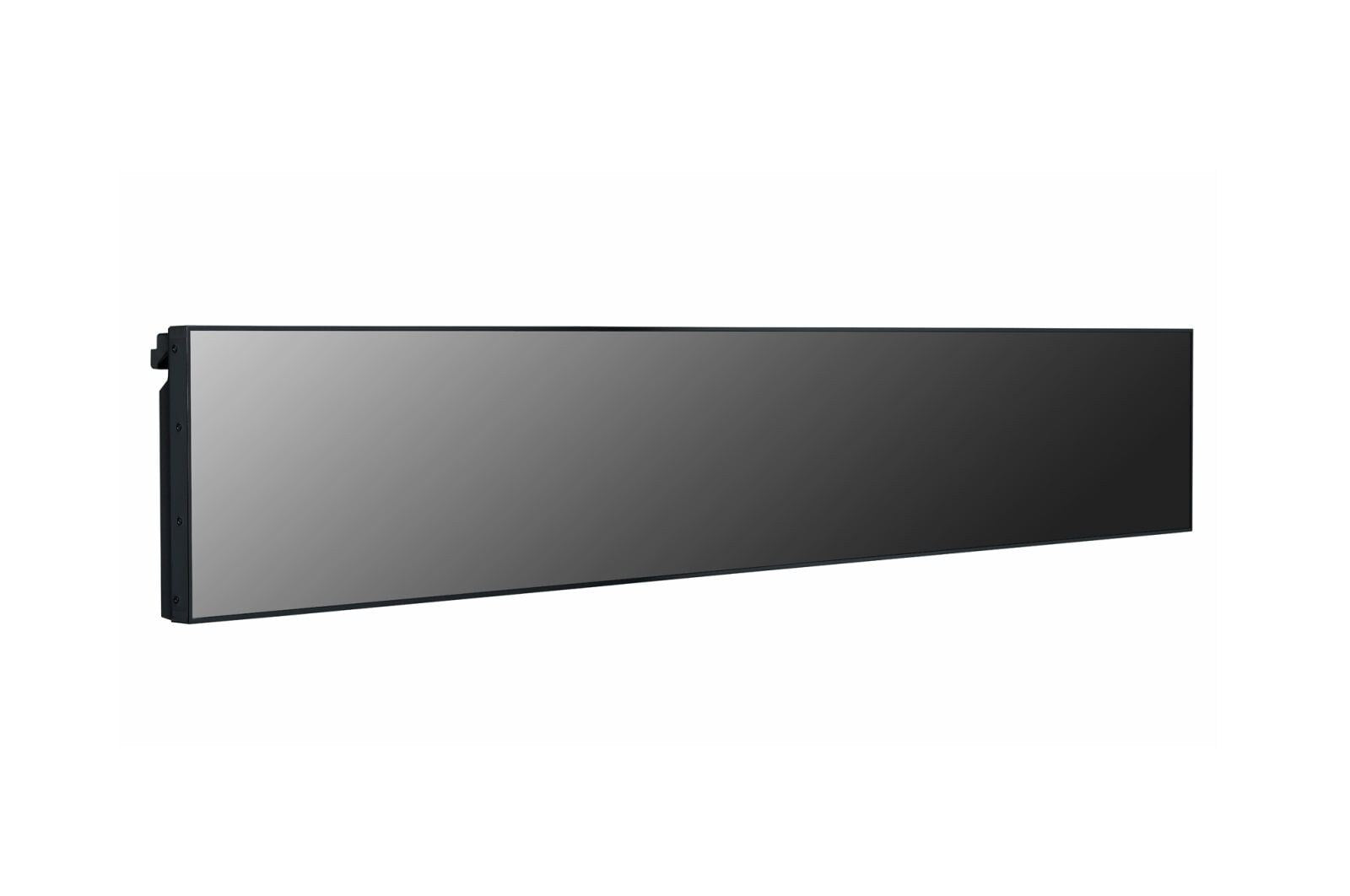

Slim Profile, Even Bezel

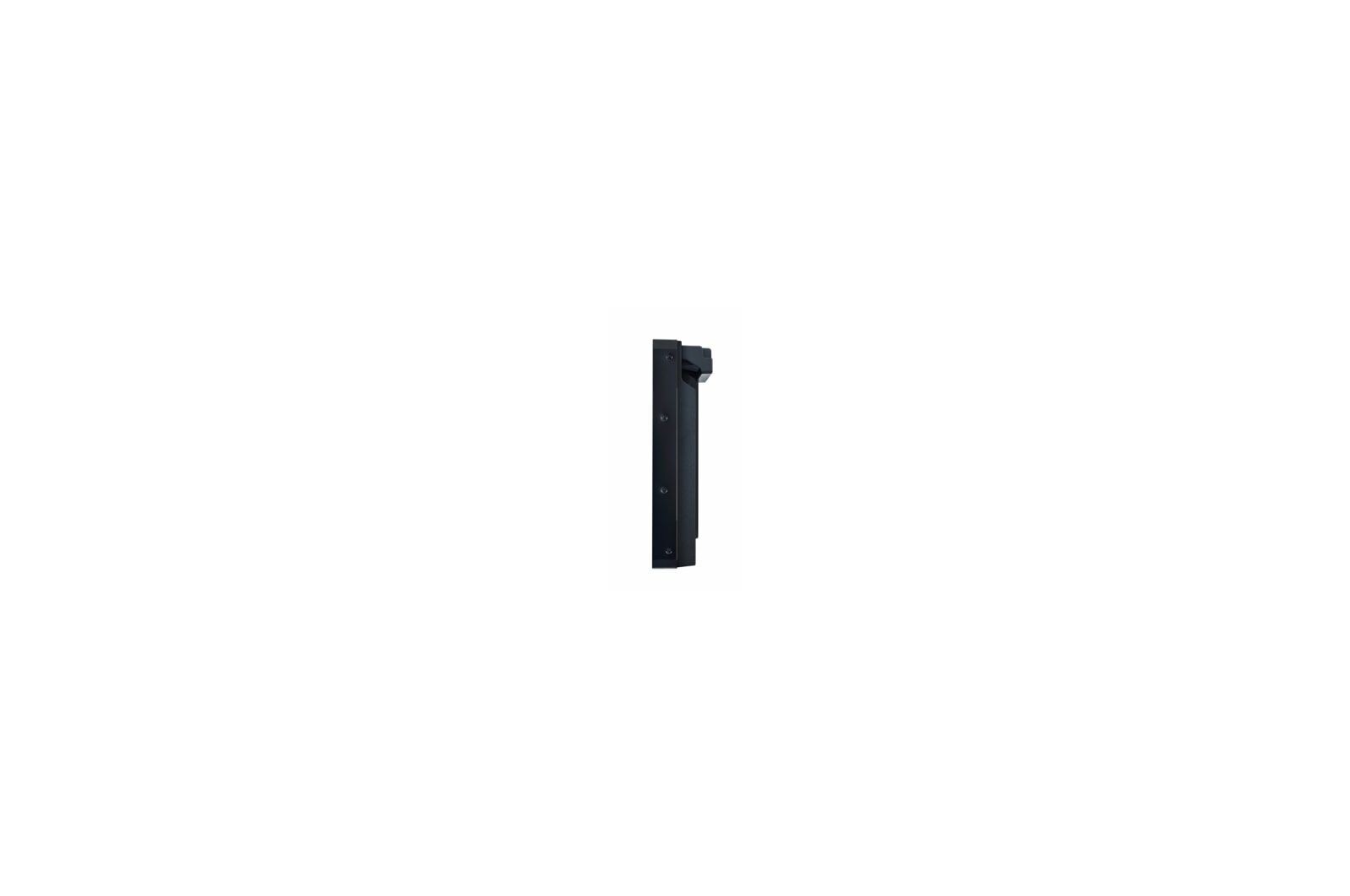

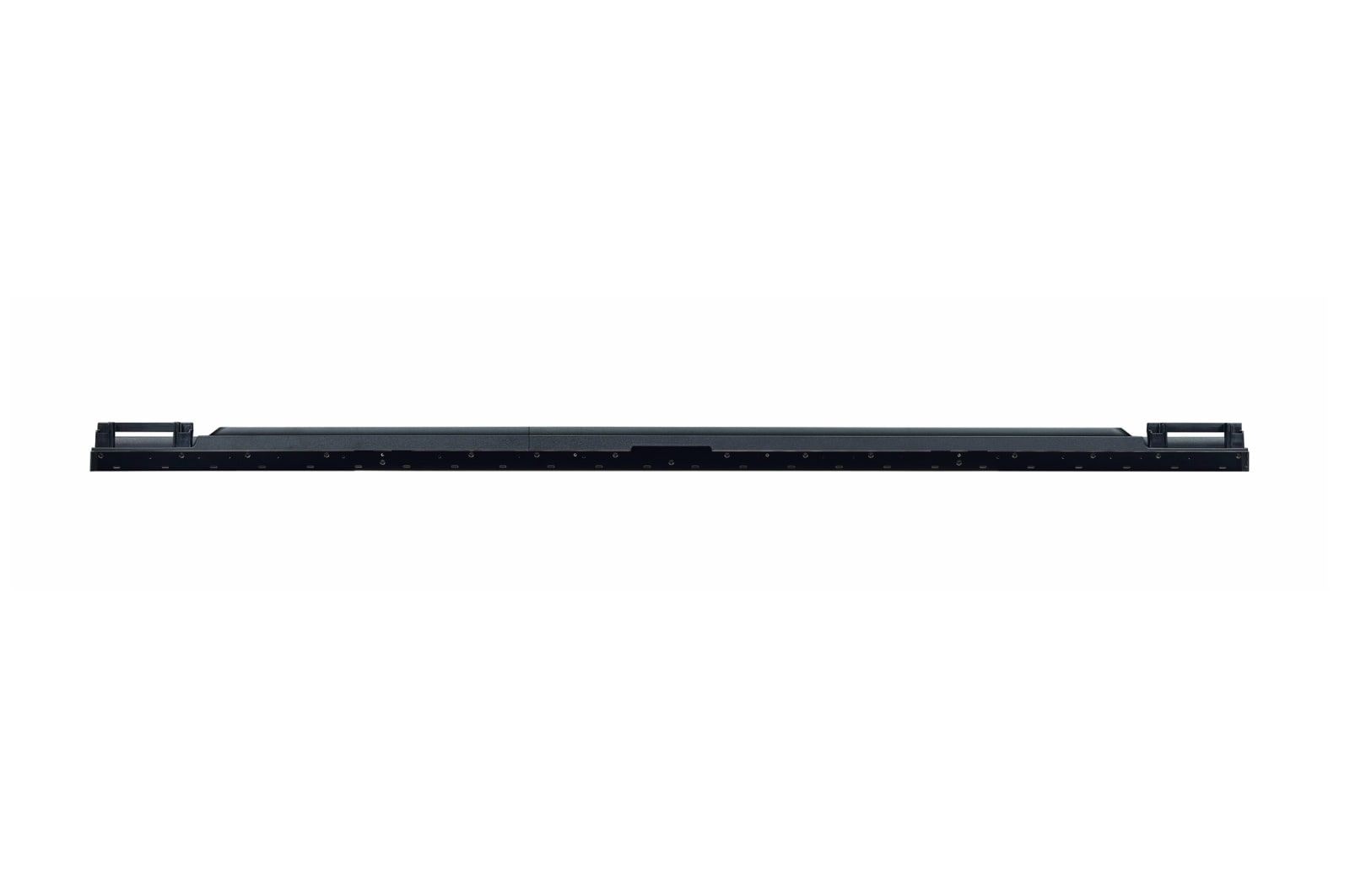

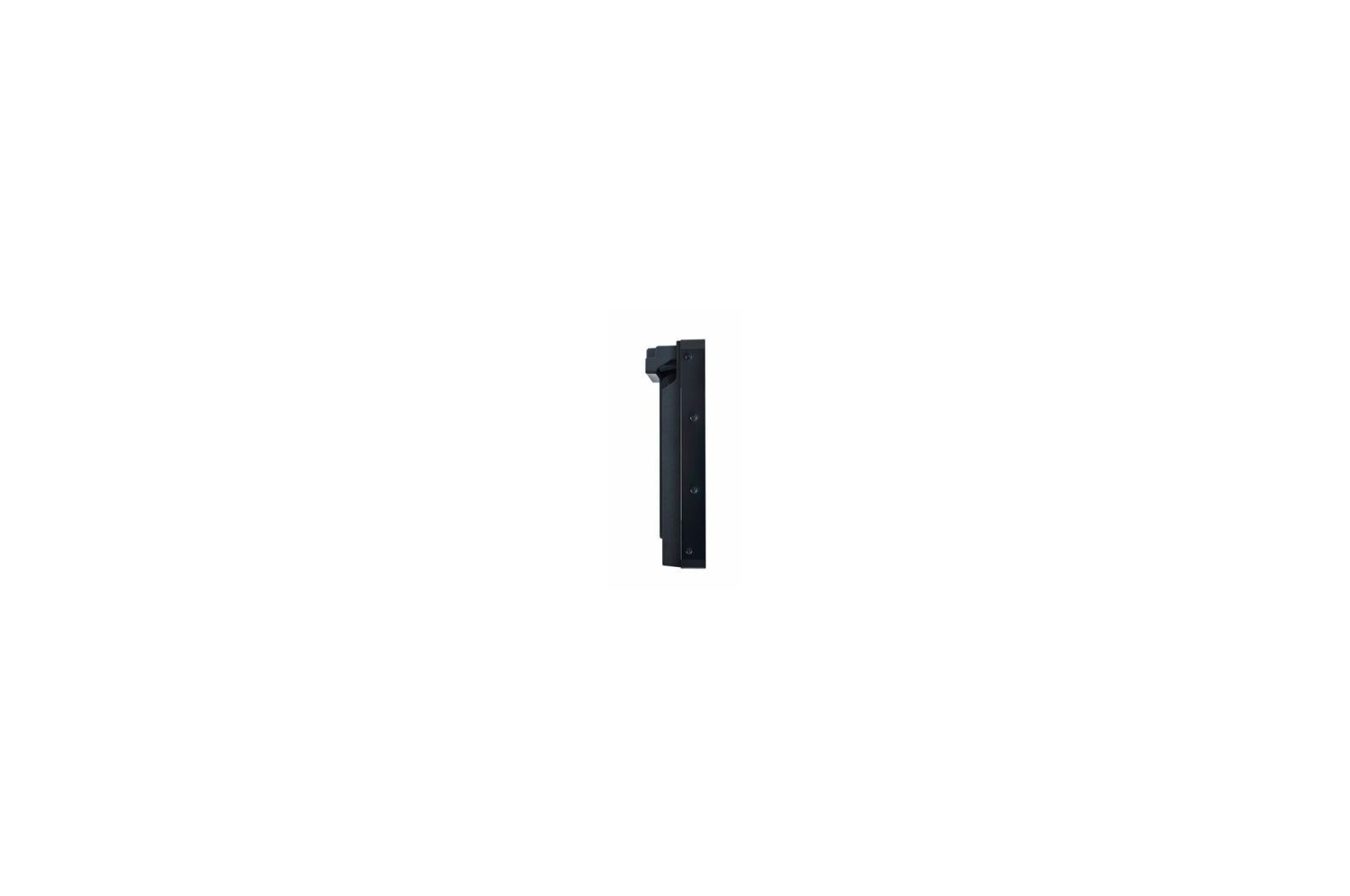

The display measures 2,158.3 x 348.5 x 81.7 mm and weighs 20.5 kg, with 4.4 mm (left/right) and 5.9 mm (top/bottom) bezels and a 600 x 200 mm VESA pattern.
webOS and LG Management Software
webOS 4.0 is built in, and LG lists compatibility with SuperSign CMS (SuperSign Editor not supported), SuperSign Control / Control+ and LG ConnectedCare. An optional piggyback OPS kit (KT-OPSF) is available from LG.
Not sure whether an ultra stretch display suits your space? Email sales@sourceit.com.sg with the location, mounting position and content, and we will advise.
LG 86BH5F-M Datasheet — Technical Specifications
General
| Product Name | LG 86BH5F-M 86" Ultra Stretch Signage |
| Part Number | 86BH5F-M |
| Series | BH5F Ultra Stretch Signage |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 86" |
| Panel Technology | IPS |
| Aspect Ratio | 58:9 |
| Native Resolution | 3,840 x 600 |
| Brightness | 500 nit (typ.) |
| Contrast Ratio | 1,100:1; dynamic 500,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 3% |
| Lifetime | 50,000 hours (typ.) |
| Operation Hours | 24/7 |
| Portrait / Landscape | Yes / Yes |
Connectivity

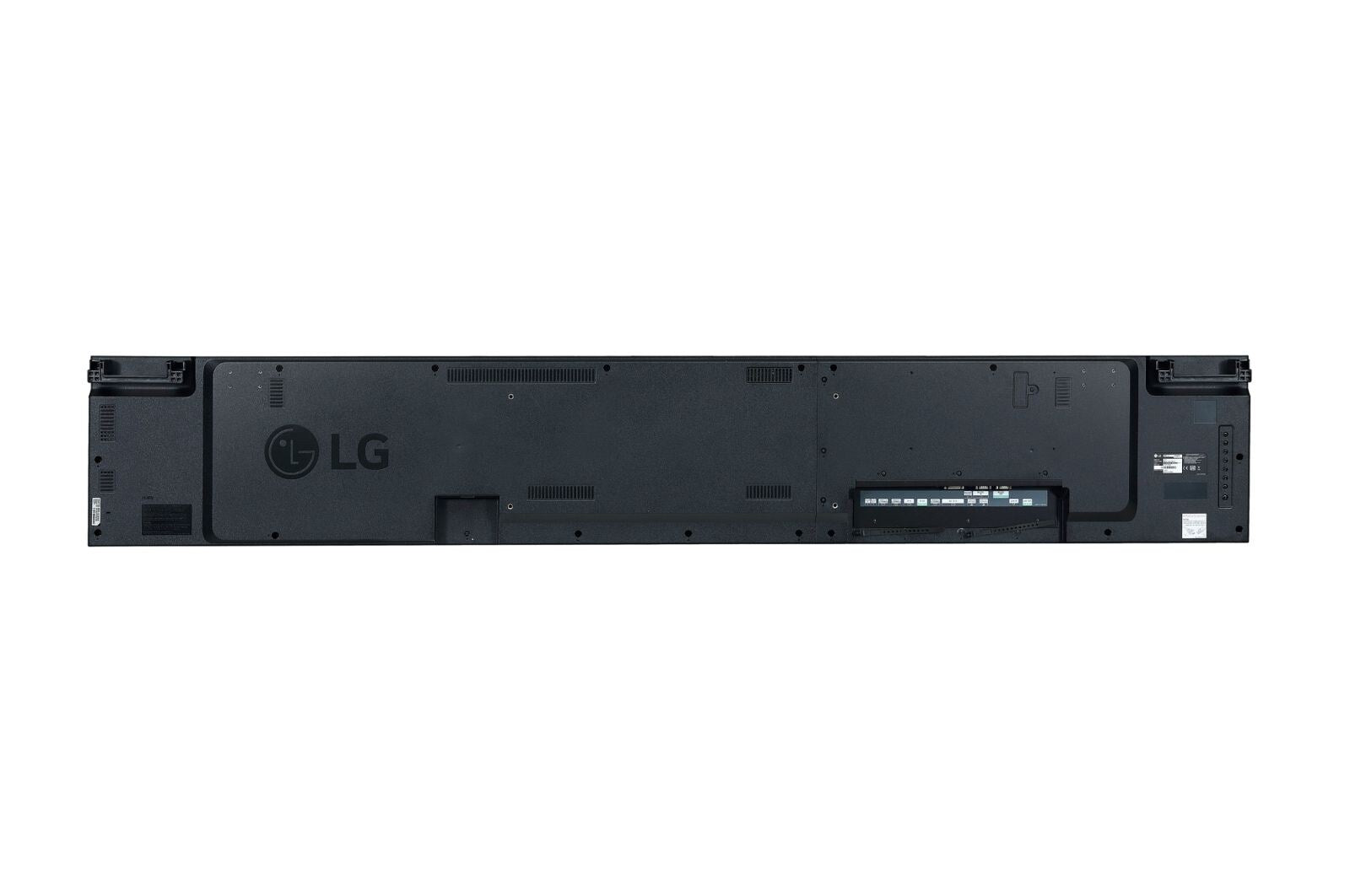

| Inputs | HDMI x 3 (HDCP 2.2/1.4), DisplayPort, DVI-D, Audio, USB 2.0 Type-A x 2 |
| Outputs | DP, Audio |
| External Control | RS-232C in/out, RJ45 (LAN) in/out, IR in |
| OPS | OPS type compatible (piggyback, optional KT-OPSF kit) |
Mechanical
| Bezel | Black; 4.4 mm (L/R), 5.9 mm (T/B) |
| Dimensions (W x H x D) | 2,158.3 x 348.5 x 81.7 mm |
| Weight (Head) | 20.5 kg |
| Carton Dimensions (W x H x D) | 2,290 x 599 x 228 mm |
| Packed Weight | 38.2 kg |
| Handle | Yes |
| VESA Mount | 600 x 200 mm |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 220 W typ. / 240 W max.; Smart Energy Saving (70%) 100 W |
| Heat Dissipation | 751 BTU/hr (typ.), 819 BTU/hr (max.) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80% |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class A / CE / KC |
| ErP / Energy Star | Yes (EU only) / No |
Compatibility & Software Support
Platform
LG webOS 4.0 (per LG Singapore).
LG Software
| SuperSign CMS | Yes (SuperSign Editor not supported) |
| SuperSign Control / Control+ | Yes |
| LG ConnectedCare | Yes |
Control & Integration
RS-232C in/out, RJ45 (LAN) in/out and IR in for external control. Optional piggyback OPS via LG's KT-OPSF kit; the OPS PC is not included.
Package Contents & BH5F Series Ordering Information
In the Box
Remote controller, power cord, DP cable, RS-232C cable, IR/light sensor receiver and manual.
Optional Accessories (LG)
OPS kit KT-OPSF. Wall brackets and installation are not included in the price.
BH5F Series Models
| Size | Part No. |
| 86" (this listing) | 86BH5F-M |
Datasheet & Downloads
| LG product page (Singapore) | 86BH5F-M on lg.com/sg |
| LG spec sheet and datasheet (PDF) | 86BH5F-M on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 86BH5F-M.
Frequently Asked Questions — LG 86BH5F-M
What resolution does it display?
3,840 x 600 in a 58:9 aspect ratio. Content should be designed for that shape rather than scaled from 16:9.
Can it be mounted in portrait?
Yes. LG lists both landscape and portrait orientation.
Is it suitable for 24/7 use?
Yes. LG rates it for 24/7 operation with a 50,000-hour typical lifetime.
Is a wall bracket included?
No. Wall mounting brackets and installation are quoted separately; the VESA pattern is 600 x 200 mm.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
