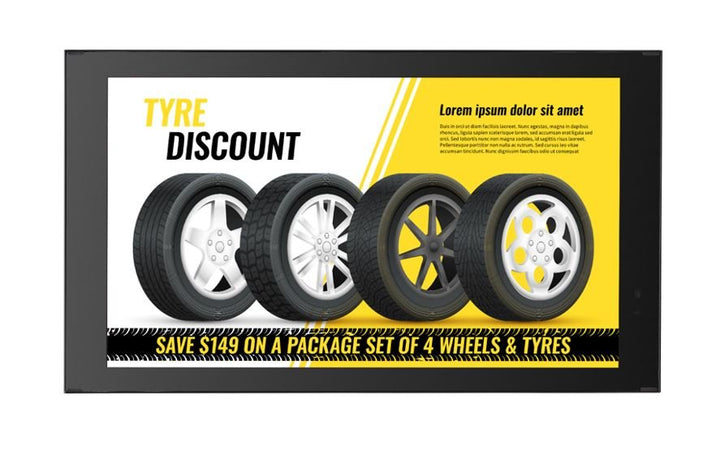

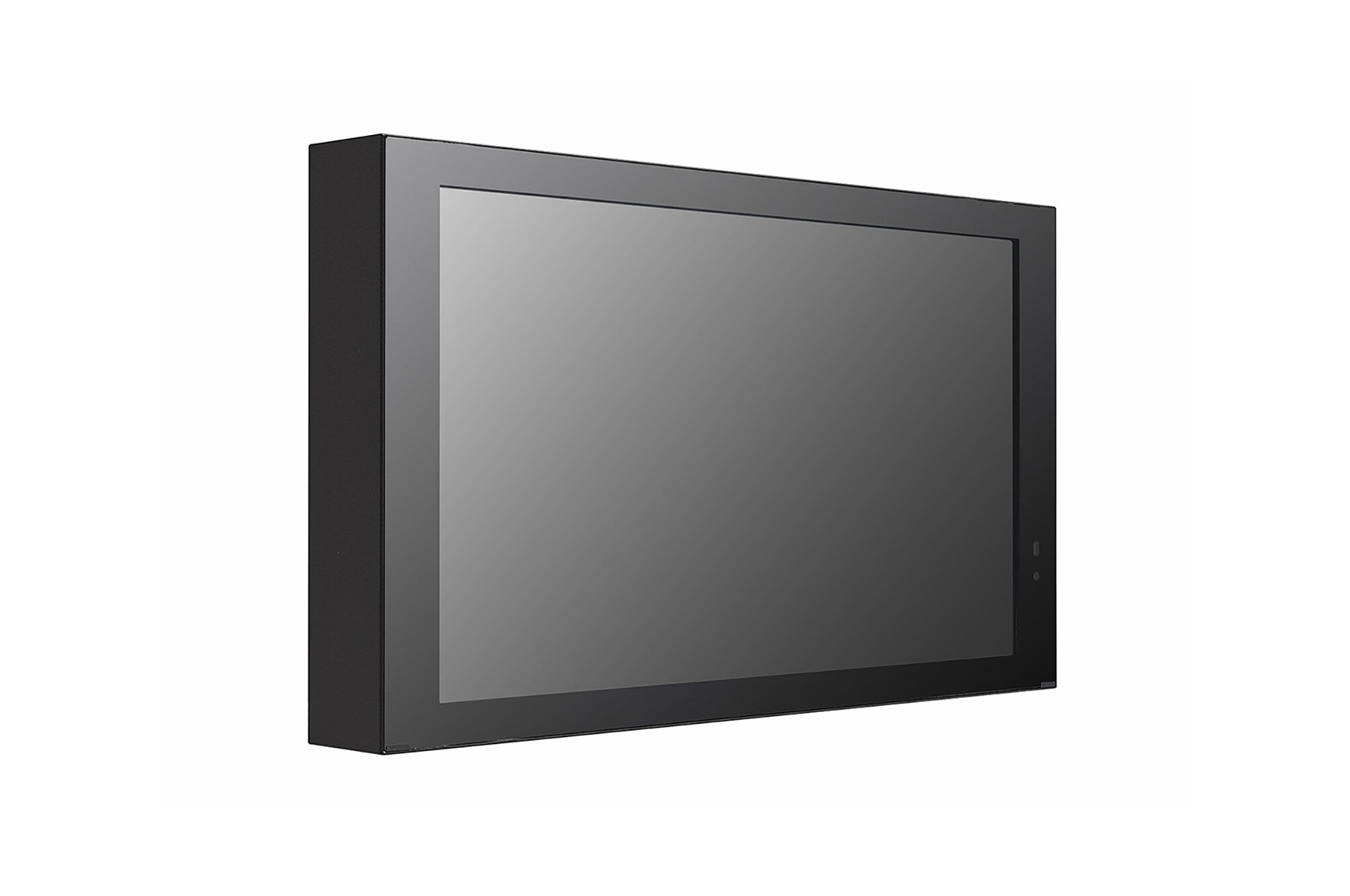

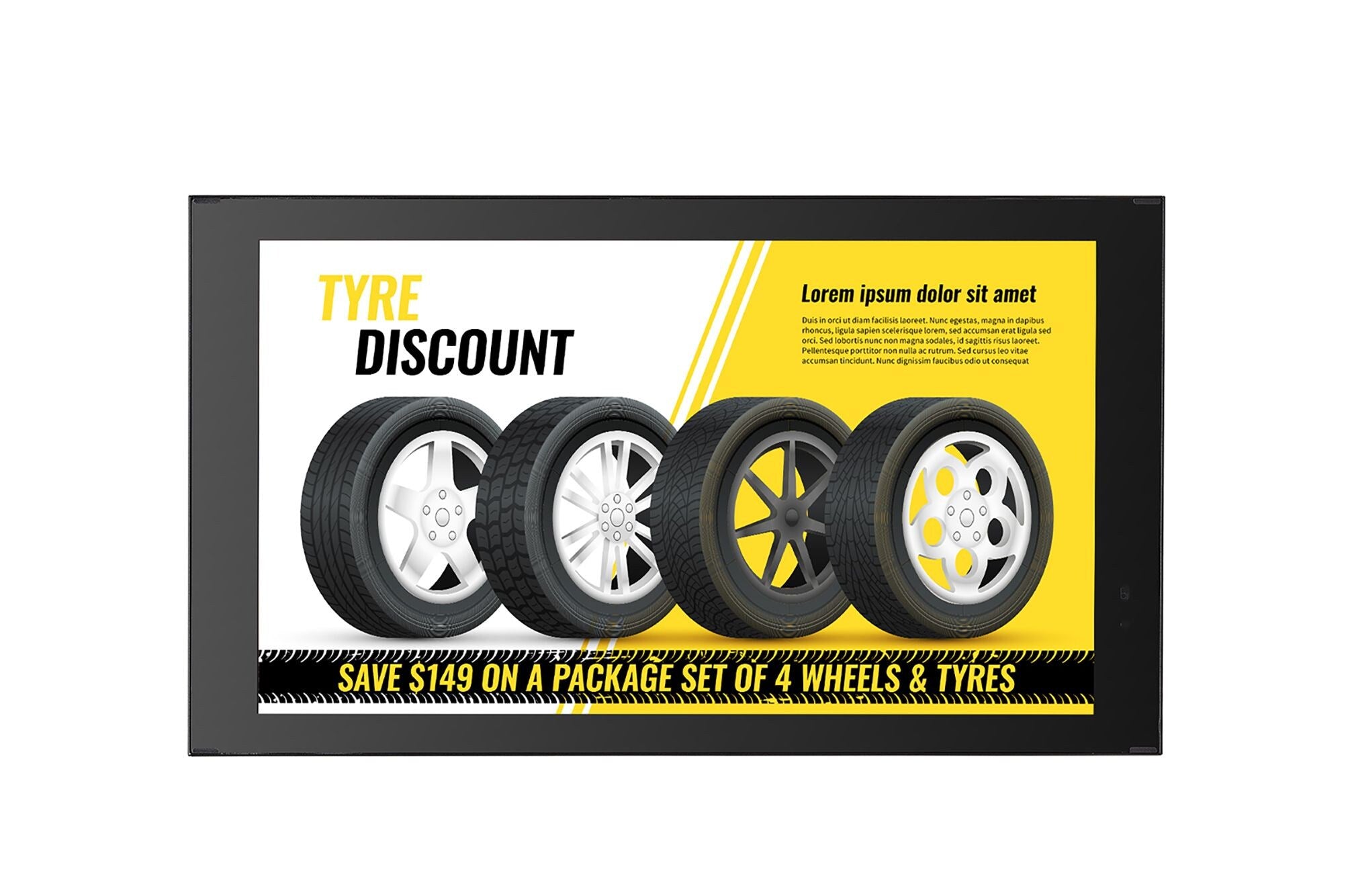

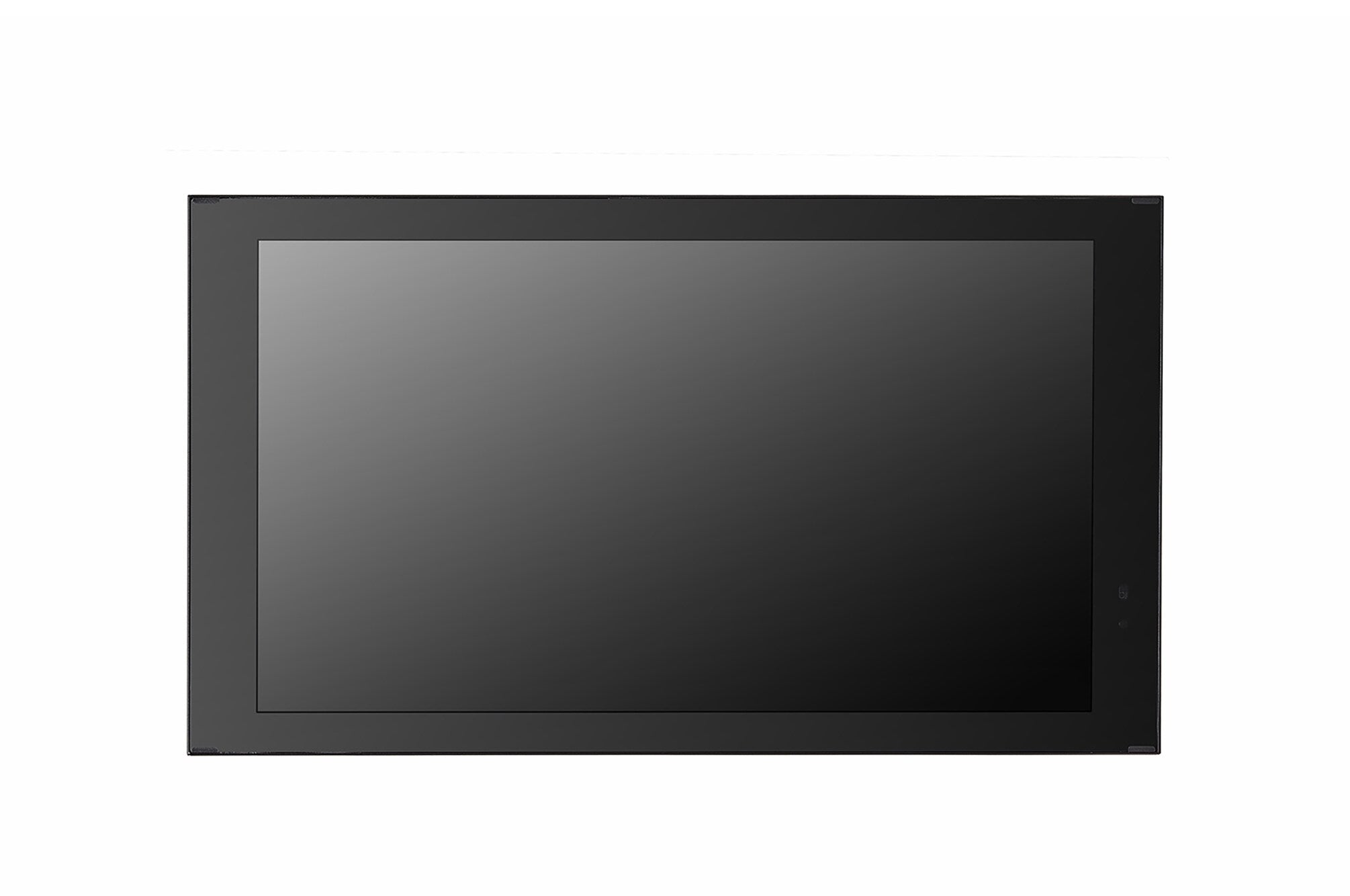

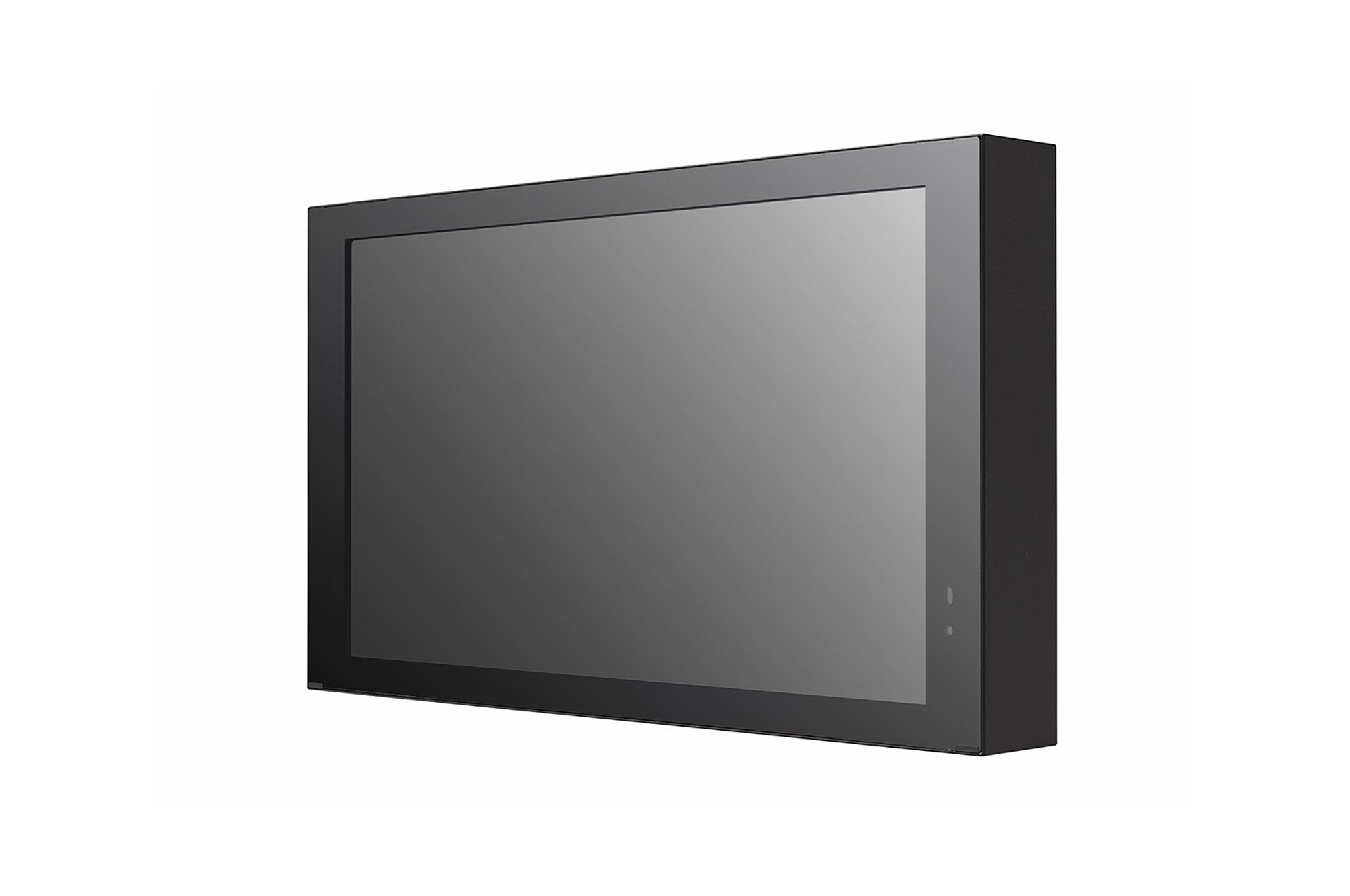

LG 22XE1J 21.5" IP56 Outdoor Display, 1,500 nit, FHD, webOS 4.1
PRODUCT DESCRIPTION
LG 22XE1J 21.5" IP-rated Outdoor Display (22XE1J) - 3 Years Local Warranty
Sunlight-Readable 1,500 nit Outdoor Signage
The LG 22XE1J (LG model 22XE1J-B) is a 21.5-inch Full HD outdoor display rated by LG at 1,500 nit (typ., with glass) and approved for direct sunlight. A quarter-wave plate is applied on the glass so content stays visible to viewers wearing polarised sunglasses.
IP56 Protection and a -30 °C to 50 °C Operating Range
LG rates the enclosure IP56 against dust and water and lists an operating range of -30 °C to 50 °C with 5% to 100% humidity. The 3 mm tempered, anti-reflective, IR-resistant and shatter-proof protection glass and a built-in fan suit kiosks, drive-thru points, EV chargers and building entrances.
webOS 4.1 with Built-in Sensors
webOS 4.1 plays content from 16 GB internal memory, USB Plug & Play or a URL, with embedded CMS scheduling, fail over and gapless playback. Temperature, auto-brightness, humidity and gyro sensors are built in, and the display can tilt up to 15° face-down.
Remote Management
The 22XE1J is compatible with LG SuperSign CMS, SuperSign Control and Control+, and LG ConnectedCare, and supports SNMP, Control Manager and status mailing for web-based monitoring.
Need help specifying an outdoor kiosk or drive-thru screen? Email sales@sourceit.com.sg with your site conditions and content source, and we will recommend the right model.
LG 22XE1J Datasheet — Technical Specifications
General
| Product Name | LG 22XE1J 21.5" IP-rated Outdoor Display |
| Part Number | 22XE1J (LG model 22XE1J-B) |
| Series | XE1J IP-rated Outdoor |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 21.5" |
| Panel Technology | AHVA (IPS) |
| Backlight | Edge |
| Native Resolution | 1,920 x 1,080 (FHD), 16:9, 60 Hz |
| Brightness | 1,500 nit (typ., with glass) |
| Contrast Ratio | 1,000:1 (typ.); dynamic 800,000:1 |
| Colour Gamut | NTSC 72% |
| Colour Depth | 8 bit, 16.7 million colours |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 25 ms (G to G) |
| Surface Treatment | Anti-glare, 3H (haze 25%) |
| QWP (Quarter Wave Plate) | Yes (applied on glass) |
| Panel Life (Min.) | 50,000 hours |
| Operation Hours | 24/7 |

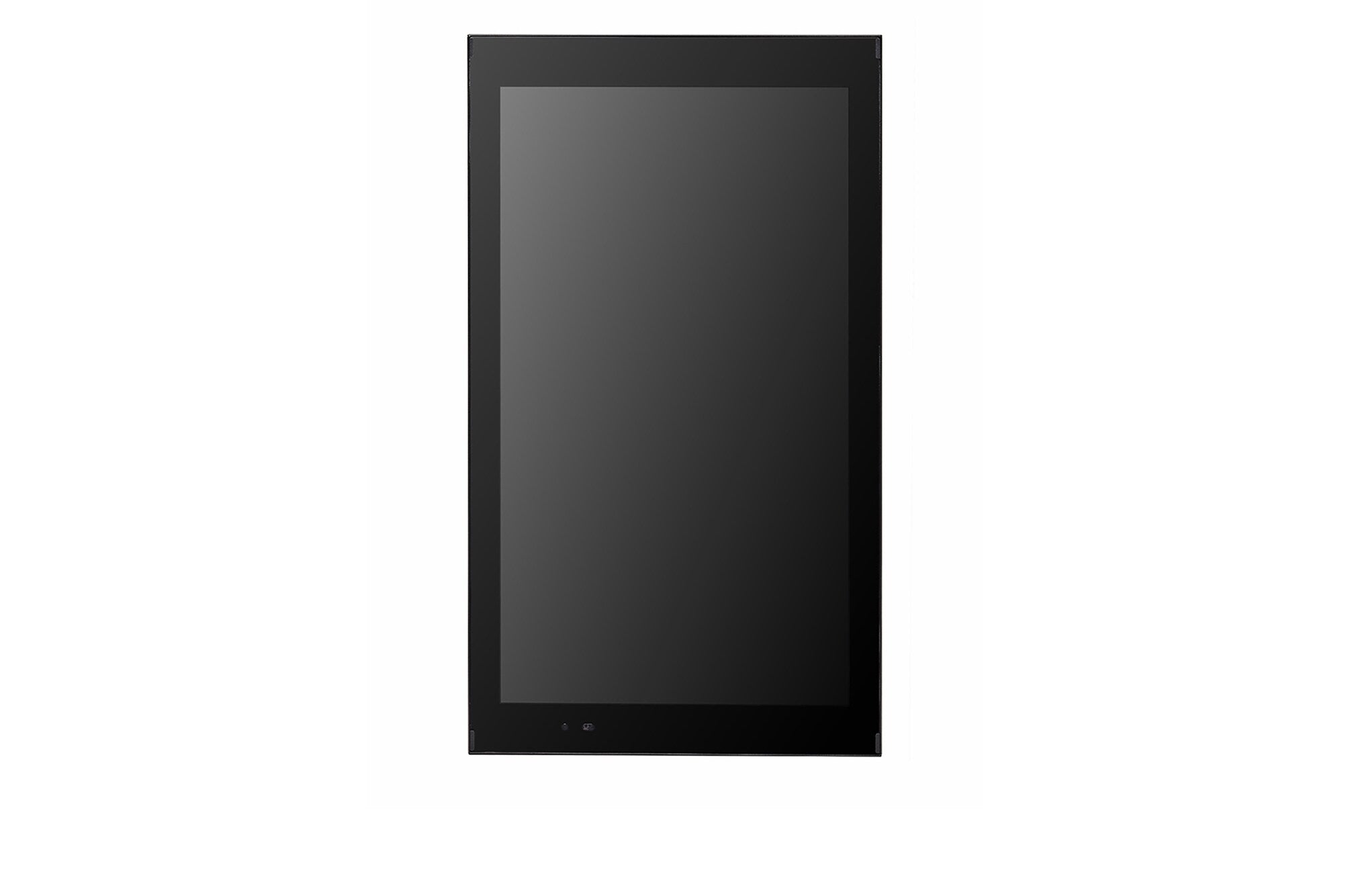

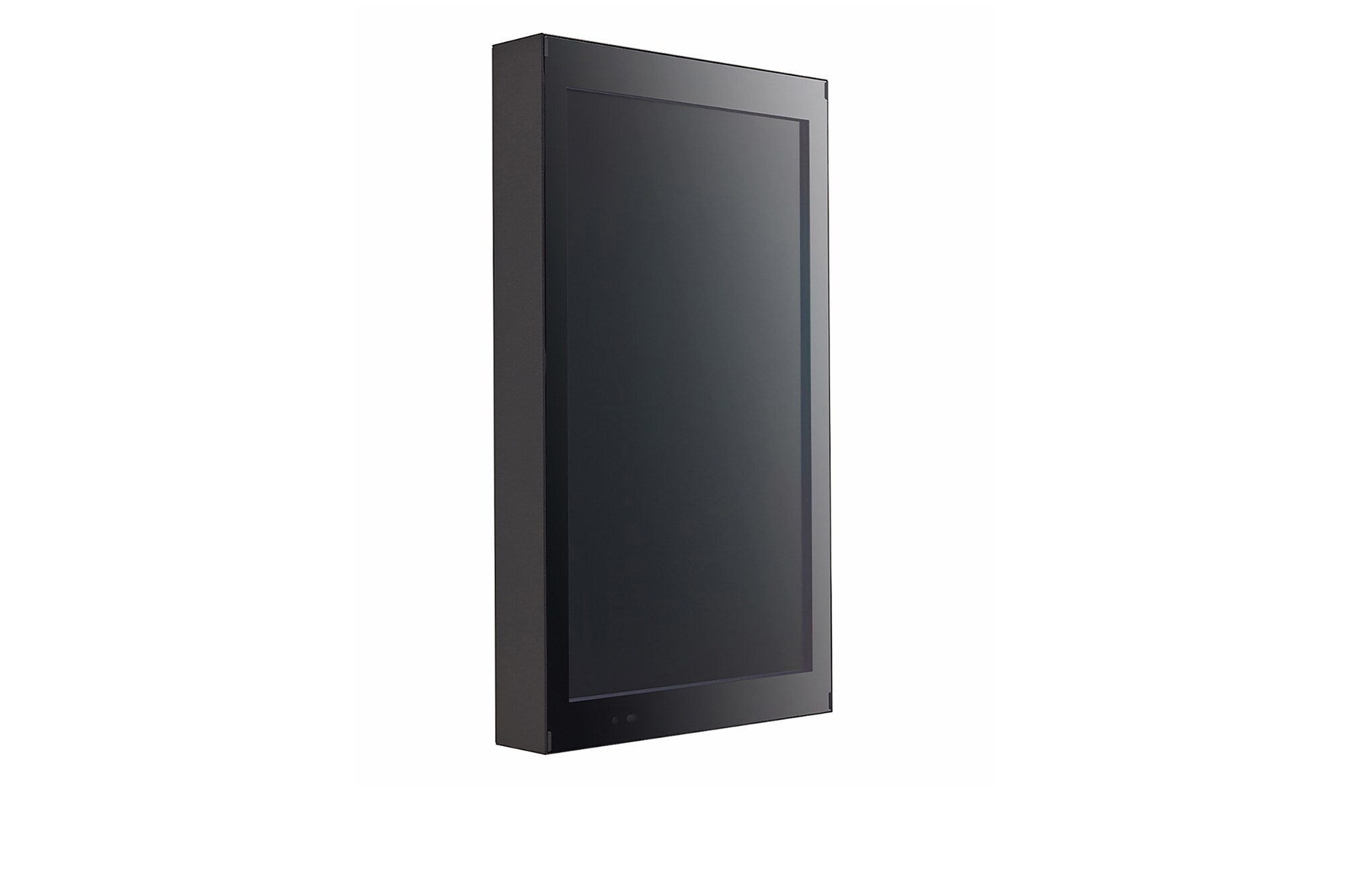

| Portrait / Landscape | Yes / Yes |
Connectivity

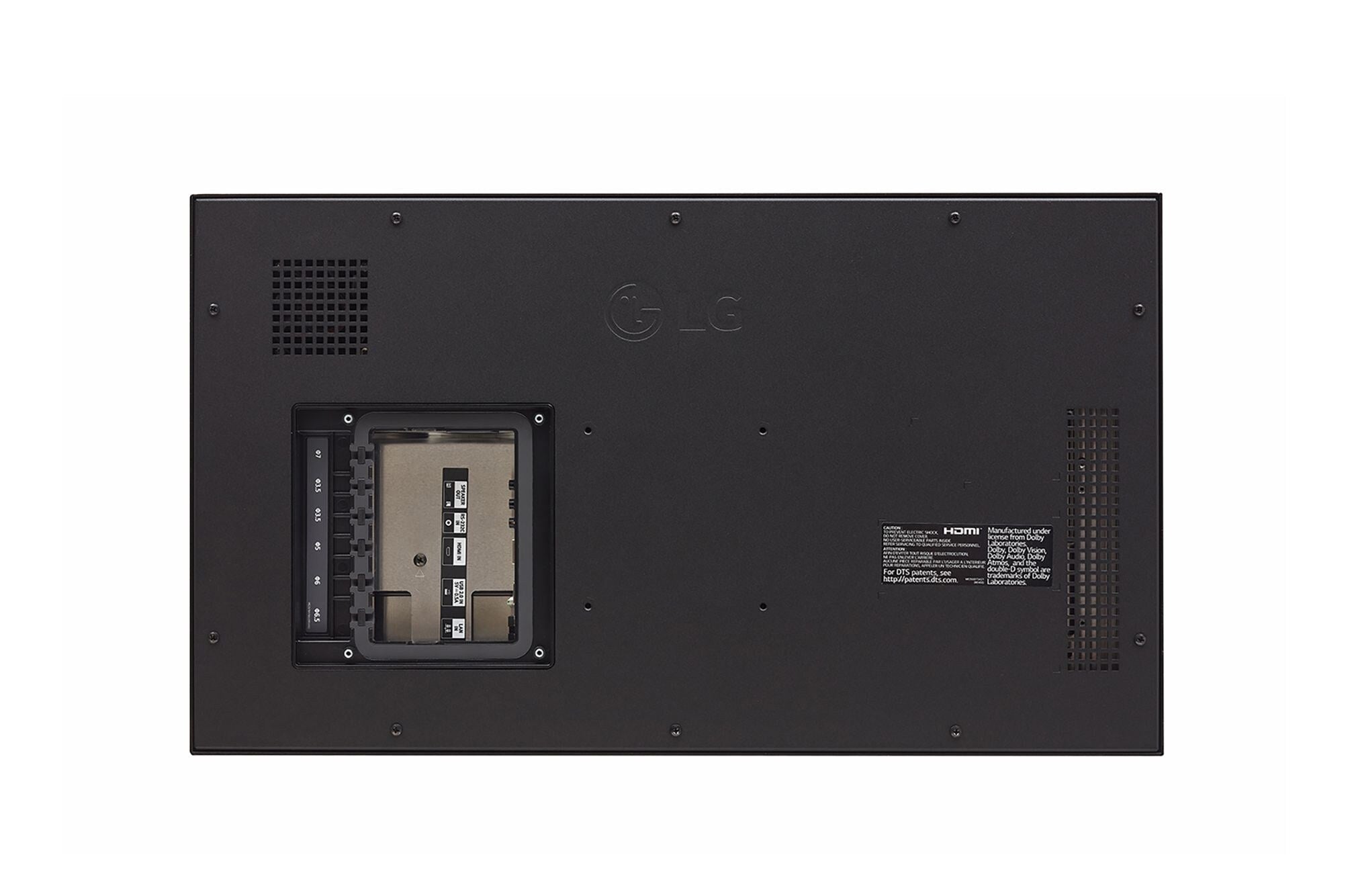

| Inputs | HDMI (HDCP 2.2), RS-232C in, RJ45 (LAN), USB 2.0 Type-A (1) |
| Outputs | External speaker out (1, L/R, 10 W + 10 W) |
| Wireless | Wi-Fi (built-in) |
Mechanical
| Bezel | Black; 38.3 mm (L/R), 24.0 mm (T/B) |
| Protection Glass | 3 mm, tempered/chemically strengthened, anti-reflective, IR-resistant, shatter-proof |

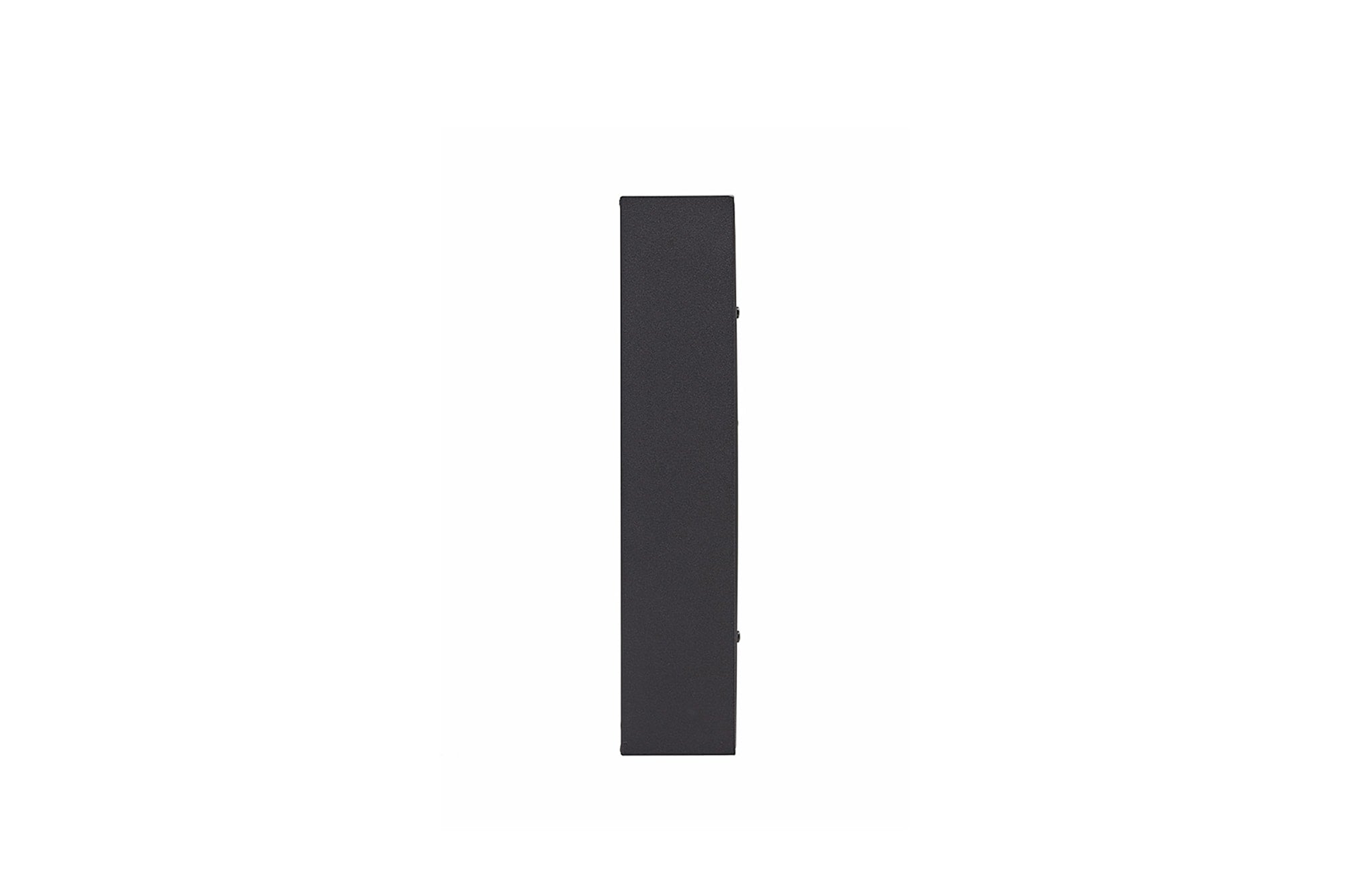

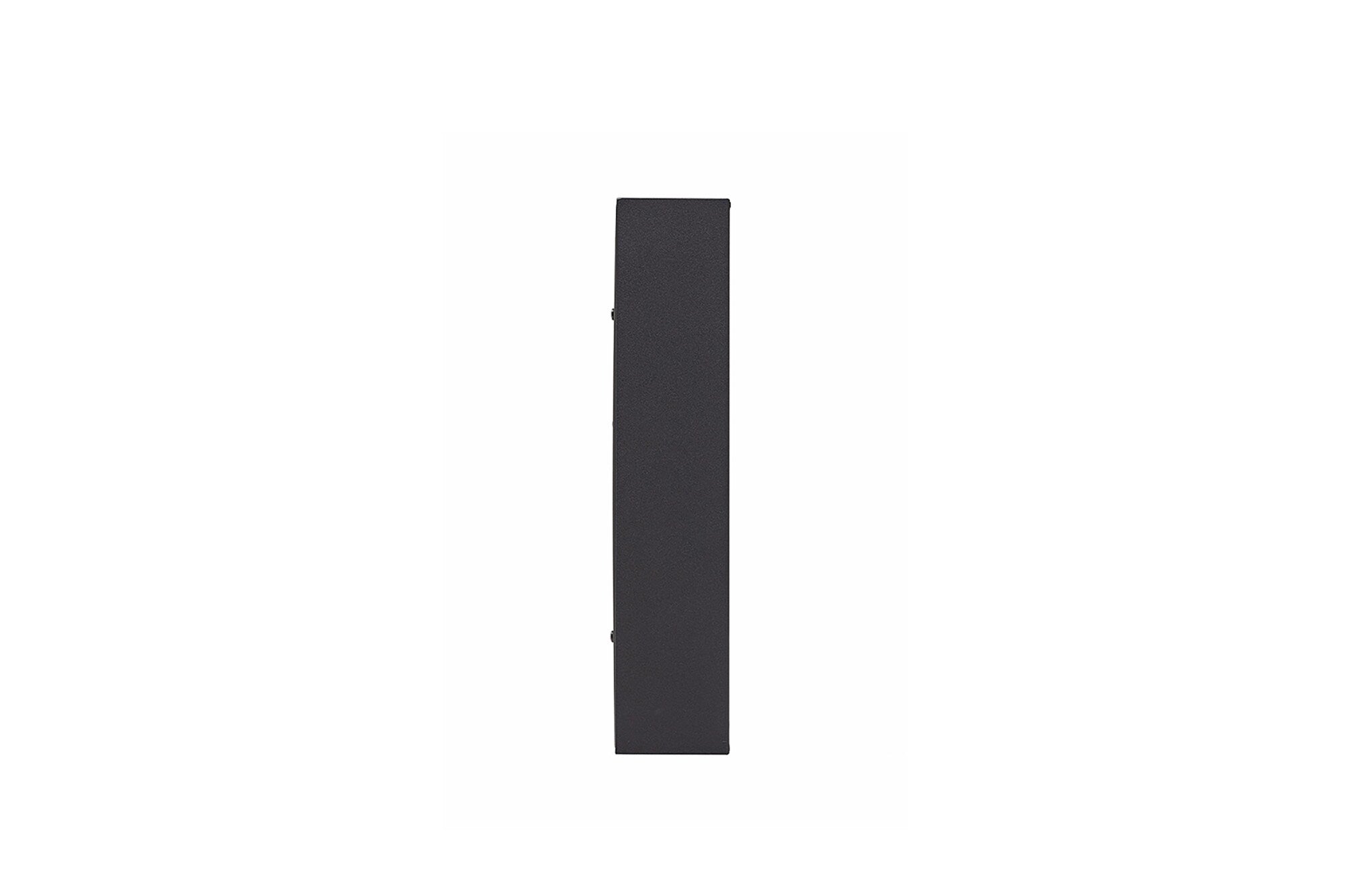

| Dimensions (W x H x D) | 557.3 x 319.8 x 66 mm |
| Weight (Head) | 8.7 kg |
| Carton Dimensions (W x H x D) | 632 x 394 x 187 mm |
| Packed Weight | 10 kg |

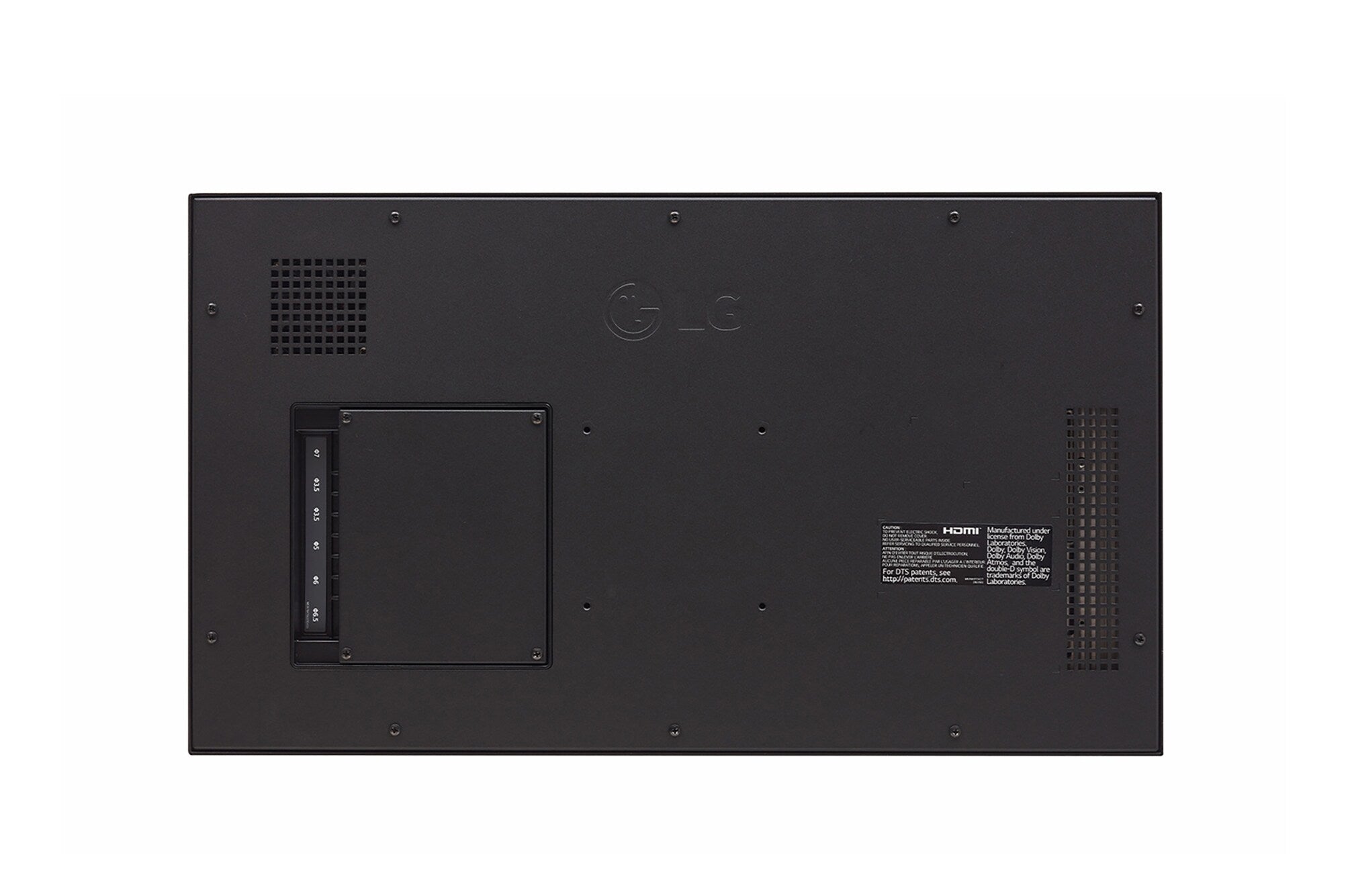

| VESA Mount | 100 x 100 mm |
| Tilt (Face Down) | Yes, max. -15° |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 85 W typ. (full white), 36 W (IEC 62087); 115 W max.; DPM 0.5 W; power off 0.5 W |
| Heat Dissipation | 290 BTU/hr (typ.), 393 BTU/hr (max.) |
| Operating Temperature | -30 °C to 50 °C |
| Operating Humidity | 5% to 100% |
| IP Rating | IP56 |
| Direct Sunlight | Yes |
| Cooling | Built-in fan |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class A / CE / KC / VCCI |
| ErP / Energy Star | Yes / No |
Compatibility & Software Support
Platform
LG webOS 4.1 with 16 GB internal memory. Features listed by LG include embedded CMS, USB Plug & Play, Fail Over, background image, Sync Mode, Video Tag (4, max. one HDMI input), Play via URL, rotation, gapless playback, setting data cloning, ISM method, status mailing, Beacon, HDMI-CEC, SI server setting, webRTC and Pro:Idiom.
LG Software
| SuperSign CMS | Yes |
| SuperSign Control / Control+ | Yes / Yes |
| LG ConnectedCare | Yes |
Control & Integration
SNMP, Control Manager (web-based monitoring) and power management. OSD in 20+ languages including English and Chinese (Simplified/Traditional).
Package Contents & XE1J Outdoor Ordering Information
In the Box
Remote controller (with 2 batteries), power cord, manual (EIG, IG), RS-232C gender.
Wall/pole brackets and installation are not included in the price.
XE1J Outdoor Models
| Size | Part No. |
| 21.5" (this listing) | 22XE1J |
Datasheet & Downloads
| LG product page (Singapore) | 22XE1J-B on lg.com/sg |
| LG spec sheet and datasheet (PDF) | 22XE1J-B on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 22XE1J.
Frequently Asked Questions — LG 22XE1J
Can it be installed in direct sunlight?
Yes. LG lists direct-sunlight operation, 1,500 nit (typ., with glass) brightness and an operating range of -30 °C to 50 °C.
Is it waterproof?
LG rates the 22XE1J IP56 for dust and water protection.
Does it need a media player?
No. webOS 4.1 plays content from 16 GB internal memory, USB or a URL, and works with LG SuperSign CMS.
Is a wall bracket included?
No. Mounting brackets and installation are quoted separately; the VESA pattern is 100 x 100 mm.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
