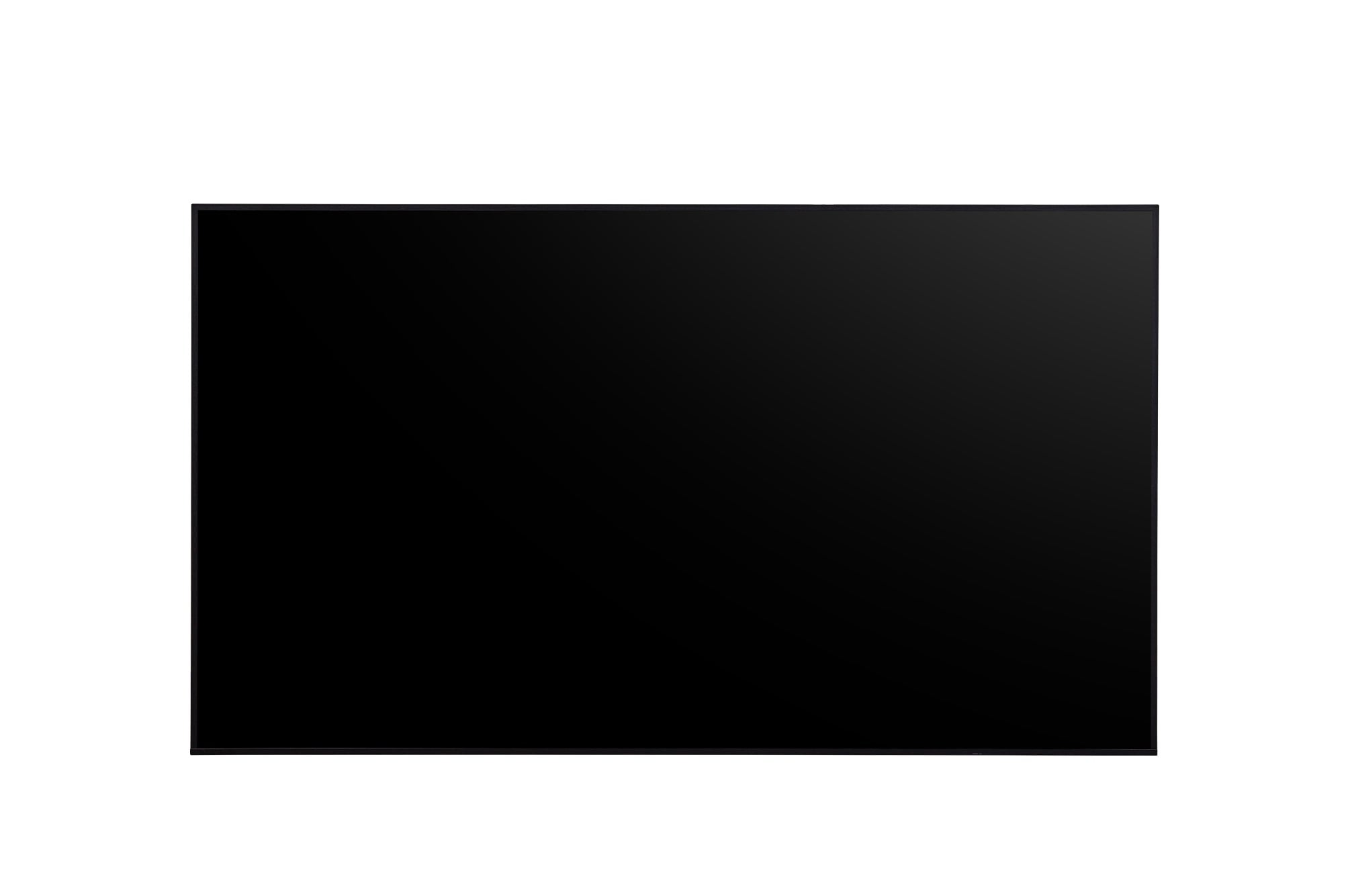

LG 86UL3Q-E 86" 4K UHD Signage Display, 350 nit, 16/7, webOS 6.1
PRODUCT DESCRIPTION
LG 86UL3Q-E 86" 4K UHD Standard Signage with webOS (86UL3Q-E) - 3 Years Local Warranty
4K UHD Signage for Everyday Commercial Use
The LG 86UL3Q-E is the 86-inch model in LG's UL3Q-E UHD signage series. It combines a 3,840 x 2,160 ADS panel with 350 nit (typ.) brightness, 1,200:1 contrast and a 1% haze surface, and LG rates it for 16/7 operation with a minimum panel life of 30,000 hours — suited to offices, retail interiors, menu boards and reception areas.
Slim, Even Bezel for Clean Installations

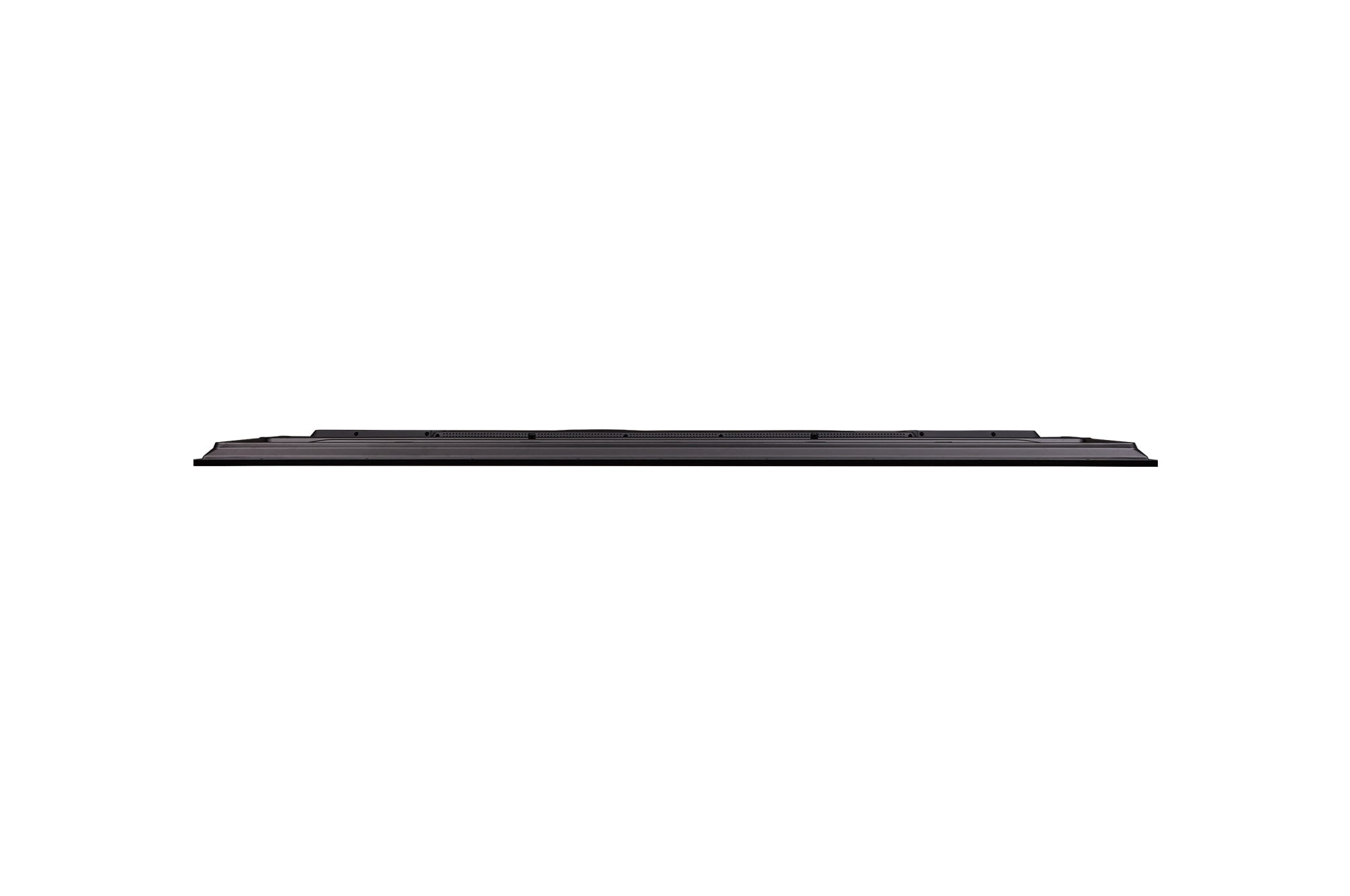

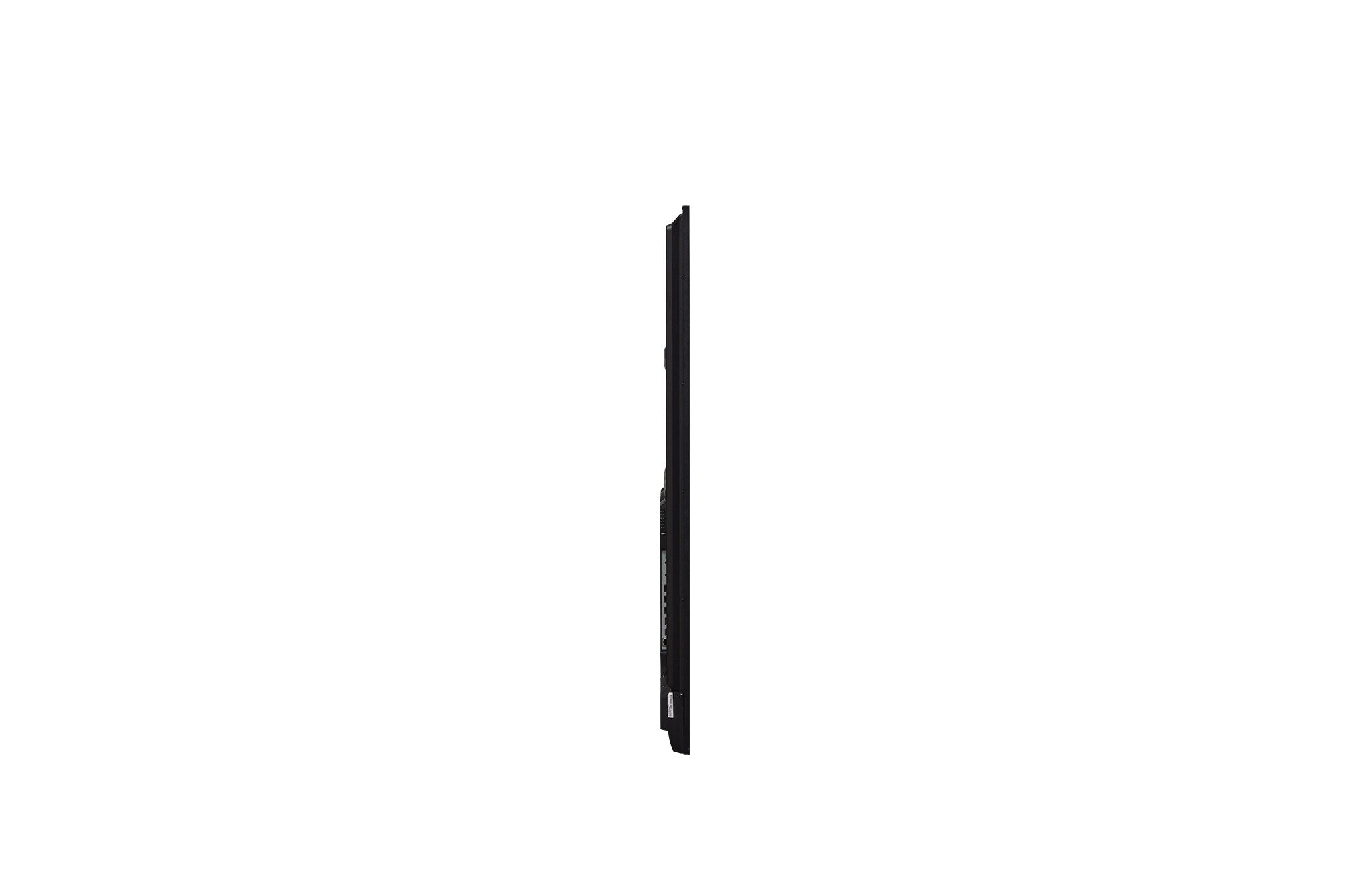

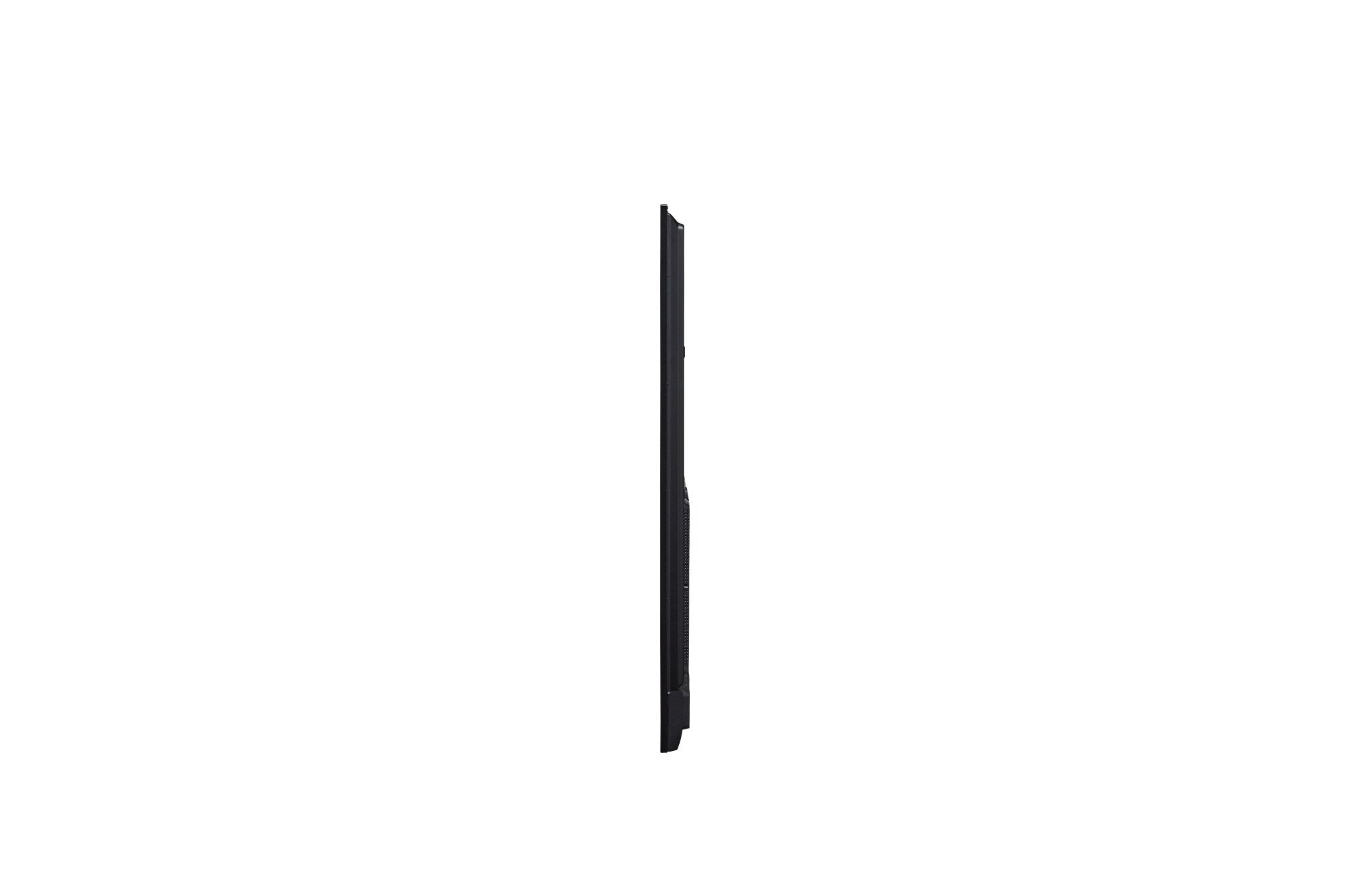

A 12.9 mm even bezel and a slim profile keep the display tidy on the wall, and LG supports both landscape and portrait mounting.
webOS 6.1 Built In — No External Player Needed
LG webOS 6.1 plays content directly from 8 GB internal memory or USB Plug & Play, with local scheduling, Play via URL, gapless playback, Screen Share and Video Tag. Built-in Wi-Fi plus temperature, auto-brightness and gyro sensors are included.
Remotely Managed and Secure
The display is compatible with LG SuperSign CMS, SuperSign Cloud, SuperSign Control+ and LG ConnectedCare for fleet monitoring, and supports Crestron Connected, SNMP and Wake on LAN. LG lists conformal coating on the power board. LG also highlights its Enhanced Kernel Protection (EKP) security, validated to ISO/IEC 15408 Common Criteria EAL2.
Need help sizing a signage project? Email sales@sourceit.com.sg with your screen size, viewing distance and content source, and we will recommend the right model.
LG 86UL3Q-E Datasheet — Technical Specifications
General
| Product Name | LG 86UL3Q-E 86" UHD Standard Signage |
| Part Number | 86UL3Q-E |
| Series | UL3Q-E UHD Signage |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 86" |
| Panel Technology | ADS |
| Backlight | Direct |
| Native Resolution | 3,840 x 2,160 (4K UHD), 16:9, 60 Hz |
| Brightness | 350 nit (typ.) |
| Contrast Ratio | 1,200:1 (typ.); dynamic 1,000,000:1 |
| Colour Gamut | DCI 80% |
| Colour Depth | 1.07 billion colours (Advanced 10 bit) |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 1% |
| Panel Life (Min.) | 30,000 hours |
| Operation Hours | 16/7 |
| Portrait / Landscape | Yes / Yes |
| Tilt (Face Up/Down) | Not supported on the 86" size (per LG) |
Connectivity

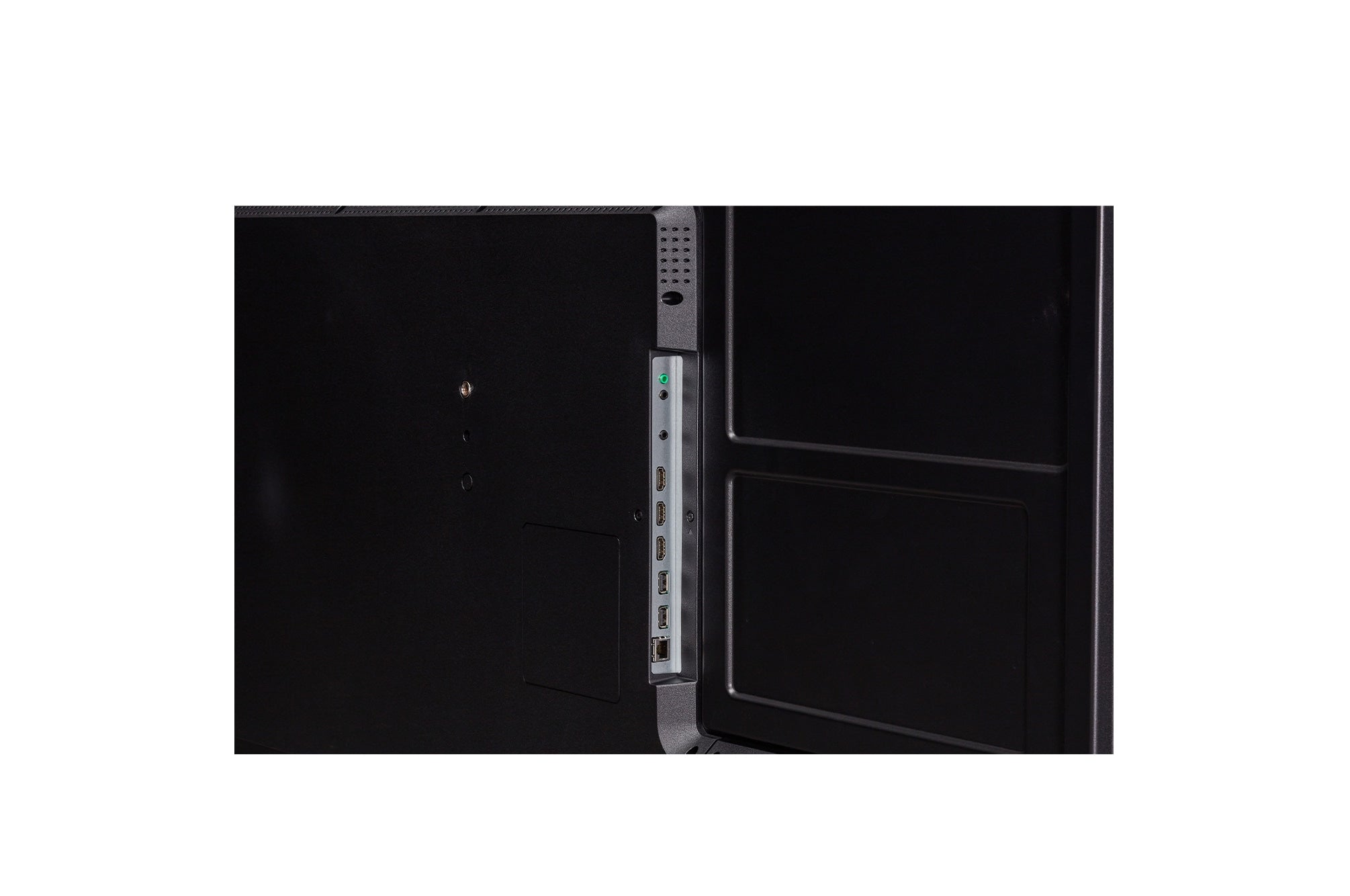

| Inputs | HDMI x 3 (HDCP 2.2/1.4), RS-232C (4-pin phone jack), RJ45 (LAN), USB 2.0 Type-A x 2 |
| Outputs | Audio, RS-232C |
| Wireless | Wi-Fi (built-in) |
| Speakers | 10 W x 2 |
Mechanical
| Bezel | Black, 12.9 mm (even) |
| Dimensions (W x H x D) | 1,926.6 x 1,098 x 60 mm (without IR receiver) |
| Weight (Head) | 31.8 kg |
| Carton Dimensions | 2,080 x 220 x 1,255 mm |
| Packed Weight | 42.6 kg |

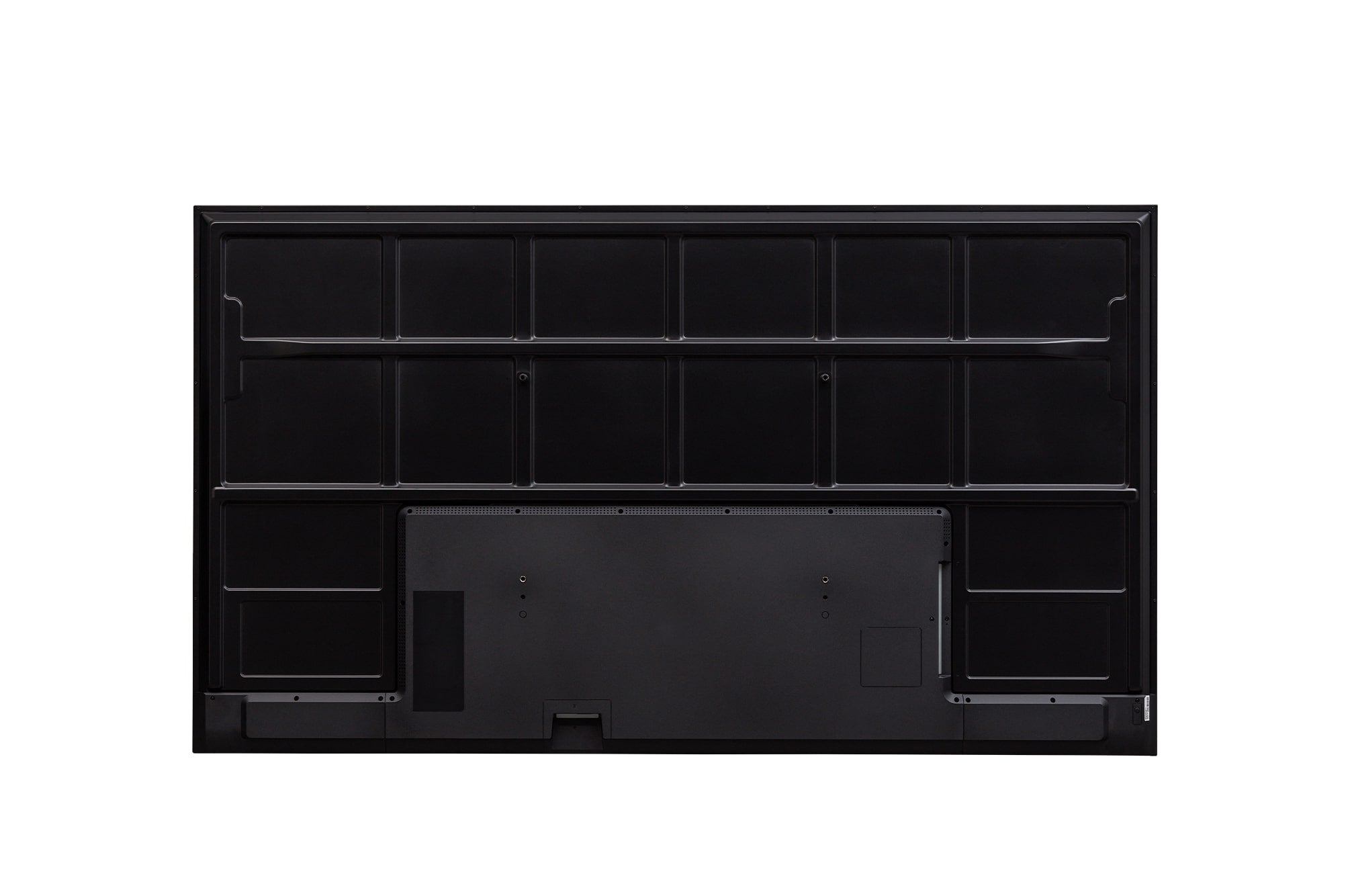

| VESA Mount | 600 x 400 mm |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 205 W typ. / 287 W max.; Smart Energy Saving (70%) 143.5 W; DPM 0.5 W; power off 0.5 W |
| Heat Dissipation | 699.5 BTU/hr (typ.), 979.3 BTU/hr (max.) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80% (per LG Singapore) |
| Conformal Coating (Power Board) | Yes |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class B / CE / KC |
| ErP / Energy Star | No (NewErP) / Yes |
Compatibility & Software Support
Platform
LG webOS 6.1 with 8 GB internal memory. Features listed by LG include local contents scheduling, Group Manager, USB Plug & Play, Fail Over, booting logo and no-signal image, RS-232C and local network sync, Screen Share, Video Tag (4, max. one HDMI input), Play via URL, screen and external-input rotation, gapless playback, Tile Mode setting, setting data cloning, ISM method, Auto Set ID, status mailing, Beacon, HDMI-CEC, SI server setting, webRTC and Pro:Idiom.
LG Software
| SuperSign CMS | Yes |
| SuperSign Cloud | Yes |
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| LG ConnectedCare | Yes |
| Mobile CMS | Yes |
Control & Integration
Crestron Connected, SNMP, Control Manager, Wake on LAN, Network Ready, PM Mode and Smart Energy Saving. OPS slot: not supported.
Package Contents & UL3Q-E Series Ordering Information
In the Box
Remote controller, power cord, regulation book, easy setup guide, warranty card, phone to D-Sub9 gender.
Wall brackets and installation are not included in the price.
UL3Q-E Series Models
| Size | Part No. |
| 43" | 43UL3Q-E |
| 50" | 50UL3Q-E |
| 55" | 55UL3Q-E |
| 65" | 65UL3Q-E |
| 75" | 75UL3Q-E |
| 86" (this listing) | 86UL3Q-E |
Datasheet & Downloads
| LG product page (Singapore) | 86UL3Q-E on lg.com/sg |
| LG spec sheet and datasheet (PDF) | 86UL3Q-E on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 86UL3Q-E.
Frequently Asked Questions — LG 86UL3Q-E
Can it run content without a media player?
Yes. webOS 6.1 plays content from its 8 GB internal memory, USB Plug & Play or a URL, and works with LG SuperSign CMS and SuperSign Cloud for scheduling.
Can it be mounted in portrait?
Yes. LG lists both portrait and landscape orientation for the 86UL3Q-E.
Is it rated for 24/7 use?
No. LG rates the UL3Q-E series for 16 hours a day, 7 days a week, with a minimum panel life of 30,000 hours. For round-the-clock operation, ask us about LG's 24/7-rated UH5Q-E series.
Is a wall bracket included?
No. Wall mounting brackets and installation are quoted separately; the VESA pattern is 600 x 400 mm.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
