LG 55VM5R-H 55" FHD Video Wall Display, 1.7 mm Bezel, 500 nit, 24/7
PRODUCT DESCRIPTION
LG 55VM5R-H 55" FHD Slim Bezel Video Wall (55VM5R-H) - 3 Years Local Warranty

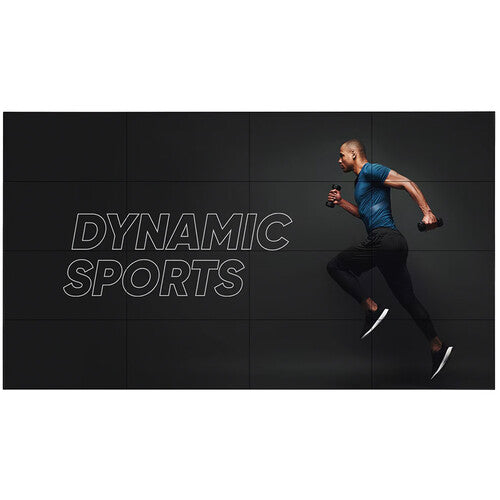

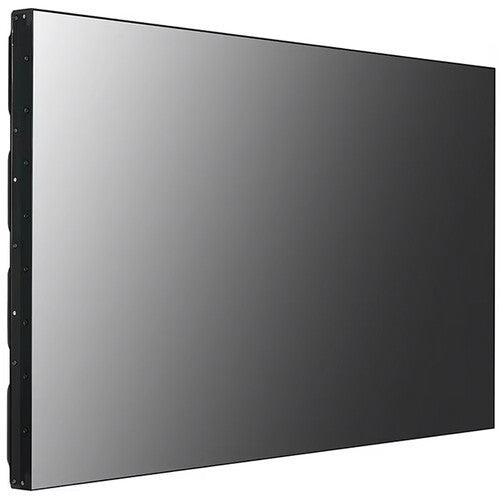

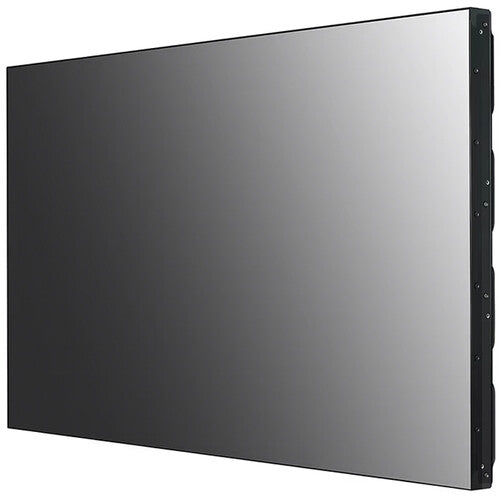

1.7 mm Bezel-to-Bezel FHD Video Wall
The LG 55VM5R-H is a 55-inch FHD video wall panel with a 1.7 mm panel-to-panel bezel (1.2 mm top/left, 0.5 mm bottom/right) and a 3.1 mm active-area-to-active-area gap. It uses a 1,920 x 1,080 ADS panel with 500 nit (typ.) brightness and a 25% haze surface.
Built for 24/7 Operation
LG rates the 55VM5R-H for 24/7 use with a 60,000-hour typical (50,000-hour minimum) lifetime, lists it as IP5X tested and applies conformal coating to the power board. It can be installed in portrait or landscape.
webOS 6.1 and Daisy Chain
webOS 6.1 with 8 GB internal memory handles local content scheduling, Group Manager, USB Plug & Play, Play via URL, gapless playback and Tile Mode up to 15 x 15. DP output supports daisy-chaining HDMI or DP sources across the wall.
Managed Remotely
The panel works with LG SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS and LG ConnectedCare, and supports Crestron Connected, SNMP and Wake on LAN.
Planning a video wall? Email sales@sourceit.com.sg with the wall size, layout (for example 2 x 2 or 3 x 3) and content source, and we will help you spec the panels.
LG 55VM5R-H Datasheet — Technical Specifications
General
| Product Name | LG 55VM5R-H 55" FHD Slim Bezel Video Wall |
| Part Number | 55VM5R-H |
| Series | VM5R-H Video Wall |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 55" |
| Panel Technology | ADS |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 500 nit (typ.) |
| Contrast Ratio | 1,200:1; dynamic 500,000:1 |
| Colour Gamut | NTSC 72% |
| Colour Depth | Real 8 bit, 16.7 million colours |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 25% |
| Lifetime | 60,000 hours (typ.), 50,000 hours (min.) |
| Operation Hours | 24/7 |
| Portrait / Landscape | Yes / Yes |
Connectivity
| Inputs | HDMI x 2 (3,840 x 2,160 @ 60 Hz, HDCP 2.2/1.4), DisplayPort (3,840 x 2,160 @ 60 Hz, HDCP 2.2/1.3), RS-232C, RJ45 (LAN), USB 2.0 Type-A |
| Outputs | DP (3,840 x 2,160 @ 60 Hz; input HDMI 1/2, DP), Audio, RS-232C, RJ45 (LAN) |
| Daisy Chain | Input HDMI 1/2, DP; output DP |
Mechanical
| Bezel | Black; bezel to bezel 1.7 mm (1.2 mm T/L, 0.5 mm B/R); active area to active area 3.1 mm (1.9 mm T/L, 1.2 mm B/R) |
| Dimensions (W x H x D) | 1,212.7 x 683.5 x 90.1 mm |
| Weight (Head) | 20.1 kg |
| Carton Dimensions (W x H x D) | 1,393 x 955 x 303 mm |
| Packed Weight | 28.3 kg |

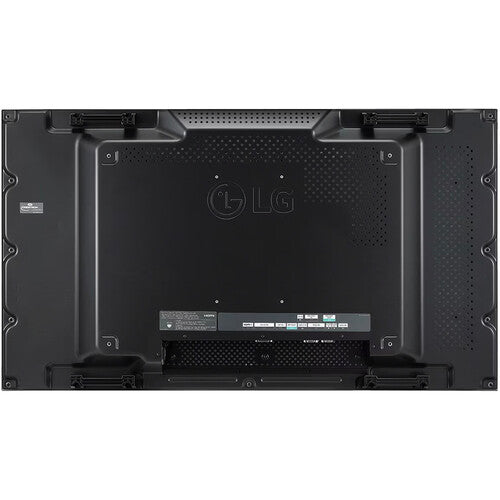

| VESA Mount | 600 x 400 mm |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 170 W typ. / 200 W max.; Smart Energy Saving 100 W; DPM 0.5 W; power off 0.5 W |
| Heat Dissipation | 580 BTU/hr (typ.), 682 BTU/hr (max.) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80% |
| IP Rating | IP5X tested |
| Conformal Coating (Power Board) | Yes |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class B / CE / KC |
| ErP / Energy Star | New ErP / Energy Star 8.0 |
Compatibility & Software Support
Platform
LG webOS 6.1 with 8 GB internal memory (eMMC). Features listed by LG include local contents scheduling, Group Manager, USB Plug & Play, Fail Over, booting logo and no-signal image, RS-232C and local network sync, Video Tag (4, max. one HDMI input), Play via URL, screen and external-input rotation, gapless playback, Tile Mode (max. 15 x 15), setting data cloning, ISM method, Auto Set ID, status mailing, SI server setting, webRTC, Pro:Idiom, white balance by grey scale and scan inversion. Temperature and gyro sensors and local key operation are built in.
LG Software
| SuperSign CMS | Yes |
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| SuperSign Cloud | Yes |
| Mobile CMS | Yes |
| LG ConnectedCare | Yes |
Control & Integration
Crestron Connected, SNMP, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN, Network Ready and HDMI-CEC.
Package Contents & VM5R-H Series Ordering Information
In the Box
Remote controller, power cord, RS-232C cable, LAN cable, DP cable, IR receiver and manual.
Mounting
LG does not list optional accessories for this model on its spec page. Video wall mounts, frames and installation are not included in the price.
VM5R-H Series Models
| Size | Part No. |
| 55" (this listing) | 55VM5R-H |
Datasheet & Downloads
| LG product page (global; no LG Singapore page) | 55VM5R-H on lg.com/global |
| LG spec sheet and datasheet (PDF) | 55VM5R-H on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 55VM5R-H.
Frequently Asked Questions — LG 55VM5R-H
What is the gap between panels?
LG lists 1.7 mm bezel to bezel and 3.1 mm active area to active area.
How large a wall can I build?
LG's Tile Mode supports arrays of up to 15 x 15 panels, and the DP output supports daisy-chaining the signal.
Is it suitable for 24/7 use?
Yes. LG rates it for 24/7 operation with a 60,000-hour typical lifetime, IP5X testing and a conformal-coated power board.
Is a wall bracket included?
No. Video wall mounts and installation are quoted separately; the VESA pattern is 600 x 400 mm.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
