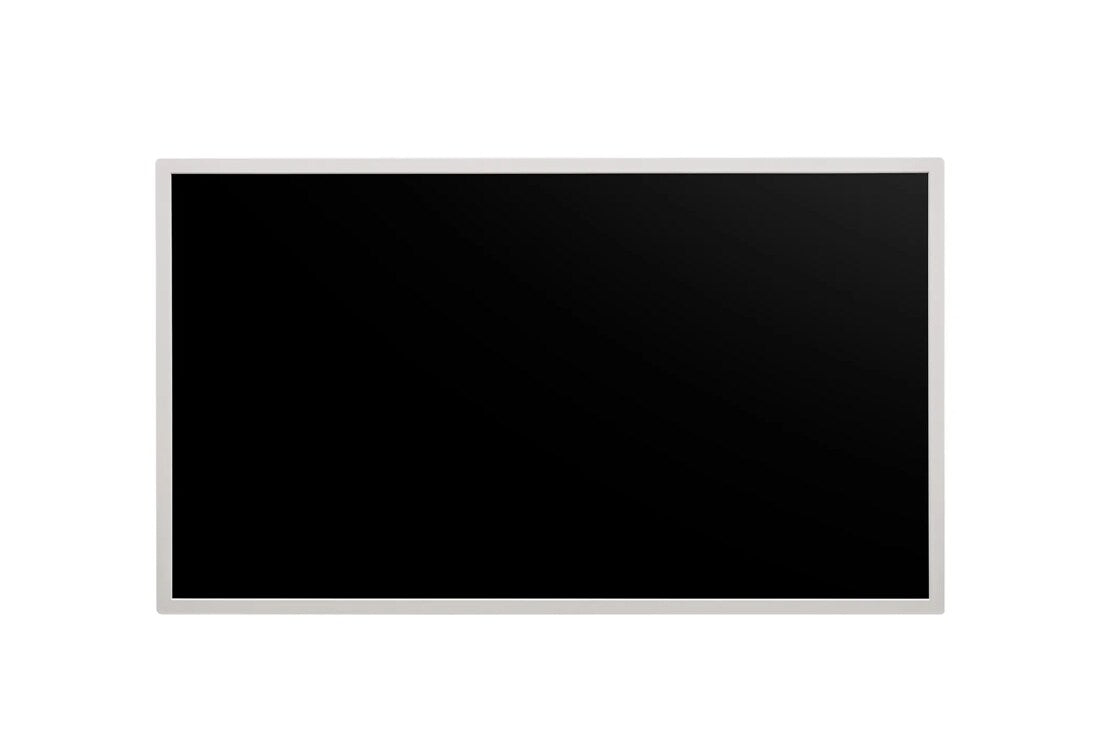

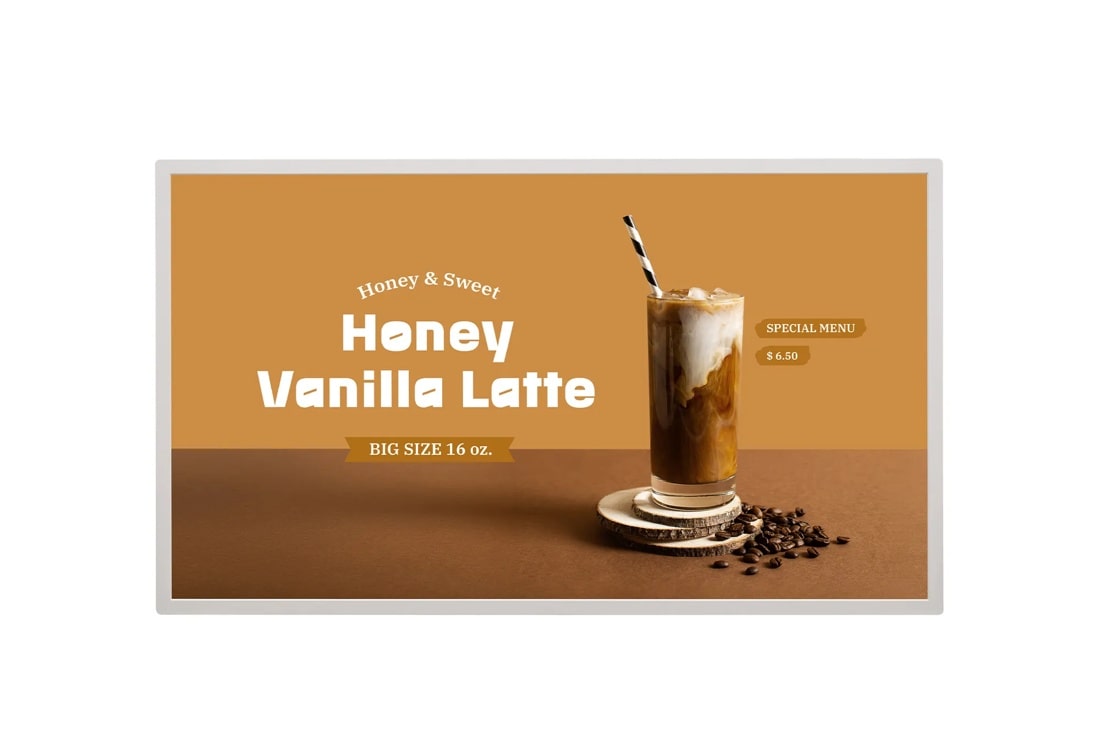

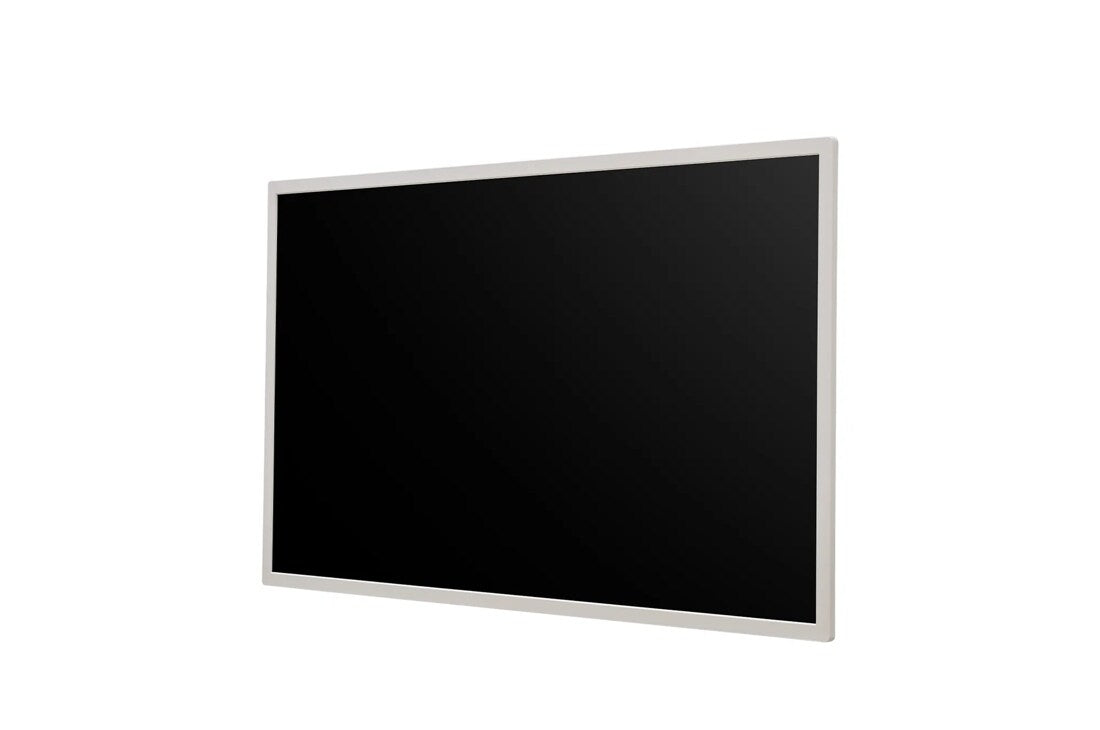

LG 32RS1Q 31.5" E-Paper Display, 6-Colour E Ink, 72 Wh Battery, 4 W Typ.
PRODUCT DESCRIPTION
LG 32RS1Q 31.5" E-paper Display (32RS1Q) - 3 Years Local Warranty
Ultra-Low-Power E-paper Signage
The LG 32RS1Q is a 31.5-inch e-paper display using E Ink Spectra 6 technology at 2,560 x 1,440. Because electronic ink consumes power only when the screen changes, LG lists just 4 W typical consumption.
Slim, Light and Wire-Free
At 17.8 mm deep (tapering to 8.6 mm, per LG) and 3.1 kg with battery, it can be VESA-mounted or wire-hung. A built-in 72 Wh battery and up to 15 W wireless charging allow installation away from power outlets.
Smart Power Management
The display synchronises with its content schedule and wakes only for updates. Content can be managed on webOS 26 Micro through a web browser or centrally via LG SuperSign CMS.
Considering e-paper for wayfinding, menus or shelf-edge signage? Email sales@sourceit.com.sg with your location and update frequency, and we will advise on setup.
LG 32RS1Q Datasheet — Technical Specifications
General
| Product Name | LG 32RS1Q 31.5" E-paper Display |
| Part Number | 32RS1Q (LG model page: 32RS1Q-B) |
| Type | Ultra-low-power e-paper signage |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 31.5" |
| Panel Technology | E Ink Spectra 6 |
| Aspect Ratio | 16:9 |
| Native Resolution | 2,560 x 1,440 |
| Refresh Rate | 50 Hz |
| Contrast Ratio | 15:1 (min.) / 22:1 (max.) |
| Viewing Angle (H x V) | 180 x 180 |
| Colour | 6 colours, 54.6K (typ.) |
| Image Update Time | 27 sec (typ.) at 25 °C |
| Life Time (Min.) | 50,000 hours |
| Operation Hours | 24/7 |

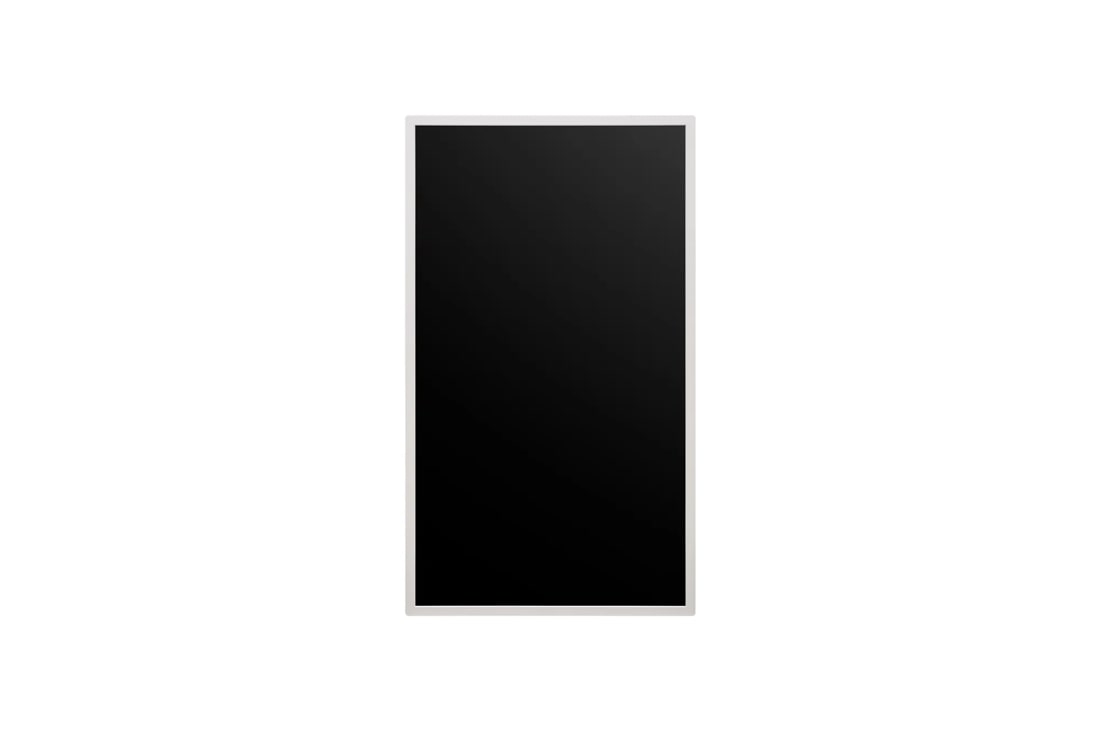

| Portrait / Landscape | Yes / Yes |
Platform & Connectivity
| Platform | LG webOS 26 Micro |
| Internal Memory | 8 GB |
| Hardware Features | Wi-Fi / Bluetooth, temperature, humidity and acceleration sensors, 3-key local operation, LED indicator |
| Software Features | Local contents scheduling, USB plug & play, Control Manager, SI server settings |
| Ports | USB Type-C (USB 2.0; USB-C to RJ45 adaptor compatible), DC external power, USB Type-C power (PD sink) |
| Supported Image Formats | jpeg, jpg, bmp, png, jpe |
Battery
| Battery | Built-in lithium-ion, 72 Wh |
| Wireless Charging | Yes (max. 15 W) |
Mechanical
| Bezel | Calming Beige, 13.3 mm |
| Dimensions (W x H x D) | 724.7 x 420.1 x 17.8 mm |
| Weight (Head) | 3.1 kg (with battery and 2 hanging bolts) |
| Carton Dimensions (W x H x D) | 812 x 502 x 120 mm |
| Packed Weight | 5.4 kg |
| VESA Mount | 100 x 100 mm |
| Tilt | Face up / face down, max. 30° |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, 65 W adaptor |
| Power Consumption | 4 W typ. / 6 W max.; power off 0.5 W or less |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 30% to 70% |
Certifications
| Safety | CB / NRTL |
| EMC | CE, RED (EU) / KC (Korea) / FCC Class B (US) / VCCI (Japan) |
| TÜV Green | Yes |
Compatibility & Software Support
Platform
LG webOS 26 Micro with local content scheduling and USB plug & play. The webOS Content Manager and Control Manager can be reached from a web browser, and the display activates only when a scheduled content update is due.
LG Software
| LG SuperSign CMS | Yes |
Installation
VESA 100 x 100 mm wall mounting, or wire hanging with the supplied hanging bolts. Portrait and landscape orientation are both supported.
Package Contents & E-paper Ordering Information
In the Box
Power cord, Type-C adaptor, hanging mount bolts (2), manuals and installation guide, regulation book, warranty card, wireless / adaptor spec cards.
Model
| Size | Part No. |
| 31.5" (this listing) | 32RS1Q |
Datasheet & Downloads
| LG product page (LG for Business USA) | 32RS1Q-B on solutions.lg.com |
| LG spec sheet and datasheet (PDF) | 32RS1Q-B on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 32RS1Q.
Frequently Asked Questions — LG 32RS1Q
How much power does it use?
LG lists 4 W typical and 6 W maximum. The e-paper panel draws power only when the image changes.
Can it run on battery?
Yes. It has a built-in 72 Wh lithium-ion battery, supports wireless charging (max. 15 W) and can also be powered via USB Type-C or DC.
How is content updated?
Via webOS 26 Micro local scheduling, USB plug & play, the browser-based Content Manager, or LG SuperSign CMS. LG quotes a typical image refresh time of 27 seconds at 25 °C.
Is a wall bracket included?
No VESA bracket is included (VESA 100 x 100 mm); LG supplies two hanging mount bolts for wire hanging. Installation is not included in the price.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
