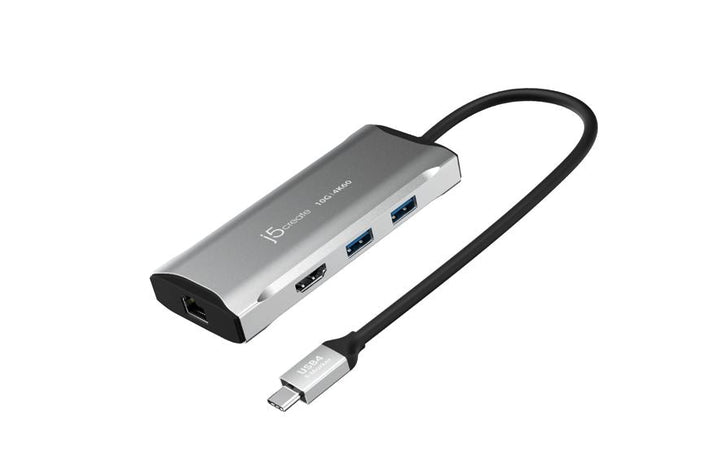

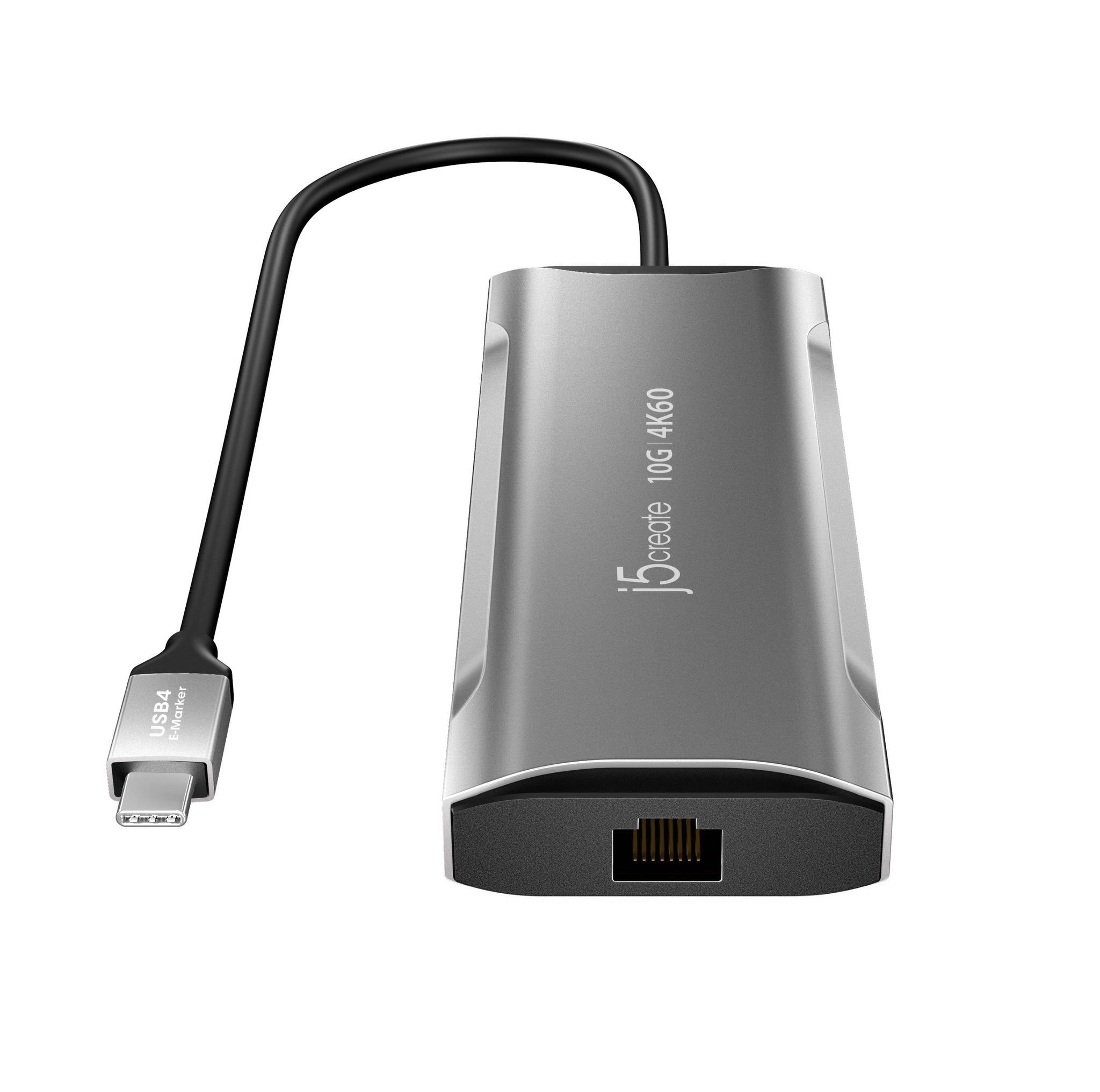

J5Create JCD392 4K60 Elite USB-C 10Gbps 6-IN-1 Travel Dock
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JCD392 4K60 Elite USB-C 10Gbps 6-IN-1 Travel Dock - 2 Years Local Warranty
A compact USB-C mini dock that adds display, data and charging ports to a laptop, small enough to carry between desk and meeting room.
Key Features

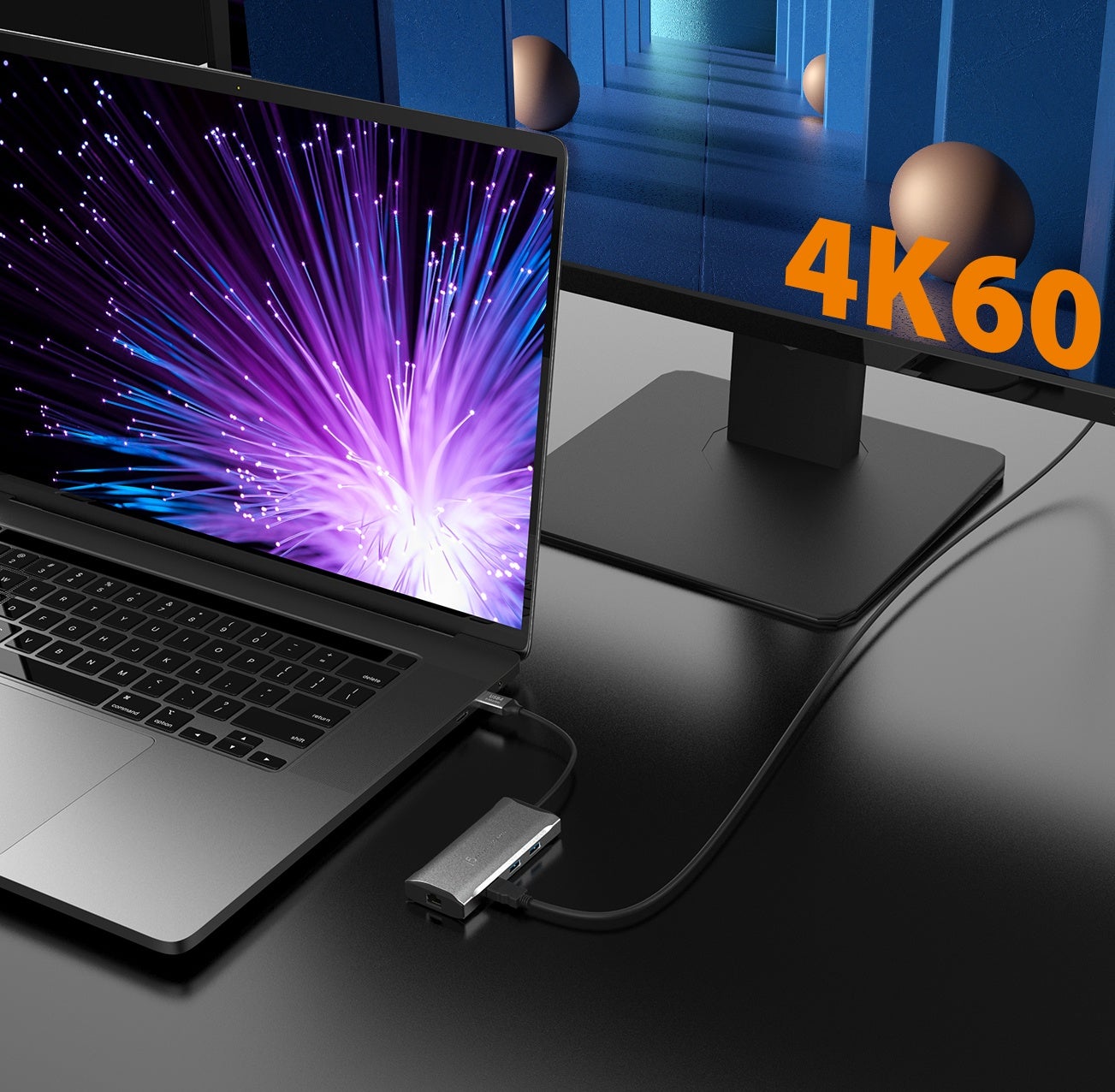

- HDMI output up to 4K at 60 Hz, or 1440p at 120 Hz for gaming monitors
- USB-C and two USB-A downstream ports at 10Gbps
- Gigabit Ethernet for wired networking
- Up to 100W USB-C PD 3.0 pass-through charging
- Driver-free, aluminium travel design in space grey
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCD392 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCD392 |
| Product Name | 4K60 Elite USB-C 10Gbps Travel Dock |
| EAN | 4712795086331 |
Hardware
| Host connector | USB-C male |

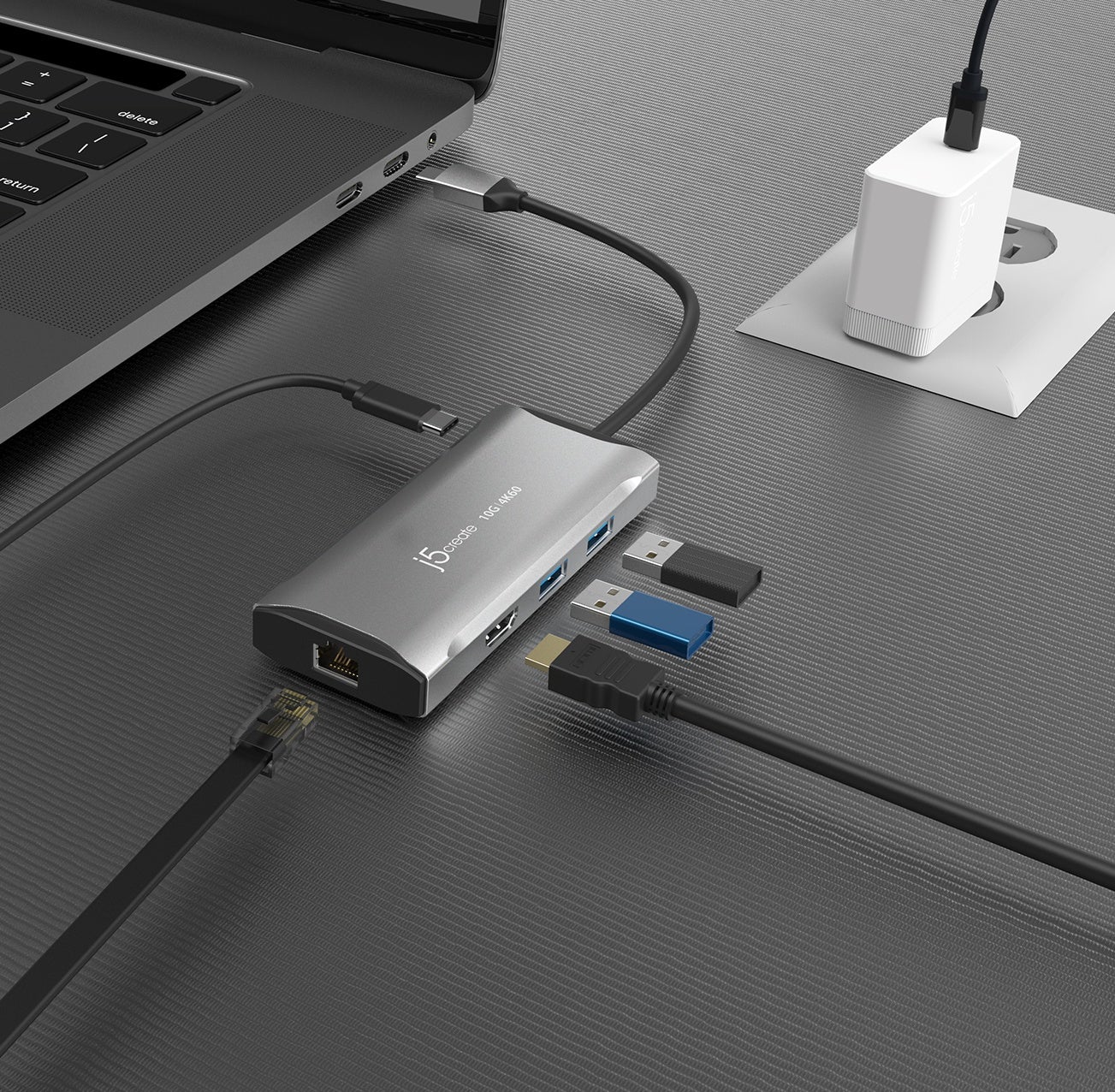

| Ports | 1 x USB-C 10Gbps with Power Delivery 3.0; 2 x USB Type-A 10Gbps; 1 x 4K HDMI; 1 x RJ45 Gigabit Ethernet |
| Video output | 1 x HDMI female (mirror or extend) |
| Network interface | RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Audio | 2.1 channel via HDMI |
| Power source | Bus-powered or self-powered |
Performance
| Displays supported | 1 |
| Max resolution | 3840 x 2160 @ 60 Hz |
| Other modes | 2560 x 1440 @ 120 Hz; 1920 x 1080 @ 144 Hz (Windows) |
| Max data transfer rate | 10 Gbps |
Power
| Power delivery | Accepts up to 100W USB-C PD input; up to 90W pass-through to the laptop |
| Input | Up to 20V / up to 5A |
| Output | Up to 20V / up to 4.5A |
| Power consumption | ≤ 400 mA |
Physical
| Cable length | 150 mm (5.9 in) |
| Colour | Space Grey |
| Enclosure | Aluminium |
| Dimensions (W x D x H) | 110 x 47 x 16 mm (4.33 x 1.85 x 0.62 in) |
| Weight | 87 g (3.06 oz) |
| Operating temperature | -1 to 41°C (30 to 116°F) |
| Storage temperature | -17 to 68°C (0 to 155°F) |
| Humidity | < 85% non-condensing |
Compatibility & System Requirements
System Requirements
- USB-C port supporting DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0
- DisplayPort 1.4 host required for 4K at 60 Hz
- Example hosts: MacBook Air 13" (2019 or later), MacBook Pro 15" (2017 or later), MacBook Pro 16", iPad Pro 11"/12" (2018 or later), Surface Pro 7, Surface Laptop 3
- 4K-capable display needed for 3840 x 2160; USB 2.0 hosts or DisplayPort 1.2 devices limit performance
- Attach a USB-C power adapter for high-power USB devices; use no more than one bus-powered external hard drive at a time
Package Contents & j5create USB-C Mini Docks Ordering Information
In the Box
- 1 x JCD392 4K60 Elite USB-C 10Gbps Travel Dock
- 1 x Quick Installation Guide
j5create USB-C Mini Docks at SourceIT
| Model | Product |
| JCH471 | USB-C Multi-Adapter Gigabit Ethernet / USB 3.1 HUB |
| JCD353 | USB-C to 4K HDMI Multi-Port Hub |
| JCD371 | USB-C to HDMI & USB 3.1 2-Port with Power Delivery |
| JCD373 | USB-C Multi-Port Hub with Power Delivery |
| JCD373EW | USB-C Multi-Port Hub with Power Delivery |
| JCD376 | USB-C Multiport Adapter with Power Delivery |
| JCD381 | USB-C Dual HDMI Mini Dock |
| JCD383 | USB-C Multi Adapter (9 Functions in 1) |
| JCD384 | USB-C Multi Adapter (10 Functions in 1) |
| JCD392 (this listing) | 4K60 Elite USB-C 10Gbps Travel Dock |
| JCD396 | USB-C Dual HDMI 4K60 Mini Dock |
| JCD397 | 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock |
| JCD398 | USB-C Dual 4K HDMI 10Gbps Mini Dock |
| JCH462 | Wormhole Switch Display Sharing Hub |
Datasheet & Downloads
| j5create product page | JCD392 on j5create.com |
| Quick Install Guide | Quick Install Guide (PDF) |
| Downloads & Drivers page | Downloads & Drivers page |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCD392.
Frequently Asked Questions — j5create JCD392
How many external displays does it support?
1. Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
How much charging power reaches my laptop?
Up to about 90W, based on j5create’s published output rating, when a suitable USB-C PD power adapter is connected (adapter sold separately unless listed in the box).
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCD392 and the quantity for volume pricing and delivery lead time.
