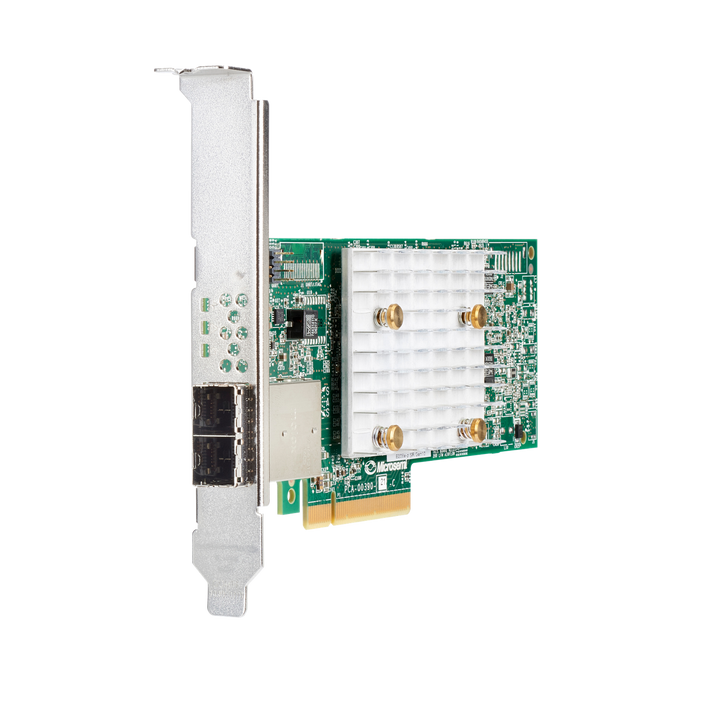

HPE Smart Array E208e-p SR Gen10 12G SAS Controller
PRODUCT DESCRIPTION
HPE Smart Array E208e-p SR Gen10 12G SAS Controller (804398-B21) - Local Warranty
External SAS ports for tape and JBOD
The HPE Smart Array E208e-p SR Gen10 (804398-B21) adds two external x4 Mini-SAS HD ports — 8 lanes of 12Gb SAS — to a ProLiant Gen10 server for HPE StoreEver tape drives and libraries, HPE D3610/D3710/D6020 enclosures and SAS-attached MSA arrays.
HPE's recommended tape HBA
HPE's StoreEver QuickSpecs name the E208e-p as the controller to pair with LTO drives, autoloaders and MSL libraries on ProLiant Gen9 to Gen11 servers.
Entry RAID when you need it
Mixed mode runs RAID 0/1/5/10 and plain HBA pass-through on the same card, with UEFI/legacy boot and HPE OneView support; no cache module to maintain.
HPE Smart Array E208e-p SR Gen10 12G SAS Controller Datasheet — Technical Specifications
Specifications
| Model | HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller (804398-B21) |
| Host Interface | PCIe 3.0 x8 |
| Ports | 2 x external x4 Mini-SAS HD (8 lanes) |
| Data Rate | 12Gb/s SAS, 6Gb/s SATA per lane |
| RAID Levels | 0, 1, 5, 10; mixed RAID + HBA mode |
| Cache | None |
| Maximum Drives | 238 physical, 64 logical |
| Supported Devices | HPE StoreEver LTO drives and MSL libraries, HPE D3610 / D3710 / D6020 enclosures, HPE MSA SAS arrays |
| Supported Servers | HPE ProLiant DL325 / DL360 / DL380 / DL385 / DL560 / DL580 / ML110 / ML350 Gen10, Apollo Gen10 (see QuickSpecs for later generations) |
| Brackets | Full-height fitted; low-profile bracket included |
| HPE Warranty | 3 years, parts only |
What's Included & Compatible Options
- 1 x controller with full-height bracket
- Low-profile bracket
- Documentation and warranty card
External cables are sold separately: HPE 2.0 m Mini-SAS HD to Mini-SAS (716191-B21) for LTO-8 and earlier drives, Mini-SAS HD to Mini-SAS HD (716195/716197/716199-B21) for LTO-9 drives and D3000 enclosures.
HPE SAN Connectivity — Ordering Information
Datasheet & Downloads
| HPE QuickSpecs | HPE Smart Array SR Gen10 Controllers QuickSpecs |
| HPE product page | HPE Smart Array E208e-p SR Gen10 on hpe.com |
| User guide | HPE Smart Array SR Gen10 User Guide |
Frequently Asked Questions — HPE Smart Array E208e-p SR Gen10 12G SAS Controller
Which cable for my tape drive?
LTO-5 to LTO-8 external drives and MSL kits: 716191-B21 (Mini-SAS HD to Mini-SAS). LTO-9 drives: a Mini-SAS HD to Mini-SAS HD cable (716197-B21 2 m or 716199-B21 4 m).
Does it fit Gen11 servers?
HPE lists the E208e-p SR Gen10 for tape attach on ProLiant Gen9 to Gen11; confirm slot availability for your server with us.
