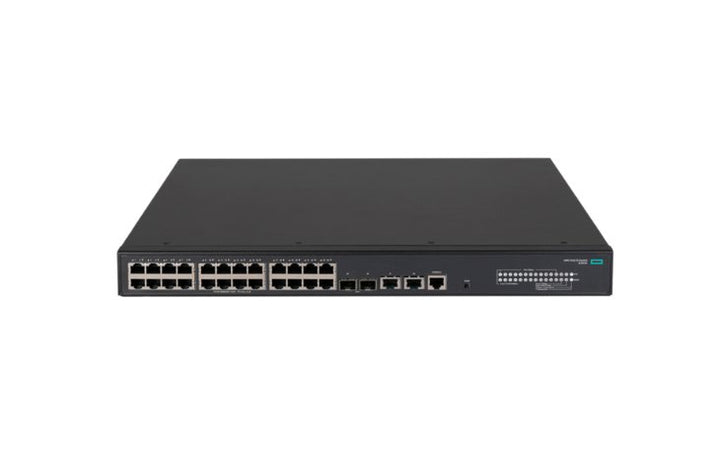

HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140 (JL823A)

HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140 (JL823A) - Lifetime Warranty

HPE Networking Comware Switch 24G PoE+ 2SFP+ 2XGT EI 5140: High-Speed, Power-Efficient Switch for Enterprise Networks
The HPE Networking Comware Switch 24G PoE+ 2SFP+ 2XGT EI 5140 (JL823A) is a high-performance, fully managed network switch designed for modern enterprise networks, branch offices, and hybrid cloud environments. It features 24 Gigabit Ethernet PoE+ ports, 2 SFP+ 10-Gigabit uplink ports, and 2 10-Gigabit Ethernet (10GbE) ports, offering maximum flexibility and scalability. With Power over Ethernet Plus (PoE+) support, the switch powers devices like IP phones, access points, and security cameras directly through Ethernet cables. Powered by HPE Comware OS, this switch supports Layer 2/3 functionality, enabling VLANs, link aggregation, and QoS to deliver a secure, efficient, and high-performance network infrastructure.

24-Port PoE+ with 2 SFP+ and 2 10GbE Uplinks
The HPE Comware Switch 5140 (JL823A) offers a versatile port configuration with 24 Gigabit Ethernet PoE+ ports (10/100/1000 Mbps), 2 SFP+ 10GbE uplink ports, and 2 10GbE Ethernet ports. This configuration enables fast, high-capacity network connections for desktops, printers, VoIP phones, and IP cameras, while the SFP+ and 10GbE uplinks ensure fast connections to core switches, data centers, or cloud platforms. The SFP+ ports provide flexibility for fiber uplinks, while the dual 10GbE ports support high-speed copper Ethernet connections to upstream network devices. This powerful combination offers seamless connectivity for branch offices, enterprise networks, and hybrid cloud deployments.

Power over Ethernet (PoE+) for Simplified Device Connectivity
The HPE 5140 Switch (JL823A) includes 24 PoE+ ports, supporting the IEEE 802.3at standard with up to 30W of power per port. This PoE+ capability allows businesses to power and connect IP devices such as IP phones, wireless access points (APs), IP cameras, and IoT devices over a single Ethernet cable, eliminating the need for additional power adapters. The switch offers a total PoE power budget of 370W, providing enough power to support multiple devices simultaneously. This power efficiency reduces cabling complexity, cuts down installation costs, and simplifies infrastructure management for modern enterprises and branch offices.

Layer 2/3 Switching for Flexible Network Management
The HPE 5140 Comware Switch (JL823A) provides advanced Layer 2 and Layer 3 switching capabilities, enabling businesses to efficiently route and manage network traffic. Layer 2 features include support for VLANs, Link Aggregation (LACP), Spanning Tree Protocol (STP), and IGMP Snooping, providing network segmentation and bandwidth optimization. With Layer 3 routing capabilities, businesses can take advantage of static routing, RIP, OSPF, and DHCP relay, allowing for efficient traffic routing between network segments. This makes the switch a suitable option for enterprises that require dynamic routing and enhanced control over network traffic.

Advanced Security and Network Protection
The HPE Networking Comware Switch 5140 (JL823A) offers advanced security features to safeguard against unauthorized access, malware, and cyberattacks. The switch supports 802.1X Network Access Control (NAC) to restrict access to authorized users and devices. Access Control Lists (ACLs) enable IT administrators to define traffic permissions, while features like DHCP snooping, IP source guard, and ARP protection protect the network from IP spoofing, ARP attacks, and rogue DHCP servers. Additionally, secure management access is provided via SSH, SNMPv3, and RADIUS/TACACS+, ensuring encrypted remote access and centralized control of network devices.

Simplified Network Management with HPE Comware OS
The HPE Comware OS simplifies network management for the HPE 5140 Switch (JL823A), offering multiple management options. IT administrators can manage the switch using a web-based GUI, Command Line Interface (CLI), or network protocols like SNMP. The switch also integrates with HPE Intelligent Management Center (IMC), enabling centralized network monitoring, device configuration, and troubleshooting. This unified management platform provides visibility into multi-site networks, allowing IT teams to detect issues in real time, track performance, and ensure optimal network availability.

Technical Specifications

• Model: HPE Networking Comware Switch 24G PoE+ 2SFP+ 2XGT EI 5140 (JL823A)
• GTIN: 190017429849
• Switch Type: Fully Managed Layer 2/Layer 3 Gigabit Ethernet Switch
• Port Configuration:
  • 24 x 10/100/1000 Mbps PoE+ Ethernet ports (Power over Ethernet, 30W per port)
  • 2 x 10GbE SFP+ uplink ports (for high-speed fiber connectivity)
  • 2 x 10GbE Ethernet ports (for copper Ethernet connections)
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.23 Mpps (million packets per second)
• PoE Power Budget: Supports up to 370W total PoE power (maximum 30W per port)
• Management Options: Web GUI, CLI (Command Line Interface), SNMP, RMON, SSH, and HPE Intelligent Management Center (IMC) support
• Layer 2 Features: VLANs, Spanning Tree Protocol (STP), Link Aggregation (LACP), IGMP Snooping, QoS (Quality of Service)
• Layer 3 Features: Static Routing, RIP, OSPF, DHCP Relay, and VRRP (Virtual Router Redundancy Protocol)
• Security Features: 802.1X Network Access Control, Access Control Lists (ACLs), DHCP Snooping, IP Source Guard, ARP Protection
• Power Supply: Internal power supply with energy-efficient design
• Build Quality: Metal chassis, rack-mountable, with efficient cooling for quiet operation
• Usage: Enterprise networking, hybrid cloud environments, branch offices, IP telephony, and video surveillance
