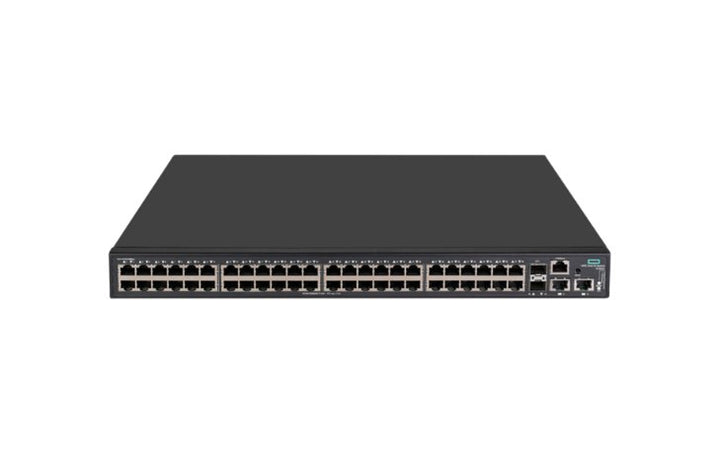

HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140 (JL825A)

HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140 (JL825A) - Lifetime Warranty

HPE Networking Comware Switch 48G PoE+ 2SFP+ 2XGT EI 5140: High-Speed, Power-Efficient Switch for Enterprise Networks
The HPE Networking Comware Switch 48G PoE+ 2SFP+ 2XGT EI 5140 (JL825A) is a fully managed, high-performance Layer 2/3 Ethernet switch designed for enterprise networks, branch offices, and hybrid cloud environments. It features 48 Gigabit Ethernet PoE+ ports, 2 SFP+ 10-Gigabit uplink ports, and 2 10-Gigabit Ethernet (10GbE) ports, offering extensive connectivity, high-speed uplinks, and robust Power over Ethernet (PoE) support. This switch delivers a combination of advanced networking features, including VLANs, link aggregation, Layer 3 routing, and Quality of Service (QoS). Powered by HPE Comware OS, it provides centralized management, enhanced network security, and support for business-critical workloads.

48 Gigabit PoE+ Ports with 2 SFP+ and 2 10GbE Uplinks
The HPE Comware Switch 5140 (JL825A) offers 48 Gigabit Ethernet PoE+ ports (10/100/1000 Mbps), enabling reliable, high-speed network connectivity for workstations, IP phones, wireless access points, and IoT devices. The switch also includes 2 SFP+ 10GbE uplink ports and 2 10GbE Ethernet ports, offering ultra-fast connections to core switches, data centers, and cloud platforms. This versatile port configuration enables businesses to support bandwidth-hungry applications, ensuring fast data transfers, high availability, and low-latency network performance. The 10GbE ports support copper Ethernet connections, while the SFP+ ports support fiber-based uplinks, giving enterprises flexibility in their network design.

Power over Ethernet (PoE+) for Simplified Device Connectivity
The HPE 5140 Switch (JL825A) features 48 Power over Ethernet Plus (PoE+) ports, compliant with the IEEE 802.3at standard. Each PoE+ port delivers up to 30W of power, allowing devices like IP phones, IP cameras, wireless access points (APs), and IoT devices to be powered directly through the Ethernet cable — eliminating the need for separate power adapters. The switch supports a PoE power budget of up to 370W, offering sufficient power to support multiple devices simultaneously. This feature reduces installation complexity, minimizes cable clutter, and simplifies device connectivity for modern smart offices and enterprise networks.

Advanced Layer 2/3 Switching for Flexible Traffic Management
The HPE Comware Switch 5140 (JL825A) supports both Layer 2 and Layer 3 switching, enabling advanced traffic control, routing, and network segmentation. Layer 2 features include support for VLANs, Link Aggregation (LACP), IGMP snooping, and Quality of Service (QoS), ensuring smooth traffic flow and bandwidth optimization. Layer 3 routing enables traffic routing between VLANs and network segments using static routing, RIP, OSPF, and DHCP relay. This capability allows businesses to manage inter-VLAN traffic, enabling faster and more efficient communication between different network segments.

Enterprise-Grade Security for Data Protection
The HPE Networking Comware Switch 5140 (JL825A) offers robust security features to protect against cyberattacks, unauthorized access, and data breaches. The switch supports 802.1X Network Access Control (NAC), which restricts network access to authorized users and devices. Access Control Lists (ACLs) enable administrators to define user permissions, while DHCP snooping, IP source guard, and ARP protection defend against ARP spoofing, IP address hijacking, and rogue DHCP attacks. To ensure secure network management, administrators can access the switch using SSH, SNMPv3, and RADIUS/TACACS+ authentication, ensuring encrypted and secure communication.

Simplified Management with HPE Comware OS
The HPE Comware OS provides a centralized, user-friendly management experience for the HPE 5140 Switch (JL825A). The switch can be configured and monitored using a web-based graphical user interface (GUI), Command Line Interface (CLI), and protocols like SNMP. IT teams can also use HPE Intelligent Management Center (IMC) for centralized network monitoring, management, and automation. IMC allows administrators to troubleshoot devices, manage network traffic, and proactively identify issues in multi-site environments, reducing operational overhead and enhancing network uptime.

Technical Specifications

• Model: HPE Networking Comware Switch 48G PoE+ 2SFP+ 2XGT EI 5140 (JL825A)
• GTIN: 190017429887
• Switch Type: Fully Managed Layer 2/Layer 3 Gigabit Ethernet Switch
• Port Configuration:
  • 48 x 10/100/1000 Mbps Ethernet PoE+ ports (Power over Ethernet, 30W per port)
  • 2 x 10GbE SFP+ uplink ports (for high-speed fiber uplinks)
  • 2 x 10GbE Ethernet ports (for high-speed copper Ethernet connections)
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.95 Mpps (million packets per second)
• PoE Power Budget: 370W total PoE power (30W per port)
• Management Options: Web GUI, CLI (Command Line Interface), SNMP, RMON, SSH, and HPE Intelligent Management Center (IMC) support
• Layer 2 Features: VLANs, Link Aggregation (LACP), IGMP Snooping, QoS (Quality of Service)
• Layer 3 Features: Static Routing, RIP, OSPF, DHCP Relay, and VRRP (Virtual Router Redundancy Protocol)
• Security Features: 802.1X Network Access Control, Access Control Lists (ACLs), DHCP Snooping, IP Source Guard, ARP Protection
• Power Supply: Internal power supply with energy-efficient design
• Build Quality: Metal chassis, rack-mountable, with quiet operation for office use
• Usage: Enterprise networking, IP telephony, hybrid cloud, branch offices, and video surveillance networks
