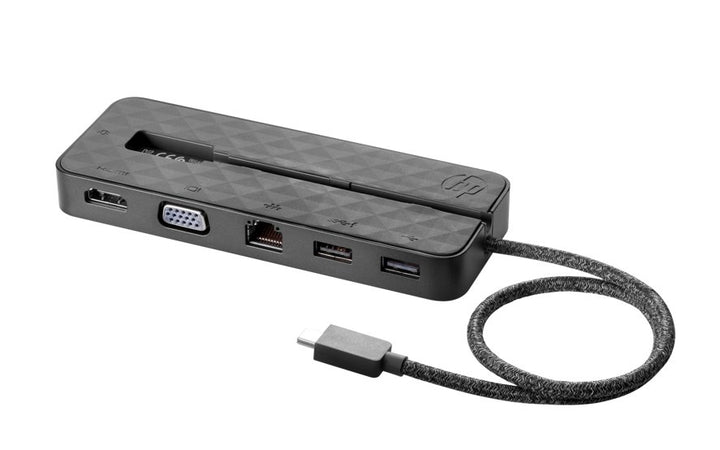

HP® USB-C Mini Dock Portable Docking Station (1PM64AA)
HP® USB-C Mini Dock P/N: 1PM64AA - 1 Year Local Warranty
Check Out New Replacement Model 2023:
HP Universal USB-C Multiport Hub (50H55AA)
Be productive on the go with streamlined, pocket-sized port expansion that’s fashionable and functional. The HP USB-C™ Mini Dock has a modern, textured design and packs pass-through charging[1] and data, video, network, and device connectivity[2] into a compact, portable dock.
Charge your device while you work.
Deliver pass-through charging1 to your notebook PC or tablet when you connect its USB-C™ AC adapter to the dock’s USB-C™ port
Enterprise-class network manageability
Support network manageability3 of your device and the dock with PXE boot support, Wake-on LAN, MAC Address Pass-Through, and LAN/WLAN switching
Expand your workspace
Drive an external display with HDMI support up to 4K or VGA support up to 1080p. Connect to your Gigabit Ethernet through the RJ-45 port and your accessories through a USB-C™2 or USB port
Ultimate mobility
Carry the dock by hand with the soft-coated USB-C™ cable that loops and folds neatly into a channel on the bottom of the dock to become a comfortable wrist strap, or pack it to go in your bag alongside your mobile device
Click or call support
Get the reassurance of a one-year limited warranty
HP® USB-C Mini Dock Unboxing and Review
HP® USB-C Mini Dock Overview: A Travel Dock for All Your Needs
HP® USB-C Mini Dock Tech Specs
|
Manufacturer Part Number: |
Part Number: 1PM64AA / GTIN: 190781715269 | |
|
Normal operation voltage: |
5V |
|
|
Average operation power: |
12V |
|
|
Maximum operation power: |
15V |
|
|
Power Delivery (PD) profiles: |
USB-C 3.0 PD
Supports 90 W, 65 W, 45 W, 15 W, and 10 W USB-C AC adapters
90 W USB-C AC adapter
Supports 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, and 20 V/3 A
65 W USB-C AC adapter
Supports 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, and 20 V/2.25 A
45 W USB-C AC adapter
Supports 5 V/3 A, 9 V/3 A, 12 V/2.3 A, and 15 V/2 A
15 W USB-C AC adapter
Supports 5 V/1 A
10 W USB-C AC adapter
Supports 5 V/0.5 A
|
|
|
Temperature: |
|
|
|
Relative humidity: |
Operating
5% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
|
|
| Altitude: |
Operating
3048 m (10000.0 ft)
Non-operating
9144 m (30000.0 ft)
|
|
| Shock: |
240 G
2 ms
Half-sine
|
|
| Random vibration: |
Operating
0.21 Grms at 5 to 500 Hz
Non-operating
2.09 Grms at 5 to 500 Hz
|
|
|
USB: |
(2) USB-C 3.0 (supports pass-through charging)
|
|
|
Networking: |
(1) RJ-45
PXE boot support
Wake-on LAN
MAC Address Pass-Through
LAN/WLAN switching
|
|
|
Display: |
(1) HDMI
|
|
|
Dimensions: |
144.78 x 55.12 x 17.53 mm (5.7 x 2.17 x 0.69 in)
|
|
|
Weight: |
0.132 kg (0.29 lb)
|
|
|
Contents: |
HP USB-C Mini Dock
Documentation
|
HP® USB-C Mini Dock Features and Ports Availability
HP® USB-C Mini Dock Ports Packaging
Overview
Be productive on the go with modern, streamlined, ultra-portable HP USB-C™ Mini Dock that delivers pass-through charging[1] and data, video, network, and device connectivity.
Features
Deliver pass-through charging1 to your notebook PC or tablet when you connect its USB-C™ AC adapter to the dock’s USB-C™ port.
Support network manageability3 of your device and the dock with PXE boot support, Wake-on LAN, MAC Address Pass-Through, and LAN/WLAN switching.4
Drive an external display with HDMI support up to 4K or VGA support up to 1080p. Connect to your Gigabit Ethernet through the RJ-45 port and your accessories through a USB-C™2 or USB port.
Carry the dock by hand with the soft-coated USB-C™ cable that loops and folds neatly into a channel on the bottom of the dock to become a comfortable wrist strap, or pack it to go in your bag alongside your mobile device.
Get the reassurance of a one-year limited warranty.
Compatible with HP ZHAN 66 Pro A 14 G4 Notebook PC; HP ZHAN 66 Pro A 14 G3 Notebook PC; HP ProBook 640 G7 Notebook PC; HP ProBook 445 G7 Notebook PC; HP ProBook 455 G7 Notebook PC; HP ProBook x360 435 G7 Notebook PC; HP ProBook 450 G7 Notebook PC; HP ProBook 440 G7 Notebook PC; HP ProBook 430 G7 Notebook PC; HP ZHAN 66 Pro 14 G3 Notebook PC; HP ZHAN 66 Pro 15 G3 Notebook PC; HP ProBook 450 G6 Notebook PC; HP ProBook 440 G6 Notebook PC; HP ProBook 430 G6 Notebook PC; HP ZHAN X 13 G2 Notebook PC; HP ProBook x360 440 G1 Notebook PC; HP ProBook 445R G6 Notebook PC HP ProBook 455R G6 Notebook PC HP ProBook 445 G6 Notebook PC; HP ProBook 455 G6 Notebook PC; HP ProBook 470 G5 Notebook PC; HP ProBook 450 G5 Notebook PC; HP ProBook 440 G5 Notebook PC; HP ZHAN 66 Pro G1 Notebook PC; HP ProBook 430 G5 Notebook PC; HP ProBook 640 G8 Notebook PC; HP ProBook 640 G8 Notebook PC; HP ProBook 650 G8 Notebook PC; HP ProBook 650 G7 Notebook PC; HP ProBook 640 G5 Notebook PC; HP ProBook 650 G5 Notebook PC; HP ProBook 640 G4 Notebook PC; HP ProBook 650 G4 Hex Core Notebook PC; HP ProBook 650 G4 Notebook PC; HP ProBook 645 G4 Notebook PC; HP ProBook 640 G3 Notebook PC; HP Pro x2 612 G2; HP EliteBook 840 G5 Healthcare Edition Notebook PC; HP Elite Dragonfly G2 Notebook PC; HP Elite Dragonfly Notebook PC; HP EliteBook x360 1040 G7 Notebook PC; HP EliteBook x360 1030 G7 Notebook PC; HP EliteBook x360 1040 G6 Notebook PC; HP EliteBook x360 1030 G4 Notebook PC; HP EliteBook x360 1040 G5 Notebook PC; HP EliteBook x360 1030 G3 Notebook PC; HP Elite x2 G4 HP Elite x2 1013 G3; HP EliteBook 1040 G4 Notebook PC; HP EliteBook x360 1030 G2 Notebook PC; HP Elite x2 1012 G2; HP EliteBook x360 1020 G2 Notebook PC; HP EliteBook Folio G1 Notebook PC; HP EliteBook 835 G7 Notebook PC; HP EliteBook 845 G7 Notebook PC; HP EliteBook 855 G7 Notebook PC; HP EliteBook x360 830 G7 Notebook PC; HP EliteBook 830 G7 Notebook PC; HP EliteBook 840 G7 Notebook PC; HP EliteBook 850 G7 Notebook PC; HP EliteBook x360 830 G6 Notebook PC; HP EliteBook x360 830 G5 Notebook PC; HP EliteBoo
