HP ScanJet Enterprise Flow N7000 snw1
Shipping calculated at checkout.
PRODUCT DESCRIPTION
HP ScanJet Enterprise Flow N7000 snw1 (6FW10A) - 1 Year Local Warranty

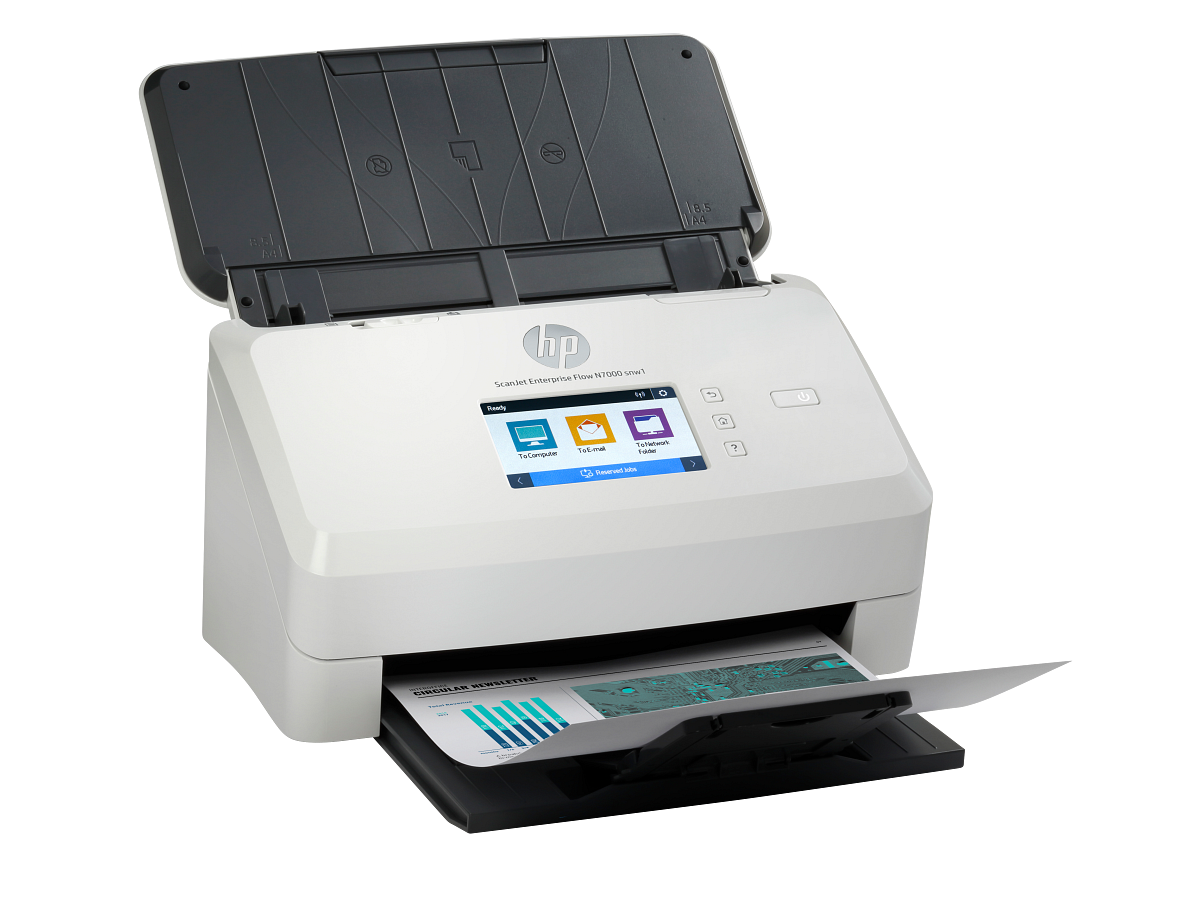

The HP ScanJet Enterprise Flow N7000 snw1 (6FW10A) is a networked sheet-feed document scanner (Ethernet, Wi-Fi). It is supplied by SourceIT as a genuine Singapore unit with 1 year local HP warranty.
High-volume speed
Scan at up to 75 ppm / 150 ipm with an 80-sheet ADF; recommended for 7,500 pages per day.
Ethernet, Wi-Fi and Wi-Fi Direct
Scan over Gigabit Ethernet or Wi-Fi, or connect directly with Wi-Fi Direct.
4.3-inch touchscreen workflows
Send scans to email, network folders, SharePoint, USB or cloud destinations from the touchscreen.
One-pass duplex
Save time with single-pass two-sided scanning and multi-feed detection.
Ideal For
Offices, finance and HR teams, clinics and document-heavy departments in Singapore that need reliable, fast digitisation of paper records. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
ScanJet Enterprise Flow N7000 snw1 Datasheet — Technical Specifications
General
| Model | ScanJet Enterprise Flow N7000 snw1 |
| Official Product Name | HP ScanJet Enterprise Flow N7000 snw1 |
| HP Product Number | 6FW10A |
| Brand | HP |
| Warranty | 1 Year Local Warranty (Singapore) - Next Business Day Exchange |
| Scanner type | Sheetfed |
| Duty cycle (daily) | Recommended daily duty cycle: 7500 pages |
| Processor speed | ARM-1176 666 MHz |
| Memory | 1 GB |
| Display | Resistive, RGB color and 4.3" touch panel with a resolution of 128 dpi (480×272 dots) |
| Control panel | Control panel with a total of four buttons on the right side of the resistive touch panel (sleep/power, home, back, help buttons). |
| Security management | Encrypted scan data, TLS server certificate validation, PIN-protected reserved scan jobs, Encrypted and password-protected device administration, User sign-in at the control panel using PIN codes, Access control for control panel apps based on the user PIN code, No non-volatile storage of scan data |
Scan
| Digital sending standard features | Scan to PC, Scan to USB Drive, Scan to Email, Scan to Network Folder, Scan to SharePoint, Scan to Shortcut, Scan to Cloud |
| Scan resolution, optical | Up to 600 dpi |
| Scan resolution, hardware | 600 x 600 dpi |
| Bit depth | 24-bit (external), 48-bit (internal) |
| Scan file format | For text & images: PDF, PDF/A, Encrypted PDF, JPEG, PNG, BMP, TIFF, Word, Excel, PowerPoint, Text (.txt), Rich Text (.rtf) and Searchable PDF |
| Scan input modes | Two scan modes (simplex/duplex) with 10.9 cm (4.3 inch) Color touch screen on front-panel for HP scan in Win OS, HP Easy Scan/ICA in Mac OS and third parties applications via TWAIN, ISIS and WIA |
| Color scanning | Yes |
| Levels of grayscale | 256 |
| Scan technology | CMOS CIS (Contact Image Sensor) |
| Output resolution dpi settings | 75; 150; 200; 240; 300; 400; 500; 600; 1200 ppi |
| Light source (scanning) | LED |
| Scanner advanced features | Auto exposure, Auto threshold, Auto detect color, Background smooth/removal, Auto detect size, Straighten content, Enhance content, Multi-streaming, Auto feed, Multi-feed detection sensor, Advanced multi-feed detection, Auto orient, Multi-color dropout, Channel color dropout, Edge erase, Delete blank page, Merge pages, Hole fill, Digital stamps, Metadata capture, PDF permissions, Document separation (Blank page, Barcode, Zonal barcode, Zonal OCR) |
ADF
| Automatic document feeder scan speed | Up to 75 ppm/150 ipm |
| Scan size (ADF), maximum | 216 x 3100 mm |
| Scan size (ADF), minimum | 50.8 x 50.8 mm |
| Automatic document feeder capacity | Standard, 80 sheets |
| Duplex ADF scanning | Yes |
| Scanning options (ADF) | Single-pass duplex |
| Multifeed detection | Yes |
Paper Handling
| Media size (ADF) | U.S.-Letter: 215.9 x 279.4 mm (8.5 x 11 in); U.S.-Legal: 215.9 x 355.6 mm (8.5 x 14 in); U.S.-Executive: 184.2 x 266.7 mm (7.25 x 10.5 in); ISO A4: 210 x 297 mm (8.3 x 11.7 in); JIS B5: 182 x 257 mm (7.2 x 10.1 in); ISO B5: 176 x 250 mm (7.0 x 9.9 in); ISO A5: 148 x 210 mm (5.8 x 8.3 in); ISO A6: 105 x 148 mm (5.8 x 4.1 in); ISO A7: 74 x 104 mm (2.9 x 4.1 in); ISO A8: 52 x 74 mm (2.0 x 2.9 in); Custom: 5.08 x 7.36 cm to 21.6 x 309.9 cm (2.0 x 2.9 in to 8.5 x 122 in) |
| Media types | Cut Sheet Paper, Printed Paper (Laser and ink), Pre-Punched Paper, Bank Checks, Business Cards, Freight Bills, Carbonless forms, Plastic Carrier sheets for easily damaged documents, Previously stapled media with staple removed, Plastic cards (up to 1.24 mm) |
| Media weights, supported ADF | 43 to 350 g/m² |
Connectivity

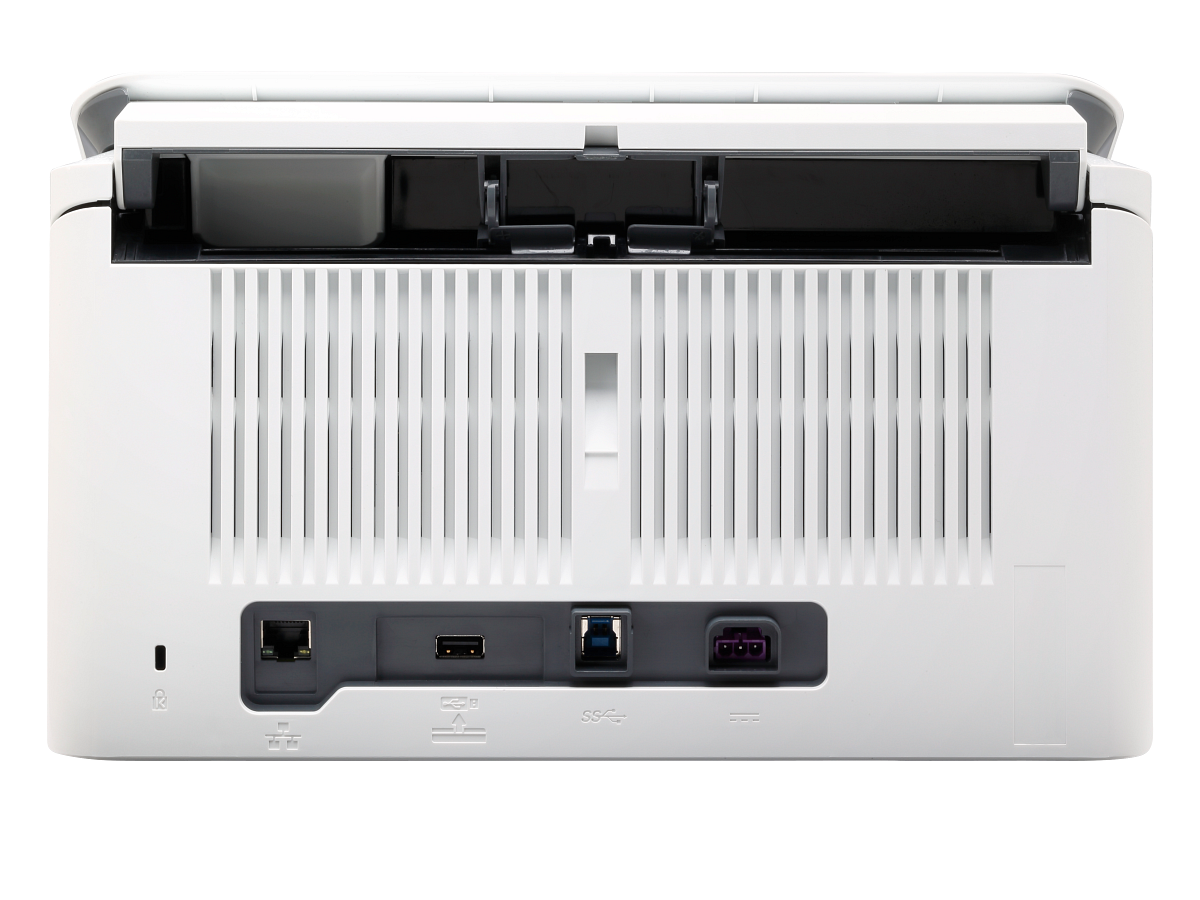

| Connectivity, standard | Ethernet 10/100/1000 Base-T, USB 3.0, WiFi 802.11 b/g/n, WiFi Direct |
| Wireless capability | Yes, WiFi 802.11 b/g/n, WiFi Direct |
| Network protocols, supported | ARP; ICMP; IGMP; UDP; TCP; DHCP; APIPA; DNS; mDNS; LLMNR; WSD; WS-Scan; SNTP; SMB; SNMP; FTP; SFTP; SMTP; HTTP Server Part; HTTPS |
Software & Compatibility
| Compatible Operating Systems | Windows 11; Windows 10; Windows 8.1; Windows 7; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 10.15 Catalina; Linux; Citrix |
| Mac compatible | Yes |
| Minimum System Requirements for Macintosh | macOS Catalina 10.15, macOS Mojave 10.14, macOS High Sierra 10.13; 1 GB HD; Internet required; USB |
| Minimum System Requirements | Microsoft® Windows® 11, 10, 8.1, 7, XP: 32-bit and 64-bit, 2008 R2, 2012 R2, 2016, 2019, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Microsoft® Internet Explorer |
| Twain version | Windows: 32-bit and 64-bit TWAIN version 2.1; Mac: n/a |
| Software included | HP Scan (Premium) software, HP WIA scan driver, HP TWAIN scan driver, HP Scanner Tools Utility, ISIS driver for Windows, HP ICA driver, HP Easy Scan software for MacOS, HPLIP for Linux. |
Power
| Power | Input Voltage range: 90 - 264 VAC, Rated Frequency: 50 - 60HZ, Worldwide use |
| Power supply type | External power adapter |
| Power consumption | 5.8 Watts (ready), 38 Watts (scanning), 1.9 Watts (sleep), 0.1 Watts (auto-off), 0.1 Watts (off) (Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115V device. ) |
Environment
| Operating humidity range | 15 to 80% RH |
| Recommended operating humidity range | 30% to 70% relative humidity (RH) |
| Operating temperature range | 10 to 35°C |
| Operating temperature range | 50 to 95°F |
| Recommended operating temperature range | 17.5 to 25ºC |
| Recommended operating temperature range | 63.5 to 77°F |
| Storage temperature range | -40 to 60°C |
| Storage temperature range | -40 to 140°F |
| Acoustic power emissions (active, printing) | 70 (dB), 7.0 (B) |
Dimensions & Weight
| Dimensions (W x D x H) | 310 x 198 x 190 mm |
| Maximum dimensions (W x D x H) | 310 x 448 x 319 mm |
| Weight | 4.0 kg |
| Package dimensions (W x D x H) | 397 x 248 x 303 mm |
| Package weight | 5.6 kg |
Certifications
| Ecolabels | CECP; ENERGY STAR® 3.0 certified; EPEAT® Silver |
| Energy star certified | Yes |
| Sustainability specifications | RoHS-Compliant |
| Electromagnetic compatibility | CISPR 22:2008 & CISPR 32: 2012/ EN 55032:2012 - Class B, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010, FCC Title 47 CFR, Part 15 Class B / ICES-003, Issue 6, GB9254-2008, GB17625.1-2012 EN 300 328 V2.1.1 |
| Safety | IEC 60950-1:2005 +A1:2009+A2:2013/EN60950-1:2006 +A11:2009 +A1:2010+A12:2011+A2:2013; IEC 62479:2010 / EN 62479:2010; IEC 62471:2006/ EN62471:2008; GB4943-2011 |
Compatibility & Software Support
Compatibility details below are taken from HP's published specifications for the ScanJet Enterprise Flow N7000 snw1. Drivers, software and firmware are available from HP Support (see Datasheet & Downloads).
| Scan file format | For text & images: PDF, PDF/A, Encrypted PDF, JPEG, PNG, BMP, TIFF, Word, Excel, PowerPoint, Text (.txt), Rich Text (.rtf) and Searchable PDF |
| Connectivity, standard | Ethernet 10/100/1000 Base-T, USB 3.0, WiFi 802.11 b/g/n, WiFi Direct |
| Wireless capability | Yes, WiFi 802.11 b/g/n, WiFi Direct |
| Network protocols, supported | ARP; ICMP; IGMP; UDP; TCP; DHCP; APIPA; DNS; mDNS; LLMNR; WSD; WS-Scan; SNTP; SMB; SNMP; FTP; SFTP; SMTP; HTTP Server Part; HTTPS |
| Compatible Operating Systems | Windows 11; Windows 10; Windows 8.1; Windows 7; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 10.15 Catalina; Linux; Citrix |
| Minimum System Requirements for Macintosh | macOS Catalina 10.15, macOS Mojave 10.14, macOS High Sierra 10.13; 1 GB HD; Internet required; USB |
| Minimum System Requirements | Microsoft® Windows® 11, 10, 8.1, 7, XP: 32-bit and 64-bit, 2008 R2, 2012 R2, 2016, 2019, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Microsoft® Internet Explorer |
| Twain version | Windows: 32-bit and 64-bit TWAIN version 2.1; Mac: n/a |
| Software included | HP Scan (Premium) software, HP WIA scan driver, HP TWAIN scan driver, HP Scanner Tools Utility, ISIS driver for Windows, HP ICA driver, HP Easy Scan software for MacOS, HPLIP for Linux. |
Package Contents & Ordering Information
Ordering Information
| Model | ScanJet Enterprise Flow N7000 snw1 |
| HP Product Number | 6FW10A |
| Recommended Retail Price (incl. GST) | S$1,488.00 |
| Scanner Maintenance Kits | HP ScanJet 5000 s4/7000 s3 Roller Replacement Kit |
| Optional HP Care Pack | UD3C3E (extended / upgraded HP service; ask SourceIT for pricing) |
Package Contents
| In the Box | Scanner; power adapter; power cord; USB cable; install guide; flyers |
Datasheet & Downloads
Frequently Asked Questions — ScanJet Enterprise Flow N7000 snw1
What warranty does the ScanJet Enterprise Flow N7000 snw1 come with?
1 Year Local Warranty (Singapore) - Next Business Day Exchange. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice. Optional HP Care Pack UD3C3E is available to extend or upgrade service.
Which maintenance parts does the ScanJet Enterprise Flow N7000 snw1 use?
HP ScanJet 5000 s4/7000 s3 Roller Replacement Kit. Replace rollers and pads at HP's recommended intervals to keep feeding reliable. SourceIT can supply them with the scanner.
Is stock held locally?
SourceIT holds fast-moving HP models in Singapore. Anything not in local stock is ordered through HP's local distribution - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the scanners together with maintenance kits and HP Care Packs, with local warranty and GST invoice.
