HP LaserJet Pro M501dn
Shipping calculated at checkout.
PRODUCT DESCRIPTION

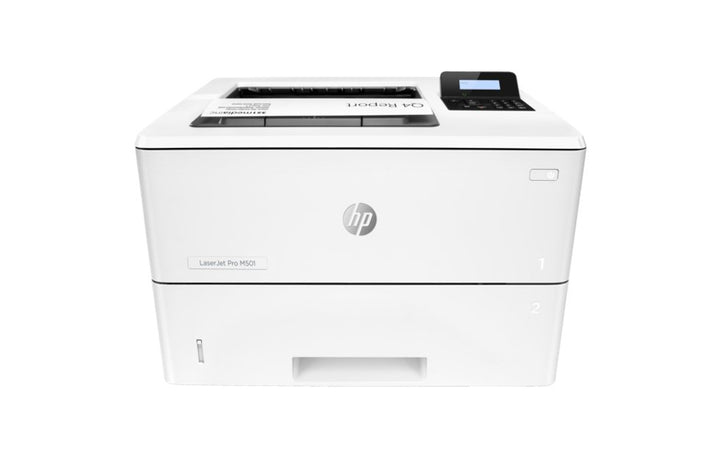

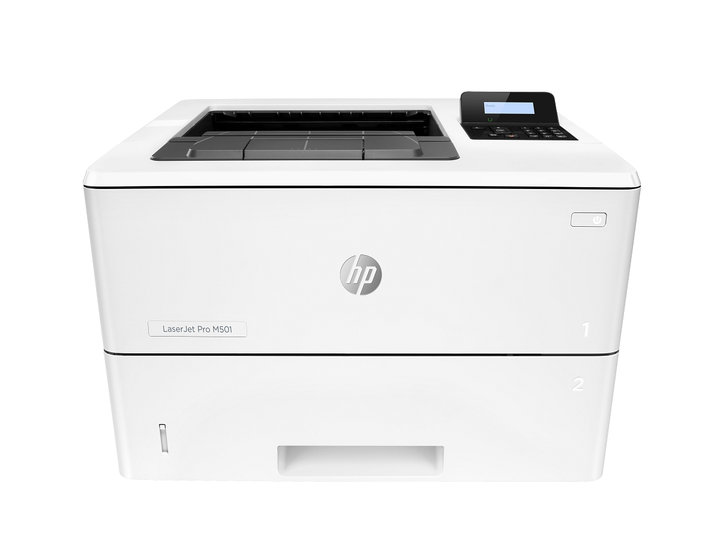

HP LaserJet Pro M501dn (J8H61A) - 3 Years Local Warranty
The HP LaserJet Pro M501dn (J8H61A) is an A4 mono laser printer. It is supplied by SourceIT as a genuine Singapore unit with 3 years local HP warranty.
Big results, small footprint
A compact, quiet printer with fast first page out (as fast as 5.8 seconds) and automatic two-sided printing.
Fast printing
Prints up to 43 ppm (A4), with a 100-sheet multipurpose tray and 550-sheet cassette.
Strong protection, easy fleet management
Embedded security features protect devices, data and documents, and the fleet can be managed centrally.
Original HP toner with JetIntelligence
Original HP toner cartridges with JetIntelligence deliver more high-quality pages.
Ideal For
Offices, workgroups and departments in Singapore that need dependable, secure business printing with predictable running costs. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
LaserJet Pro M501dn Datasheet — Technical Specifications
General
| Model | LaserJet Pro M501dn |
| Official Product Name | HP LaserJet Pro M501dn |
| HP Product Number | J8H61A |
| Brand | HP |
| Warranty | 3 Years Local Warranty (Singapore) - Next Business Day Onsite |
| Functions | |
| Duty cycle (monthly, letter) | Up to 100,000 pages |
| Duty cycle (monthly, A4) | Up to 100,000 pages |
| Recommended monthly page volume | 1500 to 6000 |
| Print speed black (ISO, letter) | Up to 45 ppm |
| Print speed black (ISO, A4) | Up to 43 ppm |
| First page out black (letter, ready) | As fast as 5.7 sec |
| First page out black (A4, ready) | As fast as 5.8 sec |
| Duplex printing | Automatic |
| Print quality black (best) | 600 x 600 dpi, Up to 4800 x 600 enhanced dpi |
| Print languages | HP PCL 5, HP PCL 6, HP postscript level 3 emulation, direct PDF (v 1.7) printing, URF, PCLM, PWG |
| Print technology | Laser |
Connectivity
| Connectivity, standard | Hi-Speed USB 2.0 Host/Device Ports; Fast Ethernet 10Base-T/100Base-Tx, Gigabit Ethernet 1000Base-T |
| Mobile printing capability | HP ePrint; Apple AirPrint™; Mopria™-certified |
| Network ready | Standard (built-in Gigabit Ethernet) |
| Network capabilities | Yes, via built-in 10/100/1000Base-TX Ethernet, Gigabit; Auto-crossover Ethernet; Authentication via 802.1X |
| Wireless capability | No |
Security
| Security management | Embedded Web Server: password-protection, secure browsing via SSL/TLS; Network: enable/disable network ports and features, SNMPv1 & SNMPv2 community password change; HP ePrint: HTTPS with certificate validation, HTTP Basic Access Authentication, SASL authentication; Firewall and ACL; SNMPv3, 802.1X, Secure Boot |
Paper Handling
| Paper handling input, standard | 100-sheet multipurpose tray and 550-sheet main cassette |
| Paper handling output, standard | 250-sheet face down output tray |
| Paper handling input, optional | Optional 550-sheet cassette tray (Tray 3) |
| Finished output handling | Sheetfed |
| Media types | Paper (plain, EcoFFICIENT, light, midweight, intermediate, heavy, extra heavy, bond, cardstock, colored, letterhead, preprinted, prepunched, recycled, rough, ecofficient); envelopes; labels; transparencies |
| Media sizes supported | Tray 1: 10 x 15 cm, 16k (184 x 260 mm), 16k (195 x 270 mm), 16k (197 x 273 mm), A4, A5, A6, Envelope B5, Envelope C5, Custom, Envelope DL, B5 (JIS), B6 (JIS), Japanese Postcard, Double Japan Postcard Rotated, Oficio (216 x 340 mm); Tray 2 & Tray 3: 16k (184 x 260 mm), 16k (195 x 270 mm), 16k (197 x 273 mm), A4, A5, A6, Custom, B5 (JIS), B6 (JIS), Double Japan Postcard Rotated, Oficio (216 x 340 mm) |
| Media sizes, custom | Tray 1: 76.2 x 127 mm to 215.9 x 355.6 mm; Tray 2 & Tray 3: 105 x 148 mm to 215.9 x 355.6 mm |
Processor, Memory & Display
| Display | 2-line LCD (text) |
| Processor speed | 1500 MHz |
| Maximum Memory | 256 MB |
| Memory | 256 MB |
Software & Compatibility
| Minimum System Requirements for Macintosh | Compatible OS (see "Compatible Operating Systems"); Internet connection (for software installation); dedicated USB connection or a network connection (wired or wireless); 1 GB available harddisk space; (For operating system minimum hardware requirements, see the OS manufacturer, such as Apple.com) |
| Minimum System Requirements | Compatible OS (see "Compatible Operating Systems"); CD-ROM drive or Internet connection (for software installation); dedicated USB connection or a network connection (wired or wireless); 1 GB available harddisk space; (For operating system minimum hardware requirements, see the OS manufacturer, such as microsoft.com) |
| Compatible Operating Systems | Windows OS compatible with In-Box Driver; Windows XP SP3 all 32-bit editions (XP Home, XP Pro, etc.), Windows Vista all 32-bit editions (Home Basic, Premium, Professional, etc.), Windows 7 all 32- & 64-bit editions, Windows 8/8.1 all 32- & 64-bit editions (excluding RT OS for Tablets),Windows 10 all 32- & 64-bit editions (excluding RT OS for Tablets); Windows OS compatible with Universal Print Driver (From HP.com); Windows XP SP3 32- & 64-bit editions (XP Home, XP Pro, etc.),Windows Vista all 32- & 64-bit editions (Home Basic, Premium, Professional, etc.),Windows 7 all 32- & 64-bit editions, Windows 8/8.1 all 32- & 64-bit editions (excluding RT OS for Tablets), Windows 10 all 32- & 64-bit editions (excluding RT OS for Tablets); Mac OS (HP Print Drivers available from HP.com and Apple Store); OS X 10.9 Mavericks, OS X 10.10 Yosemite, OS X 10.11 El Capitan; Mobile OS (In-OS drivers); iOS, Android, Windows 8/8.1/10 RT; Linux OS (In-OS HPLIP; SUSE Linux (12.2, 12.3, 13.1), Fedora (17, 18, 19, 20), Linux Mint (13, 14, 15, 16, 17), Boss (3.0, 5.0), Ubuntu (10.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10), Debian (6.0.x, 7.x); Other OS; UNIX |
Power & Environment
| Power consumption | 660 watts (active printing), 6.1 watts (ready), 1.3 (sleep), 0.7 watts (Auto-Off/wake on USB connection, disabled at shipment) 0.1 watts (Auto-Off/Manual-On), 0.1 watts (Manual-Off) |
| Power | Input voltage: 100 to 127 VAC, 60 Hz; Input voltage: 220 to 240 VAC, 50 Hz (Not dual voltage, power supply varies by part number with #option code identifier) |
| Operating humidity range | 10 to 80% RH |
| Recommended operating humidity range | 30 to 70% RH |
| Non-Operating Humidity Range | 10 to 90% RH |
| Operating temperature range | 15 to 32.5ºC |
| Blue Angel compliant | Yes, Blue Angel DE-UZ 219—only ensured when using Original HP supplies |
| Typical electricity consumption (TEC) number | 1.623 kWh/Week (Blue Angel); 0.562 kWh/Week (Energy Star 3.0) |
| Energy savings feature technology | HP Auto-Off Technology; HP Auto-On/Auto-Off Technology; Instant-on Technology; Low-power sleep mode |
| Ecolabels | CECP; Blue Angel; EPEAT® Silver registered; Taiwan Green Mark; ENERGY STAR® certified |
| Energy star certified | Yes |
| Safety | IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 60825-1:2007 / IEC 60825-1:2007 (Class 1 Laser Product); EN 62479:2010 / IEC 62479:2010; Low Voltage Directive 2006/95/EC with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12 Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries |
Dimensions & Weight
| Dimensions (W x D x H) | 418 x 376 x 289 mm |
| Maximum dimensions (W x D x H) | 418 x 639 x 289 mm |
| Weight | 11.6 kg |
In the Box, Supplies & Warranty
| Replacement cartridges | HP 87A Black Original LaserJet Toner Cartridge (~8,550 yield) CF287A, HP 87X Black Original LaserJet Toner Cartridge (~18,000 yield) CF287X |
Compatibility & Software Support
Compatibility details below are taken from HP's published specifications for the LaserJet Pro M501dn. Drivers, software and firmware are available from HP Support (see Datasheet & Downloads).
| Print languages | HP PCL 5, HP PCL 6, HP postscript level 3 emulation, direct PDF (v 1.7) printing, URF, PCLM, PWG |
| Connectivity, standard | Hi-Speed USB 2.0 Host/Device Ports; Fast Ethernet 10Base-T/100Base-Tx, Gigabit Ethernet 1000Base-T |
| Mobile printing capability | HP ePrint; Apple AirPrint™; Mopria™-certified |
| Network ready | Standard (built-in Gigabit Ethernet) |
| Network capabilities | Yes, via built-in 10/100/1000Base-TX Ethernet, Gigabit; Auto-crossover Ethernet; Authentication via 802.1X |
| Wireless capability | No |
| Minimum System Requirements for Macintosh | Compatible OS (see "Compatible Operating Systems"); Internet connection (for software installation); dedicated USB connection or a network connection (wired or wireless); 1 GB available harddisk space; (For operating system minimum hardware requirements, see the OS manufacturer, such as Apple.com) |
| Minimum System Requirements | Compatible OS (see "Compatible Operating Systems"); CD-ROM drive or Internet connection (for software installation); dedicated USB connection or a network connection (wired or wireless); 1 GB available harddisk space; (For operating system minimum hardware requirements, see the OS manufacturer, such as microsoft.com) |
| Compatible Operating Systems | Windows OS compatible with In-Box Driver; Windows XP SP3 all 32-bit editions (XP Home, XP Pro, etc.), Windows Vista all 32-bit editions (Home Basic, Premium, Professional, etc.), Windows 7 all 32- & 64-bit editions, Windows 8/8.1 all 32- & 64-bit editions (excluding RT OS for Tablets),Windows 10 all 32- & 64-bit editions (excluding RT OS for Tablets); Windows OS compatible with Universal Print Driver (From HP.com); Windows XP SP3 32- & 64-bit editions (XP Home, XP Pro, etc.),Windows Vista all 32- & 64-bit editions (Home Basic, Premium, Professional, etc.),Windows 7 all 32- & 64-bit editions, Windows 8/8.1 all 32- & 64-bit editions (excluding RT OS for Tablets), Windows 10 all 32- & 64-bit editions (excluding RT OS for Tablets); Mac OS (HP Print Drivers available from HP.com and Apple Store); OS X 10.9 Mavericks, OS X 10.10 Yosemite, OS X 10.11 El Capitan; Mobile OS (In-OS drivers); iOS, Android, Windows 8/8.1/10 RT; Linux OS (In-OS HPLIP; SUSE Linux (12.2, 12.3, 13.1), Fedora (17, 18, 19, 20), Linux Mint (13, 14, 15, 16, 17), Boss (3.0, 5.0), Ubuntu (10.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10), Debian (6.0.x, 7.x); Other OS; UNIX |
Package Contents & Ordering Information
Ordering Information
| Model | LaserJet Pro M501dn |
| HP Product Number | J8H61A |
| Recommended Retail Price (incl. GST) | S$1,169.90 |
| Consumables | HP 87A Black Original LaserJet Toner Cartridge (~8,550 pages) CF287A; HP 87X Black Original LaserJet Toner Cartridge (~18,000 pages) CF287X |
Package Contents
| In the Box | Printer; preinstalled introductory HP LaserJet toner cartridge (black, ~6,000 pages); installation guide, getting started guide, user's guide, support flyer, warranty guide; software and documentation CD; power cord; USB cable |
Datasheet & Downloads
Frequently Asked Questions — LaserJet Pro M501dn
What warranty does the LaserJet Pro M501dn come with?
3 Years Local Warranty (Singapore) - Next Business Day Onsite. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the LaserJet Pro M501dn use?
HP 87A Black Original LaserJet Toner Cartridge (~8,550 pages) CF287A; HP 87X Black Original LaserJet Toner Cartridge (~18,000 pages) CF287X. Always use genuine HP supplies to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the LaserJet Pro M501dn?
Yes. HP lists the following mobile printing support: HP ePrint; Apple AirPrint™; Mopria™-certified
Is stock held locally?
SourceIT holds fast-moving HP models in Singapore. Anything not in local stock is ordered through HP's local distribution - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables and HP Care Packs, with local warranty and GST invoice.
